Netty 是一个利用 Java 的高级网络的能力，隐藏其背后的复杂性而提供一个易于使用的API的客户端/服务器框架。
可能在此之前你没有接触过，不过不要担心，下面我们通过一个消息推送的例子来看一下netty是怎么使用的。
1.添加Maven依赖
<!-- https://mvnrepository.com/artifact/io.netty/netty-all -->
<dependency>
<groupId>io.netty</groupId>
<artifactId>netty-all</artifactId>
<version>4.1.36.Final</version>
</dependency>
2.设置主启动类
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class MessageSendApplication {
public static void main(String[] args) {
SpringApplication.run(MessageSendApplication.class, args);
try {
new NettyServer(12345).start();
System.out.println("https://blog.csdn.net/moshowgame");
System.out.println("http://127.0.0.1:6688/netty-websocket/index");
} catch (Exception e) {
System.out.println("NettyServerError:" + e.getMessage());
}
}
}
3.NettyServer
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.codec.http.websocketx.WebSocketServerProtocolHandler;
import io.netty.handler.stream.ChunkedWriteHandler;
/**
* NettyServer Netty服务器配置
*/
public class NettyServer {
private final int port;
public NettyServer(int port) {
this.port = port;
}
public void start() throws Exception {
EventLoopGroup bossGroup = new NioEventLoopGroup();
EventLoopGroup group = new NioEventLoopGroup();
try {
ServerBootstrap sb = new ServerBootstrap();
sb.option(ChannelOption.SO_BACKLOG, 1024);
sb.group(group, bossGroup) // 绑定线程池
.channel(NioServerSocketChannel.class) // 指定使用的channel
.localAddress(this.port)// 绑定监听端口
.childHandler(new ChannelInitializer<SocketChannel>() { // 绑定客户端连接时候触发操作
@Override
protected void initChannel(SocketChannel ch) throws Exception {
System.out.println("收到新连接");
//websocket协议本身是基于http协议的，所以这边也要使用http解编码器
ch.pipeline().addLast(new HttpServerCodec());
//以块的方式来写的处理器
ch.pipeline().addLast(new ChunkedWriteHandler());
ch.pipeline().addLast(new HttpObjectAggregator(8192));
ch.pipeline().addLast(new WebSocketServerProtocolHandler("/ws", null, true, 65536 * 10));
ch.pipeline().addLast(new WebSocketHandler());
}
});
ChannelFuture cf = sb.bind().sync(); // 服务器异步创建绑定
System.out.println(NettyServer.class + " 启动正在监听： " + cf.channel().localAddress());
cf.channel().closeFuture().sync(); // 关闭服务器通道
} finally {
group.shutdownGracefully().sync(); // 释放线程池资源
bossGroup.shutdownGracefully().sync();
}
}
}
4.MyChannelHandlerPool
通道组池，管理所有websocket连接
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.util.concurrent.GlobalEventExecutor;
/**
* MyChannelHandlerPool
* 通道组池，管理所有websocket连接
*/
public class MyChannelHandlerPool {
public MyChannelHandlerPool(){}
public static ChannelGroup channelGroup = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);
}
5.WebSocketHandler
处理ws以下几种情况：
- channelActive与客户端建立连接
- channelInactive与客户端断开连接
- channelRead0客户端发送消息处理
import cn.hutool.json.JSONObject;
import cn.hutool.json.JSONUtil;
import com.example.messagesend.netty.NettyConfig;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import io.netty.util.AttributeKey;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
@Component
@ChannelHandler.Sharable
@Slf4j
public class WebSocketHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {
/**
* 一旦连接，第一个被执行
*/
@Override
public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
log.info("有新的客户端链接：[{}]", ctx.channel().id().asLongText());
// 添加到channelGroup 通道组
NettyConfig.getChannelGroup().add(ctx.channel());
}
/**
* 读取数据
*/
@Override
protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) throws Exception {
log.info("服务器收到消息：{}", msg.text());
// 获取用户ID,关联channel
String text = msg.text();
String uid = text.split(":")[0];
String message = text.split(":")[1];
// JSONObject jsonObject = JSONUtil.parseObj(msg.text());
NettyConfig.getChannelMap().put(uid, ctx.channel());
// 将用户ID作为自定义属性加入到channel中，方便随时channel中获取用户ID
AttributeKey<String> key = AttributeKey.valueOf("userId");
ctx.channel().attr(key).setIfAbsent(uid);
// 回复消息
ctx.channel().writeAndFlush(new TextWebSocketFrame(uid+"："+message));
}
@Override
public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
log.info("用户下线了:{}", ctx.channel().id().asLongText());
// 删除通道
NettyConfig.getChannelGroup().remove(ctx.channel());
removeUserId(ctx);
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
log.info("异常：{}", cause.getMessage());
// 删除通道
NettyConfig.getChannelGroup().remove(ctx.channel());
removeUserId(ctx);
ctx.close();
}
/**
* 删除用户与channel的对应关系
*/
private void removeUserId(ChannelHandlerContext ctx) {
AttributeKey<String> key = AttributeKey.valueOf("userId");
String userId = ctx.channel().attr(key).get();
NettyConfig.getChannelMap().remove(userId);
}
}
6.Netty配置
管理全局Channel以及用户对应的channel（推送消息）
import io.netty.channel.Channel;
import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.util.concurrent.GlobalEventExecutor;
import java.util.concurrent.ConcurrentHashMap;
public class NettyConfig {
/**
* 定义全局单利channel组 管理所有channel
*/
private static volatile ChannelGroup channelGroup = null;
/**
* 存放请求ID与channel的对应关系
*/
private static volatile ConcurrentHashMap<String, Channel> channelMap = null;
/**
* 定义两把锁
*/
private static final Object lock1 = new Object();
private static final Object lock2 = new Object();
public static ChannelGroup getChannelGroup() {
if (null == channelGroup) {
synchronized (lock1) {
if (null == channelGroup) {
channelGroup = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);
}
}
}
return channelGroup;
}
public static ConcurrentHashMap<String, Channel> getChannelMap() {
if (null == channelMap) {
synchronized (lock2) {
if (null == channelMap) {
channelMap = new ConcurrentHashMap<>();
}
}
}
return channelMap;
}
public static Channel getChannel(String userId) {
if (null == channelMap) {
return getChannelMap().get(userId);
}
return channelMap.get(userId);
}
}
7.socket.html
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>Netty-Websocket</title>
<script type="text/javascript">
// by zhengkai.blog.csdn.net
var socket;
if (!window.WebSocket) {
window.WebSocket = window.MozWebSocket;
}
if (window.WebSocket) {
socket = new WebSocket("ws://127.0.0.1:12345/ws");
socket.onmessage = function(event) {
var ta = document.getElementById('responseText');
ta.value += event.data + "\r\n";
};
socket.onopen = function(event) {
var ta = document.getElementById('responseText');
ta.value = "Netty-WebSocket服务器。。。。。。连接 \r\n";
};
socket.onclose = function(event) {
var ta = document.getElementById('responseText');
ta.value = "Netty-WebSocket服务器。。。。。。关闭 \r\n";
};
} else {
alert("您的浏览器不支持WebSocket协议！");
}
function send(message) {
if (!window.WebSocket) {
return;
}
if (socket.readyState == WebSocket.OPEN) {
socket.send(message);
} else {
alert("WebSocket 连接没有建立成功！");
}
}
</script>
</head>
<body>
<form onSubmit="return false;">
<label>ID</label><input type="text" name="uid" value="${uid!!}" /> <br />
<label>TEXT</label><input type="text" name="message" value="这里输入消息" /> <br />
<br /> <input type="button" value="发送ws消息" onClick="send(this.form.uid.value+':'+this.form.message.value)" />
<hr color="black" />
<h3>服务端返回的应答消息</h3>
<textarea id="responseText" style="width: 1024px;height: 300px;"></textarea>
</form>
</body>
</html>
8.Controller
写好了html当然还需要一个controller来引导页面。
import cn.hutool.core.util.RandomUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.servlet.ModelAndView;
@RestController
public class TestController {
@GetMapping("/index")
public ModelAndView index() {
ModelAndView mav = new ModelAndView("socket");
mav.addObject("uid", RandomUtil.randomNumbers(6));
return mav;
}
}

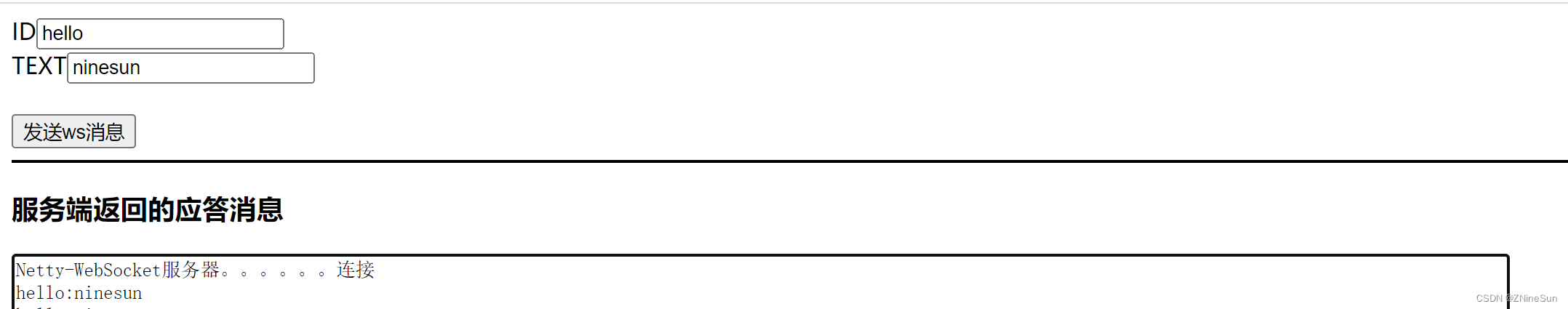

下面我们打开页面测试一下
9.改造netty支持url参数
我们重新写一个WebSocketHandler:MyWebSocketHandler，然后调整加载handler的顺序,优先MyWebSocketHandler在WebSocketServerProtocolHandler之上。
改造MyWebSocketHandler的channelRead方法，首次连接会是一个FullHttpRequest类型，可以通过FullHttpRequest.uri()获取完整ws的URL地址，之后接受信息的话，会是一个TextWebSocketFrame类型。
MyWebSocketHandler:
import com.alibaba.fastjson.JSON;
import com.example.messagesend.netty.MyChannelHandlerPool;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.handler.codec.http.FullHttpRequest;
import io.netty.handler.codec.http.websocketx.TextWebSocketFrame;
import java.util.HashMap;
import java.util.Map;
public class MyWebSocketHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
System.out.println("与客户端建立连接，通道开启！");
//添加到channelGroup通道组
MyChannelHandlerPool.channelGroup.add(ctx.channel());
}
@Override
public void channelInactive(ChannelHandlerContext ctx) throws Exception {
System.out.println("与客户端断开连接，通道关闭！");
//添加到channelGroup 通道组
MyChannelHandlerPool.channelGroup.remove(ctx.channel());
}
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
//首次连接是FullHttpRequest，处理参数 by zhengkai.blog.csdn.net
if (null != msg && msg instanceof FullHttpRequest) {
FullHttpRequest request = (FullHttpRequest) msg;
String uri = request.uri();
Map paramMap=getUrlParams(uri);
System.out.println("接收到的参数是："+ JSON.toJSONString(paramMap));
//如果url包含参数，需要处理
if(uri.contains("?")){
String newUri=uri.substring(0,uri.indexOf("?"));
System.out.println(newUri);
request.setUri(newUri);
}
}else if(msg instanceof TextWebSocketFrame){
//正常的TEXT消息类型
TextWebSocketFrame frame=(TextWebSocketFrame)msg;
System.out.println("客户端收到服务器数据：" +frame.text());
sendAllMessage(frame.text());
}
super.channelRead(ctx, msg);
}
@Override
protected void channelRead0(ChannelHandlerContext channelHandlerContext, TextWebSocketFrame textWebSocketFrame) throws Exception {
}
private void sendAllMessage(String message){
//收到信息后，群发给所有channel
MyChannelHandlerPool.channelGroup.writeAndFlush( new TextWebSocketFrame(message));
}
private static Map getUrlParams(String url){
Map<String,String> map = new HashMap<>();
url = url.replace("?",";");
if (!url.contains(";")){
return map;
}
if (url.split(";").length > 0){
String[] arr = url.split(";")[1].split("&");
for (String s : arr){
String key = s.split("=")[0];
String value = s.split("=")[1];
map.put(key,value);
}
return map;
}else{
return map;
}
}
}
然后在 NettyServer中调整顺序：
我们html中的socket连接地址也需要改一下：
socket = new WebSocket("ws://127.0.0.1:12345/ws?uid=666&gid=777");
接着重新运行一下，看看我们控制台的效果：
