简介

The Kubernetes Ingress Controller, The Custom Resource Way.

In early versions, Traefik supported Kubernetes only through the Kubernetes Ingress provider, which is a Kubernetes Ingress controller in the strict sense of the term.

However, as the community expressed the need to benefit from Traefik features without resorting to (lots of) annotations, the Traefik engineering team developed a Custom Resource Definition (CRD) for an IngressRoute type, defined below, in order to provide a better way to configure access to a Kubernetes cluster.

资源交付

创建CRD和RBAC

https://doc.traefik.io/traefik/providers/kubernetes-crd/

The apiextensions.k8s.io/v1beta1 CustomResourceDefinition is deprecated in Kubernetes v1.16+ and will be removed in v1.22+.For Kubernetes v1.16+, please use the Traefik apiextensions.k8s.io/v1 CRDs instead.

# Install Traefik Resource Definitions:
kubectl apply -f https://raw.githubusercontent.com/traefik/traefik/v2.9/docs/content/reference/dynamic-configuration/kubernetes-crd-definition-v1.yml

# Install RBAC for Traefik:
kubectl apply -f https://raw.githubusercontent.com/traefik/traefik/v2.9/docs/content/reference/dynamic-configuration/kubernetes-crd-rbac.yml

示例yml：
cat kubernetes-crd-rbac.yml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: traefik-ingress-controller

rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io
    resources:
      - ingresses
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - traefik.containo.us
    resources:
      - middlewares
      - middlewaretcps
      - ingressroutes
      - traefikservices
      - ingressroutetcps
      - ingressrouteudps
      - tlsoptions
      - tlsstores
      - serverstransports
    verbs:
      - get
      - list
      - watch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: traefik-ingress-controller

roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik-ingress-controller
subjects:
  - kind: ServiceAccount
    name: traefik-ingress-controller
    namespace: traefik

在这里插入图片描述

创建ConfigMap

cat traefik-config.yaml
kind: ConfigMap
apiVersion: v1
metadata:
  name: traefik-config
  namespace: traefik
data:
  traefik.yaml: |-
    global:
      checkNewVersion: false    # 周期性的检查是否有新版本发布
      sendAnonymousUsage: false # 周期性的匿名发送使用统计信息
    serversTransport:
      insecureSkipVerify: true  # Traefik忽略验证代理服务的TLS证书
    api:
      insecure: true            # 允许HTTP 方式访问API
      dashboard: true           # 启用Dashboard
      debug: false              # 启用Debug调试模式
    metrics:
      prometheus:               # 配置Prometheus监控指标数据，并使用默认配置
        addRoutersLabels: true  # 添加routers metrics
        entryPoint: "metrics"   # 指定metrics监听地址
    entryPoints:
      web:
        address: ":80"          # 配置80端口，并设置入口名称为web
        forwardedHeaders:
          insecure: true        # 信任所有的forward headers
      websecure:
        address: ":443"         # 配置443端口，并设置入口名称为 websecure
        forwardedHeaders:
          insecure: true
      traefik:
        address: ":9000"        # 配置9000端口，并设置入口名称为 dashboard
      metrics:
        address: ":9101"        # 配置9100端口，作为metrics收集入口
      tcpep:
        address: ":9200"        # 配置9200端口，作为tcp入口
      udpep:
        address: ":9300/udp"    # 配置9300端口，作为udp入口
    providers:
      kubernetesCRD:            # 启用Kubernetes CRD方式来配置路由规则
        ingressClass: ""
        allowCrossNamespace: true   #允许跨namespace
        allowEmptyServices: true    #允许空endpoints的service
    log:
      filePath: "/etc/traefik/logs/traefik.log" # 设置调试日志文件存储路径，如果为空则输出到控制台
      level: "INFO"             # 设置调试日志级别
      format: "common"          # 设置调试日志格式
    accessLog:
      filePath: "/etc/traefik/logs/access.log" # 设置访问日志文件存储路径，如果为空则输出到控制台
      format: "common"          # 设置访问调试日志格式
      bufferingSize: 0          # 设置访问日志缓存行数
      filters:
        statusCodes: ["200"]   # 设置只保留指定状态码范围内的访问日志
        retryAttempts: true     # 设置代理访问重试失败时，保留访问日志
        minDuration: 20         # 设置保留请求时间超过指定持续时间的访问日志
      fields:                   # 设置访问日志中的字段是否保留（keep保留、drop不保留）
        defaultMode: keep       # 设置默认保留访问日志字段
        names:                  # 针对访问日志特别字段特别配置保留模式
          ClientUsername: drop
          StartUTC: drop        # 禁用日志timestamp使用UTC
        headers:                # 设置Header中字段是否保留
          defaultMode: keep     # 设置默认保留Header中字段
          names:                # 针对Header中特别字段特别配置保留模式
            #User-Agent: redact # 可以针对指定agent
            Authorization: drop
            Content-Type: keep

创建Deployment

cat traefik-deployment.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  namespace: traefik
  name: traefik-ingress-controller
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: traefik-ingress-controller
  namespace: traefik
  labels:
    app: traefik
spec:
  replicas: 1
  selector:
    matchLabels:
      app: traefik
  template:
    metadata:
      name: traefik
      labels:
        app: traefik
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 1
      containers:
      - name: traefik
        image: traefik:v2.9
        env:
        - name: KUBERNETES_SERVICE_HOST       # 手动指定k8s api地址,避免网络组件不稳定。
          value: "x.x.x.x"
        - name: KUBERNETES_SERVICE_PORT_HTTPS # API server端口
          value: "6443"
        - name: KUBERNETES_SERVICE_PORT       # API server端口
          value: "6443"
        - name: TZ                            # 指定时区
          value: "Asia/Shanghai"
        ports:
          - name: web
            containerPort: 80
            hostPort: 80                      # 将容器端口绑定所在服务器的 80 端口
          - name: websecure
            containerPort: 443
            hostPort: 443                     # 将容器端口绑定所在服务器的 443 端口
          - name: admin
            containerPort: 9000               # Traefik Dashboard 端口
          - name: metrics
            containerPort: 9101               # metrics端口
          - name: tcpep
            containerPort: 9200               # tcp端口
          - name: udpep
            containerPort: 9300               # udp端口
        securityContext:                      # 只开放网络权限
          capabilities:
            drop:
              - ALL
            add:
              - NET_BIND_SERVICE
        args:
          - --configfile=/etc/traefik/config/traefik.yaml
        volumeMounts:
        - mountPath: /etc/traefik/config
          name: config
        - mountPath: /etc/traefik/logs
          name: logdir
        - mountPath: /etc/localtime
          name: timezone
          readOnly: true
      volumes:
        - name: config
          configMap:
            name: traefik-config
        - name: logdir
          hostPath:
            path: /data/traefik/logs
            type: "DirectoryOrCreate"
        - name: timezone                       #挂载时区文件
          hostPath:
            path: /etc/localtime
            type: File
      tolerations:                             # 设置容忍所有污点，防止节点被设置污点
        - operator: "Exists"
      hostNetwork: true                        # 开启host网络，提高网络入口的网络性能
      nodeSelector:                            # 设置node筛选器，在特定label的节点上启动
        IngressProxy: "true"                   # 调度至IngressProxy: "true"的节点

创建Service

cat traefik-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: traefik
  namespace: traefik
spec:
  type: NodePort    # 官网示例为ClusterIP,此处为NodePort
  selector:
    app: traefik
  ports:
    - name: web
      protocol: TCP
      port: 80
      targetPort: 80
    - name: websecure
      protocol: TCP
      port: 443
      targetPort: 443
    - name: admin
      protocol: TCP
      port: 9000
      targetPort: 9000
    - name: metrics
      protocol: TCP
      port: 9101
      targetPort: 9101
    - name: tcpep
      protocol: TCP
      port: 9200
      targetPort: 9200
    - name: udpep
      protocol: UDP
      port: 9300
      targetPort: 9300

在这里插入图片描述

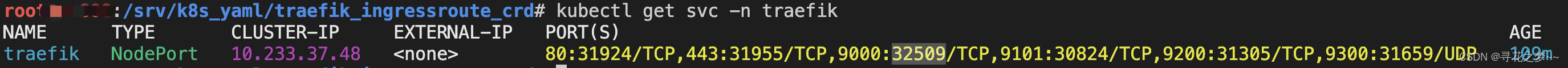

通过NodePort暴露的端口进行访问即可！

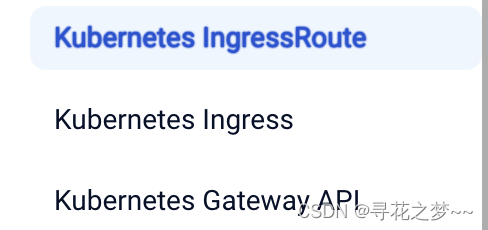

Traefik创建路由规则有以下三种方式，相较于原生Ingress规则，ingressRoute是2.1以后新增功能，简单来说，他们都支持路径(path)路由和域名(host)HTTP路由，以及HTTPS配置，区别在于IngressRoute需要定义CRD扩展，但是它支持了TCP、UDP路由以及中间件等高级特性，强烈推荐使用ingressRoute

在这里插入图片描述

创建traefik-dashboard-ingressroute

# cat traefik-dashboard-ingressroute.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: traefik-dashboard-route
  namespace: traefik
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`traefik.dashboard.com`)
      kind: Rule
      services:
        - name: api@internal
          kind: TraefikService
