SpringMVC-整合详解

MVC

  • 什么是MVC?

它是一种开发模式，它是模型视图控制器的简称。所有的web应用都是基于MVC开发的

  • M: 模型层，它是模型视图控制器的简称。所有的web应用都是基于MVC开发

  • V: 视图层,html、javascript、vue等都是视图层，用来显示数据

  • C: 控制器,它是用来接受客户端的请求，并返回响应到客户端的组件，Servlet就是组件

SpringMVC 框架的有点

  • 轻量级，基于MVC的框架
  • 易于上手，容易理解，功能强大
  • 它具备IoC和AOP
  • 完全基于注解开发

基于注解的 SpringMVC 框架开发的步骤

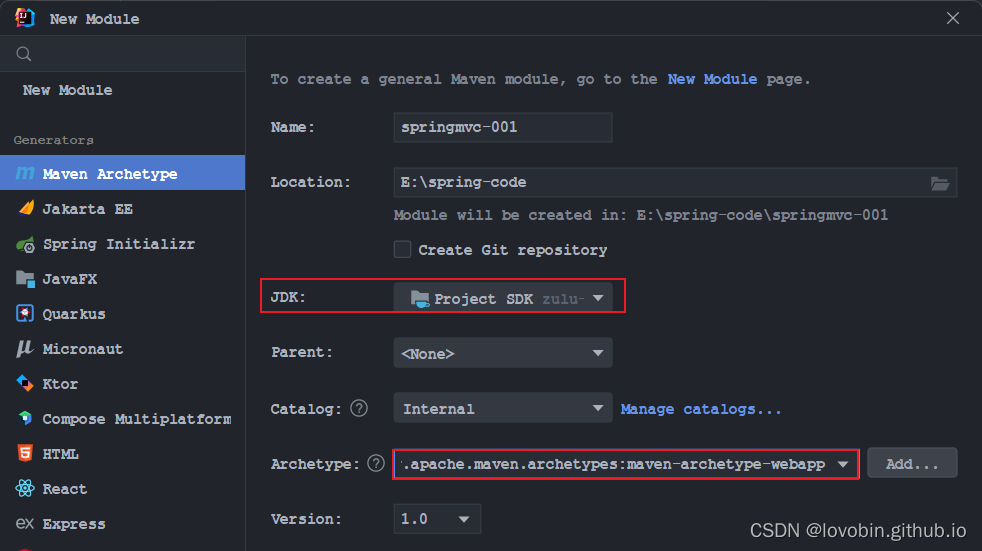

  1. 新建maven项目,选择模板webapp
创建项目

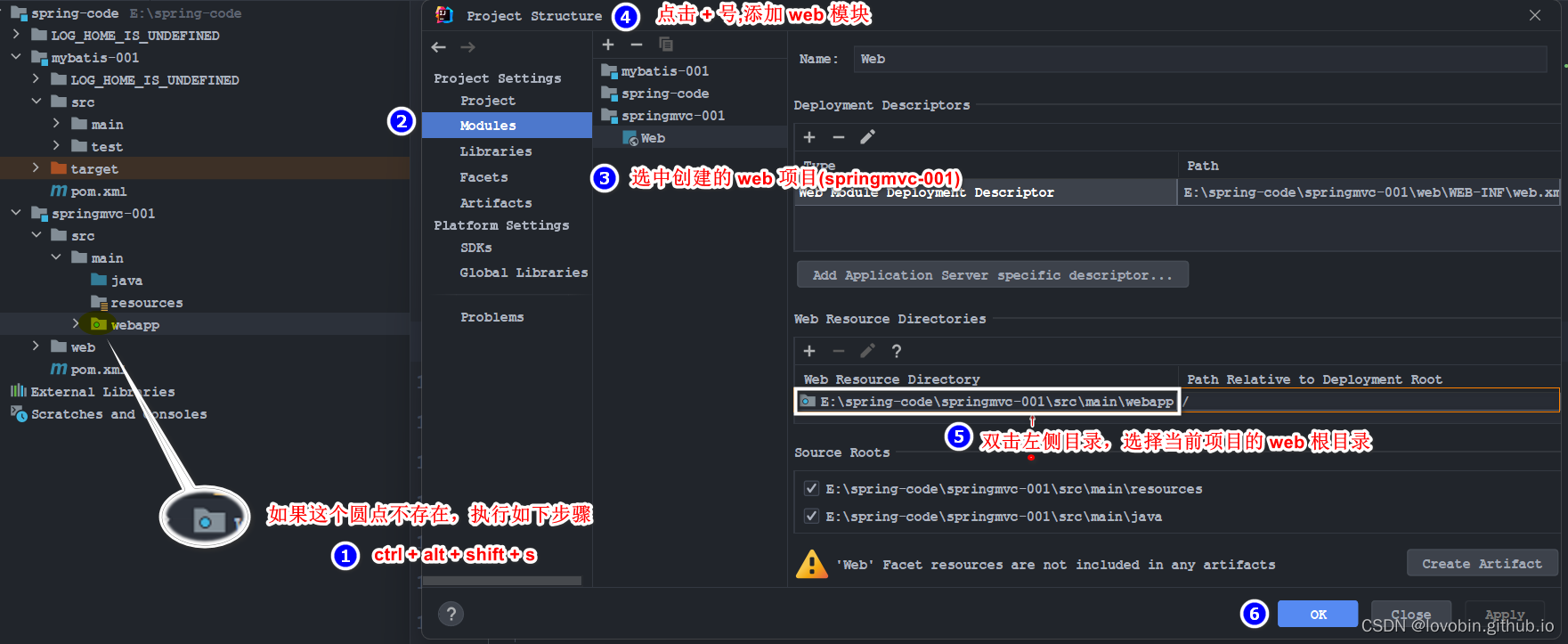

  1. 修改目录，添加缺失目录，并修改目录属性
添加java目录...，webapp目录配置
  1. 修改pom.xml,添加SpringMVC、Servlet的依赖
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.example</groupId>

    <artifactId>springmvc-001</artifactId>
    <packaging>war</packaging>
    <version>1.0-SNAPSHOT</version>

    <!-- 编译环境 -->
    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- 测试 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
            <scope>test</scope>
        </dependency>
        <!-- springmvc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.3.23</version>
        </dependency>
        <!-- servlet -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>4.0.1</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>
    <build>
        <!-- 打包后的名称 -->
        <finalName>springmvc-001</finalName>
        <!-- 资源文件扫描的配置 -->
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                    <include>**/*.properties</include>
                </includes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.xml</include>
                    <include>**/*.properties</include>
                </includes>
            </resource>
        </resources>
    </build>
</project>
  1. 添加springmvc.xml配置文件，指定包扫描，添加视图解析器
<!-- xml 文件就是 spring 的 xml 文件约束  xml 不允许首行注释, 配置名称: resources/springmvc.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 配置包扫描 -->
    <context:component-scan base-package="com.example"/>
    <!-- 配置视图解析器 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- 配置前缀 -->
        <property name="prefix" value="/admin/"/>
        <!-- 配置后缀 -->
        <property name="suffix" value=".jsp"/>
    </bean>
</beans>

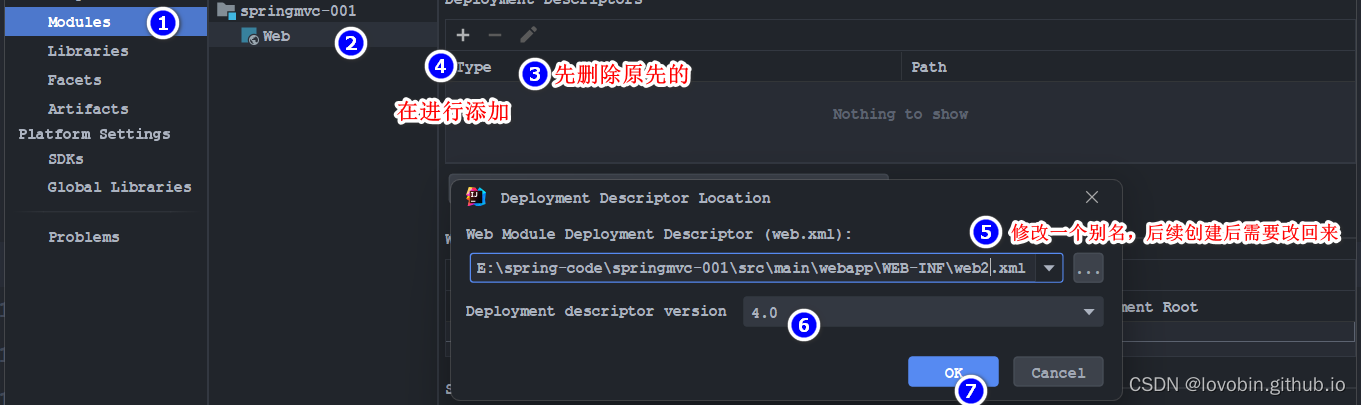

  1. 删除wen.xml文件(版本过低),新建web.xml
web.xml
  1. 在web.xml文件中注册springmvc框架(所有的web请求都是基于servlet的)
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!-- 注册 springwvc -->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <!-- 交给谁处理 -->
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- 引入 springmvc 配置 -->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <!-- 映射 -->
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <!-- 拦截什么样的请求 -->
        <url-pattern>*.action</url-pattern>
    </servlet-mapping>
</web-app>
  1. 删除index.jsp，并新建，发送请求给服务器
<!-- index.jsp -->
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
</head>
<body>
<a href="${pageContext.request.contextPath}/main.action">访问 main </a>
</body>
</html>
  1. 在webapp目录下新建admin目录(根据配置文件中的需要添加),在admin/admin.jsp,删除index.jsp,并新建
<!-- /admin/admin.jsp -->
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Admin-Page</title>
</head>
<body>
<h1>show admin.............................</h1>
</body>
</html>
  1. 开发控制器(Servlet)，它是一个普通的类
package com.example.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class MainController {
    @RequestMapping("/main.action")
    public String main() {
        return "admin";
    }
}

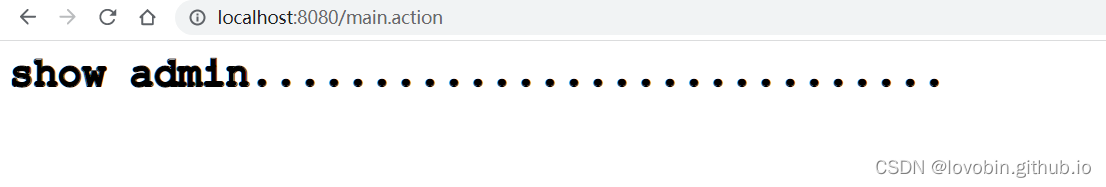

  1. Tomcat启动测试
测试请求

  • 注意点

    在这些步骤的前提下，如果访问出现404，那么进行IDEA缓存清除，重新构建，再次启动测试

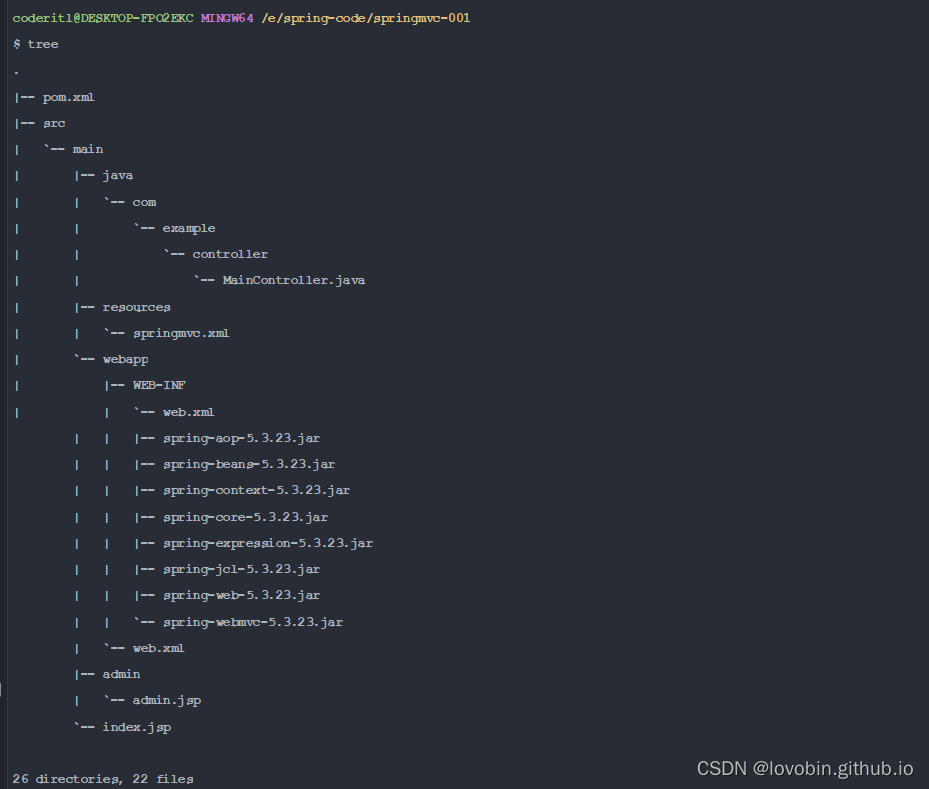

  • 项目目录结构

当前目录结构

五种数据提交方式的优化

  • 单个提交数据
<%-- 单个提交数据 --%>
<form action="/user.do" method="post">
    <input type="text" name="myname">
    <input type="number" name="age">
    <input type="submit" value="提交">
</form>

@RequestMapping("/user.do")
public String user(String myname, int age) {
    System.out.println(myname + " " + (age + 10));
    return "admin";
}
  • 对象封装提交数据
// 实体类
package com.example.entity;

import lombok.Data;

@Data
public class User {
    private String username;
    private Integer age;
}


@RequestMapping("/pojo.do")
public String user(User user) {
    System.out.println(user.getUsername() + " " + (user.getAge() + 10));
    return "admin";
}

<%-- 2. 对象封装提交 --%>
<form action="/pojo.do" method="post">
    <input type="text" name="username">
    <input type="number" name="age">
    <input type="submit" value="提交">
</form>
  • 动态占位符
<a href="${pageContext.request.contextPath}/test/zs/19.do">占位符</a>

@RequestMapping("/test/{username}/{age}.do")
public String TestDo(@PathVariable("username") String username, @PathVariable("age") int age) {
    System.out.println(username + (age));
    return "admin";
}
  • 映射名称不一致提交
<form action="/nomapping.do" method="post">
    <input type="text" name="username">
    <input type="number" name="age">
    <input type="submit" value="提交">
</form>

// 通过 @RequestParam 将 username 注给 uname
@RequestMapping("/nomapping.do")
public String NoMapping(
    @RequestParam("username")
    String uname,
    @RequestParam("age")
    int ahe
) {
    System.out.println(uname + " " + (ahe));
    return "admin";
}

中文编码配置

  • web.xml中配置过滤器，建议写在顶部
<filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <!--
              查看 CharacterEncodingFilter 的源码得知，以下三个属性需要重新设置:
                    private String encoding;
                    private boolean forceRequestEncoding;
                    private boolean forceResponseEncoding;
        -->
    <init-param>
        <param-name>encoding</param-name>
        <param-value>UTF-8</param-value>
    </init-param>
    <!-- 请求的编码 -->
    <init-param>
        <param-name>forceRequestEncoding</param-name>
        <param-value>true</param-value>
    </init-param>
    <!-- 响应的编码 -->
    <init-param>
        <param-name>forceResponseEncoding</param-name>
        <param-value>true</param-value>
    </init-param>
</filter>
<filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

方法的返回值

  1. String: 客户端资源的地址，自动拼接前缀和后缀，还可以屏蔽自动拼接字符串，可以指定返回的路径
  2. Object: 返回json格式的对象。自动将对象或集合转为json，使用jackson工具进行转换，必须要添加jackson依赖。一般用于ajax请求
  3. void: 无返回值，一般用于ajax请求
  4. 基本数据类型,用于ajax请求
  5. ModelAndView: 返回数据和视图对象，现在用的很少

完成 Ajax 请求访问服务器,返回学生集合

  1. 添加jackson依赖
<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.13.4.2</version>
</dependency>
  1. 在webapp目录下新建js目录,添加axios函数库
<script src="https://cdn.jsdelivr.net/npm/axios/dist/axios.min.js"></script>
  1. 在index.jsp页面上导入函数库
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
    <script src="https://cdn.jsdelivr.net/npm/axios/dist/axios.min.js"></script>
</head>
<body>
<script>
    axios({
        method: 'get',
        url: '${pageContext.request.contextPath}/list.do',
    }).then(res => {
        console.log(JSON.stringify(res.data))
    });
</script>
</body>
</html>
  1. 在action上添加注解@ResponseBody，用来处理ajax请求
package com.example.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.ArrayList;
import java.util.Collections;
import java.util.List;

@Controller
public class UserController {
    @ResponseBody
    @RequestMapping("/list.do")
    public List<String> list() {
        List<String> list = new ArrayList<>();
        Collections.addAll(list, "aa", "bb", "cc", "dd");
        return list;
    }
}
  1. 在springmvc.xml文件中添加注解驱动<mvc:annotationdriven/>，用它来解析@RespinseBody注解
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- 配置包扫描 -->
    <context:component-scan base-package="com.example"/>
    <!-- 不用添加视图解析器,因为处理的是 ajax 请求 -->

    <!-- 要添加 mvc 的 mvc:annotation-driven -->
    <mvc:annotation-driven/>
</beans>

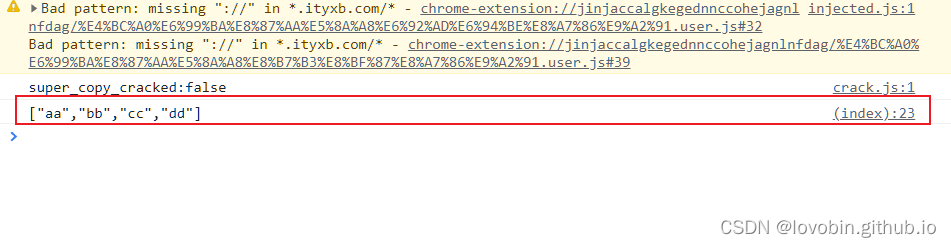

  1. 访问测试
控制台输出

日期处理

  • 单个日期处理

要使用注解@DateTimeFormat，此注解必须搭配springmvc.xml中的<mvc:annotationdriven>

<form action="${pageContext.request.contextPath}/mydate.do" method="post">
    <input type="date" name="mydate">
    <input type="submit" value="提交">
</form>

package com.example.controller;

import org.springframework.format.annotation.DateTimeFormat;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import java.text.SimpleDateFormat;
import java.util.Date;

@Controller
public class DateController {
    SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");
    @RequestMapping("/mydate.do")
    public String myDate(
            @DateTimeFormat(pattern = "yyyy-MM-dd")
            Date mydate) {
        System.out.println(sdf.format(mydate));
        return "admin";
    }
}
  • 类中全局日期处理
package com.example.controller;

import org.springframework.beans.propertyeditors.CustomDateEditor;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.WebDataBinder;
import org.springframework.web.bind.annotation.InitBinder;
import org.springframework.web.bind.annotation.RequestMapping;

import java.text.SimpleDateFormat;
import java.util.Date;

@Controller
public class DateController {
    SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");

    // 注册一个全局的日期处理注解
    @InitBinder
    public void initBinder(WebDataBinder dataBinder) {
        dataBinder.registerCustomEditor(Date.class, new CustomDateEditor(sdf, true));
    }

    @RequestMapping("/mydate.do")
    public String myDate(Date mydate) {
        System.out.println(sdf.format(mydate));
        return "admin";
    }
}

  • 如果一个类的成员属性是日期格式,可以在类的成员 setXX添加注解 @DateTimeFormat(pattern = "yyyy-MM-dd")

  • 如果是json类型,需要在类中的成员变量getXXX方法上添加注解@JsonFormat(pattern="yyyy-MM-dd")

WEB-INF 资源

  • 此目录下的动态资源，不可以直接访问，只能通过请求转发的方式进行访问

  • 修改springmvc.xml配置

<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
  <property name="prefix" value="/WEB-INF/jsp/"/>
  <property name="suffix" value=".jsp"/>
</bean>

<a href="${pageContext.request.contextPath}/showMain.do">WEB-INF/main</a>

package com.example.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class WebInfController {
  @RequestMapping("/showMain.do")
  public String showMain() {
      return "main";
  }
}

拦截器

  • 什么是拦截器

针对请求和响应进行的额外处理。在请求和响应的过程中添加预处理，后处理和最终处理

  • 拦截器的执行时机

  • preHandle: 在请求被处理之前进行操作

  • postHandle: 在请求被处理之后，但结果还没有渲染前进行操作，可以改变响应结果

  • afterCompletion: 所有的请求响应结束后执行善后工作，清理对象，关闭资源

  • 拦截器实现的两种方式

  • 集成HandlerIntercepterAdpater的父类

  • 实现HandlerInterceptor接口【推荐使用实现接口的方式】

  • 登录拦截器实现的步骤

  1. 改造登录方法,在session中存储用户信息，用于进行权限验证

    package com.example.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.servlet.http.HttpServletRequest;

@Controller
public class WebInfController {
    @RequestMapping("/showLogin")
    public String showLogin() {
        return "login";
    }
    @RequestMapping("/main.do")
    public String showMain(String username, String password, HttpServletRequest request) {
        if ("coder-itl".equalsIgnoreCase(username) && "coder-itl".equalsIgnoreCase(password)) {
            request.getSession().setAttribute("username", username);
            return "main";
        } else {
            request.setAttribute("msg", "用户名和密码错误");
            return "login";
        }
    }

}

  2. 开发拦截器的功能，实现HandlerInterceptor接口，重写preHandle方法

    package com.example.intercepter;

import org.springframework.web.servlet.HandlerInterceptor;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

// TODO: 无法实现跳转
public class LoginInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        if (request.getSession().getAttribute("username") == null) {
            // 没有登陆
            request.setAttribute("msg", "您还未登录,请先登录!");
            request.getRequestDispatcher("/WEB-INF/jsp/login.jsp").forward(request, response);
            return false;
        }
        // 登录成功放行
        return true;
    }
}

  3. 在springmvc.xml文件中注册拦截器

    <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- 配置包扫描 -->
    <context:component-scan base-package="com.example"/>
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
    <!-- 要添加 mvc 的 mvc:annotation-driven -->
    <mvc:annotation-driven/>
    <mvc:interceptors>
        <mvc:interceptor>
            <!-- 映射要拦截的请求 -->
            <mvc:mapping path="/**"/>
            <!-- 设置放行资源 -->
            <mvc:exclude-mapping path="/showLogin"/>
            <mvc:exclude-mapping path="/main.do"/>
            <!-- 配置局势的拦截器实现类 -->
            <bean class="com.example.intercepter.LoginInterceptor"/>
        </mvc:interceptor>
    </mvc:interceptors>

</beans>

SSM 整合

  1. 创建项目,添加依赖
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.example</groupId>
    <artifactId>spring-ssm</artifactId>
    <packaging>war</packaging>
    <version>1.0-SNAPSHOT</version>

    <!-- 集中定义依赖版本号-->
    <properties>
        <!-- 编译环境 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.encoding>UTF-8</maven.compiler.encoding>
        <java.version>1.8</java.version>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>

        <!-- 测试 -->
        <junit.version>4.12</junit.version>
        <!-- spring -->
        <spring.version>5.1.2.RELEASE</spring.version>
        <!-- mybatis -->
        <mybatis.version>3.2.8</mybatis.version>
        <!-- mybatis-spring -->
        <mybatis.spring.version>1.2.2</mybatis.spring.version>
        <!-- mybatis-分页 -->
        <mybatis.paginator.version>1.2.15</mybatis.paginator.version>
        <!-- mysql -->
        <mysql.version>8.0.22</mysql.version>
        <!-- 日志 -->
        <slf4j.version>1.6.4</slf4j.version>
        <!-- 数据库连接池 -->
        <druid.version>1.0.9</druid.version>
        <!-- github 分页插件 -->
        <pagehelper.version>5.1.2</pagehelper.version>
        <!-- jstl 标签库 -->
        <jstl.version>1.2</jstl.version>
        <!-- servlet -->
        <servlet-api.version>3.0.1</servlet-api.version>
        <!-- jsp -->
        <jsp-api.version>2.0</jsp-api.version>
        <!-- json 转换 -->
        <jackson.version>2.9.6</jackson.version>
        <!-- logback 日志 -->
        <loback.version>1.2.11</loback.version>
        <!-- 简化实体类 -->
        <lombok.version>1.18.24</lombok.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.6.11</version>
        </dependency>
        <dependency>
            <groupId>org.json</groupId>
            <artifactId>json</artifactId>
            <version>20140107</version>
        </dependency><!-- spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency><project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.example</groupId>
    <artifactId>spring-ssm</artifactId>
    <packaging>war</packaging>
    <version>1.0-SNAPSHOT</version>

    <!-- 集中定义依赖版本号-->
    <properties>
        <!-- 编译环境 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.encoding>UTF-8</maven.compiler.encoding>
        <java.version>1.8</java.version>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>

        <!-- 测试 -->
        <junit.version>4.12</junit.version>
        <!-- spring -->
        <spring.version>5.1.2.RELEASE</spring.version>
        <!-- mybatis -->
        <mybatis.version>3.2.8</mybatis.version>
        <!-- mybatis-spring -->
        <mybatis.spring.version>1.2.2</mybatis.spring.version>
        <!-- mybatis-分页 -->
        <mybatis.paginator.version>1.2.15</mybatis.paginator.version>
        <!-- mysql -->
        <mysql.version>8.0.22</mysql.version>
        <!-- 日志 -->
        <slf4j.version>1.6.4</slf4j.version>
        <!-- 数据库连接池 -->
        <druid.version>1.0.9</druid.version>
        <!-- github 分页插件 -->
        <pagehelper.version>5.1.2</pagehelper.version>
        <!-- jstl 标签库 -->
        <jstl.version>1.2</jstl.version>
        <!-- servlet -->
        <servlet-api.version>3.0.1</servlet-api.version>
        <!-- jsp -->
        <jsp-api.version>2.0</jsp-api.version>
        <!-- json 转换 -->
        <jackson.version>2.9.6</jackson.version>
        <!-- logback 日志 -->
        <loback.version>1.2.11</loback.version>
        <!-- 简化实体类 -->
        <lombok.version>1.18.24</lombok.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.6.11</version>
        </dependency>
        <dependency>
            <groupId>org.json</groupId>
            <artifactId>json</artifactId>
            <version>20140107</version>
        </dependency><!-- spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jms</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>
        </dependency>
        <dependency>
            <groupId>com.github.miemiedev</groupId>
            <artifactId>mybatis-paginator</artifactId>
            <version>${mybatis.paginator.version}</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>${pagehelper.version}</version>
        </dependency>
        <!-- MySql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
        <!-- 连接池-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>${druid.version}</version>
        </dependency>
        <!-- junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
            <scope>test</scope>
        </dependency>
        <!-- JSP相关-->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>${jstl.version}</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jsp-api</artifactId>
            <scope>provided</scope>
            <version>${jsp-api.version}</version>
        </dependency>
        <!-- Jackson Json处理工具包-->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>${jackson.version}</version>
        </dependency>
        <!-- fastjson -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.28</version>
        </dependency>
        <!-- 文件上传用 -->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.4</version>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- 日志相关 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.11</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
            <version>1.2.11</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>5.3.23</version>
        </dependency>

    </dependencies>

    <!-- 插件配置-->
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
            </plugin>
        </plugins>
        <!--识别所有的配置文件-->
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>
</project>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jms</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>
        </dependency>
        <dependency>
            <groupId>com.github.miemiedev</groupId>
            <artifactId>mybatis-paginator</artifactId>
            <version>${mybatis.paginator.version}</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>${pagehelper.version}</version>
        </dependency>
        <!-- MySql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>
        <!-- 连接池-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>${druid.version}</version>
        </dependency>
        <!-- junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
            <scope>test</scope>
        </dependency>
        <!-- JSP相关-->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>${jstl.version}</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jsp-api</artifactId>
            <scope>provided</scope>
            <version>${jsp-api.version}</version>
        </dependency>
        <!-- Jackson Json处理工具包-->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>${jackson.version}</version>
        </dependency>
        <!-- fastjson -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.28</version>
        </dependency>
        <!-- 文件上传用 -->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.4</version>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>

        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>${loback.version}</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>5.3.23</version>
        </dependency>
    </dependencies>

    <!-- 插件配置-->
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
            </plugin>
        </plugins>
        <!--识别所有的配置文件-->
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>
</project>

  1. 添加缺失目录java,resources

  2. 更换高版本的web.xml

  3. 在resources目录下创建jsbc.properties

# 5.7
jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmuser?useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=root

# 8.0
jdbc.driverClassName=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmuser?useSSL=false&serverTimezone=Asia/Shanghai&characterEncoding=utf-8&autoReconnect=true
jdbc.username=root
jdbc.password=root
  1. 创建mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "https://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!-- STDOUT_LOGGING -->
    <settings>
        <setting name="logImpl" value="SLF4J"/>
    </settings>
    <typeAliases>
        <package name="com.example.entity"/>
    </typeAliases>
    <mappers>
        <package name="com.example.mapper"/>
    </mappers>
</configuration>
  1. 添加spring-service.xml文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 配置包扫描 -->
    <!-- 加载属性配置文件 -->
    <!-- 配置数据源,连接数据库 -->
    <!-- 配置 SqlSessionFactoryBean 创建 sqlSessionFactory -->
    <!-- 声明 mybatis 的扫描器,创建dao对象 -->
   <!-- 配置事务管理器 -->
</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx" xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx https://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    <!-- 包扫描 -->
    <context:component-scan base-package="com.example"/>
    <!-- 添加属性配置文件 -->
    <context:property-placeholder location="classpath:jdbc.properties"/>
    <!-- 声明数据源,连接数据库 -->
    <bean id="myDataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driverClassName}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>
    <!-- 配置 SqlSessionFactoryBean 创建 SqlSessionFactory -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 配置数据源 -->
        <property name="dataSource" ref="myDataSource"/>
        <!-- 配置 mybatis 主配置文件 -->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>
    <!-- 声明 mybatis 的扫描器,创建dao对象 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <property name="basePackage" value="com.example.mapper"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="myDataSource"/>
    </bean>
    <!-- 配置事务切面 -->
    <tx:advice id="myAdvice" transaction-manager="txManager">
        <tx:attributes>
            <tx:method name="*select*" read-only="true"/>
            <tx:method name="*find*" read-only="true"/>
            <tx:method name="*get*" read-only="true"/>
            <tx:method name="*search*" read-only="true"/>
            <tx:method name="*insert*" propagation="REQUIRED"/>
            <tx:method name="*save*" propagation="REQUIRED"/>
            <tx:method name="*add*" propagation="REQUIRED"/>
            <tx:method name="*delete*" propagation="REQUIRED"/>
            <tx:method name="*remove*" propagation="REQUIRED"/>
            <tx:method name="*clear*" propagation="REQUIRED"/>
            <tx:method name="*update*" propagation="REQUIRED"/>
            <tx:method name="*modify*" propagation="REQUIRED"/>
            <tx:method name="*change*" propagation="REQUIRED"/>
            <tx:method name="*set*" propagation="REQUIRED"/>
            <tx:method name="*" propagation="SUPPORTS"/>
        </tx:attributes>
    </tx:advice>
    <!-- 配置切入点 + 绑定 -->
    <aop:config>
        <!-- execution(* com.example.service.impl.*.*(..)): 任意权限修饰符 com.example.service.impl.任意类.任意方法(任意参数)-->
        <aop:pointcut id="myPointCut" expression="execution(* com.example.service.impl.*.*(..))"/>
        <aop:advisor advice-ref="myAdvice" pointcut-ref="myPointCut"/>
    </aop:config>
</beans>
  1. 配置spring-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- 配置包扫描 -->
    <context:component-scan base-package="com.example"/>
    <!-- 配置视图解析器(ajax 则不需要)-->
    <!-- 添加注解驱动 -->
    <mvc:annotation-driven/>
</beans>
  1. 配置web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!-- 过滤器配置 -->
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <!--
            private String encoding;
            private boolean forceRequestEncoding;
            private boolean forceResponseEncoding;
        -->
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceRequestEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
        <init-param>
            <param-name>forceResponseEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <!-- servlet -->
    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath*:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <!-- 注册 Spring 框架,目的就是启动 spring 容器 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath*:spring-service.xml</param-value>
    </context-param>
</web-app>
  1. 添加实体类
package com.example.entity;

import lombok.Data;

import java.io.Serializable;

@Data
public class User implements Serializable {
    private String userId;
    private String cardType;
    private String cardNo;
    private String userName;
    private String userSex;
    private String userAge;
    private String userRole;
}
  1. 添加service,impl
// service
package com.example.service;

import com.example.entity.User;

import java.util.List;

public interface UserService {
    List<User> selectUserPage(String userName, String userSex, int startRow);
    int createUser(User user);
    int deleteUserById(String userId);
    int getRowCount(String userName, String userSex);
}


// serviceImpl
package com.example.service.impl;

import com.example.entity.User;
import com.example.mapper.UserMapper;
import com.example.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service("userService")
public class UserServiceImpl implements UserService {

    @Autowired
    private UserMapper userMapper;

    @Override
    public List<User> selectUserPage(String userName, String userSex, int startRow) {
        return userMapper.selectUserPage(userName, userSex, startRow);
    }

    @Override
    public int createUser(User user) {
        return userMapper.createUser(user);
    }

    @Override
    public int deleteUserById(String userId) {
        return userMapper.deleteUserById(userId);
    }

    @Override
    public int getRowCount(String userName, String userSex) {
        return userMapper.getRowCount(userName, userSex);
    }
}
  1. 创建mapper映射文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.mapper.UserMapper">

    <resultMap id="userMap" type="user">
        <id property="userId" column="user_id"/>
        <result property="cardType" column="card_type"/>
        <result property="cardNo" column="card_no"/>
        <result property="userName" column="user_name"/>
        <result property="userSex" column="user_sex"/>
        <result property="userAge" column="user_age"/>
        <result property="userRole" column="user_role"/>
    </resultMap>
    <!-- 定义全部列名 -->
    <sql id="allColumns">
        user_id
        ,
        card_type,
        card_no,
        user_name,
        user_sex,
        user_age,
        user_role
    </sql>
    <!--    List<User> selectUserPage(@Param("userName") String userName, @Param("userSex") String userSex, @Param("startRow") int startRow);-->
    <select id="selectUserPage" resultMap="userMap">
        select
        <include refid="allColumns"/>
        from user
        <where>
            <if test="userName!=null and userName!=''">
                and user_name like concat('%',#{userName},'%')
            </if>
            <if test="userSex!=null and userSex!=''">
                and user_sex=#{userSex}
            </if>
        </where>
        limit #{startRow},5
    </select>
    <!--    int createUser(User user);-->
    <insert id="createUser" parameterType="user">
        insert into user
        values (#{userId}, #{cardType}, #{cardNo}, #{userSex}, #{userAge}, #{userRole})
    </insert>
    <!--    int deleteUserById(String userId);-->
    <delete id="deleteUserById" parameterType="string">
        delete
        from user
        where userId = #{userId}
    </delete>
    <!--    int getRowCount(@Param("userName") String userName, @Param("userSex") String userSex);-->
    <select id="getRowCount" resultType="integer">
        select count(*)
        from user
        <where>
            <if test="userName!=null and userName!=''">
                and user_name like concat('%',#{userName},'%')
            </if>
            <if test="userSex!=null and userSex!=''">
                and user_sex=#{userSex}
            </if>
        </where>
    </select>
</mapper>
  1. 测试
// spring-service.xml 是 spring 管理 service,dao 相关的对象
public class UserServiceTest {
    @Test
    public void selectUserPageTest() {
        ApplicationContext ac = new ClassPathXmlApplicationContext("spring-service.xml");
        UserService userService = ac.getBean("userService", UserService.class);
        int rowCount = userService.getRowCount(null, "男");
        System.out.println(rowCount);
    }
}
测试整合是否有效

本文来自互联网用户投稿，该文观点仅代表作者本人，不代表本站立场。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如若转载，请注明出处：http://www.coloradmin.cn/o/18485.html

如若内容造成侵权/违法违规/事实不符，请联系多彩编程网进行投诉反馈，一经查实，立即删除！

相关文章

高校实验室设备管理系统设计与实现-计算机毕业设计源码+LW文档

高校实验室设备管理系统设计与实现-计算机毕业设计源码+LW文档

数据库代码&#xff1a; /* Navicat MySQL Data Transfer Source Server : mysql5 Source Server Version : 50562 Source Host : localhost:3306 Source Database : ssmgxsyssbglxthsg3511cg ​ Target Server Type : MYSQL Target Server Versio…
阅读更多...
Linux磁盘分区和管理

Linux磁盘分区和管理

文章目录一 添加硬盘&#xff0c;创建Linux分区1.首先准备一块新的硬盘2.检查系统是否识别了硬盘3.对磁盘进行分区3-1 创建MBR磁盘分区3-2 创建文件系统3-3 挂载文件系统二 创建交换空间2-1 创建分区2-2 设置分区类型2-3 格式化交换空间2-4 激活交换空间三 删除磁盘的分区3-1 备…
阅读更多...
【GPU】Nvidia CUDA 编程高级教程——利用蒙特卡罗法求解近似值（CUDA-Aware MPI）

【GPU】Nvidia CUDA 编程高级教程——利用蒙特卡罗法求解近似值（CUDA-Aware MPI）

博主未授权任何人或组织机构转载博主任何原创文章&#xff0c;感谢各位对原创的支持&#xff01; 博主链接 本人就职于国际知名终端厂商&#xff0c;负责modem芯片研发。 在5G早期负责终端数据业务层、核心网相关的开发工作&#xff0c;目前牵头6G算力网络技术标准研究。 博客…
阅读更多...
11.24直播预告 | AIGC，看热闹不如看门道

11.24直播预告 | AIGC，看热闹不如看门道

如果把AI比作既富含能源&#xff0c;又无限神秘的海域&#xff0c;那么AIGC这条近半年内流经学术界和创投圈的支流&#xff0c;也无疑既带来了无数机遇&#xff0c;又蕴藏未知风险。 几天前&#xff0c;将门-TechBeat社区的专题&#xff08;《AIGC的八大前沿创新》&#xff09;…
阅读更多...
Allegro基本规则设置指导书

Allegro基本规则设置指导书

Allegro基本规则设置指导书 下面介绍基本规则设置指导书之Analysis Modes 点击set-up-constrains-Modes 调出Analysis Modes，这个是所有DRC的总开关 下面介绍常用的一些开关设置 Design Options (Soldermask) 从上往下 阻焊到阻焊的间距 阻焊到pad和走线间距 阻焊到shape…
阅读更多...
leecode #加一#二进制求和

leecode #加一#二进制求和

题目描述&#xff1a; 给定一个由 整数 组成的 非空 数组所表示的非负整数&#xff0c;在该数的基础上加一。 最高位数字存放在数组的首位&#xff0c; 数组中每个元素只存储单个数字。 你可以假设除了整数 0 之外&#xff0c;这个整数不会以零开头。 分析&#xff1a;对数…
阅读更多...
简单版的采用前后端分离模式实现SpingBoot新增查询功能

简单版的采用前后端分离模式实现SpingBoot新增查询功能

目录 后端代码编写 前端代码编写 首页展示&#xff1a; 新增&#xff1a; 开发工具&#xff1a;IDEA、HbuilderX 技术点&#xff1a;后端&#xff1a;SpringBoot&#xff0c;前端&#xff1a;ElementUIvue,采用前后端分离模式实现。 后端代码编写 目录&#xff1a; 代码…
阅读更多...
多线程高并发笔记

多线程高并发笔记

一、基础知识 1. 线程打断的三种方法 interrupt() 打断某个线程&#xff08;其实只是设置一个标志位&#xff09;isInterrupted() 查询某线程是否被打断过&#xff08;查询是否设置了标志位&#xff09;static interrupted() 查询当前线程是否被打断过&#xff0c;并重置打断…
阅读更多...
计算机毕业设计ssm+vue基本微信小程序的今日菜谱系统

计算机毕业设计ssm+vue基本微信小程序的今日菜谱系统

项目介绍 谈到外出就餐,我们除了怕排队,也怕这家餐厅的服务员不够用,没人为我们点餐,那么一餐饭排队一小时,点餐恐怕也要花个半小时,这样不仅给消费者的用餐体验大打折扣同时也给商家的口碑造成了严重负面的影响,所以开发今日菜谱微信小程序系统是必须也是必然的。 本系统采用微…
阅读更多...
vue2 sass 安装及使用

vue2 sass 安装及使用

最近在看前端。其一因为手里有个项目uniapp的里面使用了sass&#xff0c;但是有sass报错&#xff0c;其次想自己写个vue2后台&#xff0c;感觉sass写起来科学点。但是……版本这个东西……太费劲了…… vue2-cli集成webpack&#xff0c;使用vue create 项目名后再安装sass相当…
阅读更多...
C++程序设计期末考试复习试题及解析 3（自用~）

C++程序设计期末考试复习试题及解析 3（自用~）

DDL1.题目及分析1.对象数组的析构顺序2.浅拷贝的隐患delete p 还是 delete[]p ?类似的题&#xff0c;自行查阅3.常数据成员的初始化4.默认构造函数5.cin、cout所属类6.重载7.静态数据成员8.多态8.联编9.内联函数10.引用11.static12.构造Complex类13.静态成员函数14.抽象类15.标…
阅读更多...
[一篇读懂]C语言二讲：运算符与表达式

[一篇读懂]C语言二讲：运算符与表达式

[一篇读懂]C语言二讲&#xff1a;运算符与表达式1. 算术运算符与关系运算符1 运算符分类2 算术运算符及算术表达式3 关系运算符与关系表达式【例】关系运算符的使用。4 运算符优先级2. 逻辑运算符与赋值运算符&#xff0c;求字节运算符1 逻辑运算符与逻辑表达式【例】逻辑运算符…
阅读更多...
k8s基于kubectl命令管理资源并分配

k8s基于kubectl命令管理资源并分配

文章目录一、资源管理介绍二、资源管理方式1、命令式对象管理2、命令式对象配置3、声明式对象配置一、资源管理介绍 在kubernetes中&#xff0c;所有的内容都抽象为资源&#xff0c;用户需要通过master节点操作资源来管理kubernetes。 &#xff08;1&#xff09;kubernetes的本…
阅读更多...
数据结构串和数组练习题

数据结构串和数组练习题

串和数组 一 填空题 不包含任何字符&#xff08;长度为0&#xff09;的串称为 空串 &#xff1b;由一个或多个空格&#xff08;仅由空格符&#xff09;组成的串称为 空白串。 设S“A;/document/Mary.doc”&#xff0c;则strlen(s) 20 , “/”的字符定位的位置为 3 。 子串的…
阅读更多...
Windows内核--CreateProcess到内核NtCreateProcess(2.3)

Windows内核--CreateProcess到内核NtCreateProcess(2.3)

CreateProcessA vs CreateProcessW A和W后缀代表ANSI和UNICODE版本。早期&#xff0c;Windows为了兼容之前ANSI版本&#xff0c;为了推广UNICODE版本&#xff0c;所以做出了两套API. 注意&#xff0c;并不是所有Windows API都有*A和*W两套&#xff0c;只有API参数包含"字符…
阅读更多...
[附源码]java毕业设计社区生鲜电商平台

[附源码]java毕业设计社区生鲜电商平台

项目运行 环境配置&#xff1a; Jdk1.8 Tomcat7.0 Mysql HBuilderX&#xff08;Webstorm也行&#xff09; Eclispe&#xff08;IntelliJ IDEA,Eclispe,MyEclispe,Sts都支持&#xff09;。 项目技术&#xff1a; SSM mybatis Maven Vue 等等组成&#xff0c;B/S模式 M…
阅读更多...
linux文件上传和下载、别名设置以及环境变量

linux文件上传和下载、别名设置以及环境变量

一、文件上传和下载 1.sftp &#xff08;1&#xff09;它类似于ftp传输协议&#xff0c;属于ssh&#xff0c;但它进行加密传输&#xff0c;相对FTP来讲有更高的安全性 &#xff08;2&#xff09;用法 [rootserver ~]# ssh root10.0.0.3 The authenticity of host 10.0.0.3 …
阅读更多...
虚基类设计 c++

虚基类设计 c++

一个例子 首先大家看一个定义的一个虚基类 所谓的虚基类&#xff0c;是指类内包含virtual关键字定义的成员函数 class Abstract_base { public:virtual ~Abstract_base();virtual void interface() const 0;virtual const char* mumble() const {return m_mumble;} protect:ch…
阅读更多...
Echarts：制作词云

Echarts：制作词云

Echarts是一个开源的可视化图表库&#xff0c;支持丰富的图表&#xff0c;官网中还有大量示例可以选择使用、参考。 其中比较好玩、有趣的是词云&#xff0c;词云就是用关键词组成的一朵云&#xff0c;更广泛的定义是&#xff0c;由关键词组成的任意一种图案均称为词云。因此&…
阅读更多...
opencv 空域变换

opencv 空域变换

图像变换是基于像素的映射&#xff0c;区别是像素是怎么映射的。灰度变换的话是通过点对点的映射&#xff0c;也就是变换后的像素点之和当前的像素点有关&#xff08;gramma变换、对数变换等等&#xff09;&#xff0c;依次来进行对比度拉伸。而空间滤波变换后的像素点是和当前…
阅读更多...
推荐文章
最新文章

Copyright @ 2022~2023
