本章首先简单的介绍了modbus，然后利用springboot netty实现了简单的modbus TCP Master。

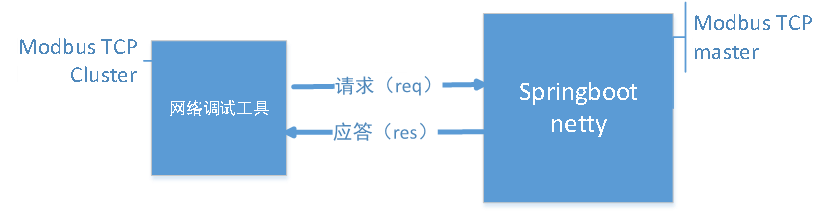

由于modbus是应答式的交互，这里通过HTTP请求触发springboot netty发送modbus TCP请求，网络调试工具收到请求后发送响应message。
在这里插入图片描述

这里：
modbus TCP Master：springboot netty
modbus TCP Slave：网络调试工具
postman：http触发springboot netty主动发送请求；

1 Modbus入门

Modbus在串行链路上分为Slave和Master、
Modbus协议使用的是主从通讯技术，即由主设备主动查询和操作设备。
Modbus Master：主控设备方；
Modbus Slave：从设备方。

Modbus协议有3种模式：
1）RTU
2）ASCII
3）TCP

1.1 Modbus-RTU

基于串口的Modbus-RTU 数据按照标准串口协议进行编码，是使用最广泛的一种Modbus协议，采用CRC-16_Modbus校验算法。

具体协议：
在这里插入图片描述

1.2 Modbus-ASCII

基于串口的Modbus-ASCII 所有数据都是ASCII格式，一个字节的原始数据需要两个字符来表示，效率低，采用LRC校验算法。

具体协议：
在这里插入图片描述

1.3 Modbus-TCP

基于网口的Modbus-TCP Modbus-TCP基于TCP/IP协议，占用502端口，数据帧主要包括两部分：MBAP（报文头）+PDU（帧结构），数据块与串行链路是一致的。

具体协议：

在这里插入图片描述

2 Modbus TCP master集成开发

Modbus TCP是运行在TCP/IP之上的应用层，所以master基本就是个TCP Server。
创建主要的类：
1） TCPServer
server类。
2 ）TCPServerChannelInitializer
server channel初始化的类
3）TCPServerStartListener：监听到springboot启动后，启动TCPServer。

TCPServerChannelInitializer中增加了编码解码器。

        socketChannel.pipeline().addLast("decoder", new TCPModbusResDecoder());
        socketChannel.pipeline().addLast("encoder", new TCPModbusReqEncoder());
        socketChannel.pipeline().addLast("tcpModbus", new TCPModbusResHandler());

2.1 定义message

定义message：

public class TCPModbusMessage {
    public MBAPHeader mbapHeader;
    public PduPayload pduPayload;
}

其中header：

public class MBAPHeader {
    //事务处理标识符 递增
    private short transactionId;
    //协议标识符 0x00 标识modbus协议
    private short protocolId;
    //长度,unitId + pdu长度
    private short length;
    //单元标识符,从机地址
    private byte unitId;

    public MBAPHeader(short transactionId, short protocolId, short length, byte unitId) {
        this.transactionId = transactionId;
    }

    public MBAPHeader() {

    }

    public int getTransactionId() {
        return transactionId;
    }

    public void setTransactionId(short transactionId) {
        this.transactionId = transactionId;
    }

    public int getProtocolId() {
        return protocolId;
    }

    public void setProtocolId(short protocolId) {
        this.protocolId = protocolId;
    }

    public int getLength() {
        return length;
    }

    public void setLength(short length) {
        this.length = length;
    }

    public short getUnitId() {
        return unitId;
    }

    public void setUnitId(byte unitId) {
        this.unitId = unitId;
    }

    public String toString() {
        return "transactionId:" + transactionId
                + ",protocolId:" + protocolId
                + ",length:" + length
                + ",unitId:" + unitId;

    }
}

其中pdu消息主体：

public class PduPayload {
    private short functionCode;
    private short dataLength;//数据字节的长度
    private byte[] data;

    public void setFunctionCode(short  code){
        functionCode = code;
    }
    public short getFunctionCode(){
        return functionCode;
    }

    public short getDataLength() {
        return dataLength;
    }

    public void setDataLength(short dataLength) {
        this.dataLength = dataLength;
    }

    public byte[] getData() {
        return data;
    }

    public void setData(byte[] data) {
        this.data = data;
    }

}

2.2 定义编码解码

2.2.1 解码

解码定义ByteToMessageDecoder：

public class TCPModbusResDecoder extends ByteToMessageDecoder {

    @Override
    protected void decode(ChannelHandlerContext channelHandlerContext, ByteBuf byteBuf, List<Object> list) {
        try {
            byteBuf.resetReaderIndex();
            int count = byteBuf.readableBytes();
            log.info("TCPModbusResDecoder decode:" + count);

            ByteBuf byteBuf1 = Unpooled.copiedBuffer(byteBuf);
            TCPModbusByteBufHolder tcpModbusByteBufHolder = new TCPModbusByteBufHolder(byteBuf1);
            list.add(tcpModbusByteBufHolder);

            byteBuf.clear();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

解码定义SimpleChannelInboundHandler：

public class TCPModbusResHandler extends SimpleChannelInboundHandler<TCPModbusByteBufHolder> {
    public static final int HEADER_LENGTH = 8;// // transactionId(2) + protocolId(2) + length(2) + unitId(1)+ functionCode(1)

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        log.info("channelActive");
        Channel channel = ctx.channel();
        log.info("channelActive channelId:" + channel.id().asLongText());
        log.info("channelActive 终端:" + channel.remoteAddress());
        ChannelManager.addChannel(channel.remoteAddress().toString(), channel);
    }

    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        log.info("channelInactive");
        Channel channel = ctx.channel();
        ChannelManager.removeChannel(channel.remoteAddress().toString());
    }

    @Override
    protected void channelRead0(ChannelHandlerContext channelHandlerContext, TCPModbusByteBufHolder modbusByteBufHolder) {
        log.info("channelRead0");
        int totalLen = modbusByteBufHolder.content().readableBytes();
        log.info("channelRead0:" + totalLen);
        if (totalLen < HEADER_LENGTH) {
            log.info("not modbus TCP protocol:");
            return;
        }
        //header
        MBAPHeader mbapHeader = MBAPHeaderDecoder.decode(modbusByteBufHolder.content());
        log.info("mbapHeader:" + mbapHeader.toString());
        //pdu
        PduPayload pduPayload = new PduPayload();
        short functionCode = modbusByteBufHolder.content().readUnsignedByte();
        pduPayload.setFunctionCode(functionCode);
        log.info("functionCode:" + functionCode);
        int dataLength = 0;
        if (totalLen > HEADER_LENGTH) {
            dataLength = totalLen - HEADER_LENGTH;
        }
        pduPayload.setDataLength((short) dataLength);
        log.info("dataLength:" + dataLength);
        byte[] data = new byte[dataLength];
        modbusByteBufHolder.content().readBytes(data);
        pduPayload.setData(data);

        RecMessageStrategy messageStrategy = RecMessageStrategyManager.getMessageStrategy(functionCode);
        if (messageStrategy != null) {
            messageStrategy.recMessage(channelHandlerContext.channel(), mbapHeader, pduPayload);
        } else {
            log.info("not support function code...");
        }

    }

    @Override
    public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
        log.info("channelReadComplete");
        ctx.flush();
    }

    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
        log.info("handlerRemoved");
        ctx.close();
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        log.info("exceptionCaught");
        Channel channel = ctx.channel();
        ChannelManager.removeChannel(channel.remoteAddress().toString());
        cause.printStackTrace();
    }
}

这里针对Message接收处理定义了一个策略：

public interface RecMessageStrategy {
    void recMessage(Channel channel, MBAPHeader mbapHeader, PduPayload pduPayload);
}

增加了不同类型消息策略的管理：

public class RecMessageStrategyManager {

    //根据消息类型获取对应的策略类
    public static RecMessageStrategy getMessageStrategy(int functionCode){
        switch (functionCode){
            case FunctionCodeConstants
                    .ReadCoils:
                return new ReadCoilsResMessageStrategy();
            case FunctionCodeConstants
                    .ReadDiscreteInputs:
                return new ReadDiscreteInputsResMessageStrategy();
            case FunctionCodeConstants
                    .ReadHoldingRegisters:
                return new ReadHoldingRegistersResMessageStrategy();
            case FunctionCodeConstants
                    .ReadInputRegisters:
                return new ReadInputRegistersResMessageStrategy();
            case FunctionCodeConstants
                    .WriteSingleCoil:
                return new WriteSingleCoilResMessageStrategy();
            case FunctionCodeConstants
                    .WriteSingleRegister:
                return new WriteSingleRegisterResMessageStrategy();
            case FunctionCodeConstants
                    .WriteMultipleCoils:
                return new WriteMultipleCoilsResMessageStrategy();
            case FunctionCodeConstants
                    .WriteMultipleRegisters:
                return new WriteMultipleRegistersResMessageStrategy();
            default:
                return null;
        }
    }

}

2.2.2 编码

定义编码器：

public class TCPModbusReqEncoder extends MessageToByteEncoder<TCPModbusMessage> {

    @Override
    protected void encode(ChannelHandlerContext channelHandlerContext, TCPModbusMessage tcpModbusMessage, ByteBuf byteBuf) throws Exception {
        log.info("-----------TCPModbusReqEncoder encode begin------------");
        //header
        MBAPHeaderEncoder.encode(byteBuf, tcpModbusMessage.mbapHeader);
        log.info("header:"+tcpModbusMessage.mbapHeader.toString());

        //functionCode
        int functionCode = tcpModbusMessage.pduPayload.getFunctionCode();
        log.info("functionCode:"+functionCode);

        SendMessageStrategy sendMessageStrategy = new SendMessageStrategy();
        sendMessageStrategy.sendMessage(byteBuf,tcpModbusMessage.pduPayload);
        log.info("data:"+ ByteUtil.bytesToHexString(tcpModbusMessage.pduPayload.getData()));
        log.info("-----------TCPModbusReqEncoder encode end------------");
    }
}

这里定义了一个message发送的策略：

public class SendMessageStrategy {

    public ByteBuf sendMessage(ByteBuf byteBuf, PduPayload pduPayload) {
        log.info("SendMessageStrategy ");
        byteBuf.writeByte(pduPayload.getFunctionCode());
        byteBuf.writeBytes(pduPayload.getData());
        return byteBuf;
    }
}
