这个示例演示了如何使用asynRecord记录
1、硬件准备工作
在这里准备了一个型号为NPort 5650-8-DT的Moxa串口服务器，用于一根交叉DB9双母头线缆连接设备上端口2和端口3，使之可以相互通信。
串口服务器配置如下：
- IP地址：192.168.3.50
- 端口2对应的本地TCP端口号：4002
- 端口3对应的本地TCP端口号：4003
2、安装以下测试EPICS asynRecord的IOC应用程序
a) 按如下步骤，先建立这个IOC程序的程序框架：
[blctrl@main-machine exer40]$ makeBaseApp.pl -t ioc asynRecordTest
[blctrl@main-machine exer40]$ makeBaseApp.pl -i -t ioc asynRecordTest
Using target architecture linux-x86_64 (only one available)
The following applications are available:
asynRecordTest
What application should the IOC(s) boot?
The default uses the IOC's name, even if not listed above.
Application name?
[blctrl@main-machine exer40]$ ls
asynRecordTestApp configure iocBoot Makefileb) 编辑configure/RELEASE文件，添加指向asyn以及ipac模块的环境变量ASYN和IPAC：
SUPPORT=/usr/local/EPICS/synApps/support
IPAC=$(SUPPORT)/ipac
ASYN=$(SUPPORT)/asyn
c) 编辑asynRecordTestApp/Db/Makefile文件，添加如下一行用于指向asynRecord.db文件
DB += $(ASYN)/db/asynRecord.dbd) 编辑asynRecordTestApp/src/Makefile文件，添加以下行，使得这个IOC程序能够找到asyn的动态链接库
# Include dbd files from all support applications:
asynRecordTest_DBD += asyn.dbd
asynRecordTest_DBD += drvAsynSerialPort.dbd
asynRecordTest_DBD += drvAsynIPPort.dbd
#
# Add all the support libraries needed by this IOC
asynRecordTest_LIBS += asyne) 返回这个IOC程序的顶层目录，执行make命令进行编译。
f) 进入IOC启动目录，编辑st.cmd启动文件：
[blctrl@main-machine exer40]$ cd iocBoot/iocasynRecordTest/
[blctrl@main-machine iocasynRecordTest]$ pwd
/home/blctrl/exer/exer40/iocBoot/iocasynRecordTest
[blctrl@main-machine iocasynRecordTest]$ cat st.cmd
#!../../bin/linux-x86_64/asynRecordTest
#- You may have to change asynRecordTest to something else
#- everywhere it appears in this file
< envPaths
cd "${TOP}"
## Register all support components
dbLoadDatabase "dbd/asynRecordTest.dbd"
asynRecordTest_registerRecordDeviceDriver pdbbase
drvAsynIPPortConfigure("IP1","192.168.3.50:4002",0,0,1)
drvAsynIPPortConfigure("IP2","192.168.3.50:4003",0,0,1)
## Load 2 record instances
dbLoadRecords("db/asynRecord.db","P=Test:,R=IPPORT1,PORT=IP1,ADDR=0,IMAX=0,OMAX=0")
dbLoadRecords("db/asynRecord.db","P=Test:,R=IPPORT2,PORT=IP2,ADDR=0,IMAX=0,OMAX=0")
cd "${TOP}/iocBoot/${IOC}"
iocInitg) 启动这个IOC程序，并且查看启动后装置的记录实例：
[blctrl@main-machine iocasynRecordTest]$ ../../bin/linux-x86_64/asynRecordTest st.cmd
#!../../bin/linux-x86_64/asynRecordTest
< envPaths
epicsEnvSet("IOC","iocasynRecordTest")
epicsEnvSet("TOP","/home/blctrl/exer/exer40")
epicsEnvSet("SUPPORT","/usr/local/EPICS/synApps/support")
epicsEnvSet("IPAC","/usr/local/EPICS/synApps/support/ipac")
epicsEnvSet("ASYN","/usr/local/EPICS/synApps/support/asyn")
epicsEnvSet("EPICS_BASE","/usr/local/EPICS/base")
cd "/home/blctrl/exer/exer40"
## Register all support components
dbLoadDatabase "dbd/asynRecordTest.dbd"
asynRecordTest_registerRecordDeviceDriver pdbbase
drvAsynIPPortConfigure("IP1","192.168.3.50:4002",0,0,1)
drvAsynIPPortConfigure("IP2","192.168.3.50:4003",0,0,1)
## Load record instances
#dbLoadRecords("db/asynRecord.db","P=Test:,R=SPORT")
dbLoadRecords("db/asynRecord.db","P=Test:,R=IPPORT1,PORT=IP1,ADDR=0,IMAX=0,OMAX=0")
dbLoadRecords("db/asynRecord.db","P=Test:,R=IPPORT2,PORT=IP2,ADDR=0,IMAX=0,OMAX=0")
cd "/home/blctrl/exer/exer40/iocBoot/iocasynRecordTest"
iocInit
Starting iocInit
############################################################################
## EPICS R7.0.3.1
## EPICS Base built Sep 8 2022
############################################################################
iocRun: All initialization complete
## Start any sequence programs
#seq sncxxx,"user=blctrl"
epics> dbl
Test:IPPORT1
Test:IPPORT2
epics>3、对asynRecord记录实例进行测试
a) 如下所述用medm分别连接上述两个asynRecord记录：
[blctrl@main-machine adls]$ medm -x -macro "P=Test:,R=IPPORT1,PORT=IP1" asynRecord.adl &

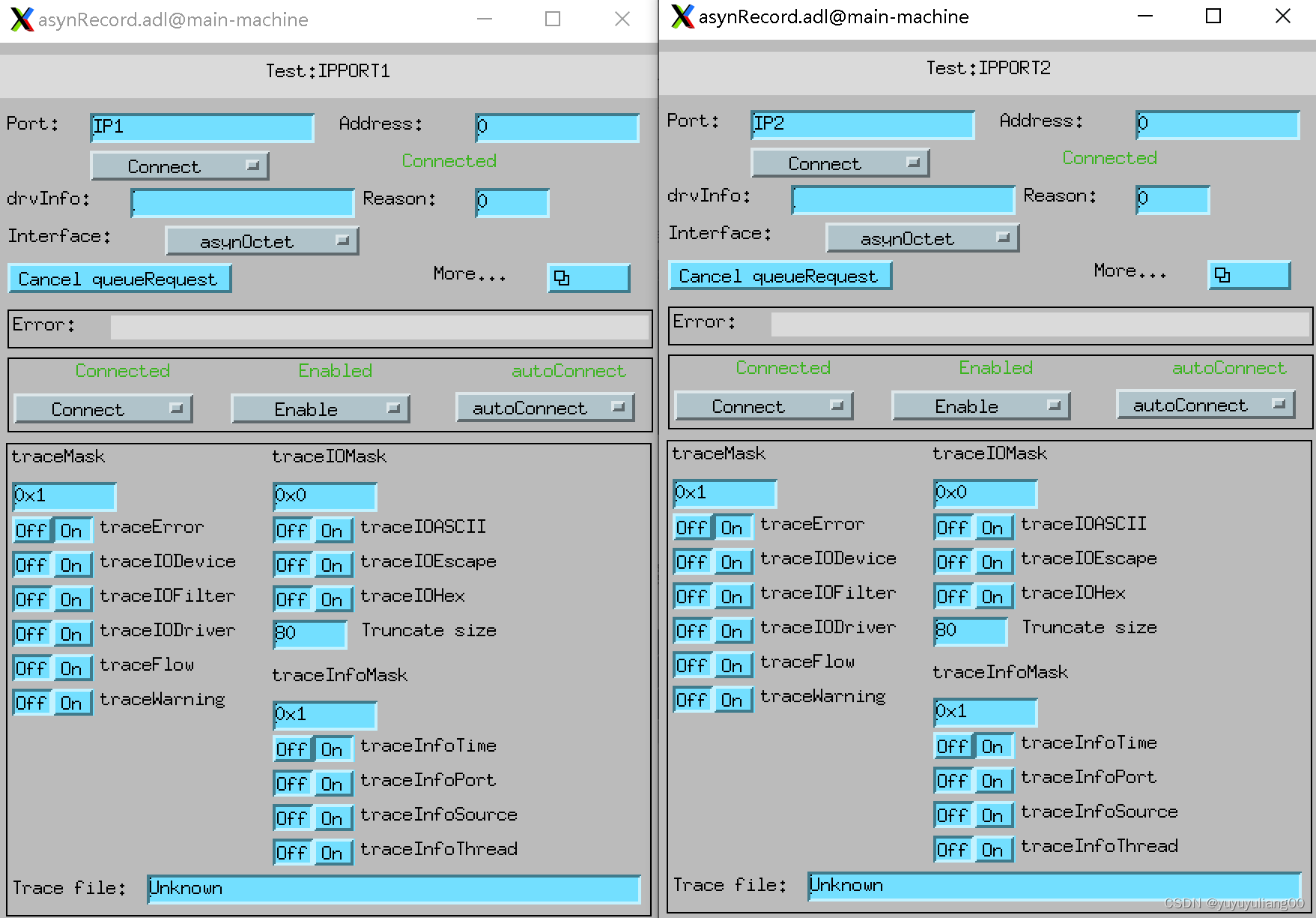

[blctrl@main-machine adls]$ medm -x -macro "P=Test:,R=IPPORT2,PORT=IP2" asynRecord.adl &连接后成功后，显示了两个窗口
b） 以下是一个Python脚本，演示了asyn记录的用法。它用ASCII和二进制格式传输数据。
这是Python程序，它演示了EPICS asyn记录的用法。这个程序使用2个asyn记录。对应这两个记录的端口连接了所提供的串口服务器的两个TCP端口。
- 记录1用ASCII发送消息"Hello EPICS"给记录2。
- 记录2用二进制向记录1发送数组[0,2,3,...,29]消息。
[blctrl@main-machine exer40]$ cat write_read.py
import epics
import time
rec1="Test:IPPORT1"
rec2="Test:IPPORT2"
# 记录1 ASCII输出，二进制输入
t=epics.caput(rec1+'.OFMT', 'ASCII')
t=epics.caput(rec1+'.OEOS','\r')
t=epics.caput(rec1+'.IFMT', 'Binary')
t=epics.caput(rec1+'.IEOS', '')
# 清除记录1的输入垃圾
junk=epics.caget(rec1+'.BINP')
# 记录2 ASCII输入，二进制输出
t=epics.caput(rec2+'.OFMT', 'Binary')
t=epics.caput(rec2+'.OEOS', '')
t=epics.caput(rec2+'.IFMT','ASCII')
t=epics.caput(rec2+'.IEOS','\r')
# 记录2，处于读取模式
t=epics.caput(rec2+'.TMOD', 'Read')
# 清除读取值
junk=epics.caget(rec2+'.AINP')
message="Hello EPICS"
t=epics.caput(rec1+".TMOD", "Write")
epics.caput(rec1+".AOUT", message)
print("Record1 send Record2:", message)
time.sleep(0.1)
epics.caput(rec2+".PROC",1)
recv=epics.caget(rec2+".AINP")
print("Record2 received:",recv)
# 预计30个字节
size=30
# 记录1处于读取模式
t=epics.caput(rec1+".TMOD", "Read")
t=epics.caput(rec1+".NRRD", size)
junk=epics.caget(rec1+".BINP")
# 记录2处于写模式
send_data=[]
for i in range(size):
send_data.append(i)
print("Record2 sends Record1:", send_data)
t=epics.caput(rec2+".TMOD","Write")
t=epics.caput(rec2+".NOWT",size)
t=epics.caput(rec2+".BOUT",send_data)
time.sleep(0.1)
t=epics.caput(rec1+".PROC",1)
time.sleep(0.1)
arr=epics.caget(rec1+".BINP")
print("Record1 received",arr)运行以上python脚本，测试结果：
[blctrl@main-machine exer40]$ python3 write_read.py
Record1 send Record2: Hello EPICS
Record2 received: Hello EPICS
Record2 sends Record1: [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29]
Record1 received [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
24 25 26 27 28 29]
