MySQL Binlog 简介

https://blog.csdn.net/weixin_44371237/article/details/127904514

MySQL 主从复制过程

1）Master 主库将改变记录，写到二进制日志(Binary Log)中；

2）Slave 从库向 MySQL Master 发送 dump 协议，将 Master 主库的 binary log events 拷贝到它的中继日志(relay log)；

3）Slave 从库读取并重做中继日志中的事件，将改变的数据同步到自己的数据库。

Canal 的工作原理

把自己伪装成 Slave，假装从 Master 复制数据

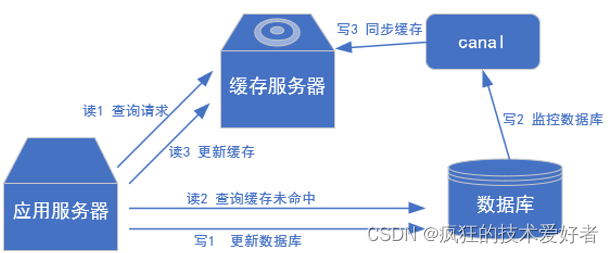

使用场景：同步数据库到redis

MySQL 的准备

启动MySQL
service mysqld start

登录 mysql
mysql -uroot -proot123456

创建数据库canal，表 test

赋权限

mysql> set global validate_password_length=4;
mysql> set global validate_password_policy=0;
mysql> GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%' IDENTIFIED BY 'canal' ;

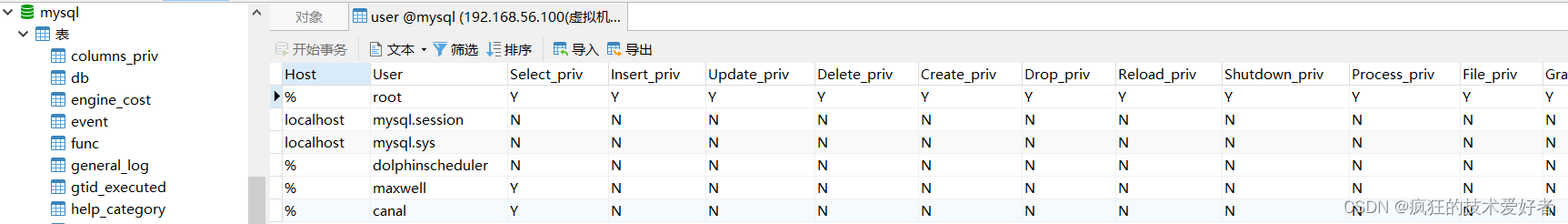

查看mysql数据库，可以看到用户已生效

Canal 的下载和安装

下载并解压 Jar 包
https://github.com/alibaba/canal/releases

上传jar包到software，在/opt/module/创建canal文件夹，再解压
tar -zxvf /software/canal.deployer-1.1.2.tar.gz -C /opt/module/canal

修改 canal.properties 的配置(不用改)
vim /opt/module/canal/conf/canal.properties

进入
cd /opt/module/canal/conf/example

修改配置文件 vim instance.properties

## 只要跟/etc/my.cnf的server.id=1不一样就行
canal.instance.mysql.slaveId=20
canal.instance.master.address=hadoop100:3306

启动
/opt/module/canal/bin/startup.sh

jps查看有CanalLauncher进程

TCP 模式测试

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.chen</groupId>
    <artifactId>canal</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <dependency>
            <groupId>com.alibaba.otter</groupId>
            <artifactId>canal.client</artifactId>
            <version>1.1.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-clients</artifactId>
            <version>2.4.1</version>
        </dependency>
    </dependencies>
</project>

CanalClient

package com.chen;

import com.alibaba.fastjson.JSONObject;
import com.alibaba.otter.canal.client.CanalConnector;
import com.alibaba.otter.canal.client.CanalConnectors;
import com.alibaba.otter.canal.protocol.CanalEntry;
import com.alibaba.otter.canal.protocol.Message;
import com.google.protobuf.ByteString;
import com.google.protobuf.InvalidProtocolBufferException;

import java.net.InetSocketAddress;
import java.util.List;

public class CanalClient {
    public static void main(String[] args) throws InterruptedException, InvalidProtocolBufferException {
        //连接器
        CanalConnector canalConnector = CanalConnectors.newSingleConnector(new InetSocketAddress("hadoop100", 11111), "example", "", "");

        while (true){
            //连接
            canalConnector.connect();
            //订阅数据库
            canalConnector.subscribe("canal.*");
            //获取数据
            Message message = canalConnector.get(100);
            //获取Entry集合
            List<CanalEntry.Entry> entries = message.getEntries();
            //判断集合是否为空，为空则等待一会继续拉取
            if (entries.size()<=0){
                System.out.println("当次抓去没有数据，休息一会儿。。。");
                Thread.sleep(1000);
            }else {
                //遍历entries，单条解析
                for (CanalEntry.Entry entry : entries) {
                    //获取表名
                    String tableName = entry.getHeader().getTableName();
                    //获取类型
                    CanalEntry.EntryType entryType = entry.getEntryType();
                    //获取序列化后的数据
                    ByteString storeValue = entry.getStoreValue();
                    //判断entry类型是否为ROWDATA类型
                    if (CanalEntry.EntryType.ROWDATA.equals(entryType)){
                        //反序列化
                        CanalEntry.RowChange rowChange = CanalEntry.RowChange.parseFrom(storeValue);
                        //获取当前事件操作类型
                        CanalEntry.EventType eventType = rowChange.getEventType();
                        //获取数据集
                        List<CanalEntry.RowData> rowDatasList = rowChange.getRowDatasList();
                        //遍历
                        for (CanalEntry.RowData rowData : rowDatasList) {
                            //改变前数据
                            JSONObject jsonObjectBefore = new JSONObject();
                            List<CanalEntry.Column> beforeColumnsList = rowData.getBeforeColumnsList();
                            for (CanalEntry.Column column : beforeColumnsList) {
                                jsonObjectBefore.put(column.getName(),column.getValue());
                            }
                            //改变后数据
                            JSONObject jsonObjectAfter = new JSONObject();
                            List<CanalEntry.Column> afterColumnsList = rowData.getAfterColumnsList();
                            for (CanalEntry.Column column : afterColumnsList) {
                                jsonObjectAfter.put(column.getName(),column.getValue());
                            }
                            System.out.println("Table:"+tableName+",EventTpye:"+eventType+",Before:"+jsonObjectBefore+",After:"+jsonObjectAfter);
                        }
                    }else {
                        System.out.println("当前操作类型为："+entryType);
                    }
                }
            }
        }
    }
}

运行程序

然后向canal数据库的test表插入数据

insert into canal.test values(1,'aaa');

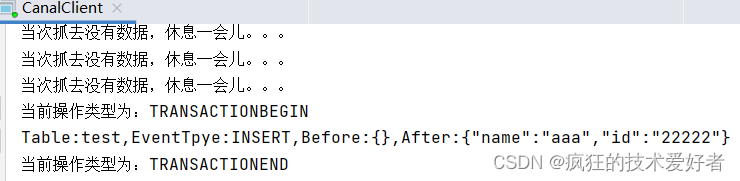

控制台输出如下

Kafka 模式测试

修改 canal.properties 的配置
vim /opt/module/canal/conf/canal.properties

canal.serverMode = kafka
canal.mq.servers = hadoop100:9092,hadoop101:9092,hadoop102:9092

修改instance.properties
vim /opt/module/canal/conf/example/instance.properties

canal.mq.topic=canal

启动zookeeper和kafka
/home/zk.sh start
/home/kafka.sh start

启动canal
/opt/module/canal/bin/startup.sh

启动kafka消费者canal

bin/kafka-console-consumer.sh --bootstrap-server hadoop100:9092 --topic canal

向canal数据库的test表插入数据

insert into canal.test values(8,'aaa');

可以看到kafka消费者接收到如下
