Altium格式PCB转换成Allegro操作指导
-

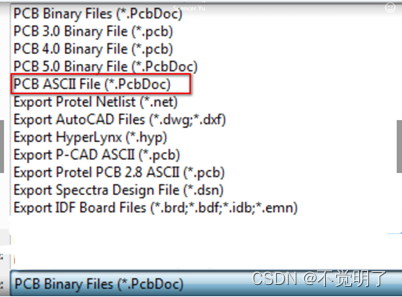

首先打开Altium Design的PCB文件,输出一个“PCB ASCII File（*.pcbdoc）”格式的文件。如下图
-

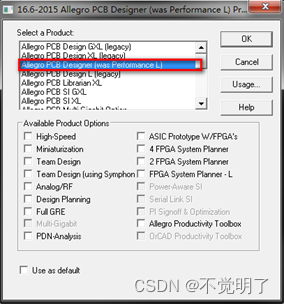

打开Allegro，选择was performance L模式，新建空白的brd。
-

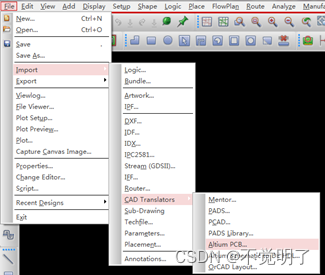

导入Altium PCB
-

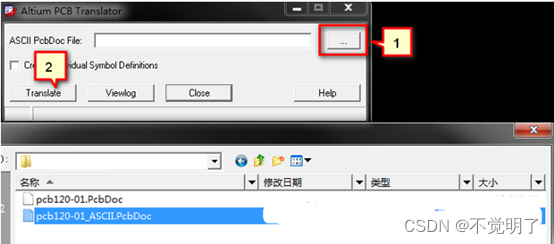

选择文件转换即可
-
转换成功
