引言
本篇继续学习 DC的基本使用。本篇主要学习 DC 综合之后的效果分析，多同步时钟设计以及 DC 综合完成之后的各种输出文件。
前文链接：
Design Compiler工具学习笔记（1）
Design Compiler工具学习笔记（2）
Design Compiler工具学习笔记（3）
Design Compiler工具学习笔记（4）
Design Compiler工具学习笔记（5）
Design Compiler工具学习笔记（6）

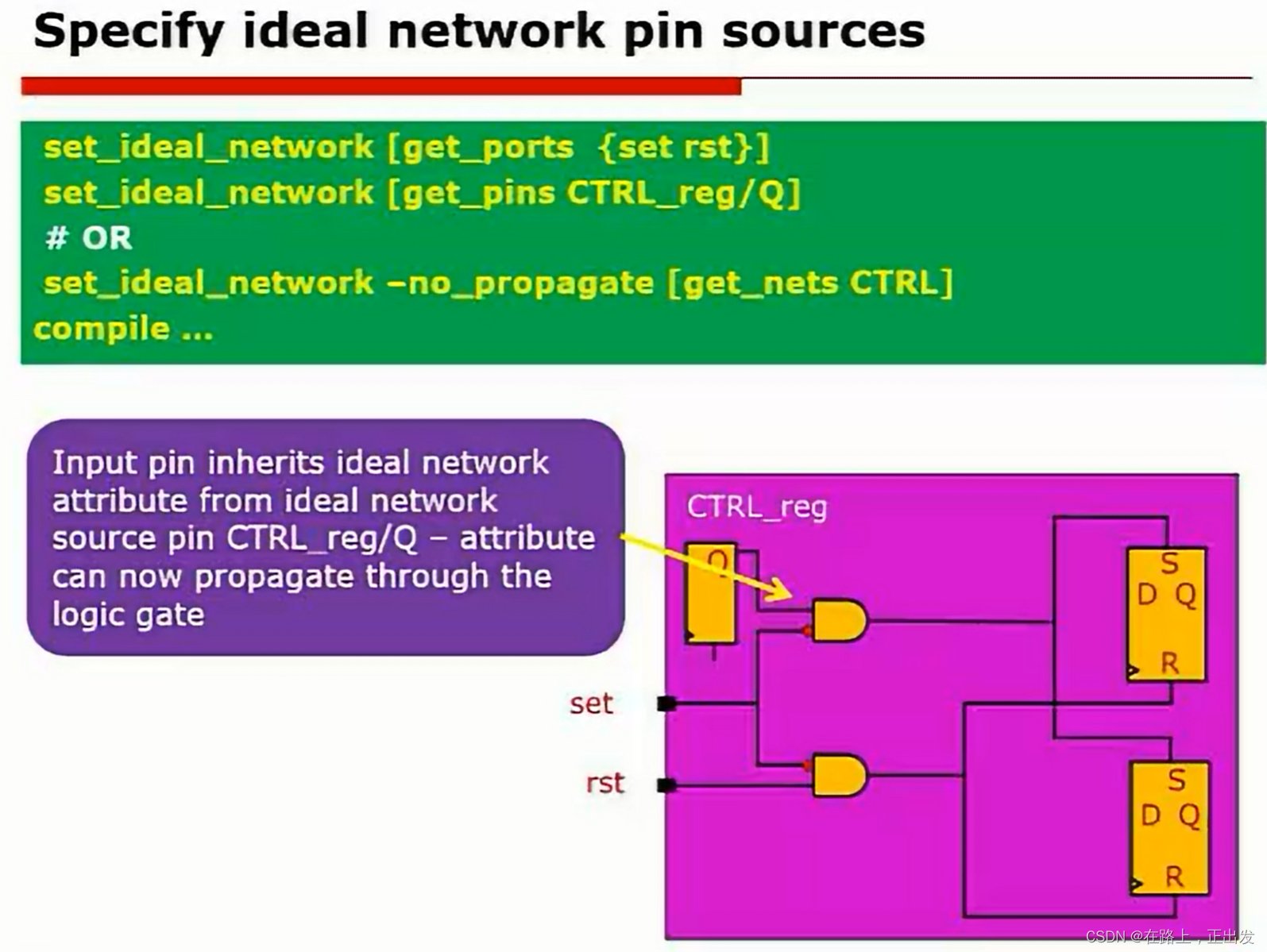

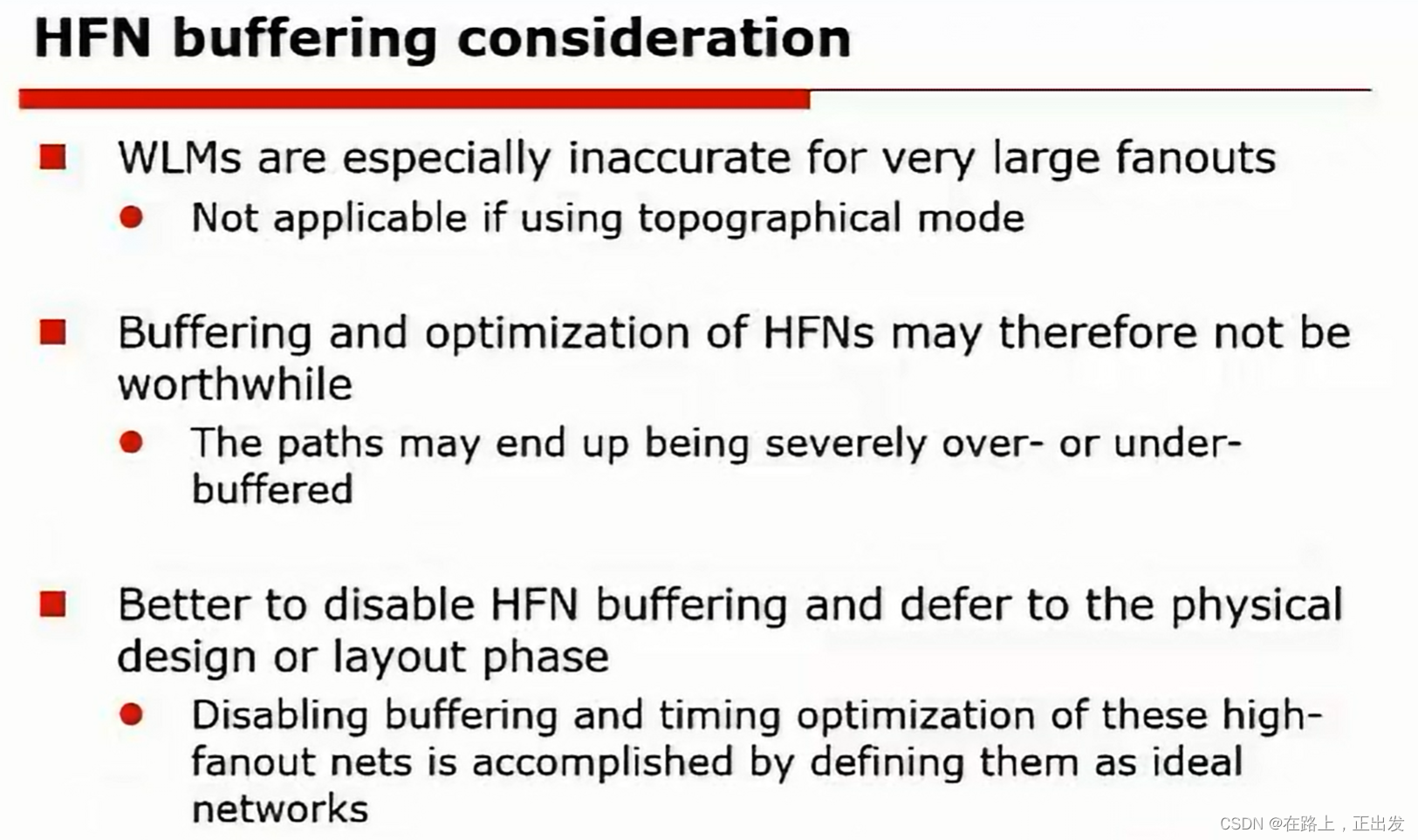

背景知识

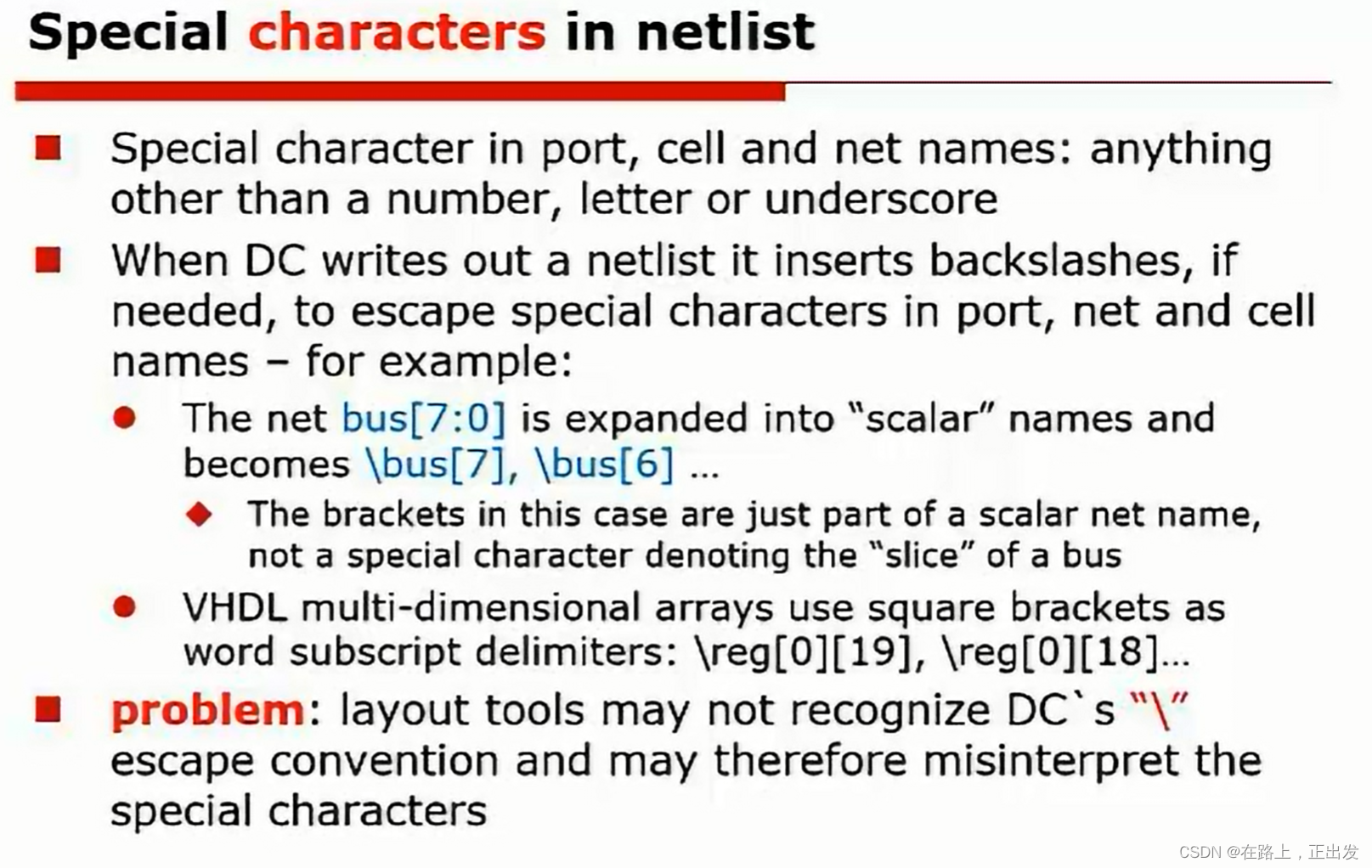

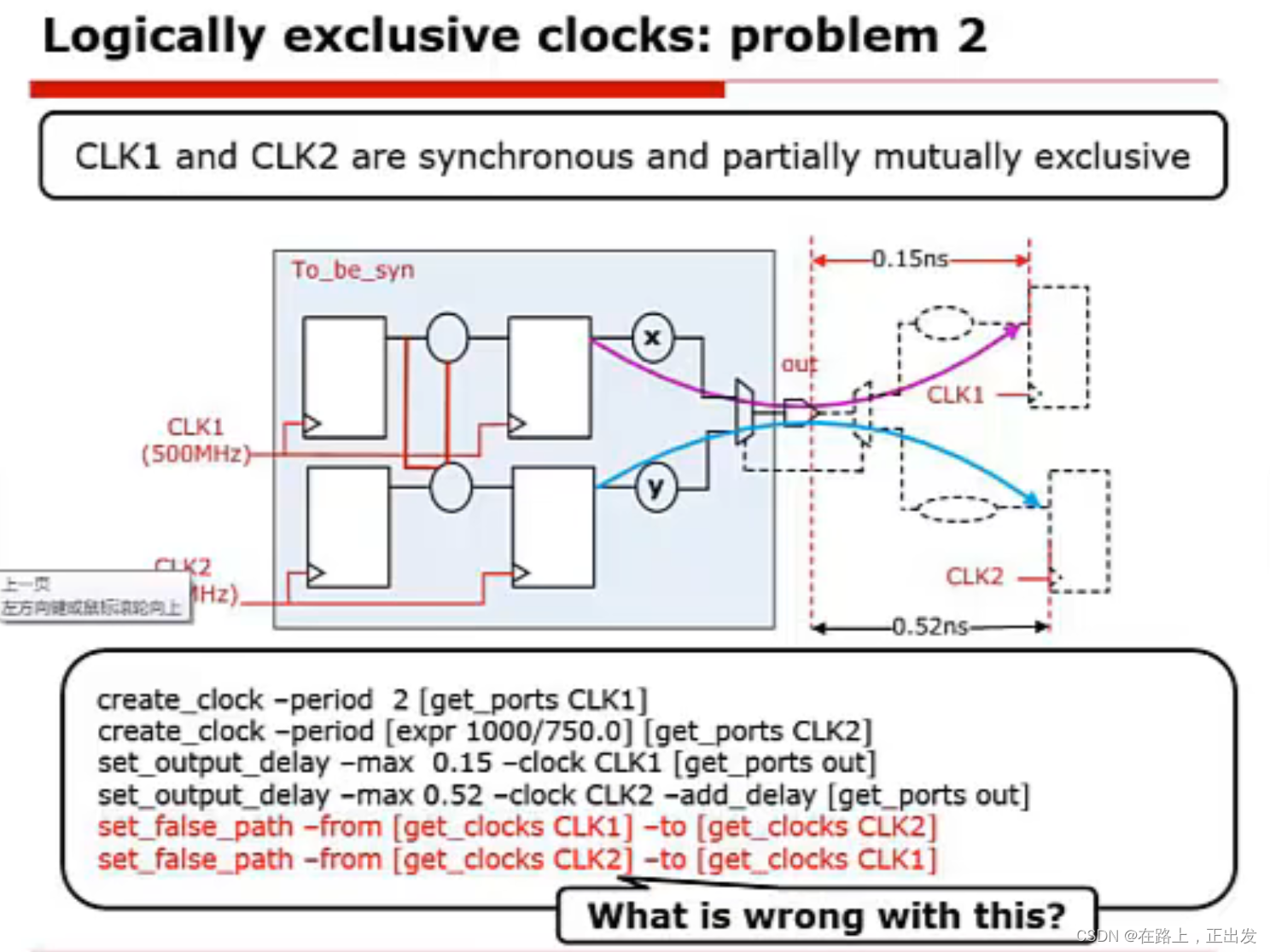

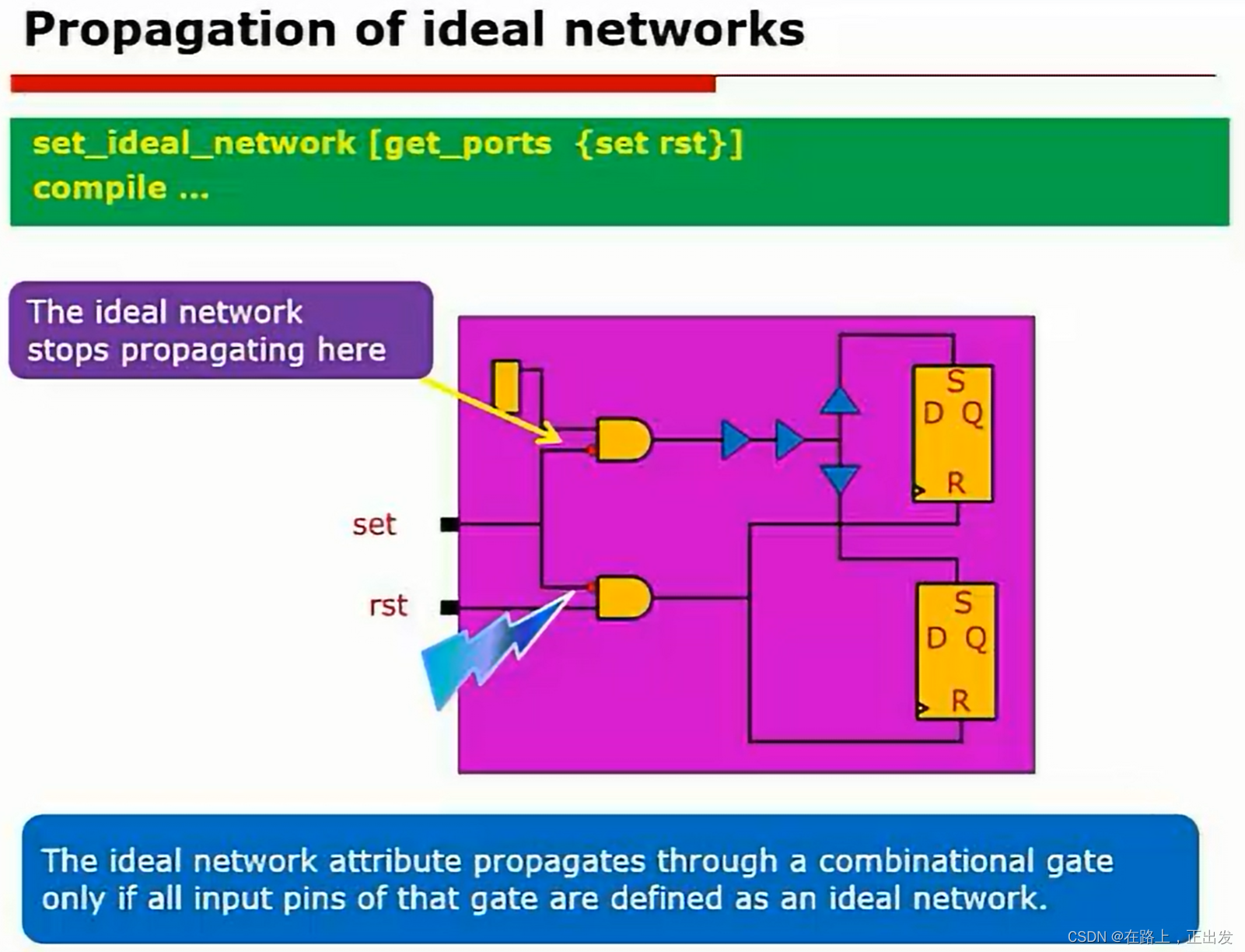

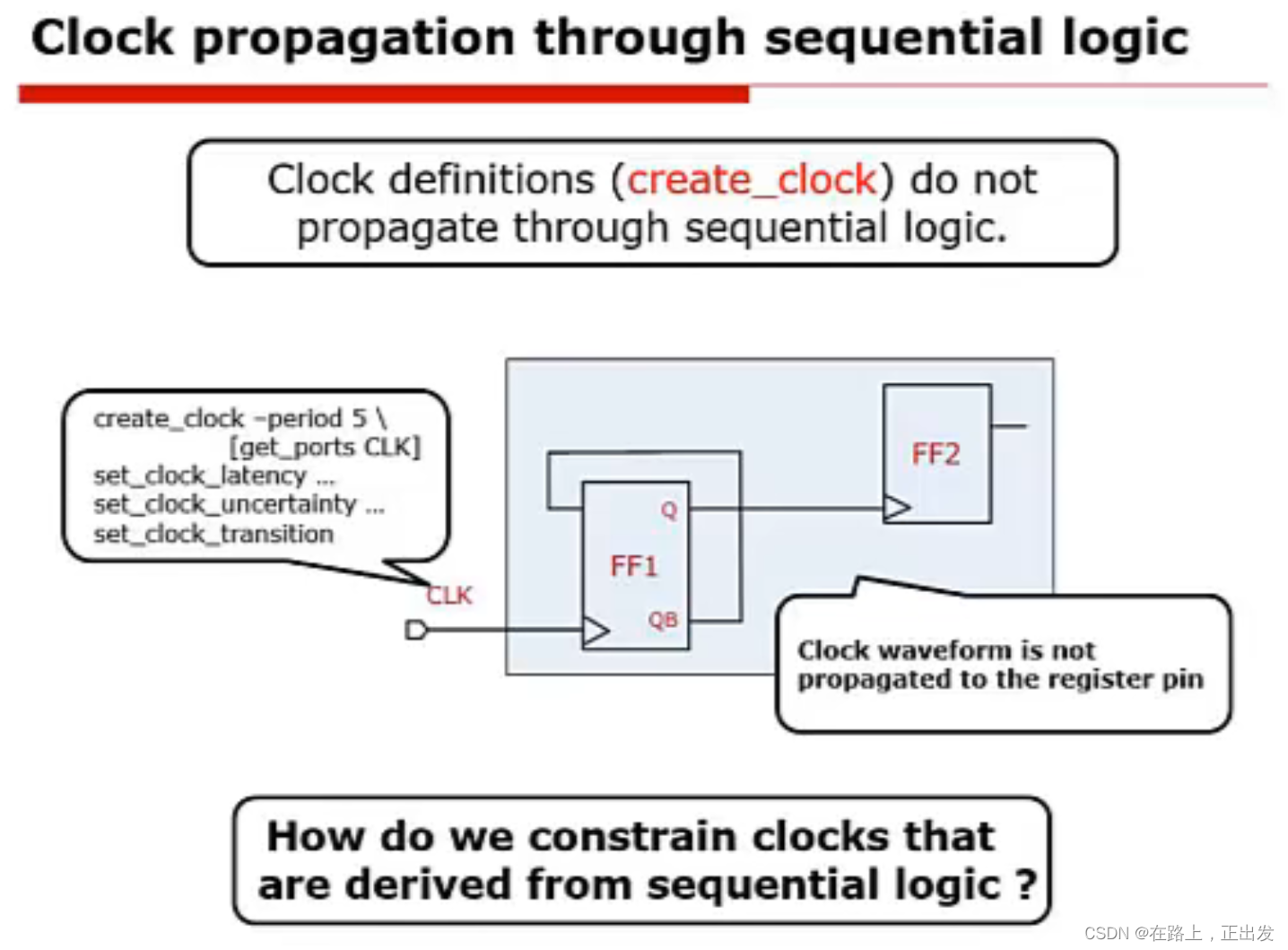

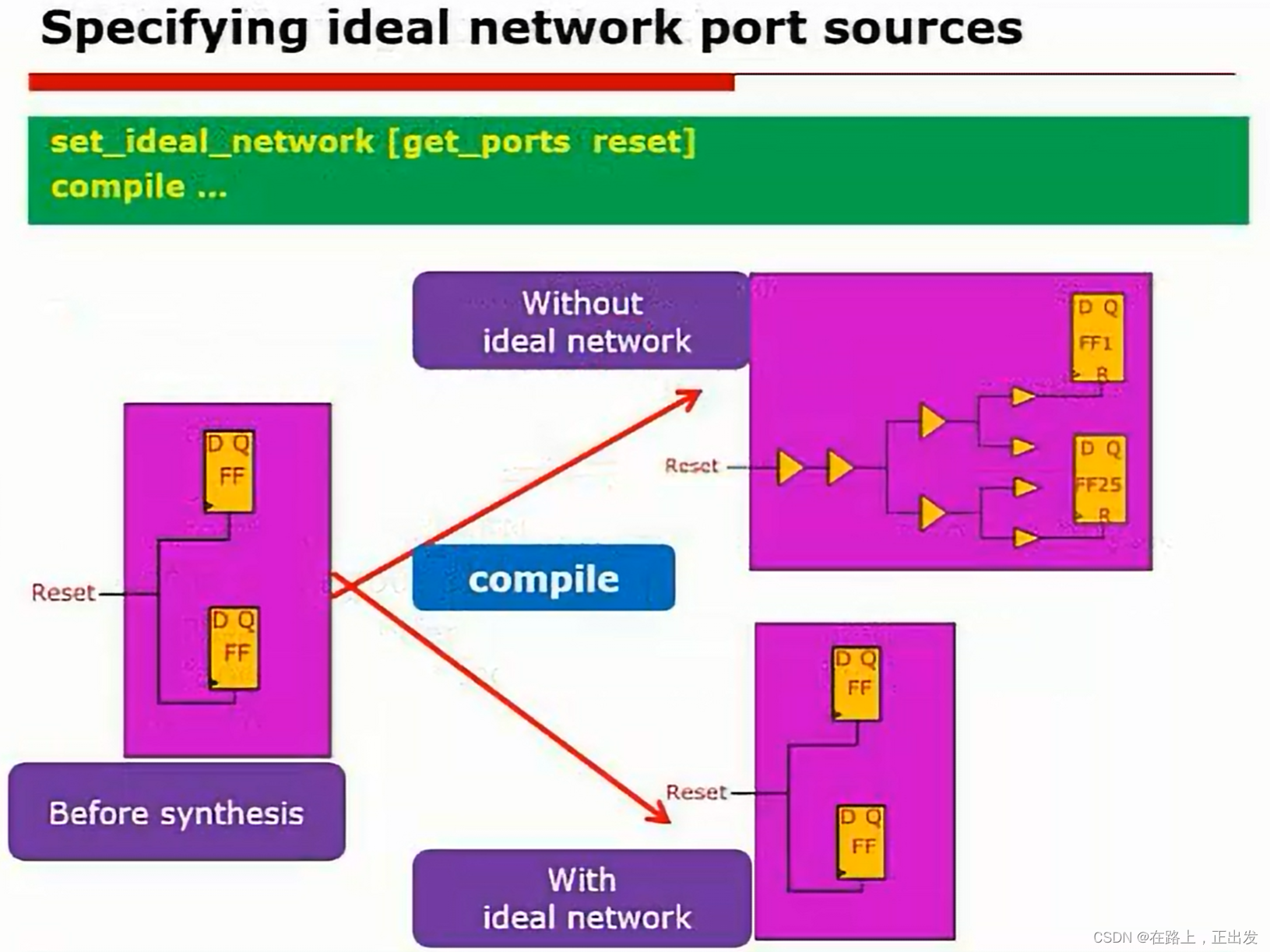

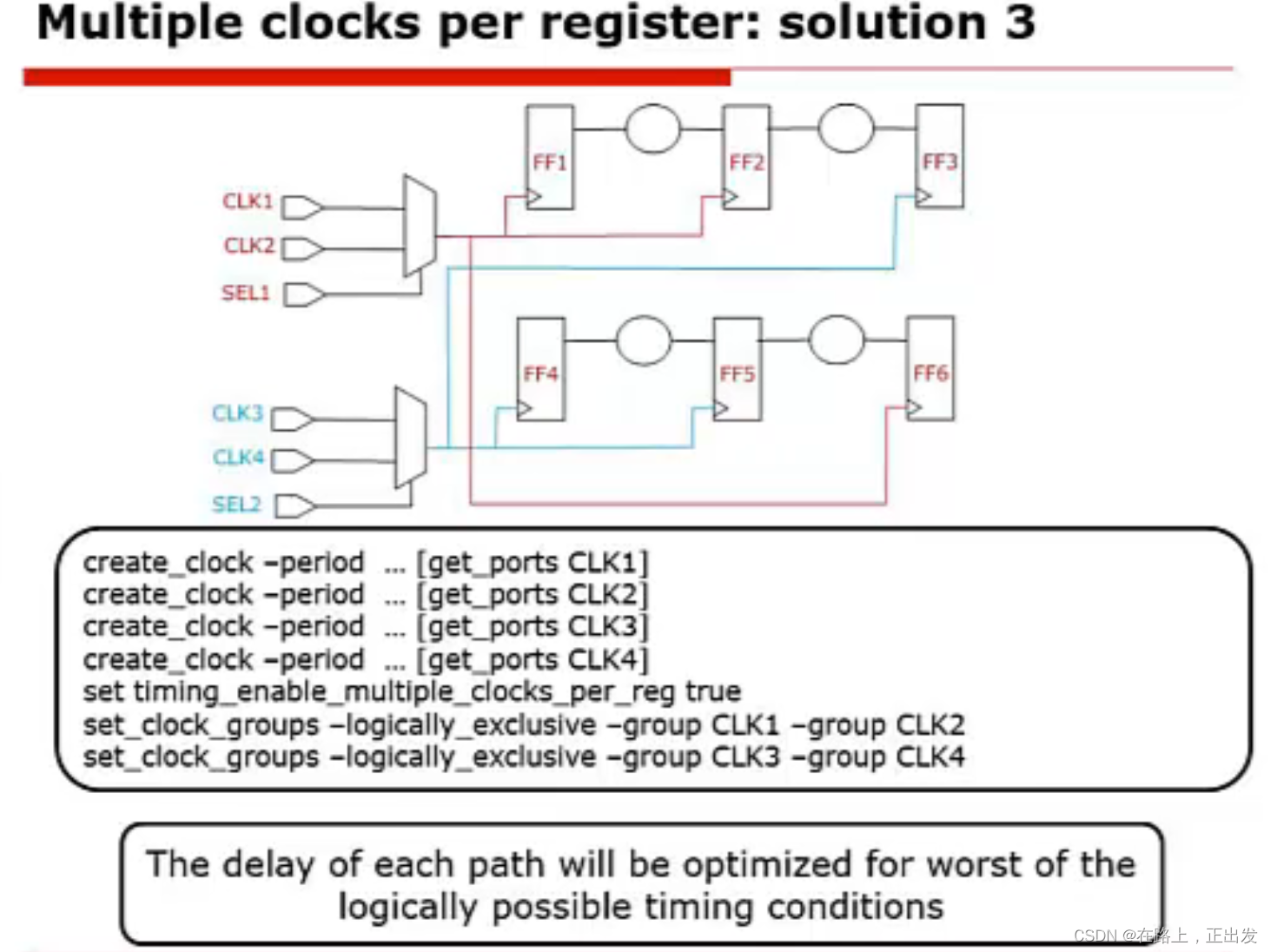

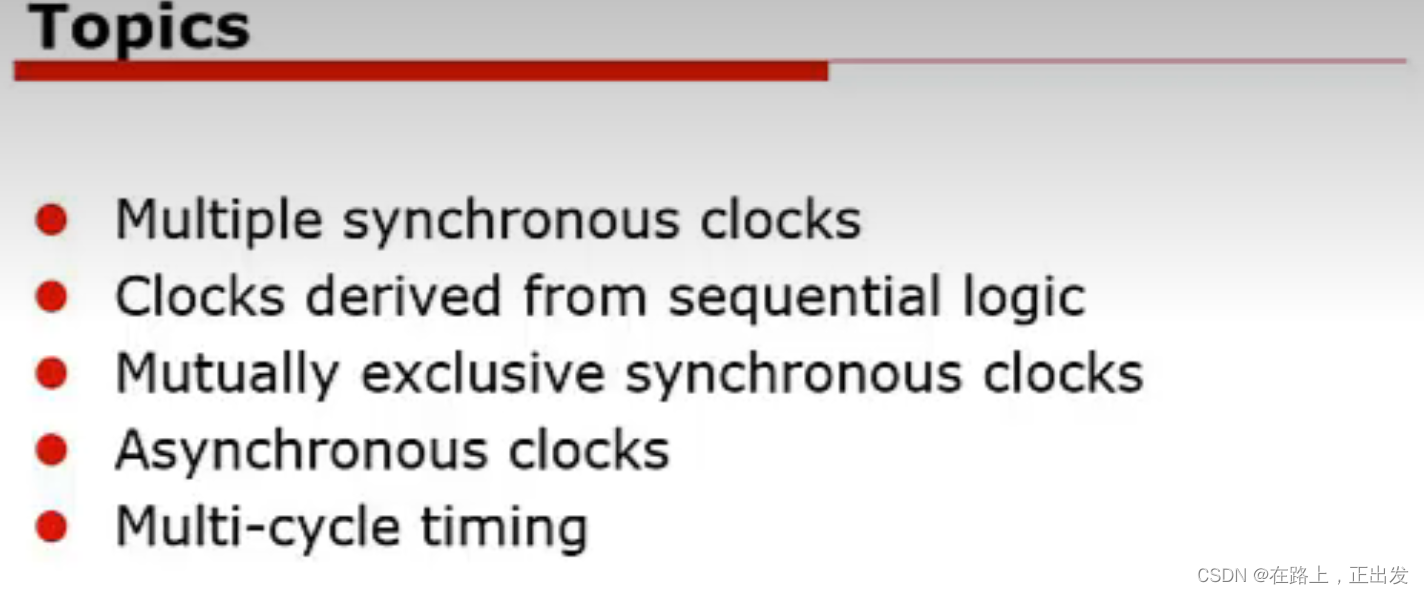

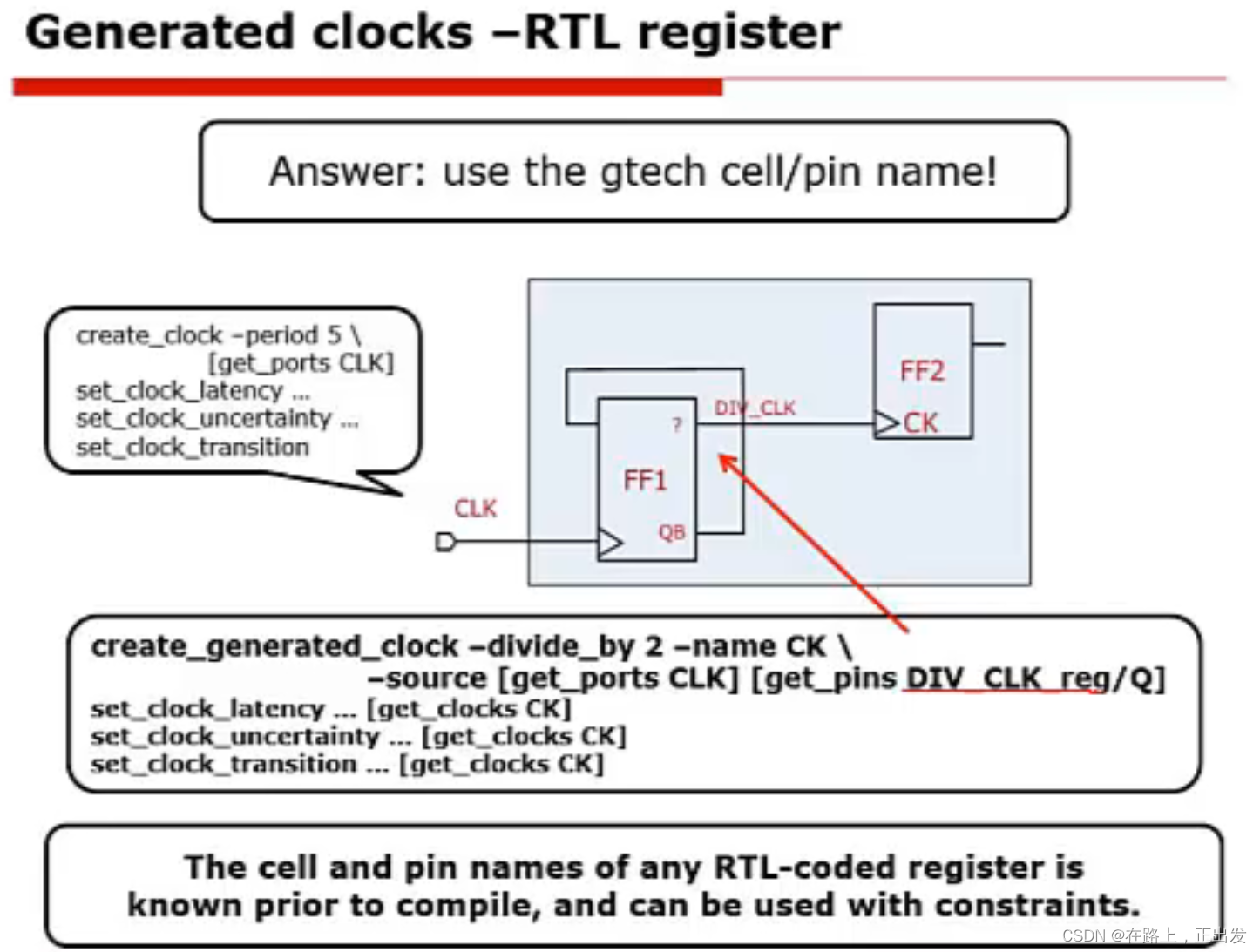

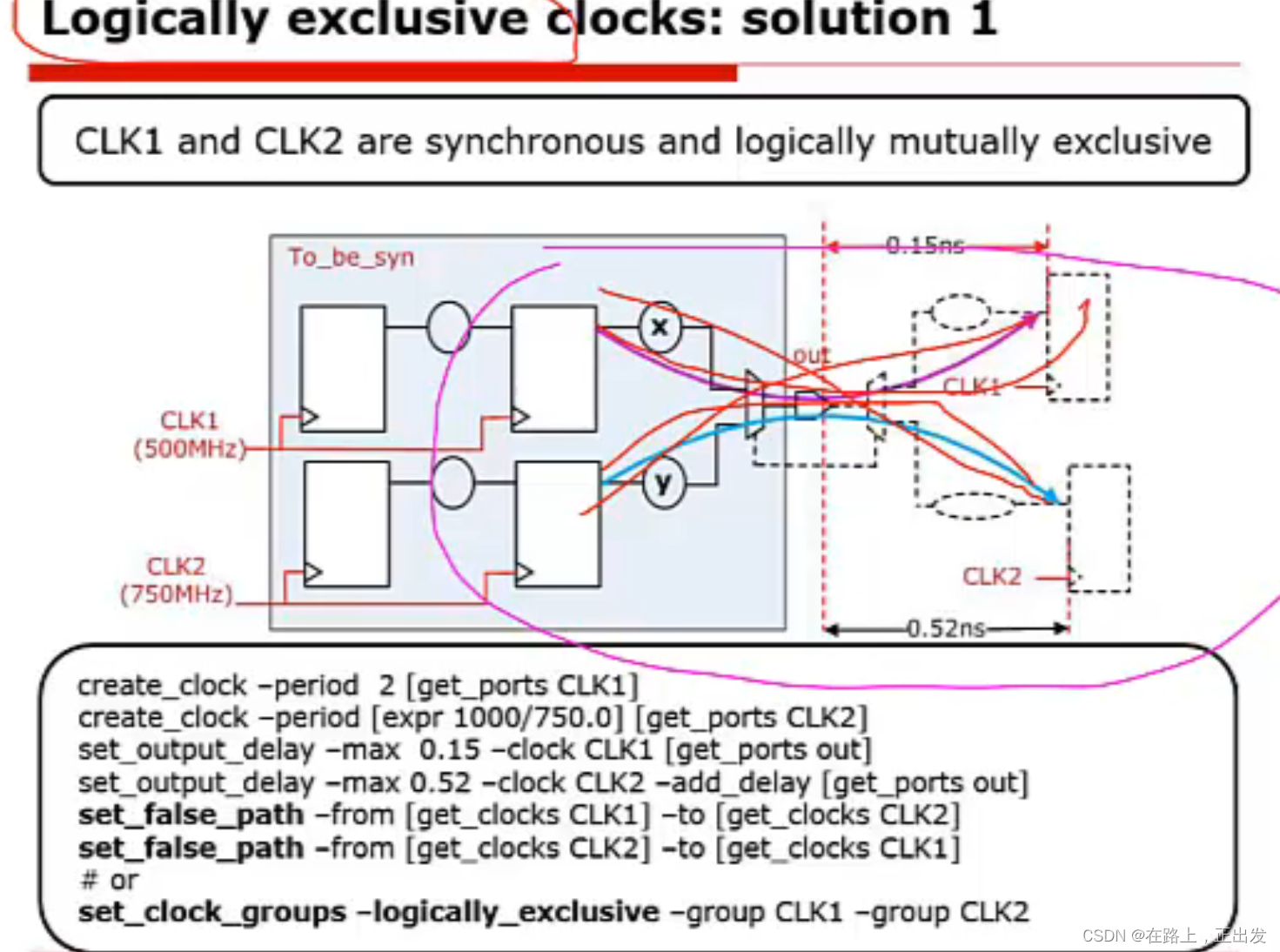

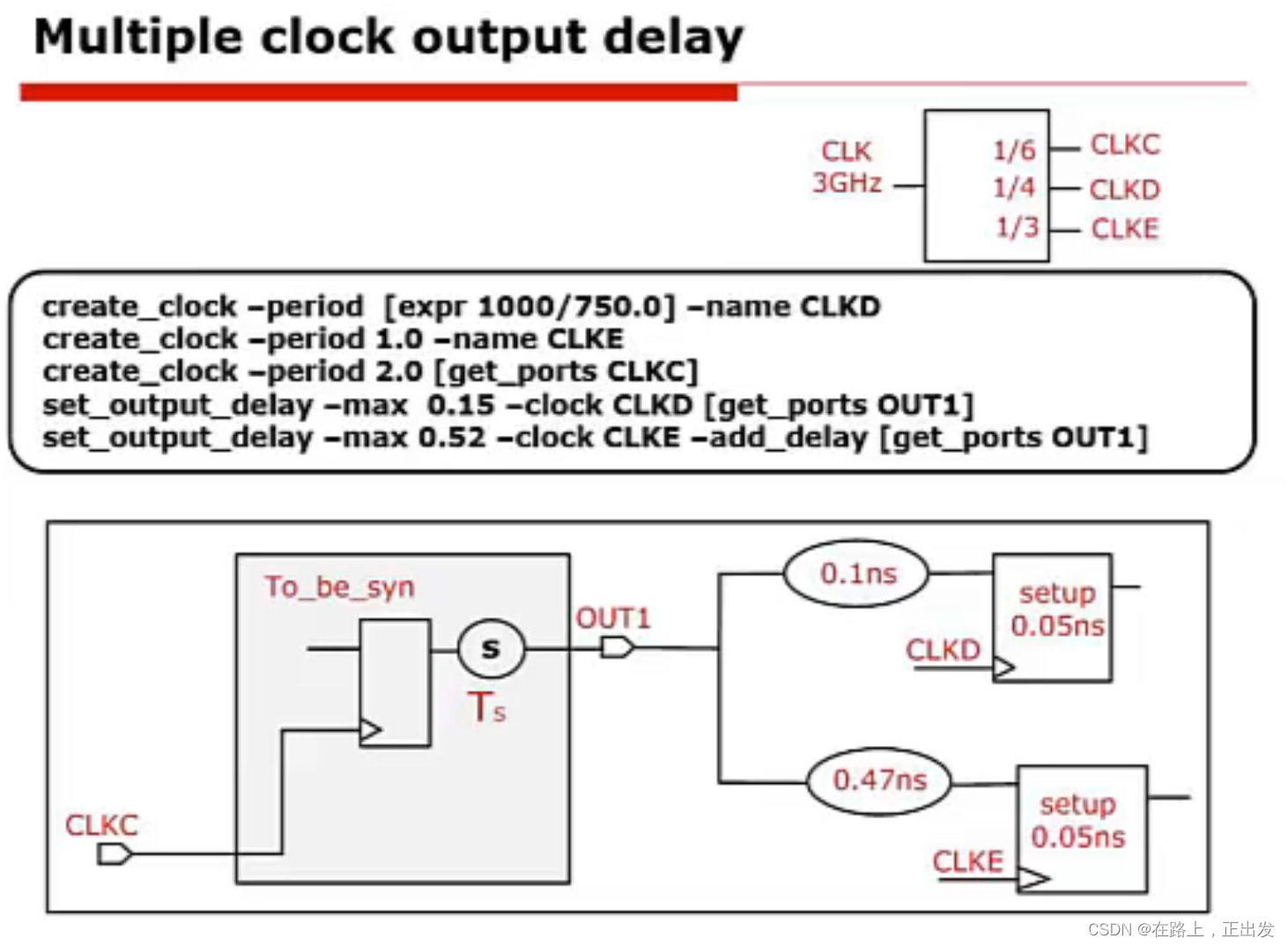

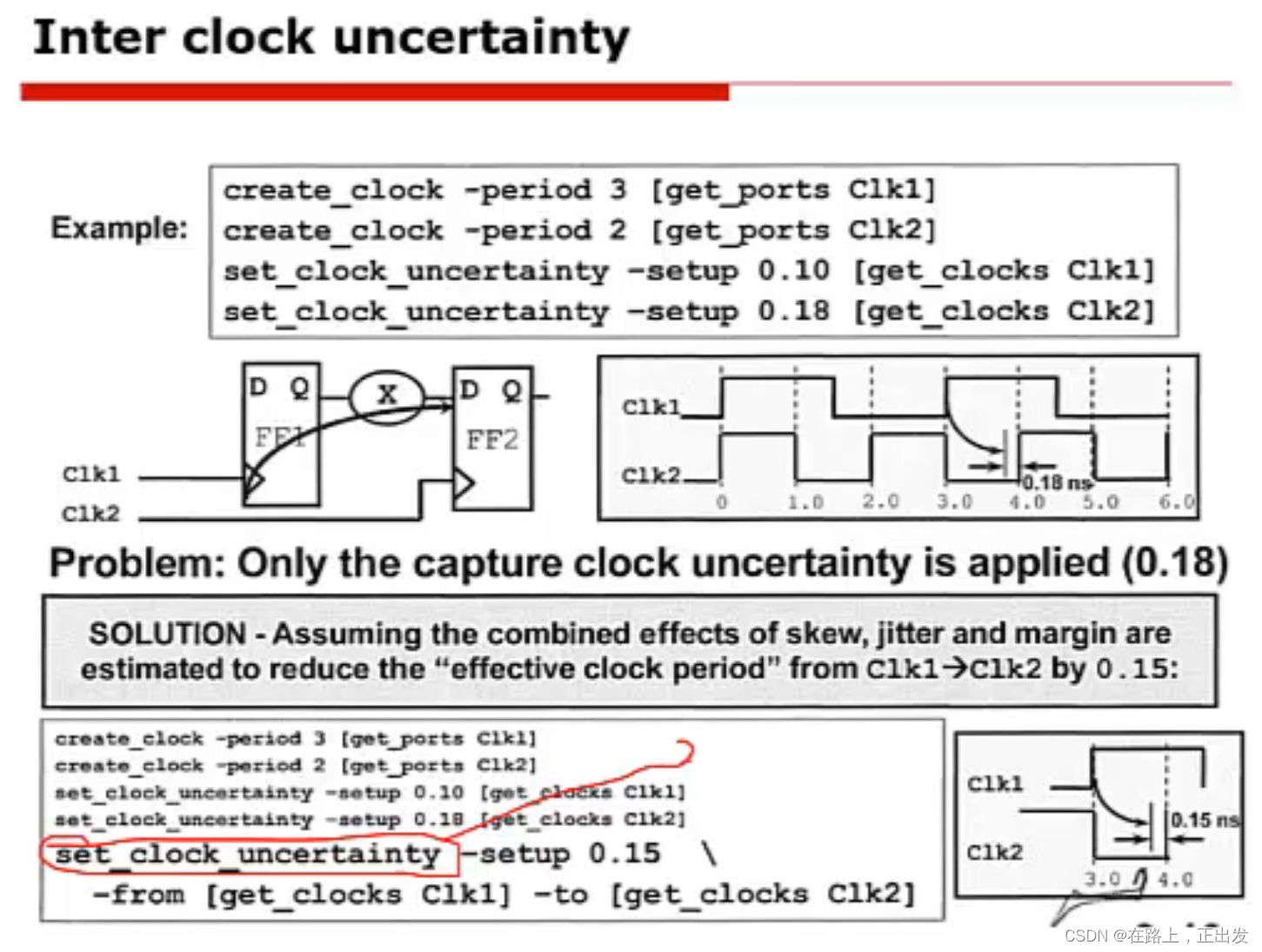

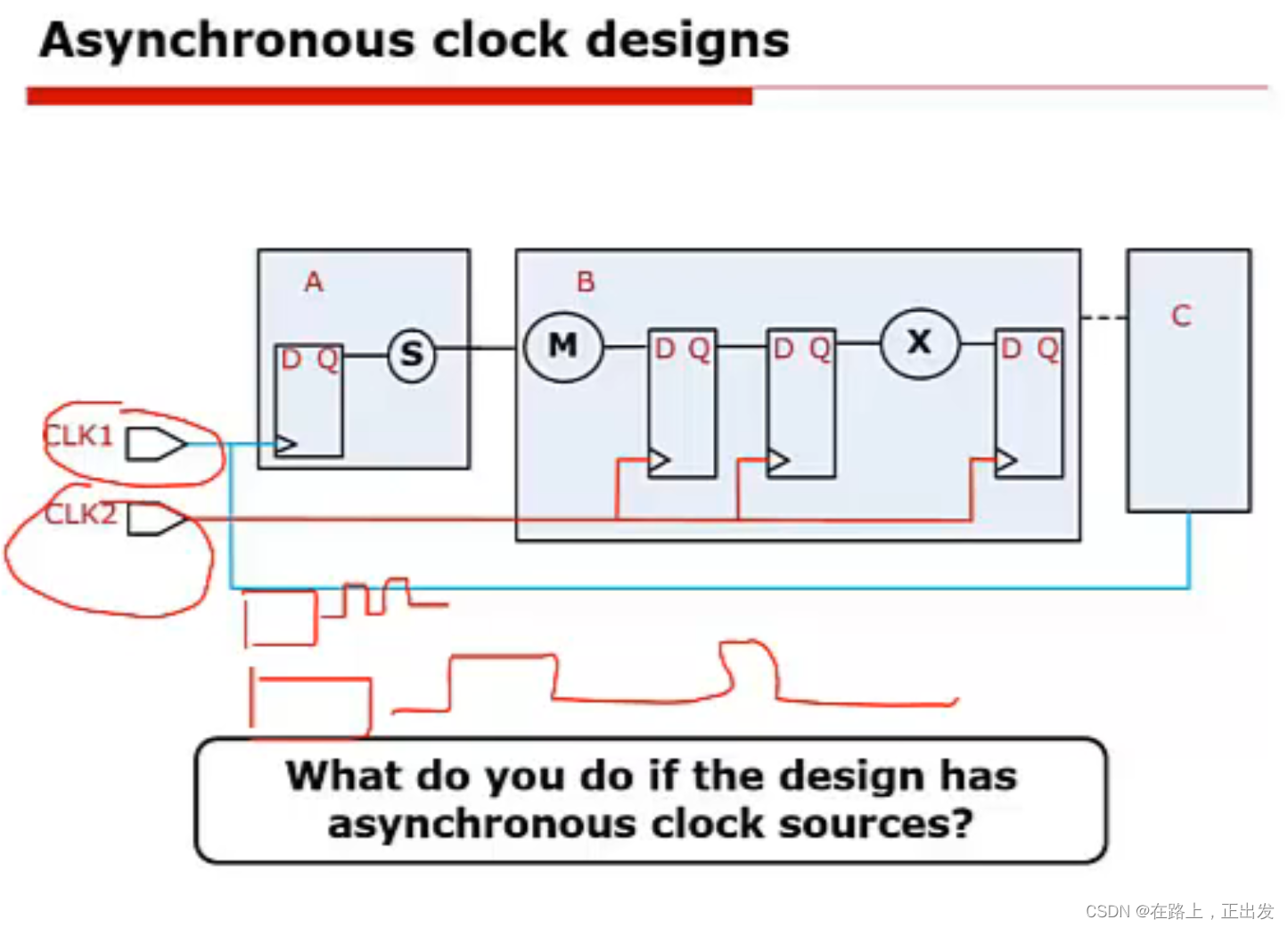

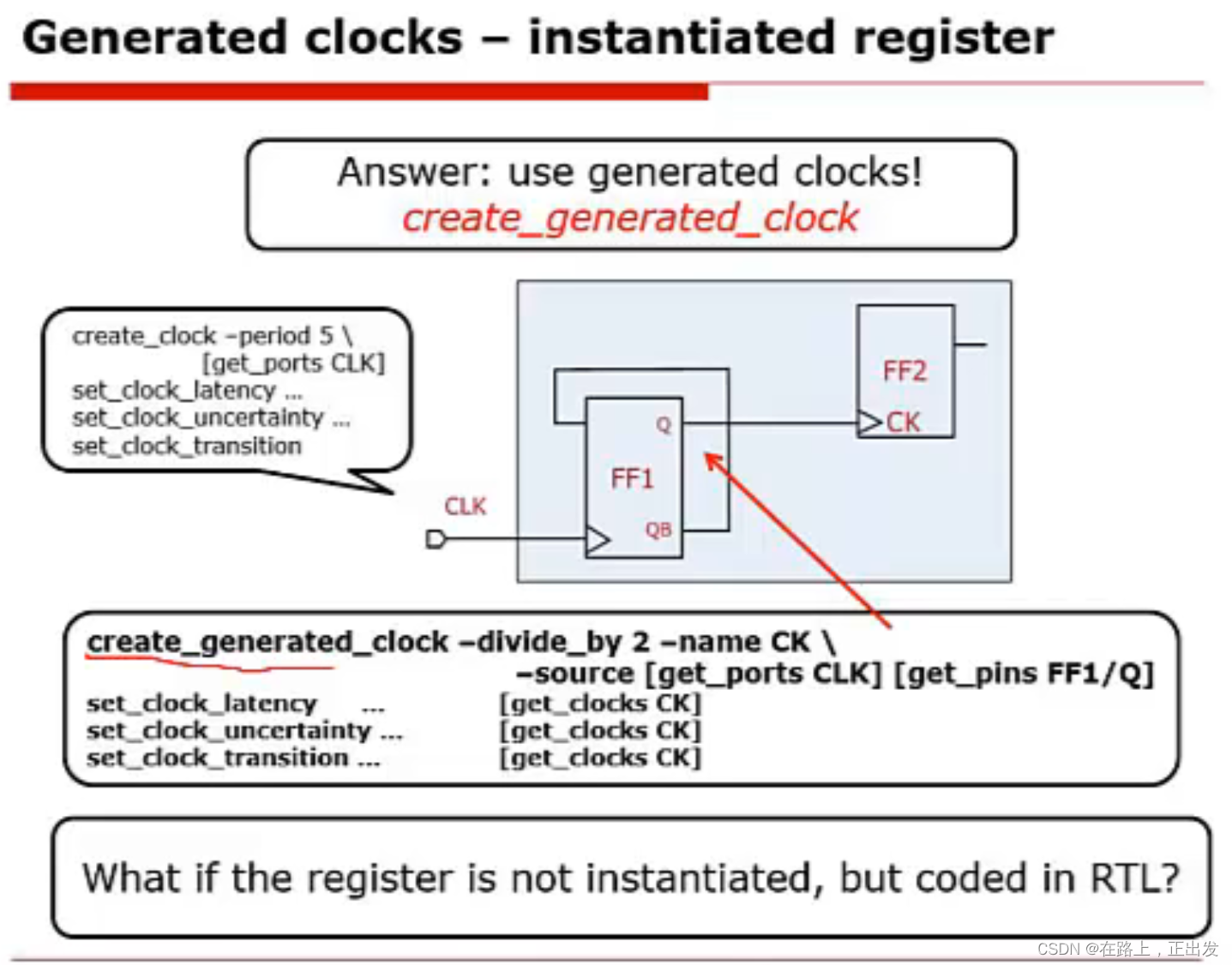

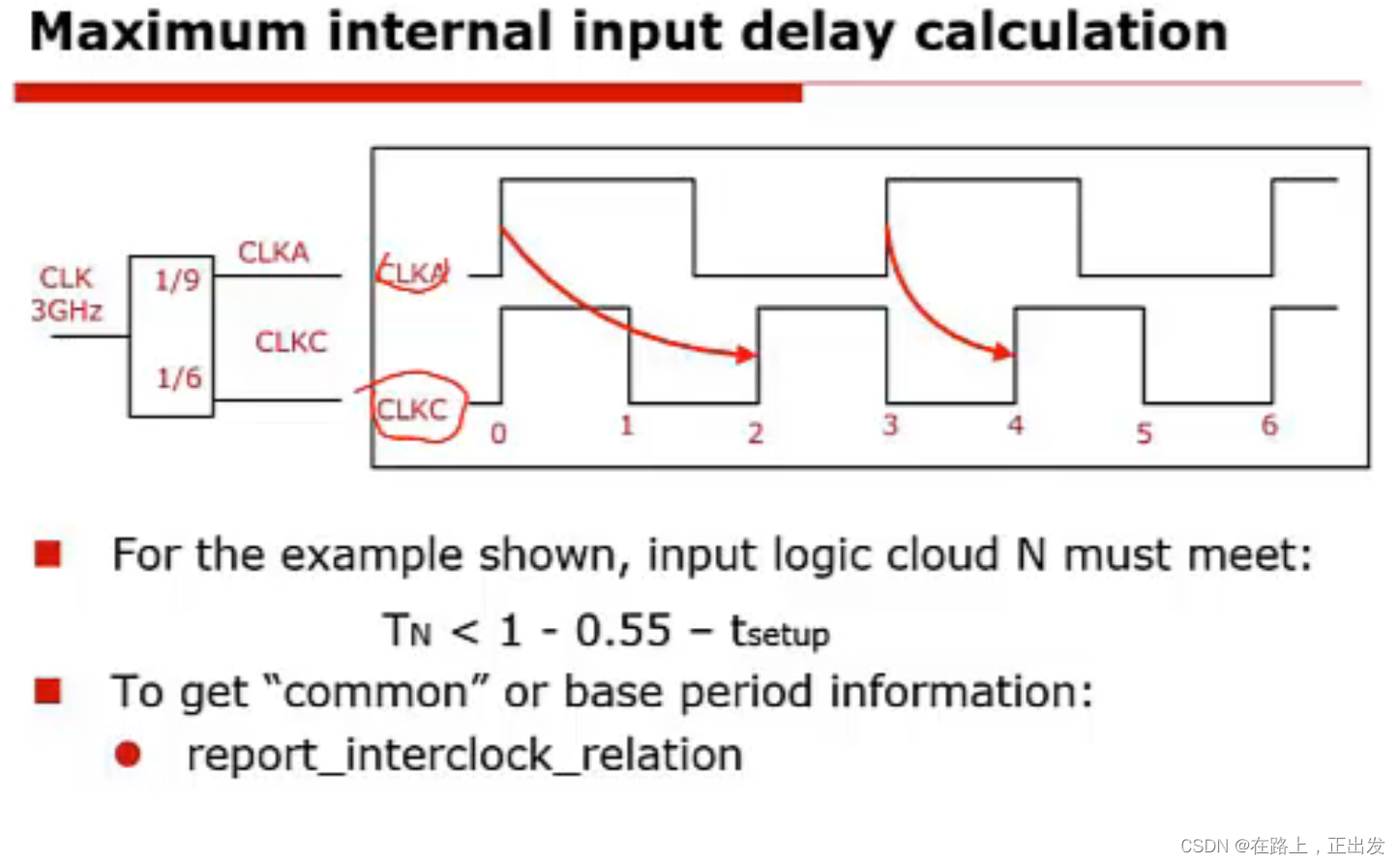

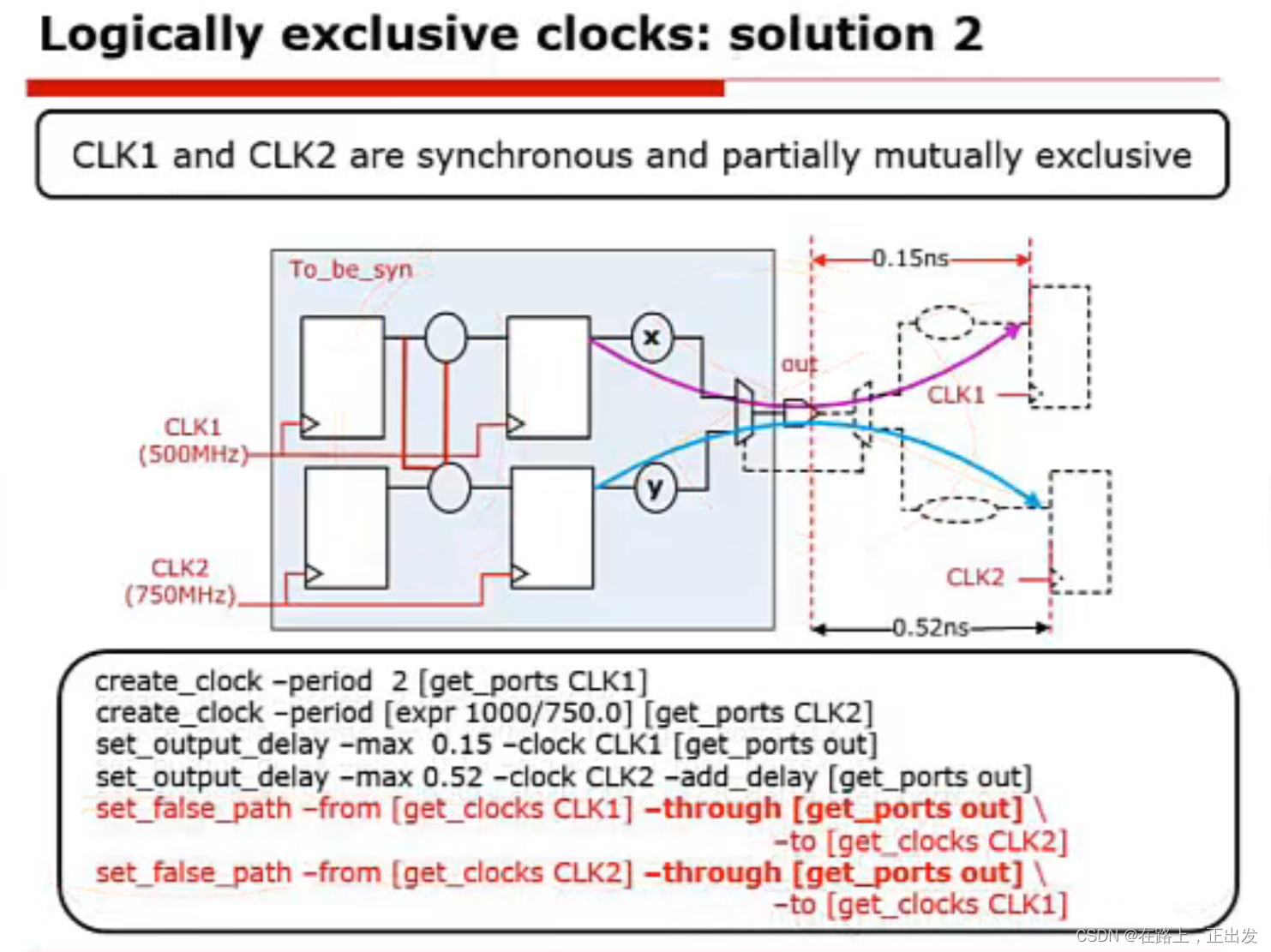

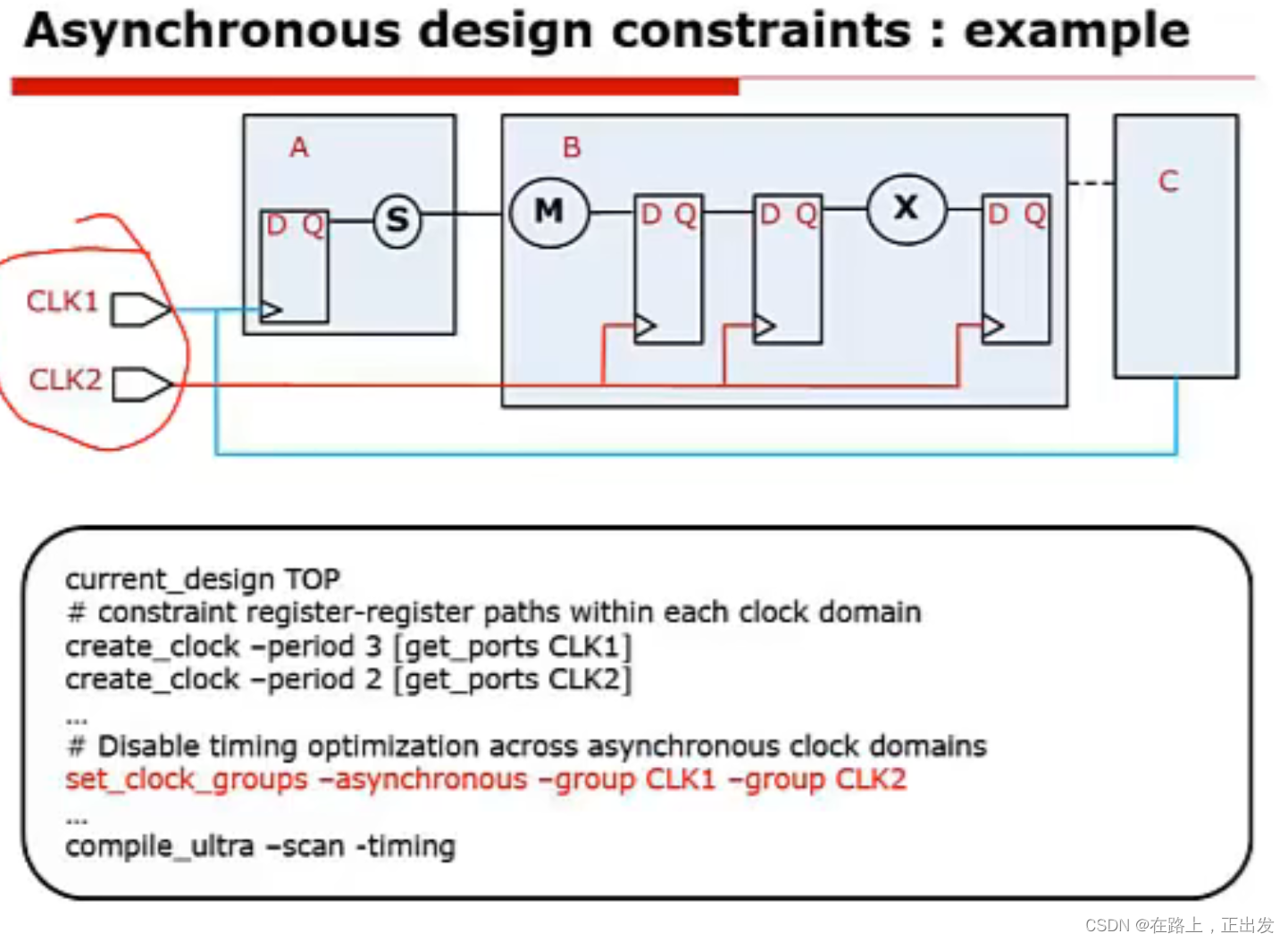

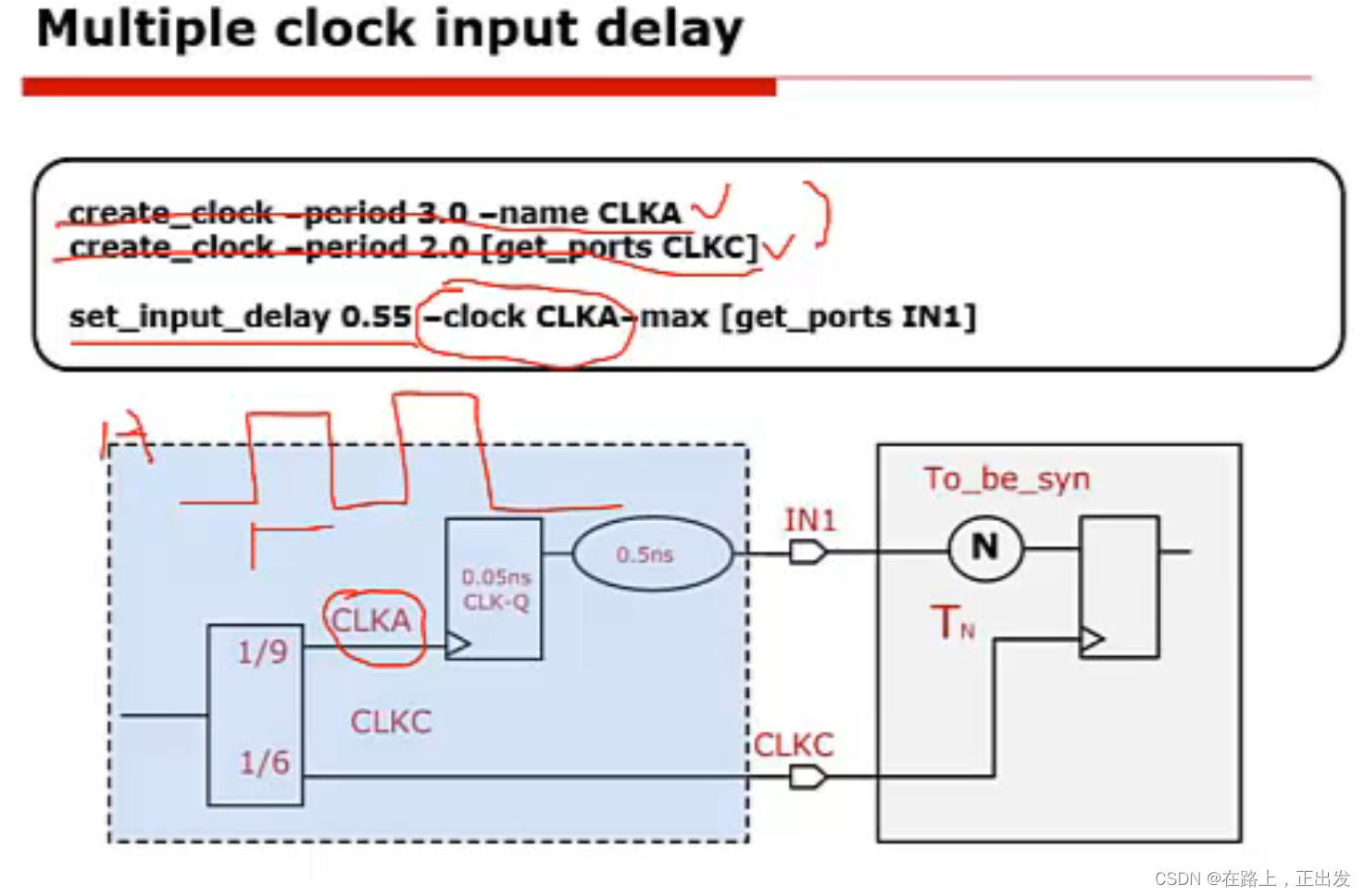

多时钟设计

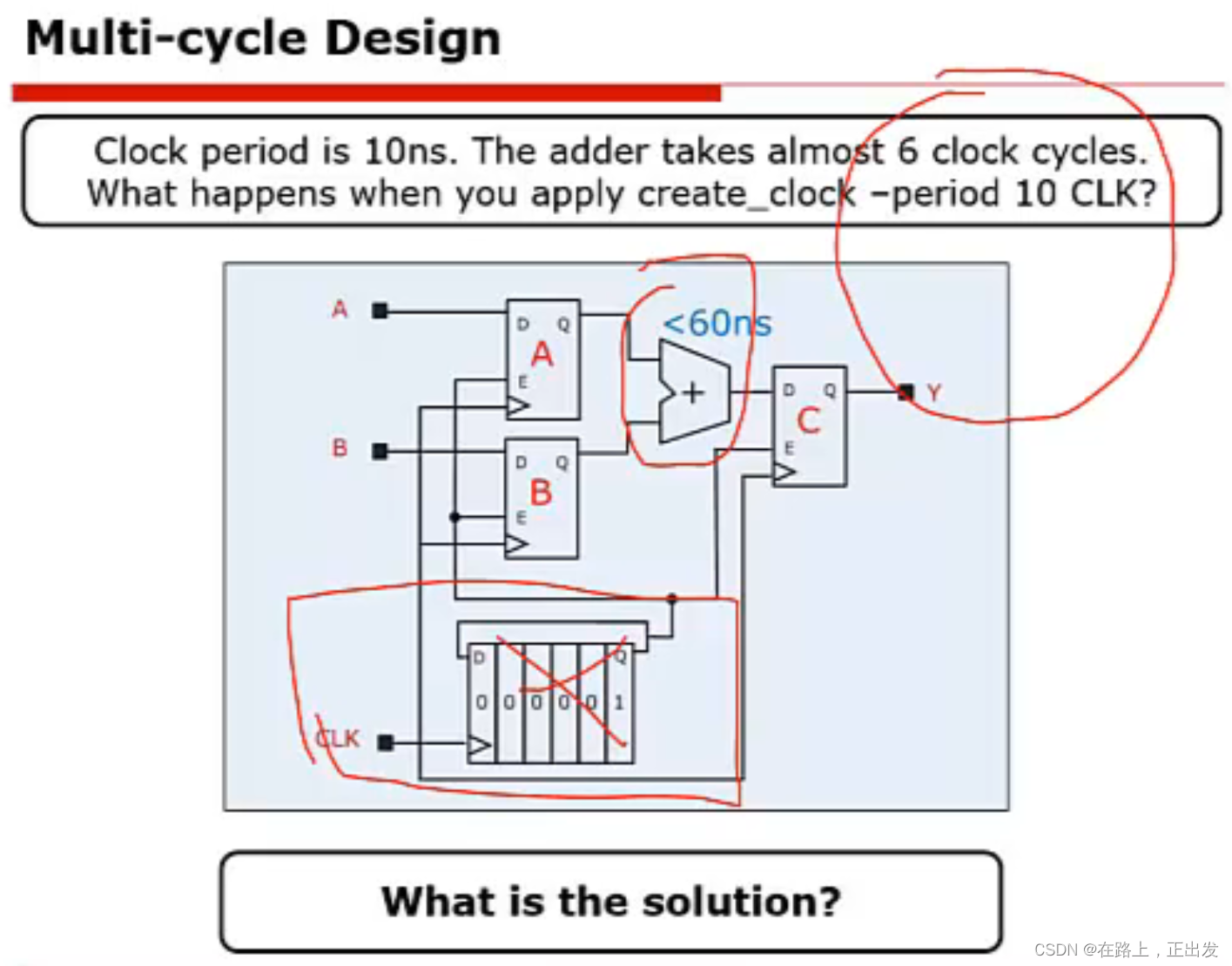

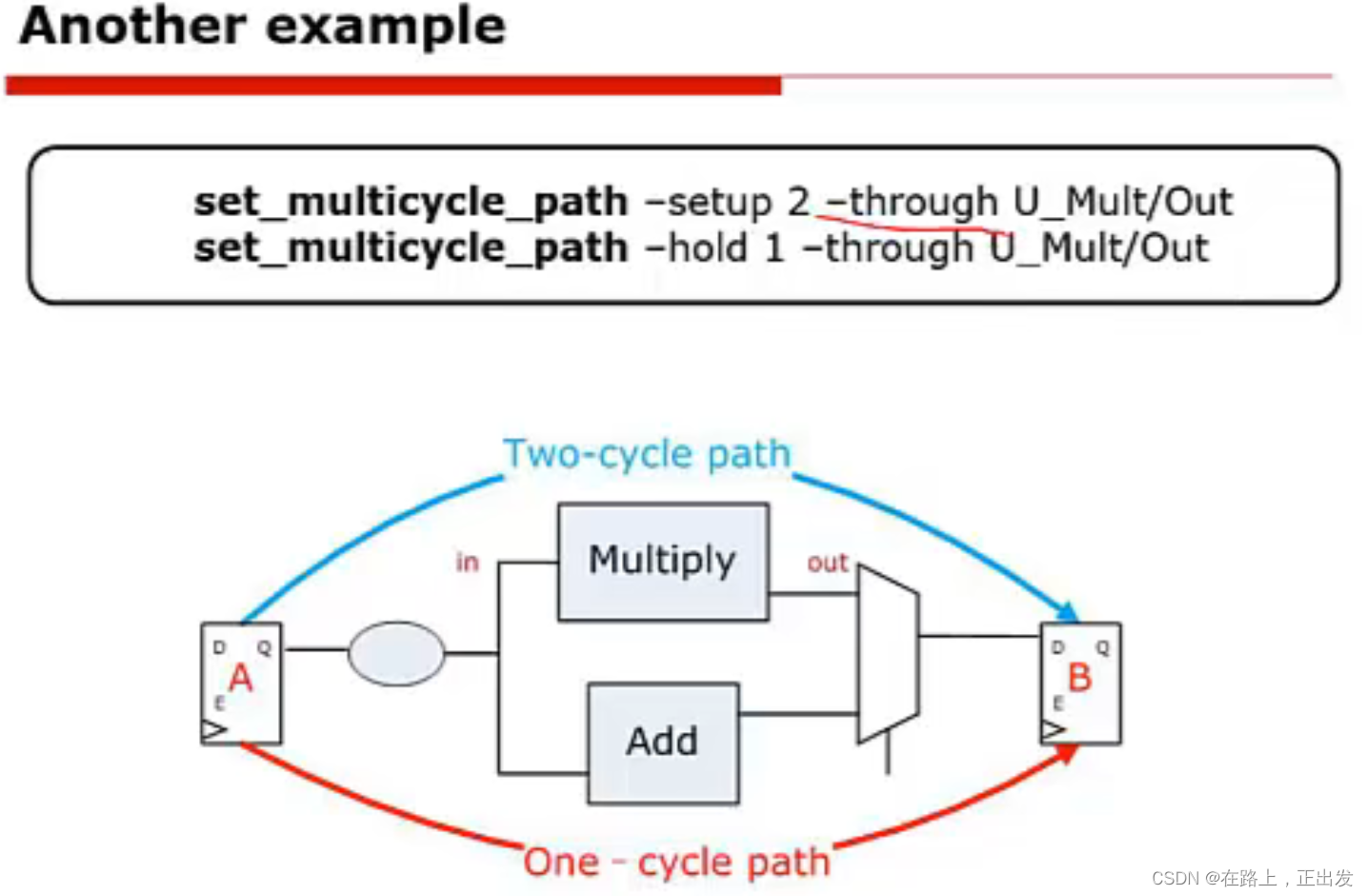

多周期约束时，对应的设计代码也需要修改。比如使能信号、数据有效信号需要延迟相应的时间。

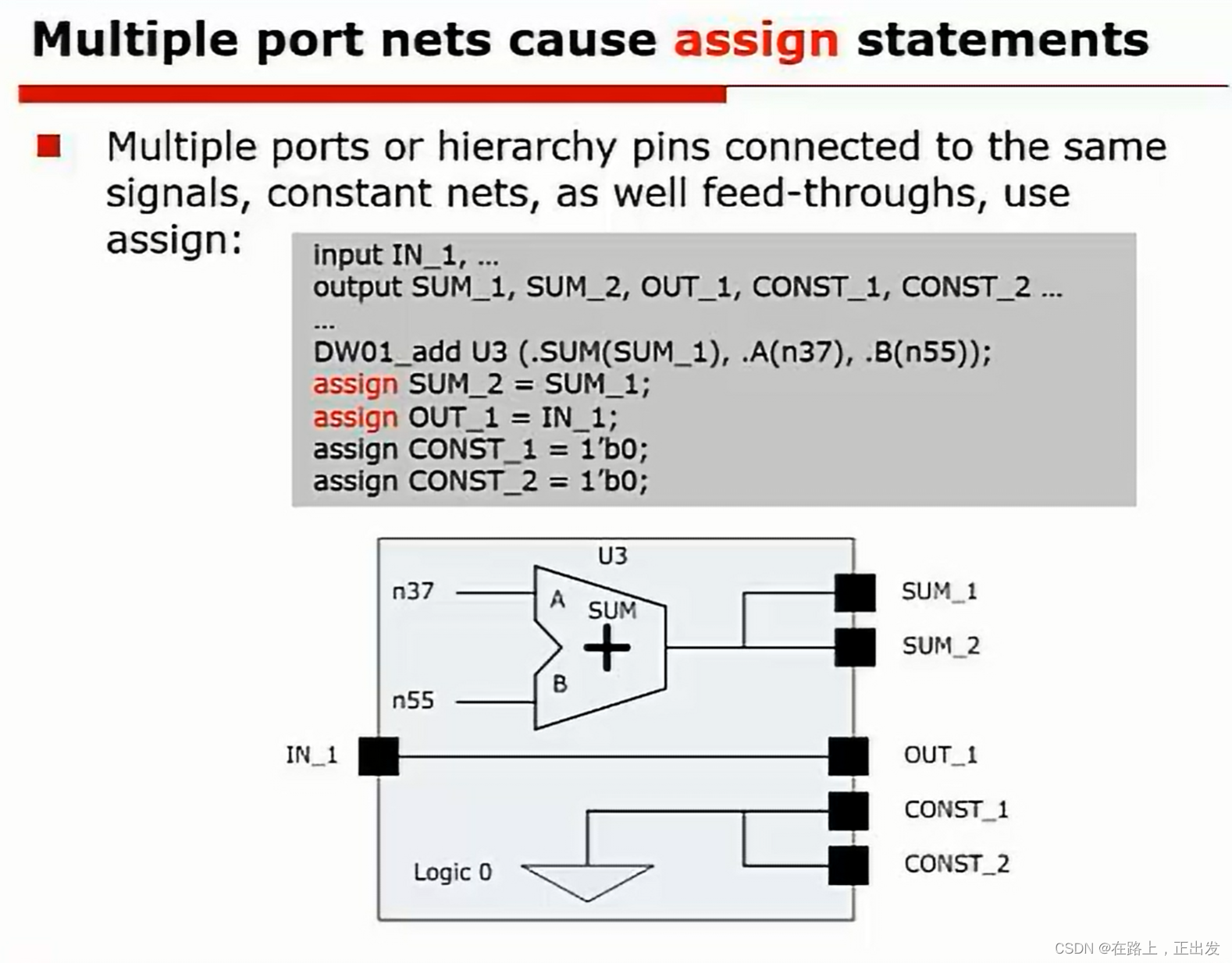

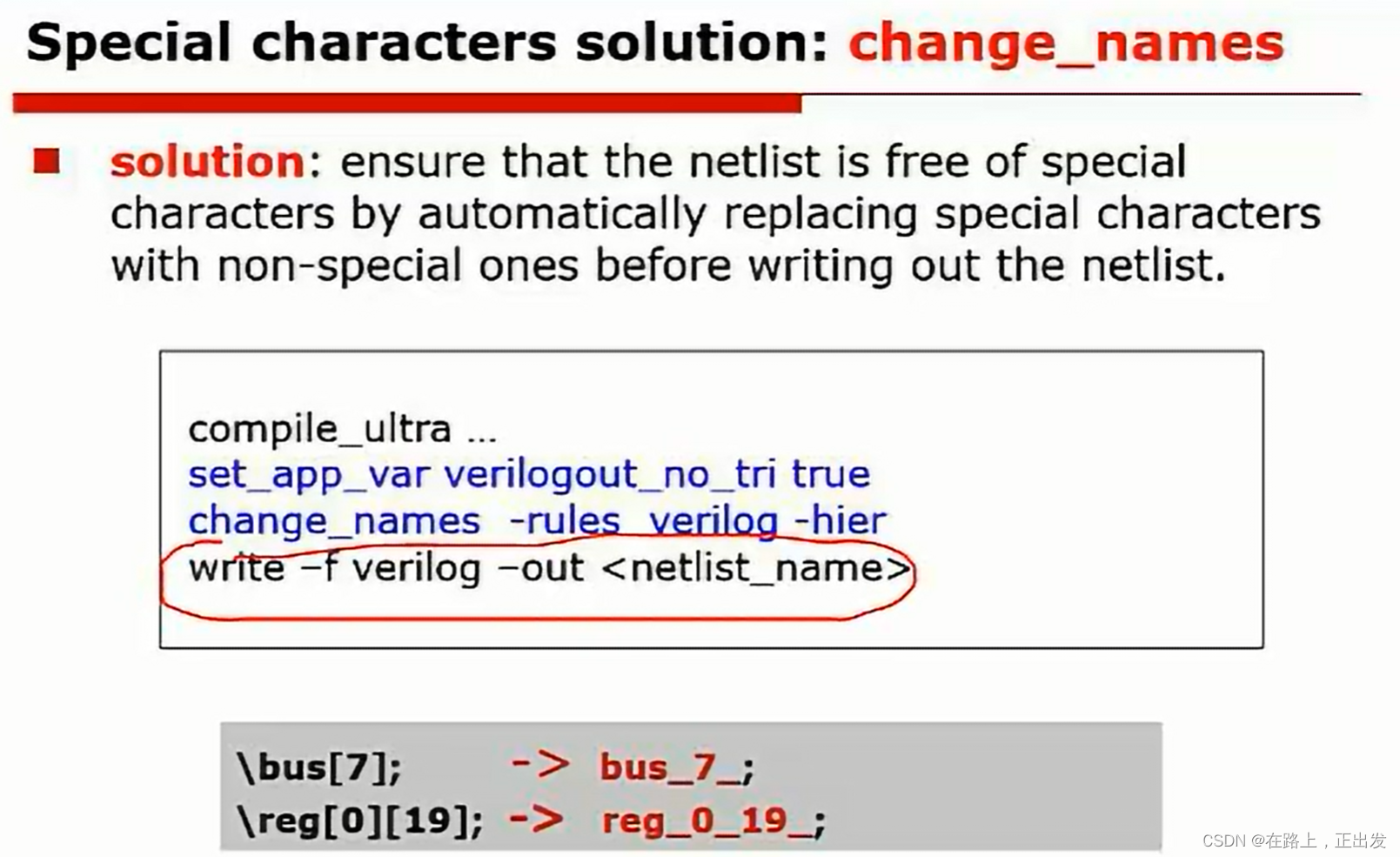

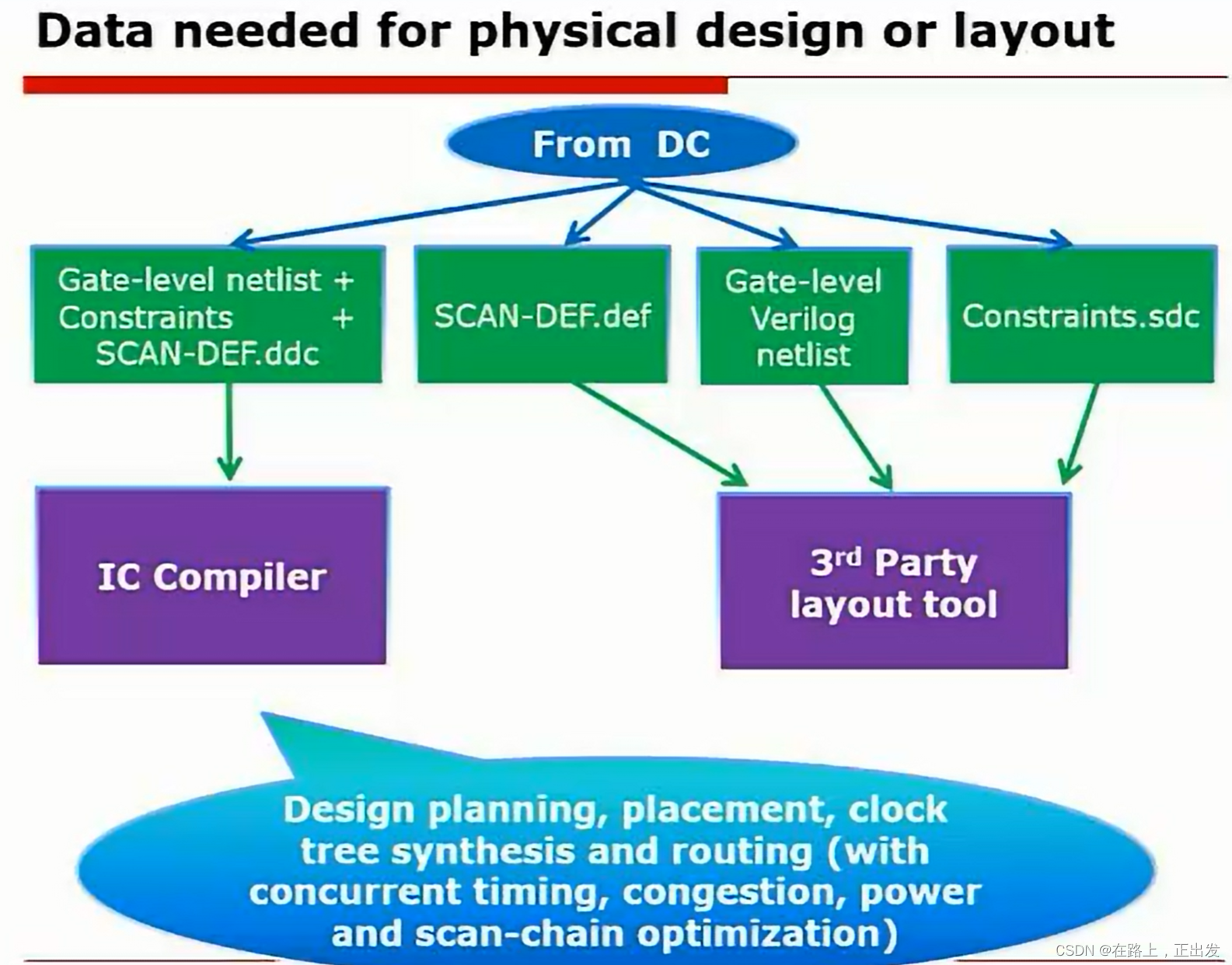

DC 输出文件分析
实际操作
设计源码
简单的设计文件：做一个9级延迟的寄存器链。源代码：
module MY_DESIGN ( input I_CLK_100M, input I_RSTN_100M, input I_DATA, input I_VAL, output O_DATA ); reg [9:0] R_I_DATA; genvar GV_I; generate for(GV_I = 0;GV_I < 10;GV_I = GV_I + 1) begin always @ (posedge I_CLK_100M) begin if(~I_RSTN_100M) begin R_I_DATA[GV_I] <= 0; end else if(GV_I == 0) begin R_I_DATA[GV_I] <= I_DATA & I_VAL; end else begin R_I_DATA[GV_I] <= R_I_DATA[GV_I-1]; end end end endgenerate assign O_DATA = R_I_DATA[9]; endmodule
综合脚本
# |===========================================================
# | Author : Xu Y. B.
# | Date : 2022-11-21
# | Description : tcl script for top design
# |===========================================================
# |===========================================================
# |STEP 1: Read & elaborate the RTL design file list & check
# |===========================================================
set TOP_MODULE MY_DESIGN
analyze -format verilog [list MY_DESIGN.v]
elaborate $TOP_MODULE -architecture verilog
current_design $TOP_MODULE
if {[link] == 0} {
echo "Your Link has errors !";
exit;
}
if {[check_design] == 0} {
echo "Your check design has errors !";
exit;
}
# |===========================================================
# |STEP 2: reset design
# |===========================================================
reset_design
# |===========================================================
# |STEP 3: Write unmapped ddc file
# |===========================================================
uniquify
set uniquify_naming_style "%s_%d"
write -f ddc -hierarchy -output ${UNMAPPED_PATH}/${TOP_MODULE}.ddc
# |===========================================================
# |STEP 4: define clocks
# |===========================================================
# -------------------------- CLK 100MHz ----------------------
set CLK_NAME I_CLK_100M
set CLK_PERIOD 10
set CLK_SKEW [expr {$CLK_PERIOD*0.05}]
set CLK_TRANS [expr {$CLK_PERIOD*0.01}]
set CLK_SRC_LATENCY [expr {$CLK_PERIOD*0.1 }]
set CLK_LATENCY [expr {$CLK_PERIOD*0.1 }]
create_clock -period $CLK_PERIOD [get_ports $CLK_NAME]
set_ideal_network [get_ports $CLK_NAME]
set_dont_touch_network [get_ports $CLK_NAME]
set_drive 0 [get_ports $CLK_NAME]
set_clock_uncertainty -setup $CLK_SKEW [get_clocks $CLK_NAME]
set_clock_transition -max $CLK_TRANS [get_clocks $CLK_NAME]
set_clock_latency -source -max $CLK_SRC_LATENCY [get_clocks $CLK_NAME]
set_clock_latency -max $CLK_LATENCY [get_clocks $CLK_NAME]
# --------------------------- CLK 50MHz ----------------------
# set CLK_NAME_2 I_CLK_50M
# set CLK_PERIOD_2 20
# set CLK_SKEW_2 [expr {$CLK_PERIOD_2*0.05}]
# set CLK_TRANS_2 [expr {$CLK_PERIOD_2*0.01}]
# set CLK_SRC_LATENCY_2 [expr {$CLK_PERIOD_2*0.1 }]
# set CLK_LATENCY_2 [expr {$CLK_PERIOD_2*0.1 }]
# create_clock -period $CLK_PERIOD_2 [get_ports $CLK_NAME_2]
# set_ideal_network [get_ports $CLK_NAME_2]
# set_dont_touch_network [get_ports $CLK_NAME_2]
# set_drive 0 [get_ports $CLK_NAME_2]
# set_clock_uncertainty -setup $CLK_SKEW_2 [get_clocks $CLK_NAME_2]
# set_clock_transition -max $CLK_TRANS_2 [get_clocks $CLK_NAME_2]
# set_clock_latency -source -max $CLK_SRC_LATENCY_2 [get_clocks $CLK_NAME_2]
# set_clock_latency -max $CLK_LATENCY_2 [get_clocks $CLK_NAME_2]
# |===========================================================
# |STEP 5: define reset
# |===========================================================
# ------------------------- RST 1 ----------------------------
set RST_NAME I_RSTN_100M
set_ideal_network [get_ports $RST_NAME]
set_dont_touch_network [get_ports $RST_NAME]
set_drive 0 [get_ports $RST_NAME]
# # ------------------------- RST 2 ----------------------------
# set RST_NAME_2 I_RSTN_50M
# set_ideal_network [get_ports $RST_NAME_2]
# set_dont_touch_network [get_ports $RST_NAME_2]
# set_drive 0 [get_ports $RST_NAME_2]
# |===========================================================
# |STEP 6: set input delay using timing budget
# |Assume a weak cell to drive the input pins
# |===========================================================
set LIB_NAME typical
set WIRE_LOAD_MODEL smic18_wl10
set DRIVE_PIN Y
set OPERATE_CONDITION typical
set ALL_INPUT_EXCEPT_CLK [remove_from_collection [all_inputs] [get_ports "$CLK_NAME"]]
set INPUT_DELAY [expr {$CLK_PERIOD*0.6}]
set_input_delay $INPUT_DELAY -clock $CLK_NAME $ALL_INPUT_EXCEPT_CLK
set_driving_cell -lib_cell ${DRIVE_CELL} -pin ${DRIVE_PIN} $ALL_INPUT_EXCEPT_CLK
# |===========================================================
# |STEP 7: set output delay
# |===========================================================
set OUTPUT_DELAY [expr {$CLK_PERIOD*0.6}]
set MAX_LOAD [expr {[load_of $LIB_NAME/INVX4/A] * 10}]
set_output_delay $OUTPUT_DELAY -clock $CLK_NAME [all_outputs]
set_load [expr {$MAX_LOAD * 3}] [all_outputs]
set_isolate_ports -type buffer [all_outputs]
# |===========================================================
# |STEP 8: set max delay for comb logic
# |===========================================================
# set_input_delay [expr $CLK_PERIOD * 0.1] -clock $CLK_NAME -add_delay [get_ports I_1]
# set_output_delay [expr $CLK_PERIOD * 0.1] -clock $CLK_NAME -add_delay [get_ports O_1]
# |===========================================================
# |STEP 9: set operating condition & wire load model
# |===========================================================
set_operating_conditions -max $OPERATE_CONDITION \
-max_library $LIB_NAME
set auto_wire_load_selection false
set_wire_load_mode top
set_wire_load_model -name $WIRE_LOAD_MODEL \
-library $LIB_NAME
# |===========================================================
# |STEP 10: set area constraint (Let DC try its best)
# |===========================================================
set_max_area 1000
# |===========================================================
# |STEP 11: set DRC constraint
# |===========================================================
# set MAX_CAPACITANCE [expr {[load_of $LIB_NAME/NAND4X2/Y] * 5}]
# set_max_capacitance $MAX_CAPACITANCE $ALL_INPUT_EXCEPT_CLK
# |===========================================================
# |STEP 12: set group path
# |Avoid getting stack on one path
# |===========================================================
group_path -name $CLK_NAME -weight 5 \
-critical_range [expr {$CLK_PERIOD * 0.1}]
group_path -name INPUTS -from [all_inputs] \
-critical_range [expr {$CLK_PERIOD * 0.1}]
group_path -name OUTPUTS -to [all_outputs] \
-critical_range [expr {$CLK_PERIOD * 0.1}]
group_path -name COMBS -from [all_inputs] \
-to [all_outputs] \
-critical_range [expr {$CLK_PERIOD * 0.1}]
report_path_group
# |===========================================================
# |STEP 13: Elimate the multiple-port inter-connect &
# | define name style
# |===========================================================
# set_app_var verilogout_no_tri true
# set_app_var verilogout_show_unconnected_pins true
# set_app_var bus_naming_style {%s[%d]}
# simplify_constants -boundary_optimization
# set_boundary_optimization [current_design] true
# set_fix_multiple_port_nets -all -buffer_constants
# |===========================================================
# |STEP 14: timing exception define
# |===========================================================
# set_false_path -from [get_clocks I_CLK_100M] -to [get_clocks I_CLK_100M]
# set ALL_CLKS [all_clocks]
# foreach_in_collection CUR_CLK $ALL_CLKS
# {
# set OTHER_CLKS [remove_from_collection [all_clocks] $CUR_CLK]
# set_false_path -from $CUR_CLK $OTHER_CLKS
# }
# set_false_path -from [get_clocks I_CLK_100M] -to [get_clocks I_CLK_100M]
# set_false_path -from [get_clocks I_CLK_100M] -to [get_clocks I_CLK_100M]
# set_disable_timing TOP/U1 -from a -to y
# set_case_analysis 0 [get_ports sel_i]
# set_multicycle_path -setup 6 -from FFA/CP -through ADD/out -to FFB/D
# set_multicycle_path -hold 5 -from FFA/CP -through ADD/out -to FFB/D
# set_multicycle_path -setup 2 -to FFB/D
# set_multicycle_path -hold 1 -to FFB/D
# |===========================================================
# |STEP 15: compile flow
# |===========================================================
# ungroup -flatten -all
# 1st-pass compile
# compile -map_effort high -area_effort high
# compile -map_effort high -area_effort high -boundary_optimization
compile -map_effort high -area_effort high
# simplify_constants -boundary_optimization
# set_fix_multiple_port_nets -all -buffer_constants
# compile -map_effort high -area_effort high -incremental_mapping -scan
# 2nd-pass compile
# compile -map_effort high -area_effort high -incremental_mapping -boundary_optimization
# compile_ultra -incr
# |===========================================================
# |STEP 16: write post-process files
# |===========================================================
change_names -rules verilog -hierarchy
remove-unconnected_ports [get_cells -hier *] -blast_buses
# Write the mapped files
write -f ddc -output $MAPPED_PATH/${TOP_MODULE}.ddc
write -f verilog -hierarchy -output $MAPPED_PATH/${TOP_MODULE}.v
write_sdc -version 1.7 $MAPPED_PATH/${TOP_MODULE}.sdc
write_sdf -version 2.1 $MAPPED_PATH/${TOP_MODULE}.sdf
# |===========================================================
# |STEP 17: generate report files
# |===========================================================
# Get report file
redirect -tee -file ${REPORT_PATH}/check_design.txt {check_design}
redirect -tee -file ${REPORT_PATH}/check_timing.txt {check_timing}
redirect -tee -file ${REPORT_PATH}/report_constraint.txt {report_constraint -all_violators}
redirect -tee -file ${REPORT_PATH}/check_setup.txt {report_timing -delay_type max}
redirect -tee -file ${REPORT_PATH}/check_hold.txt {report_timing -delay_type min}
redirect -tee -file ${REPORT_PATH}/report_area.txt {report_area}综合网表

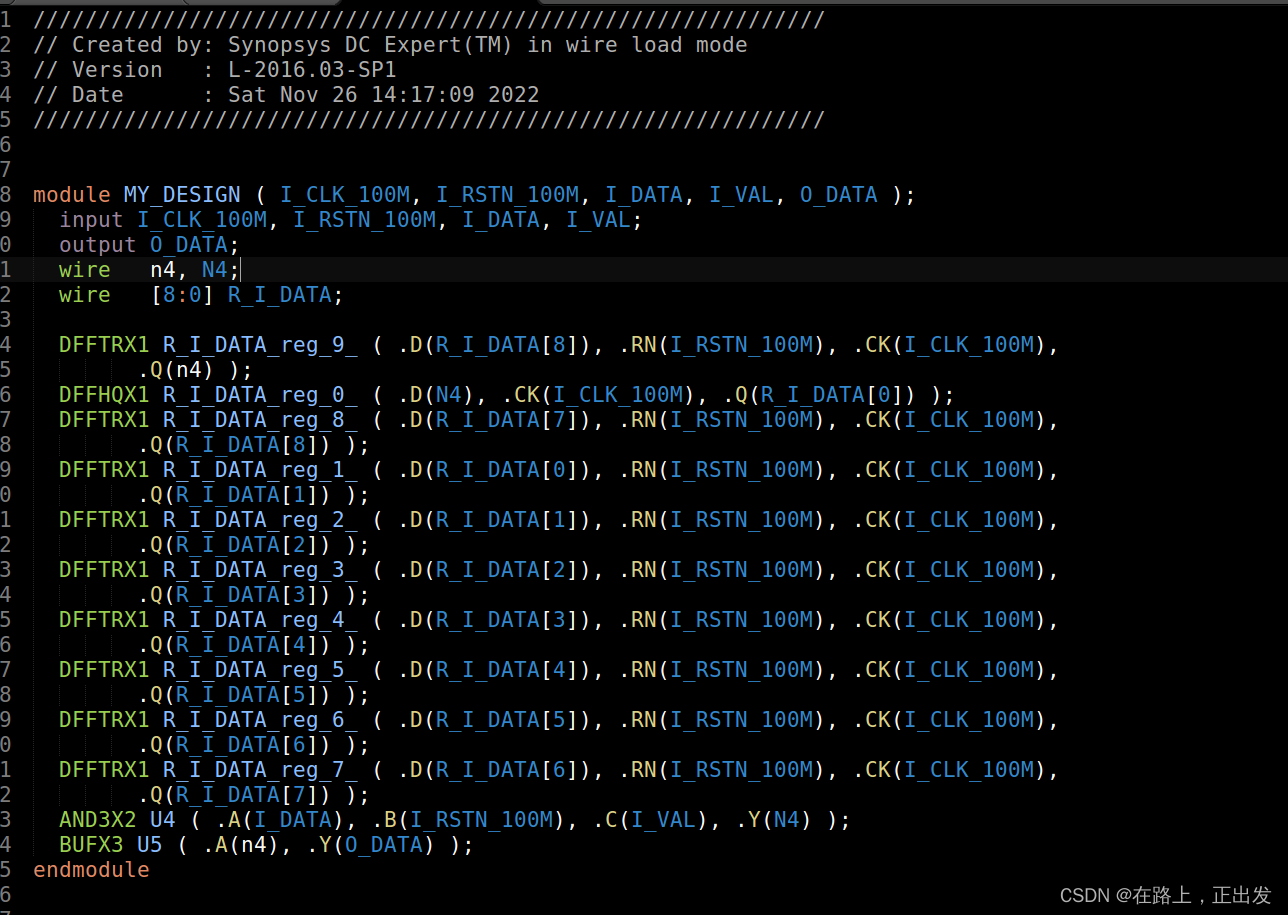

打开映射后的 .v 文件：
编译时可以加上 -scan 选项，观察寄存器映射的差别：
SDF文件
里面包含了单元的延迟信息。
SDC文件
里面包含了该设计的所有约束
REPORT文件
可以分别打开进行分析，包括时间、面积等。此处就不一一展开。
至此 DC 的视频学习告一段落，了解了基本的使用技巧。但是功夫还需要磨练，多结合工程进行实践是必不可缺的环节。继续加油~~
