前言

  本文主要讲解基于mxnet深度学习框架实现目标检测，实现的模型为YoloV3及YoloV3-tiny

环境配置：
      python 3.8
      mxnet 1.7.0
      cuda 10.1

---

目标检测发展史及意义

  图像分类任务的实现可以让我们粗略的知道图像中包含了什么类型的物体，但并不知道物体在图像中哪一个位置，也不知道物体的具体信息，在一些具体的应用场景比如车牌识别、交通违章检测、人脸识别、运动捕捉，单纯的图像分类就不能完全满足我们的需求了。

  这时候，需要引入图像领域另一个重要任务：物体的检测与识别。在传统机器领域，一个典型的案例是利用HOG（Histogram of Gradient）特征来生成各种物体相应的“滤波器”，HOG滤波器能完整的记录物体的边缘和轮廓信息，利用这一滤波器过滤不同图片的不同位置，当输出响应值幅度超过一定阈值，就认为滤波器和图片中的物体匹配程度较高，从而完成了物体的检测。

---

一、数据集的准备

  首先我是用的是halcon数据集里边的药片，去了前边的100张做标注，后面的300张做测试，其中100张里边选择90张做训练集，10张做验证集。

1.标注工具的安装

pip install labelimg

进入cmd，输入labelimg，会出现如图的标注工具：

2.数据集的准备

首先我们先创建3个文件夹，如图：

DataImage：100张需要标注的图像
DataLabel：空文件夹，主要是存放标注文件，这个在labelimg中生成标注文件
test：存放剩下的300张图片，不需要标注
DataImage目录下和test目录的存放样子是这样的（以DataImage为例）：

3.标注数据

  首先我们需要在labelimg中设置图像路径和标签存放路径，如图：

  然后先记住快捷键：w：开始编辑，a:上一张，d:下一张。这个工具只需要这三个快捷键即可完成工作。
  开始标注工作，首先按下键盘w，这个时候进入编辑框框的模式，然后在图像上绘制框框，输入标签（框框属于什么类别），即可完成物体1的标注，一张物体可以多个标注和多个类别，但是切记不可摸棱两可，比如这张图像对于某物体标注了，另一张图像如果出现同样的就需要标注，或者标签类别不可多个，比如这个图象A物体标注为A标签，下张图的A物体标出成了B标签，最终的效果如图：

最后标注完成会在DataLabel中看到标注文件，json格式：

4.解释xml文件的内容

xml标签文件如图，我们用到的就只有object对象，对其进行解析即可。

---

二、网络结构的介绍

论文地址：https://arxiv.org/pdf/1804.02767.pdf

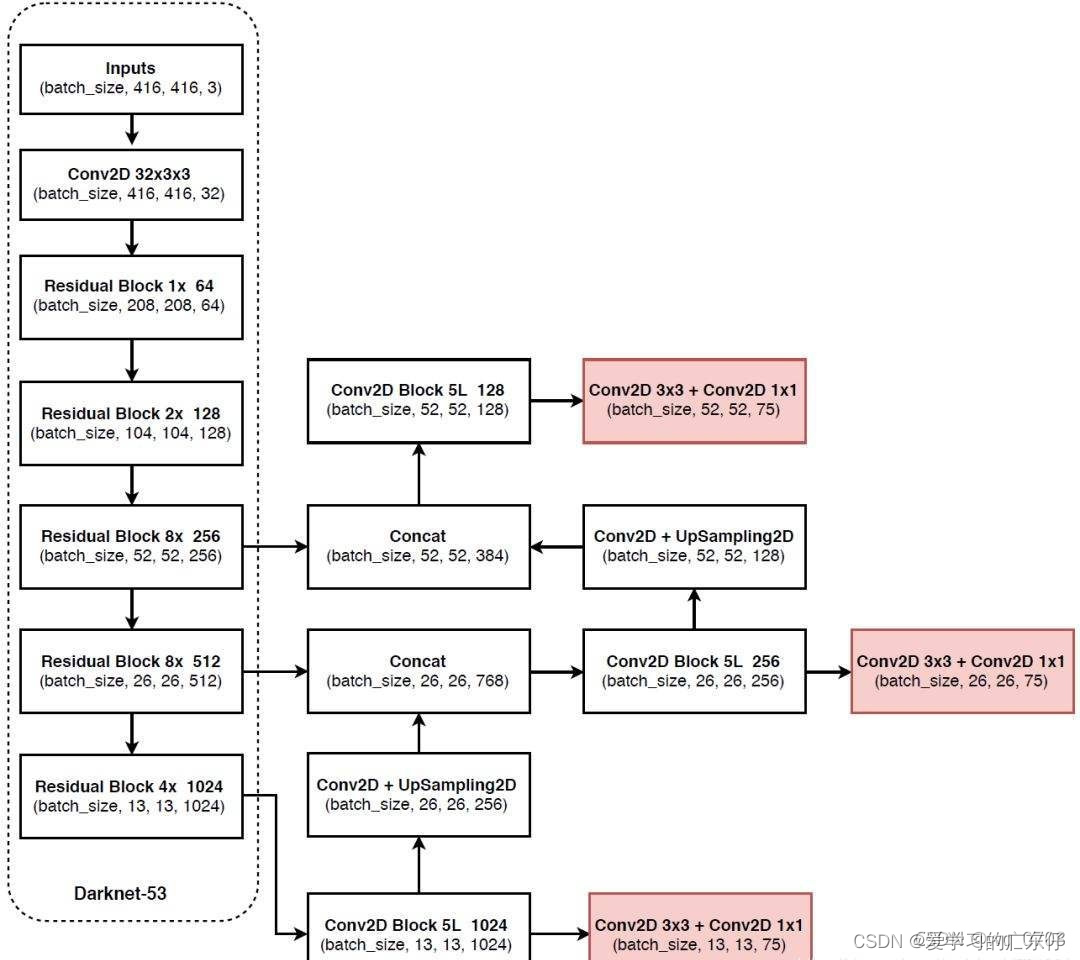

网络结构：

  我们这里的YoloV3目标检测，所使用的主干网络是DarkNet53，因此我们根据这个结构对目标检测YoloV3进行构建，从图像上可知，YoloV3经过darknet53对图像进行压缩5次之后，取压缩了3次，4次，5次的特征层从下网上做卷积标准化激活函数等操作，同时也做了上采样，与上一层卷积层进行融合也作为一个输出；
  其次就是用先验框对下边进行检测，如：
  从131375，其实就是1313(20+4+1)*3的结果，这里代表位置和类别以及先验框。
  下面NMS极大值抑制，可以最终取得物体。

---

三、代码实现

0.工程目录结构如下

core：损失计算及一些核心计算的文件都存放在此文件夹
data：数据加载的相关函数及类
net：包含主干网络结构及标准的yolov3结构
utils：数据预处理的相关文件
Ctu_YoloV3.py/Ctu_YoloV3-tiny.py: yolov3的训练类和测试类，是整个AI的主入口

---

1.导入库

import os, time, warnings, json, sys, cv2, colorsys, copy
sys.path.append('.')
from PIL import Image,ImageFont,ImageDraw
import numpy as np
import mxnet as mx
from mxnet import nd
from mxnet import gluon
from mxnet import autograd
from data.data_loader import VOCDetection, VOC07MApMetric, RandomTransformDataLoader
from data.data_mixup import MixupDetection
from nets.yolo import yolo3_tiny_darknet
from data.batchify_fn import Tuple, Stack, Pad
from data.data_transform import YOLO3DefaultTrainTransform,YOLO3DefaultValTransform
from core.lr_scheduler import LRScheduler

---

2.配置GPU/CPU环境

self.ctx = [mx.gpu(int(i)) for i in USEGPU.split(',') if i.strip()]
self.ctx = self.ctx if self.ctx else [mx.cpu()]

---

3.数据加载器

这里输入的是迭代器，后面都会利用它构建训练的迭代器

class VOCDetection(dataset.Dataset):
    def CreateDataList(self,IMGDir,XMLDir):
        ImgList = os.listdir(IMGDir)
        XmlList = os.listdir(XMLDir)
        classes = []
        dataList=[]
        for each_jpg in ImgList:
            each_xml = each_jpg.split('.')[0] + '.xml'
            if each_xml in XmlList:
                dataList.append([os.path.join(IMGDir,each_jpg),os.path.join(XMLDir,each_xml)])
                with open(os.path.join(XMLDir,each_xml), "r", encoding="utf-8") as in_file:
                    tree = ET.parse(in_file)
                    root = tree.getroot()
                    for obj in root.iter('object'):
                        cls = obj.find('name').text
                        if cls not in classes:
                            classes.append(cls)
        return dataList,classes

    def __init__(self, ImageDir, XMLDir,transform=None):
        self.datalist,self.classes_names = self.CreateDataList(ImageDir,XMLDir)
        self._transform = transform
        self.index_map = dict(zip(self.classes_names, range(len(self.classes_names))))
        # self._label_cache = self._preload_labels()

    @property
    def classes(self):
        return self.classes_names

    def __len__(self):
        return len(self.datalist)

    def __getitem__(self, idx):
        img_path = self.datalist[idx][0]
        # label = self._label_cache[idx] if self._label_cache else self._load_label(idx)
        label = self._load_label(idx)
        img = mx.image.imread(img_path, 1)
        if self._transform is not None:
            return self._transform(img, label)
        return img, label.copy()

    def _preload_labels(self):
        return [self._load_label(idx) for idx in range(len(self))]

    def _load_label(self, idx):
        anno_path = self.datalist[idx][1]
        root = ET.parse(anno_path).getroot()
        size = root.find('size')
        width = float(size.find('width').text)
        height = float(size.find('height').text)
        label = []
        for obj in root.iter('object'):
            try:
                difficult = int(obj.find('difficult').text)
            except ValueError:
                difficult = 0
            cls_name = obj.find('name').text.strip().lower()
            if cls_name not in self.classes:
                continue
            cls_id = self.index_map[cls_name]
            xml_box = obj.find('bndbox')
            xmin = (float(xml_box.find('xmin').text) - 1)
            ymin = (float(xml_box.find('ymin').text) - 1)
            xmax = (float(xml_box.find('xmax').text) - 1)
            ymax = (float(xml_box.find('ymax').text) - 1)
            try:
                self._validate_label(xmin, ymin, xmax, ymax, width, height)
                label.append([xmin, ymin, xmax, ymax, cls_id, difficult])
            except AssertionError as e:
                pass
        return np.array(label)

    def _validate_label(self, xmin, ymin, xmax, ymax, width, height):
        assert 0 <= xmin < width, "xmin must in [0, {}), given {}".format(width, xmin)
        assert 0 <= ymin < height, "ymin must in [0, {}), given {}".format(height, ymin)
        assert xmin < xmax <= width, "xmax must in (xmin, {}], given {}".format(width, xmax)
        assert ymin < ymax <= height, "ymax must in (ymin, {}], given {}".format(height, ymax)

---

4.模型构建

本项目实现YoloV3以及YoloV3-tiny

YoloV3-tiny

class TinyYOLOV3(gluon.HybridBlock):
    def __init__(self, stages, channels, anchors, strides, classes, alloc_size=(128, 128), nms_thresh=0.45, nms_topk=400, post_nms=100, ignore_iou_thresh=0.7, norm_layer=BatchNorm, norm_kwargs=None, **kwargs):
        super(TinyYOLOV3, self).__init__(**kwargs)
        self._classes = classes
        self.nms_thresh = nms_thresh
        self.nms_topk = nms_topk
        self.post_nms = post_nms
        self._ignore_iou_thresh = ignore_iou_thresh
        self._target_generator = YOLOV3TargetMerger(len(classes), ignore_iou_thresh)

        self._loss = YOLOV3Loss()
        with self.name_scope():
            self.stages = nn.HybridSequential()
            self.transitions = nn.HybridSequential()
            self.yolo_blocks = nn.HybridSequential()
            self.yolo_outputs = nn.HybridSequential()
            for i, stage, channel, anchor, stride in zip(
                    range(len(stages)), stages, channels, anchors[::-1], strides[::-1]):
                self.stages.add(stage)
                block = YOLODetectionBlockV3(channel, norm_layer=norm_layer, norm_kwargs=norm_kwargs)
                self.yolo_blocks.add(block)
                output = YOLOOutputV3(i, len(classes), anchor, stride, alloc_size=alloc_size)
                self.yolo_outputs.add(output)
                if i > 0:
                    self.transitions.add(_conv2d(channel, 1, 0, 1, norm_layer=norm_layer, norm_kwargs=norm_kwargs))

    @property
    def classes(self):
        return self._classes

    def hybrid_forward(self, F, x, *args):
        all_box_centers = []
        all_box_scales = []
        all_objectness = []
        all_class_pred = []
        all_anchors = []
        all_offsets = []
        all_feat_maps = []
        all_detections = []
        routes = []
        for stage, block, output in zip(self.stages, self.yolo_blocks, self.yolo_outputs):
            x = stage(x)
            routes.append(x)

        for i, block, output in zip(range(len(routes)), self.yolo_blocks, self.yolo_outputs):
            x, tip = block(x)
            if autograd.is_training():
                dets, box_centers, box_scales, objness, class_pred, anchors, offsets = output(tip)
                all_box_centers.append(box_centers.reshape((0, -3, -1)))
                all_box_scales.append(box_scales.reshape((0, -3, -1)))
                all_objectness.append(objness.reshape((0, -3, -1)))
                all_class_pred.append(class_pred.reshape((0, -3, -1)))
                all_anchors.append(anchors)
                all_offsets.append(offsets)
                fake_featmap = F.zeros_like(tip.slice_axis(
                    axis=0, begin=0, end=1).slice_axis(axis=1, begin=0, end=1))
                all_feat_maps.append(fake_featmap)
            else:
                dets = output(tip)
            all_detections.append(dets)
            if i >= len(routes) - 1:
                break
            # add transition layers
            x = self.transitions[i](x)
            upsample = _upsample(x, stride=2)
            route_now = routes[::-1][i + 1]
            x = F.concat(F.slice_like(upsample, route_now * 0, axes=(2, 3)), route_now, dim=1)

        if autograd.is_training():
            if autograd.is_recording():
                box_preds = F.concat(*all_detections, dim=1)
                all_preds = [F.concat(*p, dim=1) for p in [
                    all_objectness, all_box_centers, all_box_scales, all_class_pred]]
                all_targets = self._target_generator(box_preds, *args)
                return self._loss(*(all_preds + all_targets))

            return (F.concat(*all_detections, dim=1), all_anchors, all_offsets, all_feat_maps,
                    F.concat(*all_box_centers, dim=1), F.concat(*all_box_scales, dim=1),
                    F.concat(*all_objectness, dim=1), F.concat(*all_class_pred, dim=1))

        result = F.concat(*all_detections, dim=1)
        if 0 < self.nms_thresh < 1:
            result = F.contrib.box_nms(result, overlap_thresh=self.nms_thresh, valid_thresh=0.01, topk=self.nms_topk, id_index=0, score_index=1, coord_start=2, force_suppress=False)
            if self.post_nms > 0:
                result = result.slice_axis(axis=1, begin=0, end=self.post_nms)
        ids = result.slice_axis(axis=-1, begin=0, end=1)
        scores = result.slice_axis(axis=-1, begin=1, end=2)
        bboxes = result.slice_axis(axis=-1, begin=2, end=6)

        return ids, scores, bboxes

    def set_nms(self, nms_thresh=0.45, nms_topk=400, post_nms=100):
        self._clear_cached_op()
        self.nms_thresh = nms_thresh
        self.nms_topk = nms_topk
        self.post_nms = post_nms

YoloV3

class YOLOV3(gluon.HybridBlock):
    def __init__(self, stages, channels, anchors, strides, classes, alloc_size=(128, 128), nms_thresh=0.45, nms_topk=400, post_nms=100, pos_iou_thresh=1.0, ignore_iou_thresh=0.7, norm_layer=BatchNorm, norm_kwargs=None, **kwargs):
        super(YOLOV3, self).__init__(**kwargs)
        self._classes = classes
        self.nms_thresh = nms_thresh
        self.nms_topk = nms_topk
        self.post_nms = post_nms
        self._pos_iou_thresh = pos_iou_thresh
        self._ignore_iou_thresh = ignore_iou_thresh
        if pos_iou_thresh >= 1:
            self._target_generator = YOLOV3TargetMerger(len(classes), ignore_iou_thresh)
        else:
            raise NotImplementedError("pos_iou_thresh({}) < 1.0 is not implemented!".format(pos_iou_thresh))
        self._loss = YOLOV3Loss()
        with self.name_scope():
            self.stages = nn.HybridSequential()
            self.transitions = nn.HybridSequential()
            self.yolo_blocks = nn.HybridSequential()
            self.yolo_outputs = nn.HybridSequential()
            # note that anchors and strides should be used in reverse order
            for i, stage, channel, anchor, stride in zip(range(len(stages)), stages, channels, anchors[::-1], strides[::-1]):
                self.stages.add(stage)
                block = YOLODetectionBlockV3(channel, norm_layer=norm_layer, norm_kwargs=norm_kwargs)
                self.yolo_blocks.add(block)
                output = YOLOOutputV3(i, len(classes), anchor, stride, alloc_size=alloc_size)
                self.yolo_outputs.add(output)
                if i > 0:
                    self.transitions.add(_conv2d(channel, 1, 0, 1, norm_layer=norm_layer, norm_kwargs=norm_kwargs))

    @property
    def num_class(self):
        return self._num_class

    @property
    def classes(self):
        return self._classes

    def hybrid_forward(self, F, x, *args):
        if len(args) != 0 and not autograd.is_training():
            raise TypeError('YOLOV3 inference only need one input data.')

        all_box_centers = []
        all_box_scales = []
        all_objectness = []
        all_class_pred = []
        all_anchors = []
        all_offsets = []
        all_feat_maps = []
        all_detections = []
        routes = []
        for stage, block, output in zip(self.stages, self.yolo_blocks, self.yolo_outputs):
            x = stage(x)
            routes.append(x)

        # the YOLO output layers are used in reverse order, i.e., from very deep layers to shallow
        for i, block, output in zip(range(len(routes)), self.yolo_blocks, self.yolo_outputs):
            x, tip = block(x)
            if autograd.is_training():
                dets, box_centers, box_scales, objness, class_pred, anchors, offsets = output(tip)
                all_box_centers.append(box_centers.reshape((0, -3, -1)))
                all_box_scales.append(box_scales.reshape((0, -3, -1)))
                all_objectness.append(objness.reshape((0, -3, -1)))
                all_class_pred.append(class_pred.reshape((0, -3, -1)))
                all_anchors.append(anchors)
                all_offsets.append(offsets)
                # here we use fake featmap to reduce memory consuption, only shape[2, 3] is used
                fake_featmap = F.zeros_like(tip.slice_axis(
                    axis=0, begin=0, end=1).slice_axis(axis=1, begin=0, end=1))
                all_feat_maps.append(fake_featmap)
            else:
                dets = output(tip)
            all_detections.append(dets)
            if i >= len(routes) - 1:
                break
            # add transition layers
            x = self.transitions[i](x)
            # upsample feature map reverse to shallow layers
            upsample = _upsample(x, stride=2)
            route_now = routes[::-1][i + 1]
            x = F.concat(F.slice_like(upsample, route_now * 0, axes=(2, 3)), route_now, dim=1)

        if autograd.is_training():
            # during training, the network behaves differently since we don't need detection results
            if autograd.is_recording():
                # generate losses and return them directly
                box_preds = F.concat(*all_detections, dim=1)
                all_preds = [F.concat(*p, dim=1) for p in [
                    all_objectness, all_box_centers, all_box_scales, all_class_pred]]
                all_targets = self._target_generator(box_preds, *args)
                return self._loss(*(all_preds + all_targets))

            # return raw predictions, this is only used in DataLoader transform function.
            return (F.concat(*all_detections, dim=1), all_anchors, all_offsets, all_feat_maps,
                    F.concat(*all_box_centers, dim=1), F.concat(*all_box_scales, dim=1),
                    F.concat(*all_objectness, dim=1), F.concat(*all_class_pred, dim=1))

        # concat all detection results from different stages
        result = F.concat(*all_detections, dim=1)
        # apply nms per class
        if self.nms_thresh > 0 and self.nms_thresh < 1:
            result = F.contrib.box_nms(
                result, overlap_thresh=self.nms_thresh, valid_thresh=0.01,
                topk=self.nms_topk, id_index=0, score_index=1, coord_start=2, force_suppress=False)
            if self.post_nms > 0:
                result = result.slice_axis(axis=1, begin=0, end=self.post_nms)
        ids = result.slice_axis(axis=-1, begin=0, end=1)
        scores = result.slice_axis(axis=-1, begin=1, end=2)
        bboxes = result.slice_axis(axis=-1, begin=2, end=None)
        return ids, scores, bboxes

    def set_nms(self, nms_thresh=0.45, nms_topk=400, post_nms=100):
        """Set non-maximum suppression parameters.
        Parameters
        ----------
        nms_thresh : float, default is 0.45.
            Non-maximum suppression threshold. You can specify < 0 or > 1 to disable NMS.
        nms_topk : int, default is 400
            Apply NMS to top k detection results, use -1 to disable so that every Detection
             result is used in NMS.
        post_nms : int, default is 100
            Only return top `post_nms` detection results, the rest is discarded. The number is
            based on COCO dataset which has maximum 100 objects per image. You can adjust this
            number if expecting more objects. You can use -1 to return all detections.
        Returns
        -------
        None
        """
        self._clear_cached_op()
        self.nms_thresh = nms_thresh
        self.nms_topk = nms_topk
        self.post_nms = post_nms

    def reset_class(self, classes, reuse_weights=None):
        """Reset class categories and class predictors.
        Parameters
        ----------
        classes : iterable of str
            The new categories. ['apple', 'orange'] for example.
        reuse_weights : dict
            A {new_integer : old_integer} or mapping dict or {new_name : old_name} mapping dict,
            or a list of [name0, name1,...] if class names don't change.
            This allows the new predictor to reuse the
            previously trained weights specified.

        Example
        -------
        >>> net = gluoncv.model_zoo.get_model('yolo3_darknet53_voc', pretrained=True)
        >>> # use direct name to name mapping to reuse weights
        >>> net.reset_class(classes=['person'], reuse_weights={'person':'person'})
        >>> # or use interger mapping, person is the 14th category in VOC
        >>> net.reset_class(classes=['person'], reuse_weights={0:14})
        >>> # you can even mix them
        >>> net.reset_class(classes=['person'], reuse_weights={'person':14})
        >>> # or use a list of string if class name don't change
        >>> net.reset_class(classes=['person'], reuse_weights=['person'])

        """
        self._clear_cached_op()
        old_classes = self._classes
        self._classes = classes
        if self._pos_iou_thresh >= 1:
            self._target_generator = YOLOV3TargetMerger(len(classes), self._ignore_iou_thresh)
        if isinstance(reuse_weights, (dict, list)):
            if isinstance(reuse_weights, dict):
                # trying to replace str with indices
                new_keys = []
                new_vals = []
                for k, v in reuse_weights.items():
                    if isinstance(v, str):
                        try:
                            new_vals.append(old_classes.index(v))  # raise ValueError if not found
                        except ValueError:
                            raise ValueError(
                                "{} not found in old class names {}".format(v, old_classes))
                    else:
                        if v < 0 or v >= len(old_classes):
                            raise ValueError(
                                "Index {} out of bounds for old class names".format(v))
                        new_vals.append(v)
                    if isinstance(k, str):
                        try:
                            new_keys.append(self.classes.index(k))  # raise ValueError if not found
                        except ValueError:
                            raise ValueError(
                                "{} not found in new class names {}".format(k, self.classes))
                    else:
                        if k < 0 or k >= len(self.classes):
                            raise ValueError(
                                "Index {} out of bounds for new class names".format(k))
                        new_keys.append(k)
                reuse_weights = dict(zip(new_keys, new_vals))
            else:
                new_map = {}
                for x in reuse_weights:
                    try:
                        new_idx = self._classes.index(x)
                        old_idx = old_classes.index(x)
                        new_map[new_idx] = old_idx
                    except ValueError:
                        warnings.warn("{} not found in old: {} or new class names: {}".format(
                            x, old_classes, self._classes))
                reuse_weights = new_map

        for outputs in self.yolo_outputs:
            outputs.reset_class(classes, reuse_weights=reuse_weights)

---

5.模型训练

1.学习率设置

lr_steps = sorted([int(ls) for ls in lr_decay_epoch.split(',') if ls.strip()])
lr_decay_epoch = [e for e in lr_steps]

 lr_scheduler = LRSequential([
     LRScheduler('linear', base_lr=0, target_lr=learning_rate,
                 nepochs=0, iters_per_epoch=self.num_samples // self.batch_size),
     LRScheduler(lr_mode, base_lr=learning_rate,
                 nepochs=TrainNum,
                 iters_per_epoch=self.num_samples // self.batch_size,
                 step_epoch=lr_decay_epoch,
                 step_factor=lr_decay, power=2),
 ])

2.优化器设置

if optim == 1:
    trainer = gluon.Trainer(self.model.collect_params(), 'sgd', {'learning_rate': learning_rate, 'wd': 0.0005, 'momentum': 0.9, 'lr_scheduler': lr_scheduler})
elif optim == 2:
    trainer = gluon.Trainer(self.model.collect_params(), 'adagrad', {'learning_rate': learning_rate, 'lr_scheduler': lr_scheduler})
else:
    trainer = gluon.Trainer(self.model.collect_params(), 'adam', {'learning_rate': learning_rate, 'lr_scheduler': lr_scheduler})

3.损失设置

obj_metrics = mx.metric.Loss('ObjLoss')
center_metrics = mx.metric.Loss('BoxCenterLoss')
scale_metrics = mx.metric.Loss('BoxScaleLoss')
cls_metrics = mx.metric.Loss('ClassLoss')

4.循环训练

for i, batch in enumerate(self.train_loader):
    data = gluon.utils.split_and_load(batch[0], ctx_list=self.ctx, batch_axis=0)
    # objectness, center_targets, scale_targets, weights, class_targets
    fixed_targets = [gluon.utils.split_and_load(batch[it], ctx_list=self.ctx, batch_axis=0) for it in range(1, 6)]
    gt_boxes = gluon.utils.split_and_load(batch[6], ctx_list=self.ctx, batch_axis=0)
    sum_losses = []
    obj_losses = []
    center_losses = []
    scale_losses = []
    cls_losses = []
    with autograd.record():
        for ix, x in enumerate(data):
            obj_loss, center_loss, scale_loss, cls_loss = self.model(x, gt_boxes[ix], *[ft[ix] for ft in fixed_targets])
            sum_losses.append(obj_loss + center_loss + scale_loss + cls_loss)
            obj_losses.append(obj_loss)
            center_losses.append(center_loss)
            scale_losses.append(scale_loss)
            cls_losses.append(cls_loss)
        if self.ampFlag:
            with amp.scale_loss(sum_losses, trainer) as scaled_loss:
                autograd.backward(scaled_loss)
        else:
            autograd.backward(sum_losses)
    trainer.step(self.batch_size)

    obj_metrics.update(0, obj_losses)
    center_metrics.update(0, center_losses)
    scale_metrics.update(0, scale_losses)
    cls_metrics.update(0, cls_losses)

    name1, loss1 = obj_metrics.get()
    name2, loss2 = center_metrics.get()
    name3, loss3 = scale_metrics.get()
    name4, loss4 = cls_metrics.get()
    print('[Epoch {}][Batch {}], LR: {:.2E}, Speed: {:.3f} samples/sec, {}={:.3f}, {}={:.3f}, {}={:.3f}, {}={:.3f}'.format(
        epoch, i, trainer.learning_rate, self.batch_size/(time.time()-btic), name1, loss1, name2, loss2, name3, loss3, name4, loss4))
    btic = time.time()

---

6.模型预测

def predict(self,image,confidence=0.5, mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)):
    start_time = time.time()
    origin_img = copy.deepcopy(image)
    base_imageSize = origin_img.shape
    image = cv2.cvtColor(image,cv2.COLOR_RGB2BGR)
    image = cv2.resize(image,(self.image_size,self.image_size))
    img = nd.array(image)
    img = mx.nd.image.to_tensor(img)
    img = mx.nd.image.normalize(img, mean=mean, std=std)

    x = img.expand_dims(0)
    x = x.as_in_context(self.ctx[0])
    labels, scores, bboxes = [xx[0].asnumpy() for xx in self.model(x)]

    origin_img_pillow = self.cv2_pillow(origin_img)
    font = ImageFont.truetype(font='./model_data/simhei.ttf', size=np.floor(3e-2 * np.shape(origin_img_pillow)[1] + 0.5).astype('int32'))
    thickness = max((np.shape(origin_img_pillow)[0] + np.shape(origin_img_pillow)[1]) // self.image_size, 1)

    imgbox = []
    for i, bbox in enumerate(bboxes):
        if (scores is not None and scores.flat[i] < confidence) or labels is not None and labels.flat[i] < 0:
            continue
        cls_id = int(labels.flat[i]) if labels is not None else -1

        xmin, ymin, xmax, ymax = [int(x) for x in bbox]
        xmin = int(xmin / self.image_size * base_imageSize[1])
        xmax = int(xmax / self.image_size * base_imageSize[1])
        ymin = int(ymin / self.image_size * base_imageSize[0])
        ymax = int(ymax / self.image_size * base_imageSize[0])

        # print(xmin, ymin, xmax, ymax, self.classes_names[cls_id])
        class_name = self.classes_names[cls_id]
        score = '{:d}%'.format(int(scores.flat[i] * 100)) if scores is not None else ''
        imgbox.append([(xmin, ymin, xmax, ymax), cls_id, self.classes_names[cls_id], score])
        top, left, bottom, right = ymin, xmin, ymax, xmax

        label = '{}-{}'.format(class_name, score)
        draw = ImageDraw.Draw(origin_img_pillow)
        label_size = draw.textsize(label, font)
        label = label.encode('utf-8')

        if top - label_size[1] >= 0:
            text_origin = np.array([left, top - label_size[1]])
        else:
            text_origin = np.array([left, top + 1])

        for i in range(thickness):
            draw.rectangle([left + i, top + i, right - i, bottom - i], outline=self.colors[cls_id])
        draw.rectangle([tuple(text_origin), tuple(text_origin + label_size)], fill=self.colors[cls_id])
        draw.text(text_origin, str(label,'UTF-8'), fill=(0, 0, 0), font=font)
        del draw

    result_value = {
        "image_result": self.pillow_cv2(origin_img_pillow),
        "bbox": imgbox,
        "time": (time.time() - start_time) * 1000
    }

    return result_value

---

四、算法主入口

YoloV3-tiny

if __name__ == '__main__':
    # ctu = Ctu_YoloV3_Tiny(USEGPU='0', image_size=416)
    # ctu.InitModel(DataDir=r'D:/Ctu/Ctu_Project_DL/DataSet/DataSet_Detection_YaoPian',batch_size=4,num_workers=0, Pre_Model = None, mixup=False,label_smooth=False)
    # ctu.train(TrainNum=200, learning_rate=0.001, lr_decay_epoch='50,100,150,200', lr_decay=0.9, ModelPath='./Model',optim=0)

    ctu = Ctu_YoloV3_Tiny(USEGPU='0')
    ctu.LoadModel(r'./Model_yoloV3_tiny')
    cv2.namedWindow("result", 0)
    cv2.resizeWindow("result", 640, 480)
    index = 0
    for root, dirs, files in os.walk(r'D:/Ctu/Ctu_Project_DL/DataSet/DataSet_Detection_YaoPian/test'):
        for f in files:
            img_cv = ctu.read_image(os.path.join(root, f))
            if img_cv is None:
                continue
            res = ctu.predict(img_cv, 0.7)
            for each in res['bbox']:
                print(each)
            print("耗时:" + str(res['time']) + ' ms')
            # cv2.imwrite(str(index + 1)+'.bmp',res['image_result'])
            cv2.imshow("result", res['image_result'])
            cv2.waitKey()
            # index +=1

YoloV3

if __name__ == '__main__':
    ctu = Ctu_YoloV3(USEGPU='0', image_size=416, ampFlag = False)
    ctu.InitModel(DataDir=r'D:/Ctu/Ctu_Project_DL/DataSet/DataSet_Detection_YaoPian',batch_size=1,num_workers=0,backbone='mobilenetv1_1.0',Pre_Model = './Model_yoloV3_mobilenetv1_1.0/best_model.dat',mixup=False,label_smooth=False)
    ctu.train(TrainNum=200, learning_rate=0.001, lr_decay_epoch='50,100,150,200', lr_decay=0.9, ModelPath='./Model',optim=0)

    # ctu = Ctu_YoloV3(USEGPU='0')
    # ctu.LoadModel(r'./Model_yoloV3_mobilenetv1_1.0')
    # cv2.namedWindow("result", 0)
    # cv2.resizeWindow("result", 640, 480)
    # index = 0
    # for root, dirs, files in os.walk(r'D:/Ctu/Ctu_Project_DL/DataSet/DataSet_Detection_YaoPian/DataImage'):
    #     for f in files:
    #         img_cv = ctu.read_image(os.path.join(root, f))
    #         if img_cv is None:
    #             continue
    #         res = ctu.predict(img_cv, 0.7)
    #         for each in res['bbox']:
    #             print(each)
    #         print("耗时:" + str(res['time']) + ' ms')
    #         # cv2.imwrite(str(index + 1)+'.bmp',res['image_result'])
    #         cv2.imshow("result", res['image_result'])
    #         cv2.waitKey()
    #         # index +=1

五、训练效果展示

备注：项目模型的本人没有保存因此会后续提供训练效果
