一、五种IO模型------读写外设数据的方式

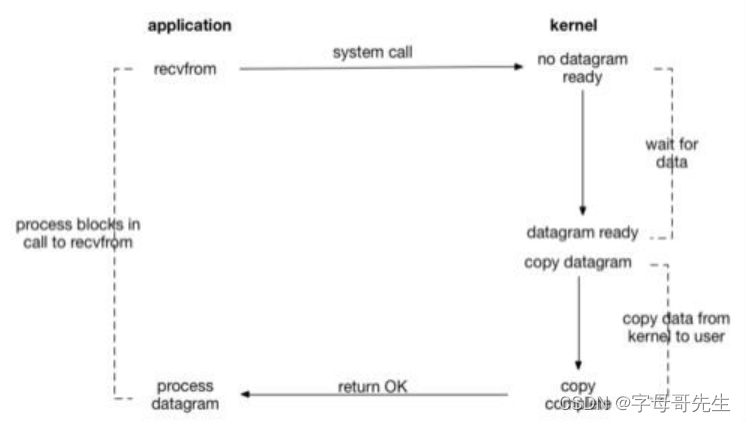

阻塞: 不能操作就睡觉

非阻塞：不能操作就返回错误

多路复用：委托中介监控



信号驱动：让内核如果能操作时发信号，在信号处理函数中操作



异步IO：向内核注册操作请求，内核完成操作后发通知信号

二、阻塞与非阻塞

应用层：

​ open时由O_NONBLOCK指示read、write时是否阻塞

​ open以后可以由fcntl函数来改变是否阻塞：

flags = fcntl(fd,F_GETFL,0);
flags |= O_NONBLOCK;
fcntl(fd, F_SETFL, flags);

驱动层：通过等待队列

wait_queue_head_t //等待队列头数据类型

init_waitqueue_head(wait_queue_head_t *pwq) //初始化等待队列头

wait_event_interruptible(wq,condition)
/*
功能：条件不成立则让任务进入浅度睡眠，直到条件成立醒来
wq:等待队列头
condition：C语言表达式
返回：正常唤醒返回0，信号唤醒返回非0（此时读写操作函数应返回-ERESTARTSYS）
*/

wait_event(wq,condition) //深度睡眠

wake_up_interruptible(wait_queue_head_t *pwq)

wake_up(wait_queue_head_t *pwq)

/*

1. 读、写用不同的等待队列头rq、wq
2. 无数据可读、可写时调用wait_event_interruptible(rq、wq,条件)
3. 写入数据成功时唤醒rq，读出数据成功唤醒wq
   */

代码实现：

ssize_t mychar_read(struct file *pfile,char __user *puser,size_t count,loff_t *p_pos)
{
	struct mychar_dev *pmydev = (struct mychar_dev *)pfile->private_data;
	int size = 0;
	int ret = 0;

	if(pmydev->curlen <= 0)
	{
		if(pfile->f_flags & O_NONBLOCK)
		{//非阻塞
			printk("O_NONBLOCK No Data Read\n");
			return -1;
		}
		else
		{//阻塞
			ret = wait_event_interruptible(pmydev->rq,pmydev->curlen > 0);
			if(ret)
			{
				printk("Wake up by signal\n");
				return -ERESTARTSYS;
			}
		}
	}

	if(count > pmydev->curlen)
	{
		size = pmydev->curlen;
	}
	else
	{
		size = count;
	}

	ret = copy_to_user(puser,pmydev->mydev_buf,size);
	if(ret)
	{
		printk("copy_to_user failed\n");
		return -1;
	}

	memcpy(pmydev->mydev_buf,pmydev->mydev_buf + size,pmydev->curlen - size);

	pmydev->curlen -= size;

	wake_up_interruptible(&pmydev->wq);

	return size;
}

ssize_t mychar_write(struct file *pfile,const char __user *puser,size_t count,loff_t *p_pos)
{
	int size = 0;
	int ret = 0;
	struct mychar_dev *pmydev = (struct mychar_dev *)pfile->private_data;

	if(pmydev->curlen >= BUF_LEN)
	{
		if(pfile->f_flags & O_NONBLOCK)
		{
			printk("O_NONBLOCK Can not write data\n");
			return -1;
		}
		else
		{
			ret = wait_event_interruptible(pmydev->wq,pmydev->curlen < BUF_LEN);
			if(ret)
			{
				printk("wake up by signal\n");
				return -ERESTARTSYS;
			}
		}
	}


	if(count > BUF_LEN-pmydev->curlen)
	{
		size = BUF_LEN - pmydev->curlen;
	}
	else
	{
		size = count;
	}

	ret = copy_from_user(pmydev->mydev_buf + pmydev->curlen,puser,size);
	if(ret)
	{
		printk("copy_from_user failed\n");
		return -1;
	}
	pmydev->curlen  +=  size;

	wake_up_interruptible(&pmydev->rq);

	return size;
}

int __init mychar_init(void)
{
	int ret = 0;
	dev_t devno = MKDEV(major,minor);
	int i = 0;

	/*申请设备号*/
	ret = register_chrdev_region(devno,mychar_num,"mychar");
	if(ret)
	{
		ret = alloc_chrdev_region(&devno,minor,mychar_num,"mychar");
		if(ret)
		{
			printk("get devno failed\n");
			return -1;
		}
		major = MAJOR(devno);//容易遗漏，注意
	}


		/*给struct cdev对象指定操作函数集*/
		cdev_init(&gmydev.mydev,&myops);

		/*将struct cdev对象添加到内核对应的数据结构里*/
		gmydev.mydev.owner = THIS_MODULE;
		cdev_add(&gmydev.mydev,devno,1);

	//初始化等待队列//
	init_waitqueue_head(&gmydev.rq);
	init_waitqueue_head(&gmydev.wq);

	return 0;
}
