一、依赖管理

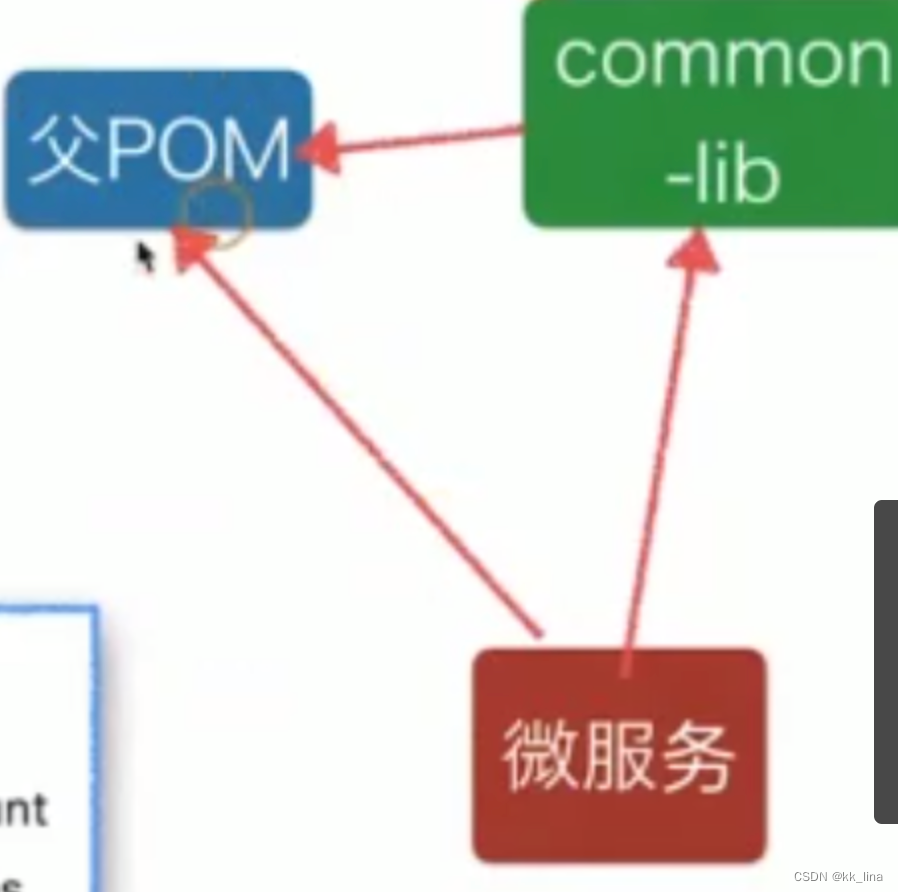

JavaSpring项目使用Maven管理所有微服务先继承实现父模块依赖，根据自己模块业务再附加依赖。common-lib公共共享模块，服务开发封装类。

二、服务模块管理 api、svc

每个服务由两个模块组成，接口模块和服务模块，例如account-aip、account-svc，一般api接口模块上传到maven仓库进行管理，api为强类型客户端，其他服务调用相关服务的api即可。

三、其他文件管理

1、私密配置文件

除了服务外还有config目录进行对私密文件的存储，使用spring的本地私密配置方式，config里面的私密控制不会被监听到版本控制。

2、前端页面单页文件

四、单体仓库 mono-repo

1、单体仓库和多仓库的对比：

2、单体仓库优点

易于规范代码风格
易于集成和部署，配合构建工具可以一键部署
易于理解，方便开发人员把握整体建构
易于复用，可以抽取公共功能，进行重构

五、接口参数校验

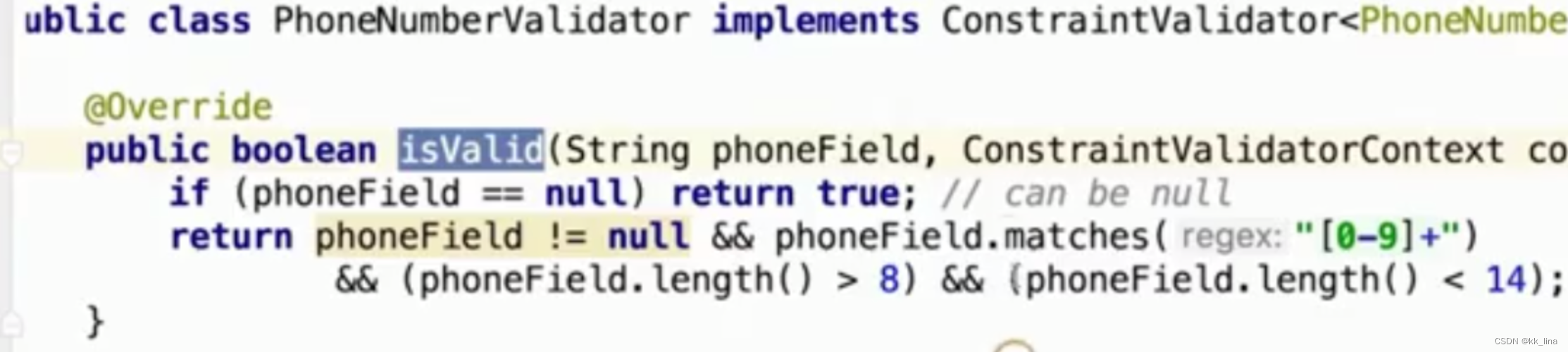

spring有成套且成熟的校验注解，开发成员只需要填写注释。开发人员也可以根据自己的业务校验规则定义注解，实现ConstraintValidator，重写校验规则即可。

例如：

六、统一异常处理

package xyz.staffjoy.common.error;

import com.github.structlog4j.ILogger;
import com.github.structlog4j.SLoggerFactory;
import org.hibernate.validator.internal.engine.path.PathImpl;
import org.springframework.http.converter.HttpMessageNotReadableException;
import org.springframework.validation.BindException;
import org.springframework.validation.BindingResult;
import org.springframework.validation.FieldError;
import org.springframework.web.HttpMediaTypeNotSupportedException;
import org.springframework.web.HttpRequestMethodNotSupportedException;
import org.springframework.web.bind.MethodArgumentNotValidException;
import org.springframework.web.bind.MissingServletRequestParameterException;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.method.annotation.MethodArgumentTypeMismatchException;
import org.springframework.web.servlet.NoHandlerFoundException;
import xyz.staffjoy.common.api.BaseResponse;
import xyz.staffjoy.common.api.ResultCode;
import xyz.staffjoy.common.auth.PermissionDeniedException;

import javax.validation.ConstraintViolation;
import javax.validation.ConstraintViolationException;
import java.util.Set;

@RestControllerAdvice
public class GlobalExceptionTranslator {

    static final ILogger logger = SLoggerFactory.getLogger(GlobalExceptionTranslator.class);

    @ExceptionHandler(MissingServletRequestParameterException.class)
    public BaseResponse handleError(MissingServletRequestParameterException e) {
        logger.warn("Missing Request Parameter", e);
        String message = String.format("Missing Request Parameter: %s", e.getParameterName());
        return BaseResponse
                .builder()
                .code(ResultCode.PARAM_MISS)
                .message(message)
                .build();
    }

    @ExceptionHandler(MethodArgumentTypeMismatchException.class)
    public BaseResponse handleError(MethodArgumentTypeMismatchException e) {
        logger.warn("Method Argument Type Mismatch", e);
        String message = String.format("Method Argument Type Mismatch: %s", e.getName());
        return BaseResponse
                .builder()
                .code(ResultCode.PARAM_TYPE_ERROR)
                .message(message)
                .build();
    }

    @ExceptionHandler(MethodArgumentNotValidException.class)
    public BaseResponse handleError(MethodArgumentNotValidException e) {
        logger.warn("Method Argument Not Valid", e);
        BindingResult result = e.getBindingResult();
        FieldError error = result.getFieldError();
        String message = String.format("%s:%s", error.getField(), error.getDefaultMessage());
        return BaseResponse
                .builder()
                .code(ResultCode.PARAM_VALID_ERROR)
                .message(message)
                .build();
    }

    @ExceptionHandler(BindException.class)
    public BaseResponse handleError(BindException e) {
        logger.warn("Bind Exception", e);
        FieldError error = e.getFieldError();
        String message = String.format("%s:%s", error.getField(), error.getDefaultMessage());
        return BaseResponse
                .builder()
                .code(ResultCode.PARAM_BIND_ERROR)
                .message(message)
                .build();
    }

    @ExceptionHandler(ConstraintViolationException.class)
    public BaseResponse handleError(ConstraintViolationException e) {
        logger.warn("Constraint Violation", e);
        Set<ConstraintViolation<?>> violations = e.getConstraintViolations();
        ConstraintViolation<?> violation = violations.iterator().next();
        String path = ((PathImpl) violation.getPropertyPath()).getLeafNode().getName();
        String message = String.format("%s:%s", path, violation.getMessage());
        return BaseResponse
                .builder()
                .code(ResultCode.PARAM_VALID_ERROR)
                .message(message)
                .build();
    }

    @ExceptionHandler(NoHandlerFoundException.class)
    public BaseResponse handleError(NoHandlerFoundException e) {
        logger.error("404 Not Found", e);
        return BaseResponse
                .builder()
                .code(ResultCode.NOT_FOUND)
                .message(e.getMessage())
                .build();
    }

    @ExceptionHandler(HttpMessageNotReadableException.class)
    public BaseResponse handleError(HttpMessageNotReadableException e) {
        logger.error("Message Not Readable", e);
        return BaseResponse
                .builder()
                .code(ResultCode.MSG_NOT_READABLE)
                .message(e.getMessage())
                .build();
    }

    @ExceptionHandler(HttpRequestMethodNotSupportedException.class)
    public BaseResponse handleError(HttpRequestMethodNotSupportedException e) {
        logger.error("Request Method Not Supported", e);
        return BaseResponse
                .builder()
                .code(ResultCode.METHOD_NOT_SUPPORTED)
                .message(e.getMessage())
                .build();
    }

    @ExceptionHandler(HttpMediaTypeNotSupportedException.class)
    public BaseResponse handleError(HttpMediaTypeNotSupportedException e) {
        logger.error("Media Type Not Supported", e);
        return BaseResponse
                .builder()
                .code(ResultCode.MEDIA_TYPE_NOT_SUPPORTED)
                .message(e.getMessage())
                .build();
    }

    @ExceptionHandler(ServiceException.class)
    public BaseResponse handleError(ServiceException e) {
        logger.error("Service Exception", e);
        return BaseResponse
                .builder()
                .code(e.getResultCode())
                .message(e.getMessage())
                .build();
    }

    @ExceptionHandler(PermissionDeniedException.class)
    public BaseResponse handleError(PermissionDeniedException e) {
        logger.error("Permission Denied", e);
        return BaseResponse
                .builder()
                .code(e.getResultCode())
                .message(e.getMessage())
                .build();
    }

    @ExceptionHandler(Throwable.class)
    public BaseResponse handleError(Throwable e) {
        logger.error("Internal Server Error", e);
        return BaseResponse
                .builder()
                .code(ResultCode.INTERNAL_SERVER_ERROR)
                .message(e.getMessage())
                .build();
    }
}

package xyz.staffjoy.common.error;

import lombok.Getter;
import xyz.staffjoy.common.api.ResultCode;

/**
 * Business Service Exception
 *
 * @author william
 */
public class ServiceException extends RuntimeException {
    private static final long serialVersionUID = 2359767895161832954L;

    @Getter
    private final ResultCode resultCode;

    public ServiceException(String message) {
        super(message);
        this.resultCode = ResultCode.FAILURE;
    }

    public ServiceException(ResultCode resultCode) {
        super(resultCode.getMsg());
        this.resultCode = resultCode;
    }

    public ServiceException(ResultCode resultCode, String msg) {
        super(msg);
        this.resultCode = resultCode;
    }

    public ServiceException(ResultCode resultCode, Throwable cause) {
        super(cause);
        this.resultCode = resultCode;
    }

    public ServiceException(String msg, Throwable cause) {
        super(msg, cause);
        this.resultCode = ResultCode.FAILURE;
    }

    /**
     * for better performance
     *
     * @return Throwable
     */
    @Override
    public Throwable fillInStackTrace() {
        return this;
    }

    public Throwable doFillInStackTrace() {
        return super.fillInStackTrace();
    }
}

七、DTO(数据传输对象)和DMO(数据模型对象)

dto与dmo互转：

转换工具地址：https://github.com/modelmapper/modelmapper

modelmap使用详情：https://blog.csdn.net/m0_54797663/article/details/115277264

八、强类型接口设计

1、特点：接口规划、编译器自动类型检查、自动代码生成。但是客户端和服务端耦合性大

通过Spring Feign结合强、若类型的结合，既能达到强类型接口的规范性又能达到弱类型接口的解耦性。

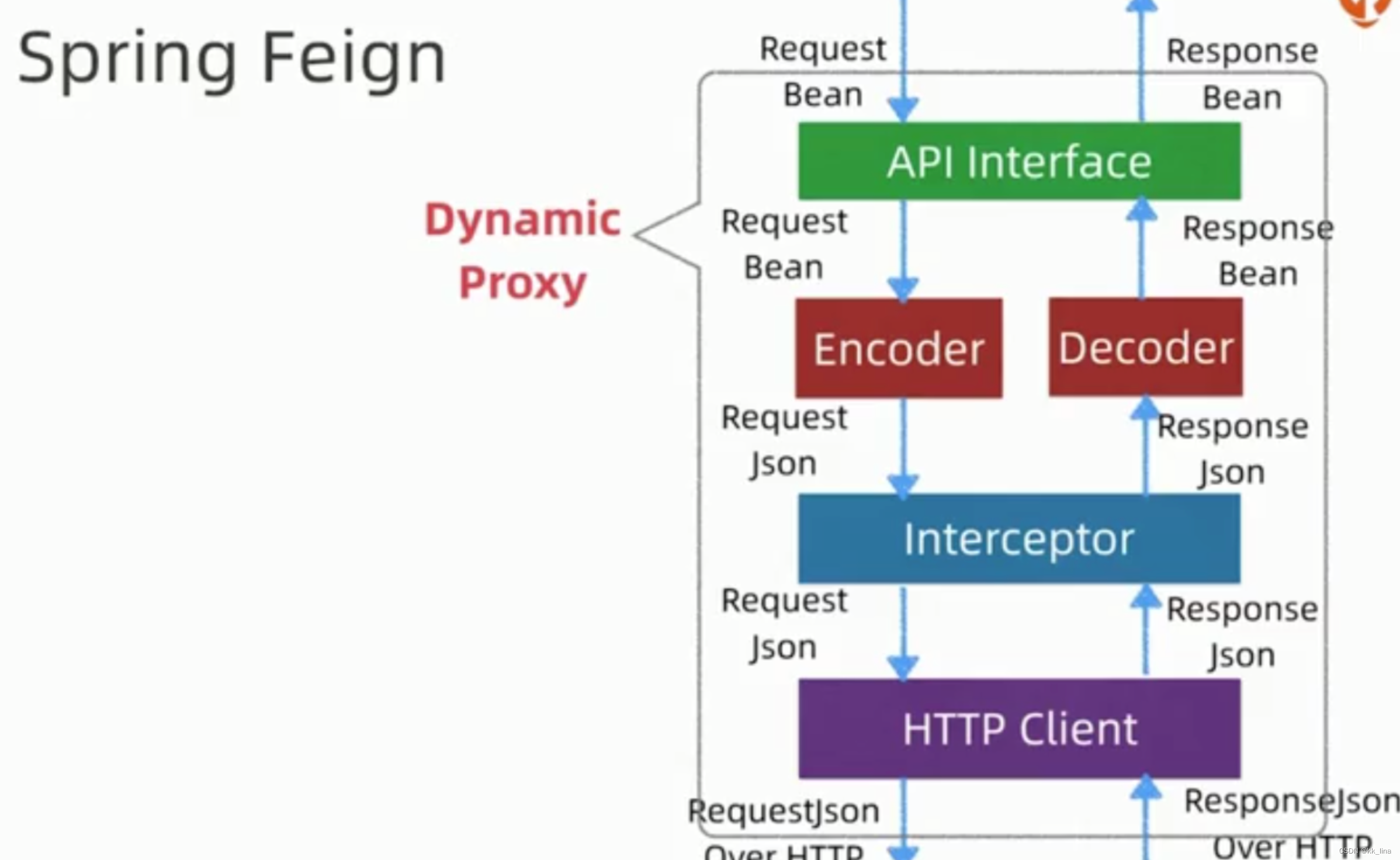

2、Spring Feign

注意：返回类型如果根据泛型进行包装的，springfeign是无法解析的，因为编译之后的泛型会被擦除！

九、环境隔离

public class EnvConstant {
    public static final String ENV_DEV = "dev";
    public static final String ENV_TEST = "test";
    public static final String ENV_UAT = "uat"; // similar to staging
    public static final String ENV_PROD = "prod";
}

package xyz.staffjoy.common.env;

import lombok.*;

import java.util.HashMap;
import java.util.Map;

// environment related configuration
@Data
@Builder
public class EnvConfig {

    private String name;
    private boolean debug;
    private String externalApex;
    private String internalApex;
    private String scheme;

    @Getter(AccessLevel.NONE)
    @Setter(AccessLevel.NONE)
    private static Map<String, EnvConfig> map;

    static {
        map = new HashMap<String, EnvConfig>();
        EnvConfig envConfig = EnvConfig.builder().name(EnvConstant.ENV_DEV)
                .debug(true)
                .externalApex("staffjoy-v2.local")
                .internalApex(EnvConstant.ENV_DEV)
                .scheme("http")
                .build();
        map.put(EnvConstant.ENV_DEV, envConfig);

        envConfig = EnvConfig.builder().name(EnvConstant.ENV_TEST)
                .debug(true)
                .externalApex("staffjoy-v2.local")
                .internalApex(EnvConstant.ENV_DEV)
                .scheme("http")
                .build();
        map.put(EnvConstant.ENV_TEST, envConfig);

        // for aliyun k8s demo, enable debug and use http and staffjoy-uat.local
        // in real world, disable debug and use http and staffjoy-uat.xyz in UAT environment
        envConfig = EnvConfig.builder().name(EnvConstant.ENV_UAT)
                .debug(true)
                .externalApex("staffjoy-uat.local")
                .internalApex(EnvConstant.ENV_UAT)
                .scheme("http")
                .build();
        map.put(EnvConstant.ENV_UAT, envConfig);

//        envConfig = EnvConfig.builder().name(EnvConstant.ENV_UAT)
//                .debug(false)
//                .externalApex("staffjoy-uat.xyz")
//                .internalApex(EnvConstant.ENV_UAT)
//                .scheme("https")
//                .build();
//        map.put(EnvConstant.ENV_UAT, envConfig);

        envConfig = EnvConfig.builder().name(EnvConstant.ENV_PROD)
                .debug(false)
                .externalApex("staffjoy.com")
                .internalApex(EnvConstant.ENV_PROD)
                .scheme("https")
                .build();
        map.put(EnvConstant.ENV_PROD, envConfig);
    }

    public static EnvConfig getEnvConfg(String env) {
        EnvConfig envConfig = map.get(env);
        if (envConfig == null) {
            envConfig = map.get(EnvConstant.ENV_DEV);
        }
        return envConfig;
    }
}

十、异步调用处理

配置异步线程池：

package xyz.staffjoy.account.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import xyz.staffjoy.common.async.ContextCopyingDecorator;
import xyz.staffjoy.common.config.StaffjoyRestConfig;

import java.util.concurrent.Executor;

@Configuration
@EnableAsync
@Import(value = {StaffjoyRestConfig.class})
@SuppressWarnings(value = "Duplicates")
public class AppConfig {

    public static final String ASYNC_EXECUTOR_NAME = "asyncExecutor";

    @Bean(name=ASYNC_EXECUTOR_NAME)
    public Executor asyncExecutor() {
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        // for passing in request scope context
        executor.setTaskDecorator(new ContextCopyingDecorator());
        executor.setCorePoolSize(3);
        executor.setMaxPoolSize(5);
        executor.setQueueCapacity(100);
        executor.setWaitForTasksToCompleteOnShutdown(true);
        executor.setThreadNamePrefix("AsyncThread-");
        executor.initialize();
        return executor;
    }

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

}

注意：调用方与被调用方不能在同一个bean中。

十二、集成Swagger文档

SpringBoot引入swagger依赖

<dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
        </dependency>

package xyz.staffjoy.account.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Bean
    public Docket api() {
        return new Docket(DocumentationType.SWAGGER_2)
                .select()
                .apis(RequestHandlerSelectors.basePackage("xyz.staffjoy.account.controller"))
                .paths(PathSelectors.any())
                .build()
                .apiInfo(apiEndPointsInfo())
                .useDefaultResponseMessages(false);
    }

    private ApiInfo apiEndPointsInfo() {
        return new ApiInfoBuilder().title("Account REST API")
                .description("Staffjoy Account REST API")
                .contact(new Contact("bobo", "https://github.com/jskillcloud", "bobo@jskillcloud.com"))
                .license("The MIT License")
                .licenseUrl("https://opensource.org/licenses/MIT")
                .version("V2")
                .build();
    }
}
