反向传播back propagation代码

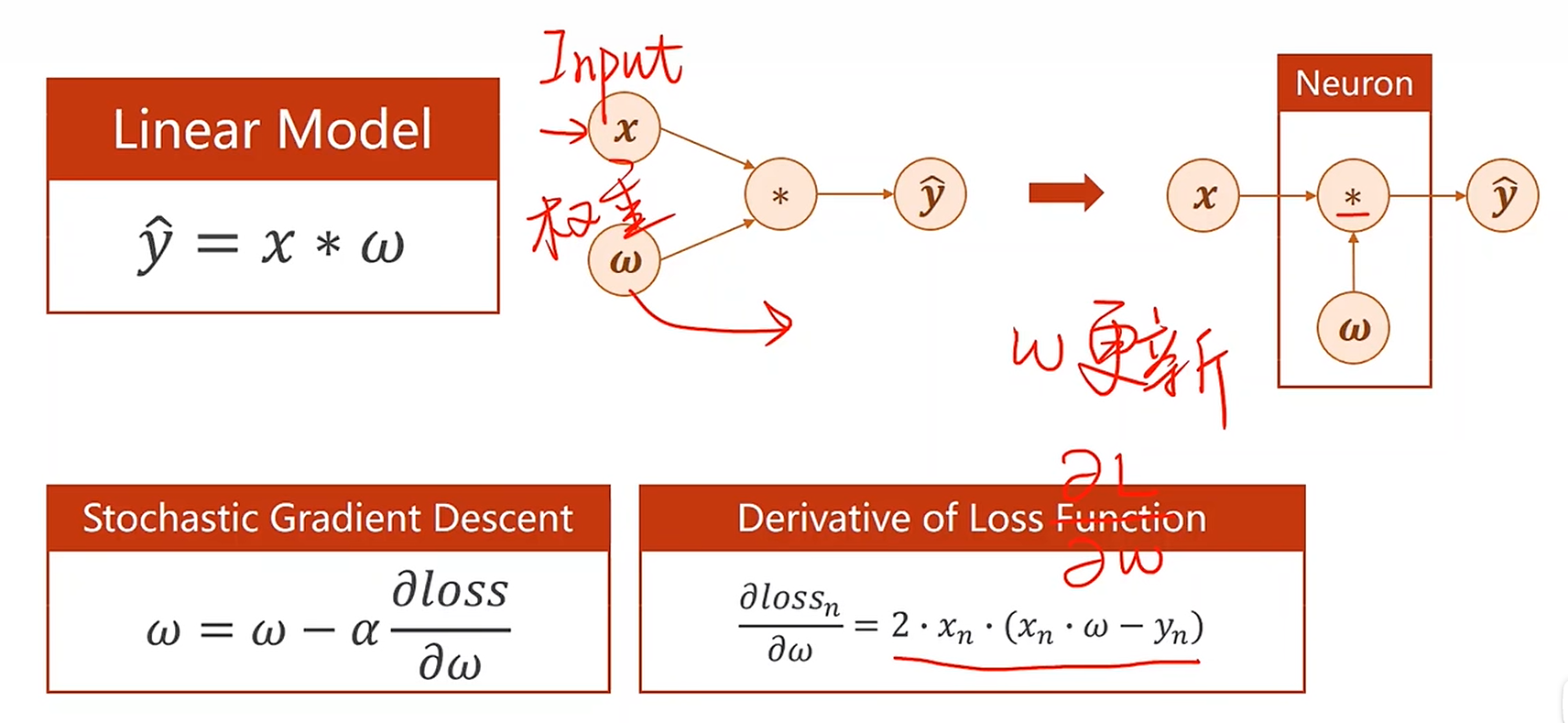

再简单模型中，按照下图的神经网络来完成模型的训练

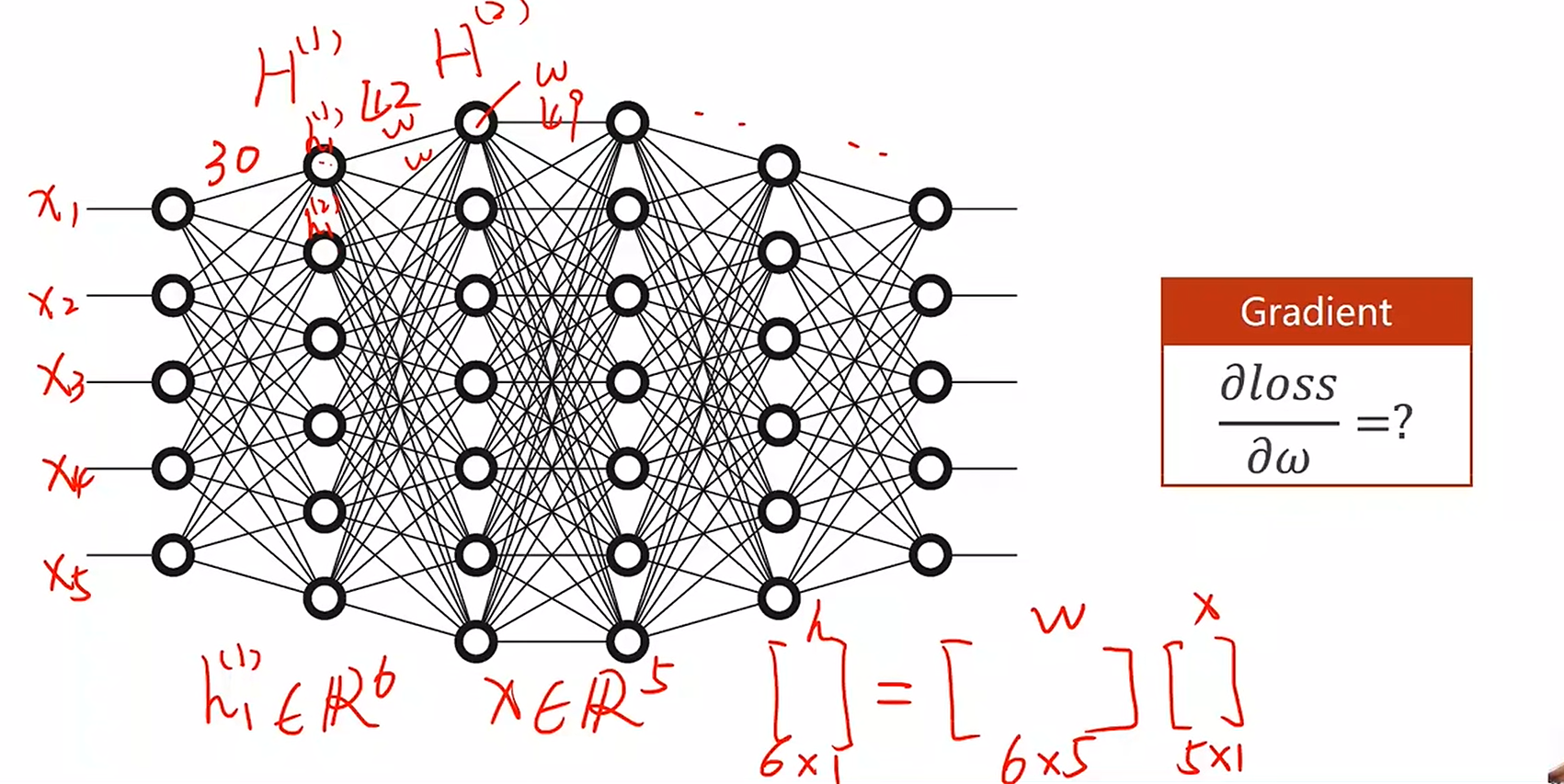

在复杂的模型当中，输入，权重，隐藏层的数量都是很多的，例如下图中，输入x有5个神经元，第一层隐藏层h中有6个神经元，则中间不同的权重矩阵w有30个

这时候需要反向传播利用链式法则，将其中的梯度求出来

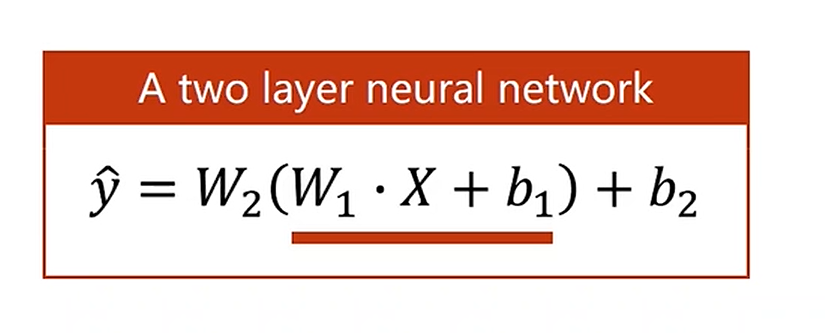

假设在一个两层的神经网络中，做以下的运算

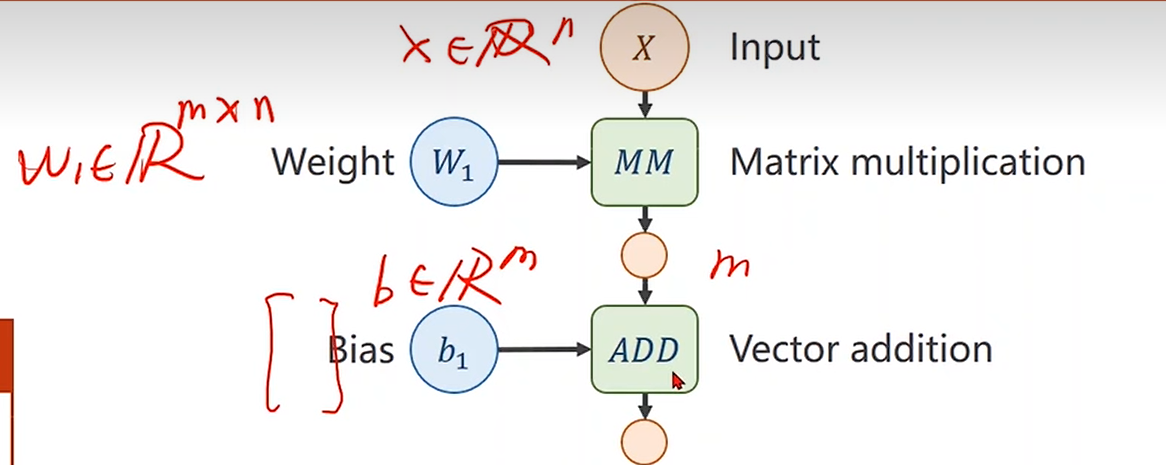

在全连接网络第一层中

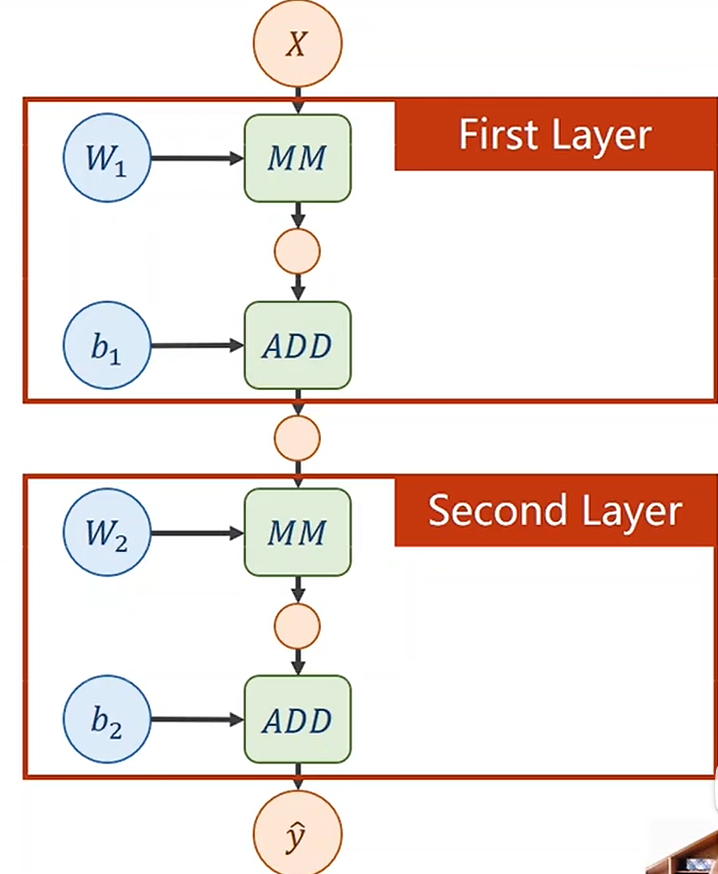

重复操作构成第二层

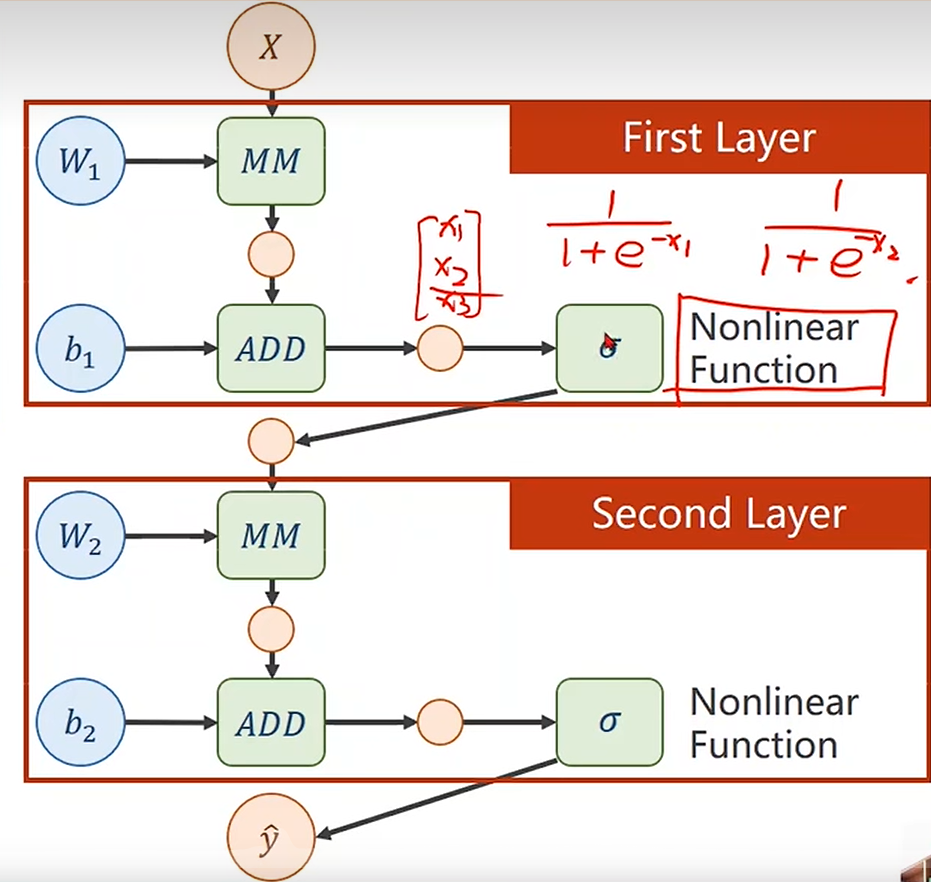

我们需要在每一全连接层中添加一层非线性变化函数（激活函数）

我们来看一个关于最简单的线性模型的反向传播过程

下面我们进行代码的解析

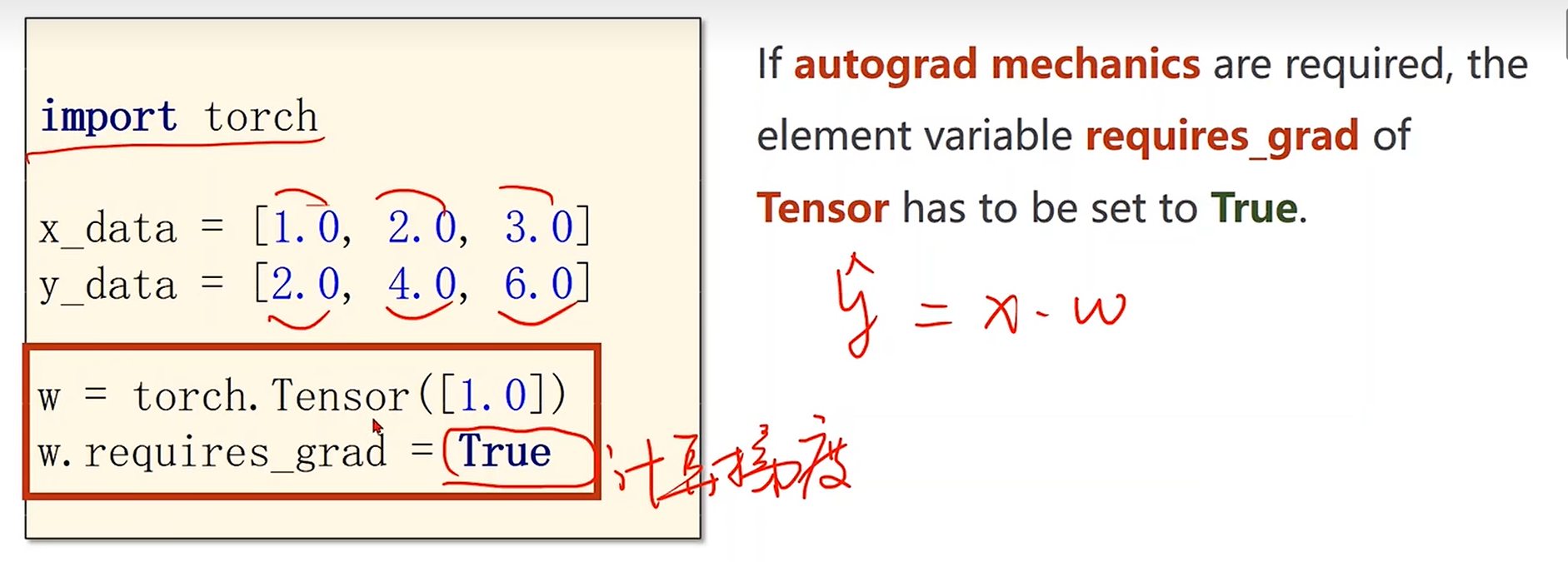

这里采用了torch包，定义训练集和权重w，这里需要requires_grad保留来计算梯度

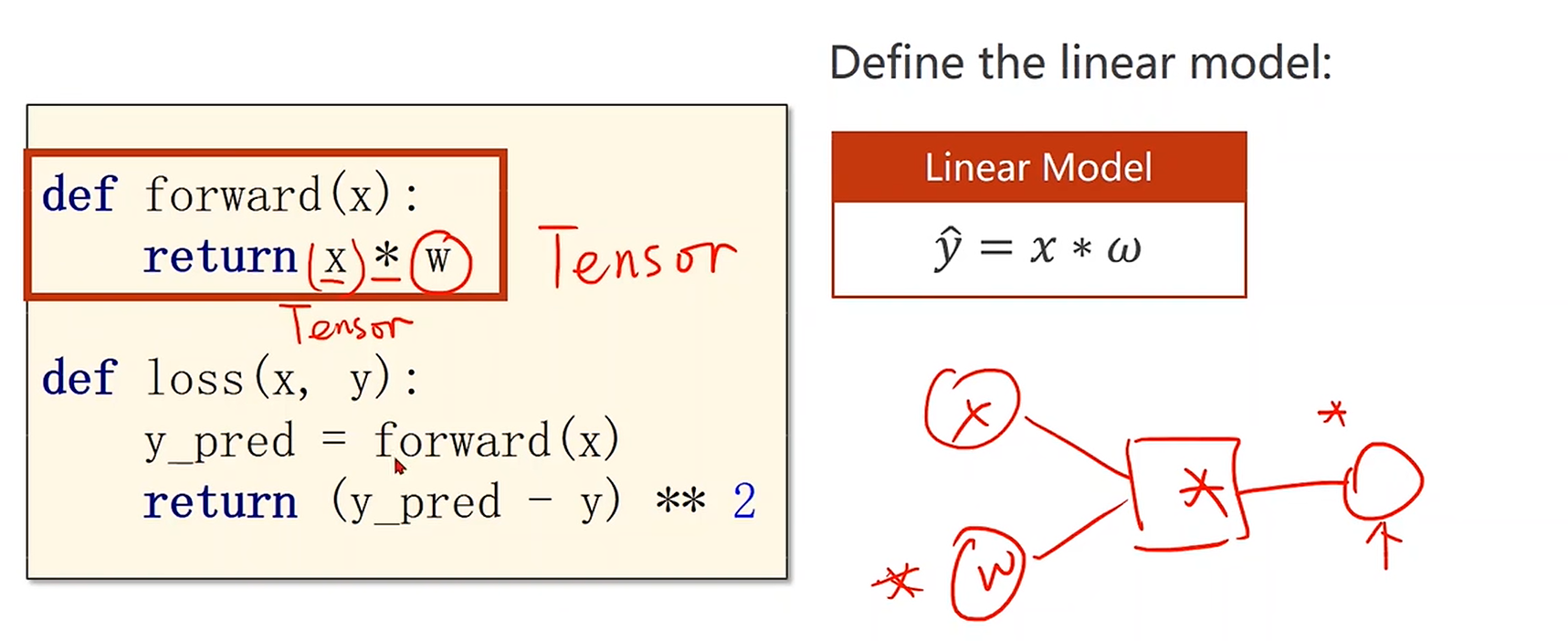

定义模型，把x转换成tensor类型与w进行乘法，得到相应的输出，也需要计算梯度

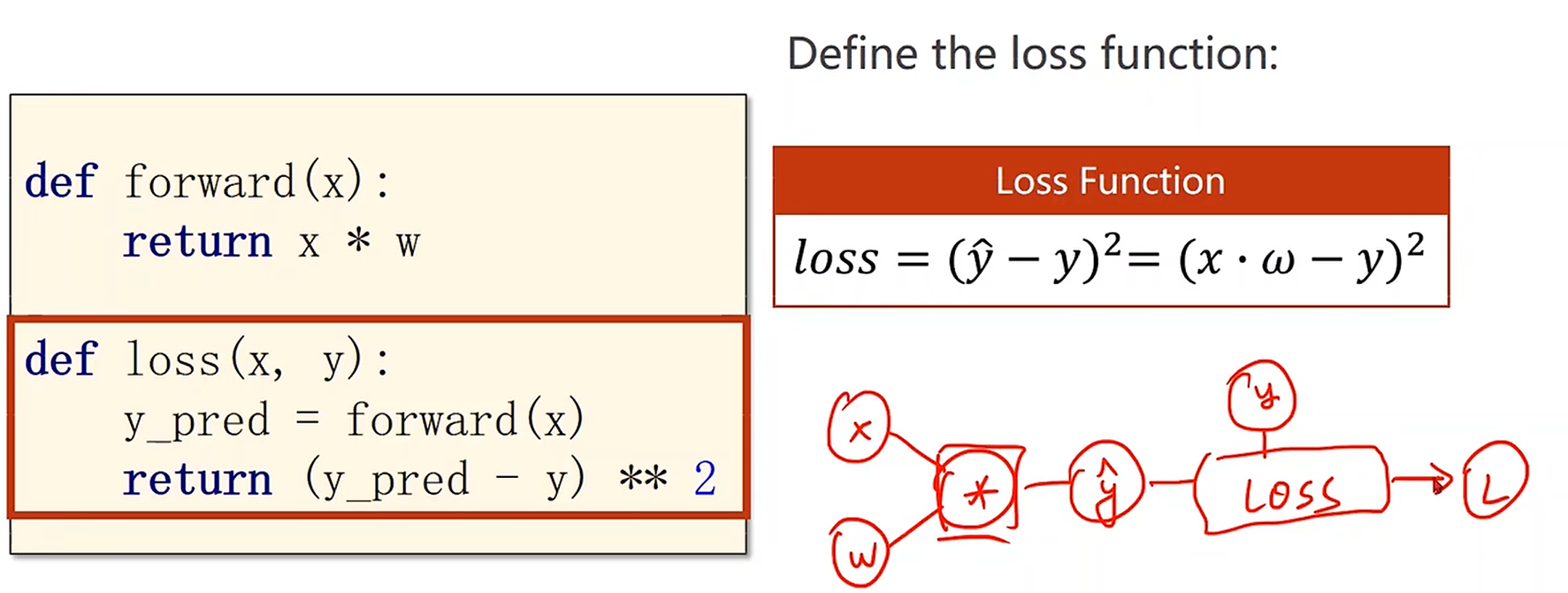

定义损失函数，每次运行loss函数都是在构造一个计算图

训练过程：

• 前馈计算loss

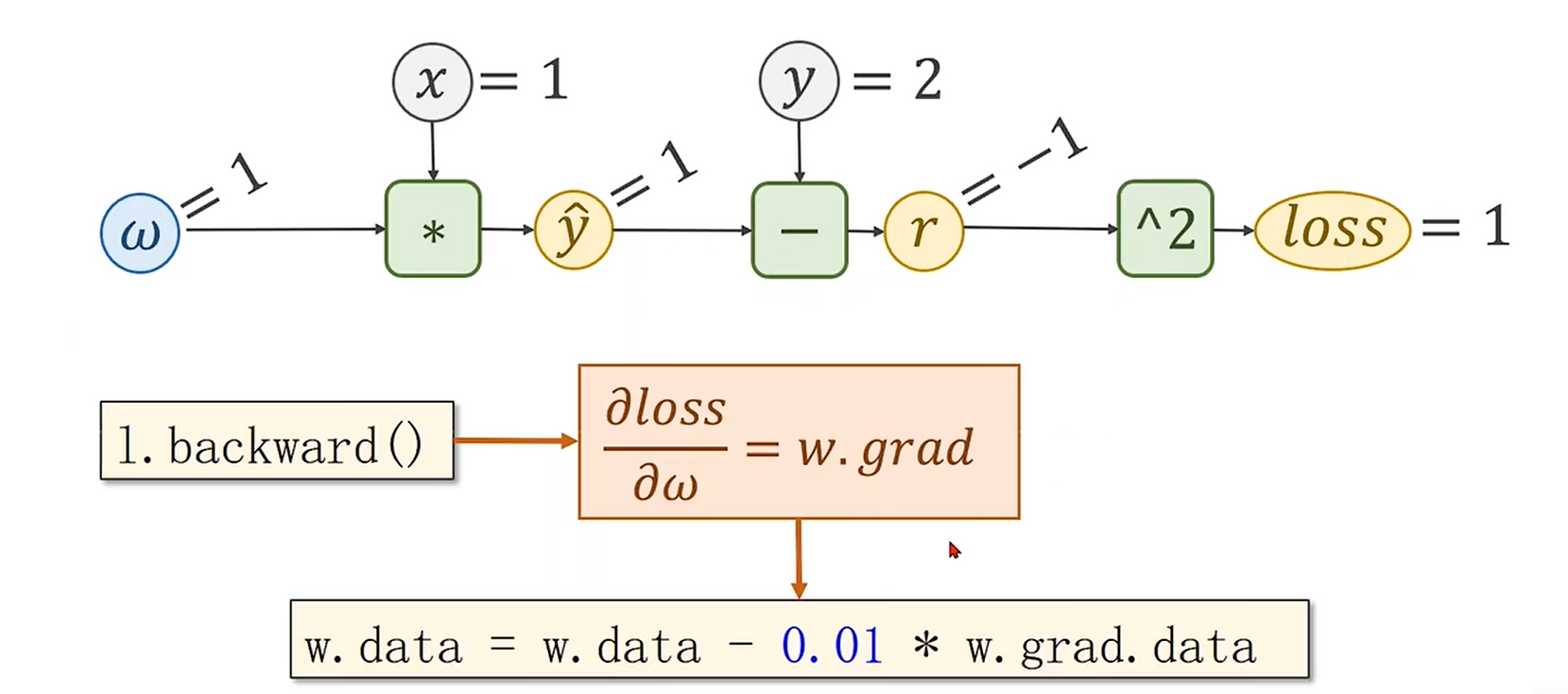

• 反馈过程，用backward（）自动的把计算图上所有需要梯度的地方都求出梯度，把梯度存到w中，之后计算图被释放，下一次进行forward后重新创建计算图

• 获取梯度

• 想要获取梯度的标量我们用

• 当我们想要计算总和时，不能直接加上损失值l，tensor在计算时会构造计算图，会造成计算图越来越大，可以加上标量

sum += l.item()

• 在计算完需要清零

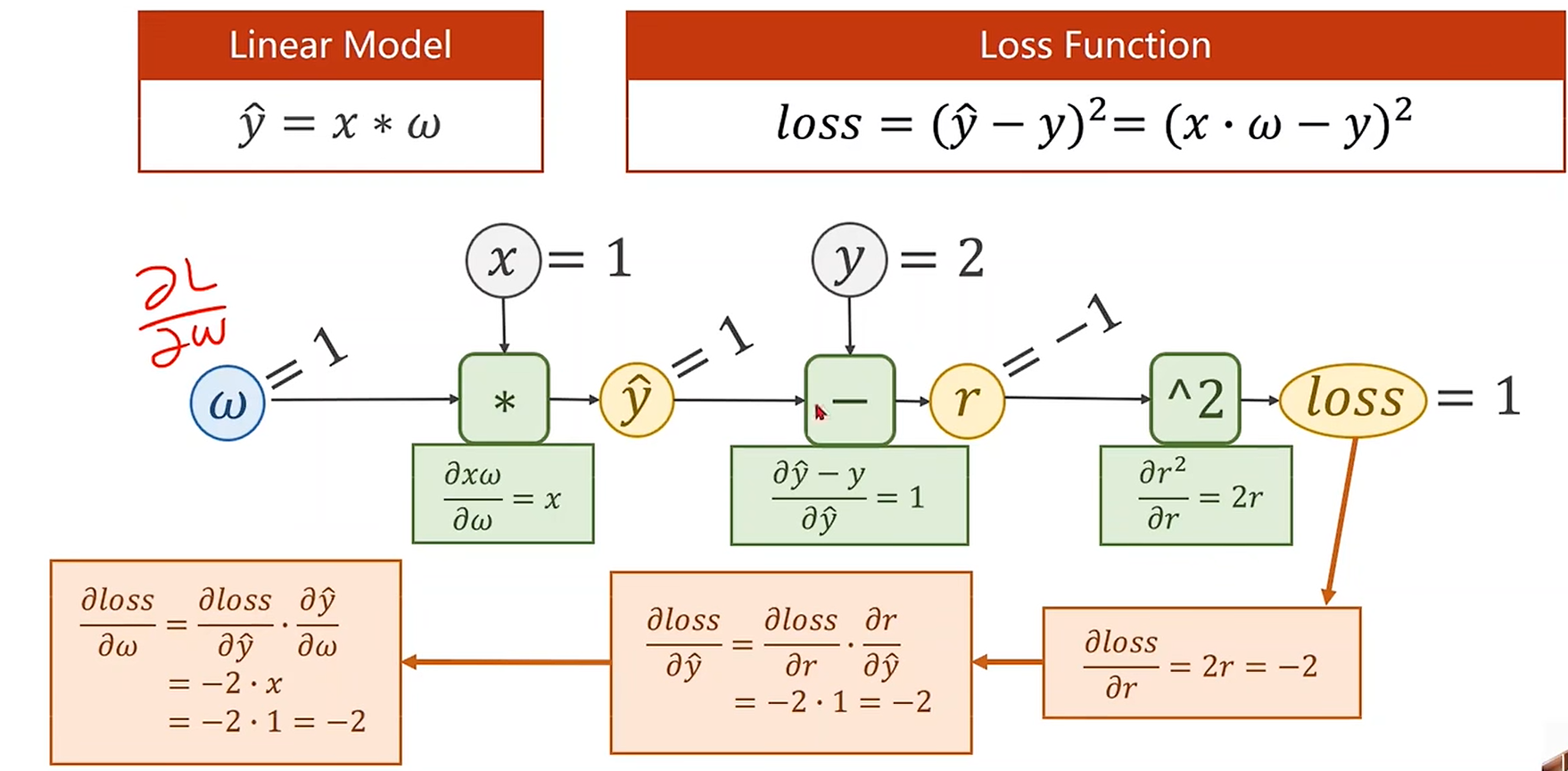

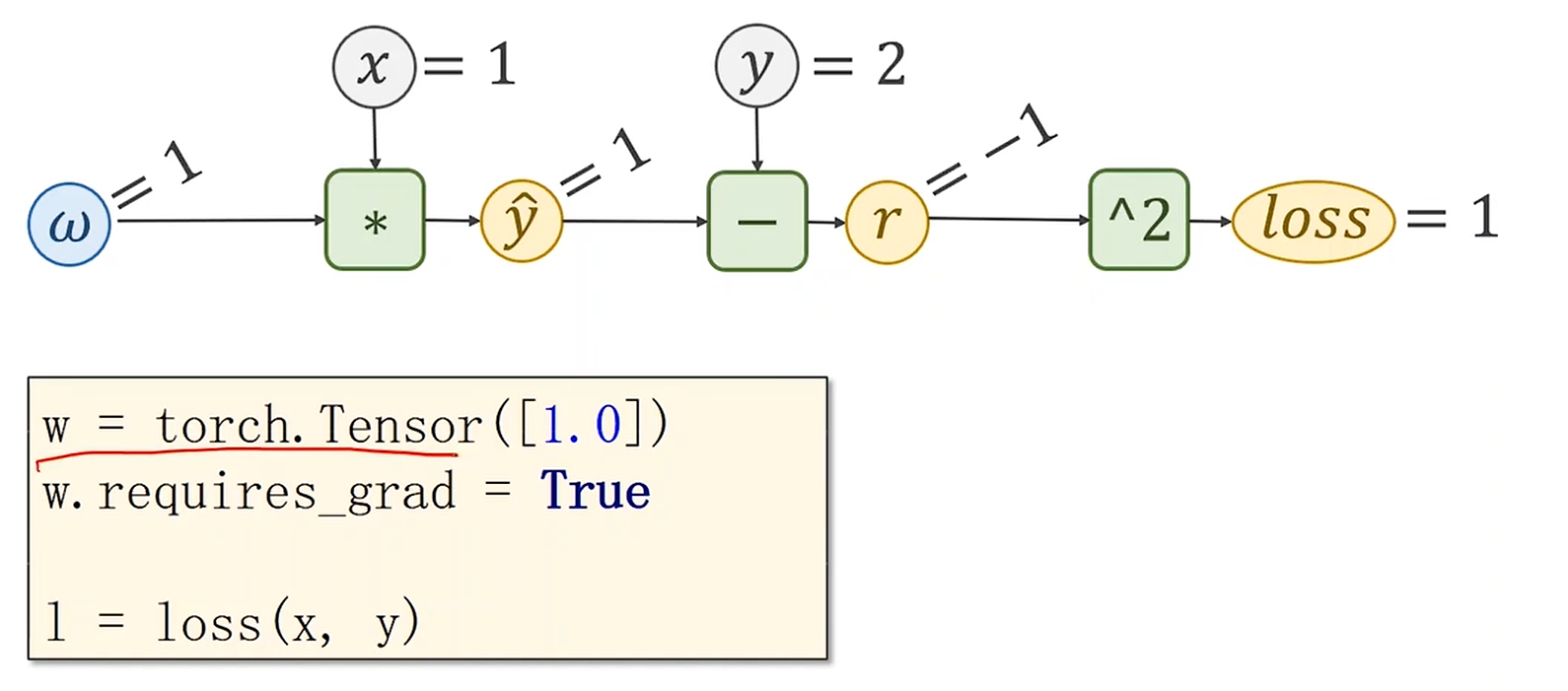

我们来看一下整个计算图

前向传播：权重的处置是随机的

反向传播：计算权重的导数，更新权重

下面我们来看完整代码

import torch
import matplotlib.pyplot as plt

x_data = [1.0, 2.0, 3.0]
y_data = [2.0, 4.0, 6.0]

w = torch.Tensor([1.0])  # w的初值为1.0
w.requires_grad = True  # 需要计算梯度
epoch_list = []
loss_list = []


def forward(x):
    return x * w  # w是一个Tensor


def loss(x, y):
    y_pred = forward(x)
    return (y_pred - y) ** 2


print('predict(before training)', 4, forward(4).item())

for epoch in range(100):
    for x, y in zip(x_data, y_data):
        l = loss(x, y)  # l是一个张量，tensor主要是在建立计算图 forward, compute the loss
        l.backward()  # backward,compute grad for Tensor whose requires_grad set to True
        print('\tgrad:', x, y, w.grad.item())
        w.data = w.data - 0.01 * w.grad.data  # 权重更新时，注意grad也是一个tensor

        w.grad.data.zero_()  # after update, remember set the grad to zero
    epoch_list.append(epoch)
    loss_list.append(l.item())
    print('progress:', epoch, l.item())  # 取出loss使用l.item，不要直接使用l（l是tensor会构建计算图）
print('predict(after training)', 4, forward(4).item())


plt.plot(epoch_list, loss_list)
plt.ylabel('Loss')
plt.xlabel('Epoch')
plt.show()

运行结果：

predict(before training) 4 4.0
  grad: 1.0 2.0 -2.0
  grad: 2.0 4.0 -7.840000152587891
  grad: 3.0 6.0 -16.228801727294922
progress: 0 7.315943717956543
  grad: 1.0 2.0 -1.478623867034912
  grad: 2.0 4.0 -5.796205520629883
  grad: 3.0 6.0 -11.998146057128906
progress: 1 3.9987640380859375
  grad: 1.0 2.0 -1.0931644439697266
  grad: 2.0 4.0 -4.285204887390137
  grad: 3.0 6.0 -8.870372772216797
progress: 2 2.1856532096862793
  grad: 1.0 2.0 -0.8081896305084229
  grad: 2.0 4.0 -3.1681032180786133
  grad: 3.0 6.0 -6.557973861694336
progress: 3 1.1946394443511963
  grad: 1.0 2.0 -0.5975041389465332
  grad: 2.0 4.0 -2.3422164916992188
  grad: 3.0 6.0 -4.848389625549316
progress: 4 0.6529689431190491
  grad: 1.0 2.0 -0.4417421817779541
  grad: 2.0 4.0 -1.7316293716430664
  grad: 3.0 6.0 -3.58447265625
progress: 5 0.35690122842788696
  grad: 1.0 2.0 -0.3265852928161621
  grad: 2.0 4.0 -1.2802143096923828
  grad: 3.0 6.0 -2.650045394897461
progress: 6 0.195076122879982
  grad: 1.0 2.0 -0.24144840240478516
  grad: 2.0 4.0 -0.9464778900146484
  grad: 3.0 6.0 -1.9592113494873047
progress: 7 0.10662525147199631
  grad: 1.0 2.0 -0.17850565910339355
  grad: 2.0 4.0 -0.699742317199707
  grad: 3.0 6.0 -1.4484672546386719
progress: 8 0.0582793727517128
  grad: 1.0 2.0 -0.1319713592529297
  grad: 2.0 4.0 -0.5173273086547852
  grad: 3.0 6.0 -1.070866584777832
progress: 9 0.03185431286692619
  grad: 1.0 2.0 -0.09756779670715332
  grad: 2.0 4.0 -0.3824653625488281
  grad: 3.0 6.0 -0.7917022705078125
progress: 10 0.017410902306437492
  grad: 1.0 2.0 -0.07213282585144043
  grad: 2.0 4.0 -0.2827606201171875
  grad: 3.0 6.0 -0.5853137969970703
progress: 11 0.009516451507806778
  grad: 1.0 2.0 -0.053328514099121094
  grad: 2.0 4.0 -0.2090473175048828
  grad: 3.0 6.0 -0.43272972106933594
progress: 12 0.005201528314501047
  grad: 1.0 2.0 -0.039426326751708984
  grad: 2.0 4.0 -0.15455150604248047
  grad: 3.0 6.0 -0.3199195861816406
progress: 13 0.0028430151287466288
  grad: 1.0 2.0 -0.029148340225219727
  grad: 2.0 4.0 -0.11426162719726562
  grad: 3.0 6.0 -0.23652076721191406
progress: 14 0.0015539465239271522
  grad: 1.0 2.0 -0.021549701690673828
  grad: 2.0 4.0 -0.08447456359863281
  grad: 3.0 6.0 -0.17486286163330078
progress: 15 0.0008493617060594261
  grad: 1.0 2.0 -0.01593184471130371
  grad: 2.0 4.0 -0.062453269958496094
  grad: 3.0 6.0 -0.12927818298339844
progress: 16 0.00046424579340964556
  grad: 1.0 2.0 -0.011778593063354492
  grad: 2.0 4.0 -0.046172142028808594
  grad: 3.0 6.0 -0.09557533264160156
progress: 17 0.0002537401160225272
  grad: 1.0 2.0 -0.00870823860168457
  grad: 2.0 4.0 -0.03413581848144531
  grad: 3.0 6.0 -0.07066154479980469
progress: 18 0.00013869594840798527
  grad: 1.0 2.0 -0.006437778472900391
  grad: 2.0 4.0 -0.025236129760742188
  grad: 3.0 6.0 -0.052239418029785156
progress: 19 7.580435340059921e-05
  grad: 1.0 2.0 -0.004759550094604492
  grad: 2.0 4.0 -0.018657684326171875
  grad: 3.0 6.0 -0.038620948791503906
progress: 20 4.143271507928148e-05
  grad: 1.0 2.0 -0.003518819808959961
  grad: 2.0 4.0 -0.0137939453125
  grad: 3.0 6.0 -0.028553009033203125
progress: 21 2.264650902361609e-05
  grad: 1.0 2.0 -0.00260162353515625
  grad: 2.0 4.0 -0.010198593139648438
  grad: 3.0 6.0 -0.021108627319335938
progress: 22 1.2377059647405986e-05
  grad: 1.0 2.0 -0.0019233226776123047
  grad: 2.0 4.0 -0.0075397491455078125
  grad: 3.0 6.0 -0.0156097412109375
progress: 23 6.768445018678904e-06
  grad: 1.0 2.0 -0.0014221668243408203
  grad: 2.0 4.0 -0.0055751800537109375
  grad: 3.0 6.0 -0.011541366577148438
progress: 24 3.7000872907810844e-06
  grad: 1.0 2.0 -0.0010514259338378906
  grad: 2.0 4.0 -0.0041217803955078125
  grad: 3.0 6.0 -0.008531570434570312
progress: 25 2.021880391112063e-06
  grad: 1.0 2.0 -0.0007772445678710938
  grad: 2.0 4.0 -0.0030469894409179688
  grad: 3.0 6.0 -0.006305694580078125
progress: 26 1.1044940038118511e-06
  grad: 1.0 2.0 -0.0005745887756347656
  grad: 2.0 4.0 -0.0022525787353515625
  grad: 3.0 6.0 -0.0046634674072265625
progress: 27 6.041091182851233e-07
  grad: 1.0 2.0 -0.0004248619079589844
  grad: 2.0 4.0 -0.0016651153564453125
  grad: 3.0 6.0 -0.003444671630859375
progress: 28 3.296045179013163e-07
  grad: 1.0 2.0 -0.0003139972686767578
  grad: 2.0 4.0 -0.0012311935424804688
  grad: 3.0 6.0 -0.0025491714477539062
progress: 29 1.805076408345485e-07
  grad: 1.0 2.0 -0.00023221969604492188
  grad: 2.0 4.0 -0.0009107589721679688
  grad: 3.0 6.0 -0.0018854141235351562
progress: 30 9.874406714516226e-08
  grad: 1.0 2.0 -0.00017189979553222656
  grad: 2.0 4.0 -0.0006742477416992188
  grad: 3.0 6.0 -0.00139617919921875
progress: 31 5.4147676564753056e-08
  grad: 1.0 2.0 -0.0001270771026611328
  grad: 2.0 4.0 -0.0004978179931640625
  grad: 3.0 6.0 -0.00102996826171875
progress: 32 2.9467628337442875e-08
  grad: 1.0 2.0 -9.393692016601562e-05
  grad: 2.0 4.0 -0.0003681182861328125
  grad: 3.0 6.0 -0.0007610321044921875
progress: 33 1.6088051779661328e-08
  grad: 1.0 2.0 -6.937980651855469e-05
  grad: 2.0 4.0 -0.00027179718017578125
  grad: 3.0 6.0 -0.000560760498046875
progress: 34 8.734787115827203e-09
  grad: 1.0 2.0 -5.125999450683594e-05
  grad: 2.0 4.0 -0.00020122528076171875
  grad: 3.0 6.0 -0.0004177093505859375
progress: 35 4.8466972657479346e-09
  grad: 1.0 2.0 -3.790855407714844e-05
  grad: 2.0 4.0 -0.000148773193359375
  grad: 3.0 6.0 -0.000308990478515625
progress: 36 2.6520865503698587e-09
  grad: 1.0 2.0 -2.8133392333984375e-05
  grad: 2.0 4.0 -0.000110626220703125
  grad: 3.0 6.0 -0.0002288818359375
progress: 37 1.4551915228366852e-09
  grad: 1.0 2.0 -2.09808349609375e-05
  grad: 2.0 4.0 -8.20159912109375e-05
  grad: 3.0 6.0 -0.00016880035400390625
progress: 38 7.914877642178908e-10
  grad: 1.0 2.0 -1.5497207641601562e-05
  grad: 2.0 4.0 -6.103515625e-05
  grad: 3.0 6.0 -0.000125885009765625
progress: 39 4.4019543565809727e-10
  grad: 1.0 2.0 -1.1444091796875e-05
  grad: 2.0 4.0 -4.482269287109375e-05
  grad: 3.0 6.0 -9.1552734375e-05
progress: 40 2.3283064365386963e-10
  grad: 1.0 2.0 -8.344650268554688e-06
  grad: 2.0 4.0 -3.24249267578125e-05
  grad: 3.0 6.0 -6.580352783203125e-05
progress: 41 1.2028067430946976e-10
  grad: 1.0 2.0 -5.9604644775390625e-06
  grad: 2.0 4.0 -2.288818359375e-05
  grad: 3.0 6.0 -4.57763671875e-05
progress: 42 5.820766091346741e-11
  grad: 1.0 2.0 -4.291534423828125e-06
  grad: 2.0 4.0 -1.71661376953125e-05
  grad: 3.0 6.0 -3.719329833984375e-05
progress: 43 3.842615114990622e-11
  grad: 1.0 2.0 -3.337860107421875e-06
  grad: 2.0 4.0 -1.33514404296875e-05
  grad: 3.0 6.0 -2.86102294921875e-05
progress: 44 2.2737367544323206e-11
  grad: 1.0 2.0 -2.6226043701171875e-06
  grad: 2.0 4.0 -1.049041748046875e-05
  grad: 3.0 6.0 -2.288818359375e-05
progress: 45 1.4551915228366852e-11
  grad: 1.0 2.0 -1.9073486328125e-06
  grad: 2.0 4.0 -7.62939453125e-06
  grad: 3.0 6.0 -1.430511474609375e-05
progress: 46 5.6843418860808015e-12
  grad: 1.0 2.0 -1.430511474609375e-06
  grad: 2.0 4.0 -5.7220458984375e-06
  grad: 3.0 6.0 -1.1444091796875e-05
progress: 47 3.637978807091713e-12
  grad: 1.0 2.0 -1.1920928955078125e-06
  grad: 2.0 4.0 -4.76837158203125e-06
  grad: 3.0 6.0 -1.1444091796875e-05
progress: 48 3.637978807091713e-12
  grad: 1.0 2.0 -9.5367431640625e-07
  grad: 2.0 4.0 -3.814697265625e-06
  grad: 3.0 6.0 -8.58306884765625e-06
progress: 49 2.0463630789890885e-12
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 50 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 51 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 52 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 53 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 54 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 55 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 56 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 57 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 58 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 59 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 60 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 61 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 62 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 63 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 64 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 65 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 66 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 67 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 68 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 69 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 70 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 71 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 72 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 73 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 74 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 75 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 76 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 77 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 78 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 79 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 80 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 81 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 82 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 83 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 84 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 85 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 86 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 87 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 88 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 89 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 90 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 91 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 92 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 93 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 94 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 95 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 96 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 97 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 98 9.094947017729282e-13
  grad: 1.0 2.0 -7.152557373046875e-07
  grad: 2.0 4.0 -2.86102294921875e-06
  grad: 3.0 6.0 -5.7220458984375e-06
progress: 99 9.094947017729282e-13
predict(after training) 4 7.999998569488525

图像显示：
