Vue 树状结构控件

news2025/6/5 20:24:42

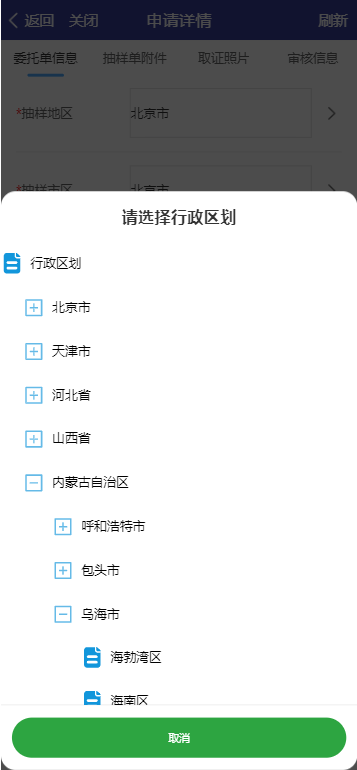

1、效果图如下所示：

2、网络请求的数据结构如下：

3、新建插件文件：menu-tree.vue，插件代码如下：

<template>
    <div class="root">
        <div class="parent" @click="onParentClick(parentItem)">
            <div class="parent-rectangle" :style="{ 'width': i == 1 ? '24px' : '32px' }" v-for="i in currentLevel - 1" :key="i"></div>
            <div class="parent-right">
                <img class="parent-icon" :src="getParentIconUrl()" @click.stop="changeExpandStatus()"/>
                <div class="parent-title" v-html="parentItem.text"></div>
            </div>
        </div>
        <div class="child" v-if="isShowChildList()">
            <MenuTree :parentItem="item" v-for="(item, index) in parentItem.children" :currentLevel="currentLevel + 1"
                :key="index" @onMenuTreeItemConfirm="onMenuTreeItemConfirm"></MenuTree>
        </div>
    </div>
</template>

<script>
export default {
    components: {
        MenuTree: () => import('./menu-tree.vue') // 引入自身作为子组件
    },
    props: {
        parentItem: {
            type: Object,
            default: {}
        },
        currentLevel: {
            type: Number,
            default: 1
        },
    },
    mounted() {},
    data() {
        return {
            treeMinUnitIconUrl: require('@/assets/images/icon-file.svg'),
            treeFoldedIconUrl: require('@/assets/images/icon-to-fold.svg'),
            treeExpandedIconUrl: require('@/assets/images/icon-to-expand.svg'),
        }
    },
    watch: {},
    methods: {
        isShowChildList() {
            return this.parentItem.expanded;
        },
        changeExpandStatus() {
            console.log("this.parentItem.childQty = " + this.parentItem.childQty);
            if (this.parentItem.childQty && this.parentItem.childQty > 0) {
                this.parentItem.expanded = !this.parentItem.expanded;
            }
        },
        getParentIconUrl() {
            if (this.currentLevel == 1) {
                return this.treeMinUnitIconUrl;
            }
            if (!this.parentItem.childQty || this.parentItem.childQty == 0) {
                return this.treeMinUnitIconUrl;
            }
            return this.parentItem.expanded ? this.treeFoldedIconUrl : this.treeExpandedIconUrl;
        },
        onParentClick(item) {
            if (this.currentLevel > 1) {
                item.currentLevel = this.currentLevel;
            }
            this.$emit("onMenuTreeItemConfirm", item);
        },
        onMenuTreeItemConfirm(item) {
            this.onParentClick(item);
        },
    },
}
</script>

<style scoped>
.root {
    width: 100%;
    min-height: 48px;
    display: flex;
    flex-direction: column;
    align-items: center;
}

.parent {
    min-height: 48px;
    width: 100%;
    display: flex;
    flex-direction: row;
    align-items: center;
}

.parent-rectangle {
    min-height: 48px;
}

.parent-right {
    min-height: 48px;
    min-width: 140px;
    display: flex;
    flex-direction: row;
    align-items: center;
}

.parent-icon {
    width: 24px;
    height: 24px;
}

.parent-title {
    width: calc(100% - 24px - 8px);
    min-height: 16px;
    text-align: left;
    line-height: 16px;
    font-size: 14px;
    margin-left: 8px;
}

.child {
    width: 100%;
    display: flex;
    flex-direction: column;
    align-items: center;
}
</style>

4、使用方法如下：

<template>
    <div class="root">
        <van-popup class="popup" v-model="showMenuTreePop" round position="bottom">
            <div class="popup-title">请选择行政区划</div>
            <div style="height: 60vh; width: 100%; overflow-y: scroll;">
                <MenuTree :parentItem="rootItem" :currentLevel="1" @onMenuTreeItemConfirm="onMenuTreeItemConfirm"></MenuTree>
            </div>
            <div class="table-bottom">
                <div class="table-bottom-btn color-green" @click="showMenuTreePop = false">取消</div>
            </div>
        </van-popup>
    </div>
</template>

<script>
import MenuTree from '@/components/menu-tree.vue';
export default {
    components: { MenuTree },
    data() {
        return {
            rootItem: {},
            showMenuTreePop: false,
        }
    },
    methods: {
        loadMenutreeDataList() {
            // 通过网络请求获取数据列表 res
            console.log("res = ", res);
            this.$set(this.rootItem, "children", res);
            this.$set(this.rootItem, "text", "行政区划");
            this.$set(this.rootItem, "expanded", true);
            this.$set(this.rootItem, "childQty", res ? res.length : 0);
            this.showMenuTreePop = true;// 打开弹窗
        },
        onMenuTreeItemConfirm(clickedItem) {
            // clickedItem 就是点击选中的数据项, 其 currentLevel 属性值就是其所处层级，如果层级是1，则表示点击的是根节点
            this.showMenuTreePop = false;// 关闭弹窗
        },
    }
}
</script>

<style scoped>
.root {
    width: 100%;
    height: 100vh;
}

.popup {
    width: 100%;
    background: #FFFFFF;
    border-radius: 16px;
}

.table-bottom {
    width: 100%;
    height: 71px;
    display: flex;
    flex-direction: row;
    align-items: center;
    border-top: solid 1px #E8E8E8;
}

.table-bottom-btn {
    min-width: 50px;
    height: 44px;
    flex: 1;
    color: #FFFFFF;
    font-size: 12px;
    line-height: 44px;
    border-radius: 22px;
    margin-left: 3%;
    margin-right: 3%;
    font-family: PingFangSC-Regular;
    font-weight: 400;
    text-align: center;
}

.color-green {
    color: #FFFFFF;
    background-color: #2DA541;
}
</style>

5、插件中使用到的资源文件如下：

1、icon-file.svg

<?xml version="1.0" standalone="no"?><!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"><svg t="1716600220842" class="icon" viewBox="0 0 1024 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="19100" xmlns:xlink="http://www.w3.org/1999/xlink" width="48" height="48"><path d="M815.104 69.632q27.648 25.6 44.032 42.496t25.088 28.672 10.752 19.968 2.048 14.336l0 16.384-151.552 0q-10.24 0-17.92-7.68t-12.8-17.92-7.68-20.992-2.56-16.896l0-126.976 3.072 0q8.192 0 16.896 2.56t19.968 9.728 28.16 20.48 42.496 35.84zM640 129.024q0 20.48 6.144 42.496t19.456 40.96 33.792 31.232 48.128 12.288l149.504 0 0 577.536q0 29.696-11.776 53.248t-31.232 39.936-43.008 25.6-46.08 9.216l-503.808 0q-19.456 0-42.496-11.264t-43.008-29.696-33.28-41.984-13.312-49.152l0-696.32q0-21.504 9.728-44.544t26.624-42.496 38.4-32.256 45.056-12.8l391.168 0 0 128zM704.512 768q26.624 0 45.056-18.944t18.432-45.568-18.432-45.056-45.056-18.432l-384 0q-26.624 0-45.056 18.432t-18.432 45.056 18.432 45.568 45.056 18.944l384 0zM768 448.512q0-26.624-18.432-45.568t-45.056-18.944l-384 0q-26.624 0-45.056 18.944t-18.432 45.568 18.432 45.056 45.056 18.432l384 0q26.624 0 45.056-18.432t18.432-45.056z" p-id="19101" fill="#1296db"></path></svg>

2、icon-to-expand.svg

<?xml version="1.0" standalone="no"?><!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"><svg t="1716600138280" class="icon" viewBox="0 0 1024 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="5120" xmlns:xlink="http://www.w3.org/1999/xlink" width="48" height="48"><path d="M880 112a32 32 0 0 1 32 32v736a32 32 0 0 1-32 32H144a32 32 0 0 1-32-32V144a32 32 0 0 1 32-32z m-40 72H184v656h656V184zM536 320c4.416 0 8 3.584 8 8V480h152c4.416 0 8 3.584 8 8v48a8 8 0 0 1-8 8H544v152a8 8 0 0 1-8 8h-48a8 8 0 0 1-8-8V544H328A8 8 0 0 1 320 536v-48c0-4.416 3.584-8 8-8H480V328c0-4.416 3.584-8 8-8z" fill="#1296db" fill-opacity=".65" p-id="5121"></path></svg>


3、icon-to-fold.svg

<?xml version="1.0" standalone="no"?><!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"><svg t="1716600168259" class="icon" viewBox="0 0 1024 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="18002" xmlns:xlink="http://www.w3.org/1999/xlink" width="48" height="48"><path d="M880 112a32 32 0 0 1 32 32v736a32 32 0 0 1-32 32H144a32 32 0 0 1-32-32V144a32 32 0 0 1 32-32z m-40 72H184v656h656V184zM696 480c4.416 0 8 3.584 8 8v48a8 8 0 0 1-8 8h-368A8 8 0 0 1 320 536v-48c0-4.416 3.584-8 8-8z" fill="#1296db" fill-opacity=".65" p-id="18003"></path></svg>
