nginx+keepalived集群-双主

news2025/6/3 23:43:30

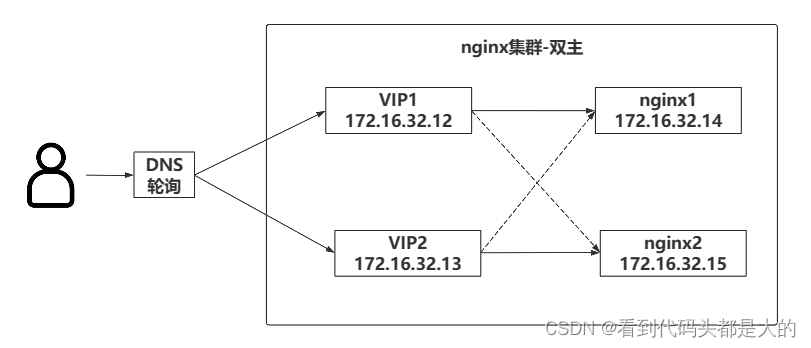

在这里插入图片描述

1. nginx部署

单机部署可参考：https://blog.csdn.net/ym5209999/article/details/119897237
主备模式可参考：https://blog.csdn.net/ym5209999/article/details/132983080

2. keepalived安装

[root@nginx1 ~]# yum -y install keepalived

3. keepalived配置

3.1 安装完成后，默认配置文件位于：/etc/keepalived，默认配置如下：

keepalived.conf

! Configuration File for keepalived

global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 192.168.200.1
   smtp_connect_timeout 30
   router_id LVS_DEVEL
   vrrp_skip_check_adv_addr
   vrrp_strict
   vrrp_garp_interval 0
   vrrp_gna_interval 0
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.200.16
        192.168.200.17
        192.168.200.18
    }
}

virtual_server 192.168.200.100 443 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.201.100 443 {
        weight 1
        SSL_GET {
            url {
              path /
              digest ff20ad2481f97b1754ef3e12ecd3a9cc
            }
            url {
              path /mrtg/
              digest 9b3a0c85a887a256d6939da88aabd8cd
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.2 1358 {
    delay_loop 6
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    sorry_server 192.168.200.200 1358

    real_server 192.168.200.2 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.3 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334c
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

virtual_server 10.10.10.3 1358 {
    delay_loop 3
    lb_algo rr
    lb_kind NAT
    persistence_timeout 50
    protocol TCP

    real_server 192.168.200.4 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.200.5 1358 {
        weight 1
        HTTP_GET {
            url {
              path /testurl/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl2/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            url {
              path /testurl3/test.jsp
              digest 640205b7b0fc66c1ea91c463fac6334d
            }
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

删除默认配置，以下述模板，按实际情况填写

3.2 按实际情况修改keepalived.conf

nginx1

! Configuration File for keepalived

global_defs {
   # 路由ID，当前主机标识，必须唯一
   router_id LVS_DEVEL_14
   script_user root
   enable_script_security
}

vrrp_instance VI_1 {
	# 状态，可配置内容为：MASTER/BACKUP
    state MASTER
	# 网卡名称
    interface ens32
	# 主备节点需保持一致
    virtual_router_id 51
	# 优先级，当主节点宕机后，优先级最高的成为主节点
    priority 100
	# 主备同步时间间隔
    advert_int 1
	# 认证授权密码
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.16.32.12
    }
}

vrrp_instance VI_2 {
	# 状态，可配置内容为：MASTER/BACKUP
    state BACKUP
	# 网卡名称
    interface ens32
	# 主备节点需保持一致
    virtual_router_id 52
	# 优先级，当主节点宕机后，优先级最高的成为主节点
    priority 90
	# 主备同步时间间隔
    advert_int 1
	# 认证授权密码
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.16.32.13
    }
}

nginx2

! Configuration File for keepalived

global_defs {
   # 路由ID，当前主机标识，必须唯一
   router_id LVS_DEVEL_15
   script_user root
   enable_script_security
}

vrrp_instance VI_1 {
	# 状态，可配置内容为：MASTER/BACKUP
    state BACKUP
	# 网卡名称
    interface ens32
	# 主备节点需保持一致
    virtual_router_id 51
	# 优先级，当主节点宕机后，优先级最高的成为主节点
    priority 90
	# 主备同步时间间隔
    advert_int 1
	# 认证授权密码
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.16.32.12
    }
}

vrrp_instance VI_2 {
	# 状态，可配置内容为：MASTER/BACKUP
    state MASTER
	# 网卡名称
    interface ens32
	# 主备节点需保持一致
    virtual_router_id 52
	# 优先级，当主节点宕机后，优先级最高的成为主节点
    priority 100
	# 主备同步时间间隔
    advert_int 1
	# 认证授权密码
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.16.32.13
    }
}

4. 启动验证

# 启动nginx
[root@nginx1 ~]# /apps/nginx/sbin/nginx –c /apps/nginx/conf/nginx.conf

# 启动keepalived
[root@nginx1 ~]# systemctl start keepalived

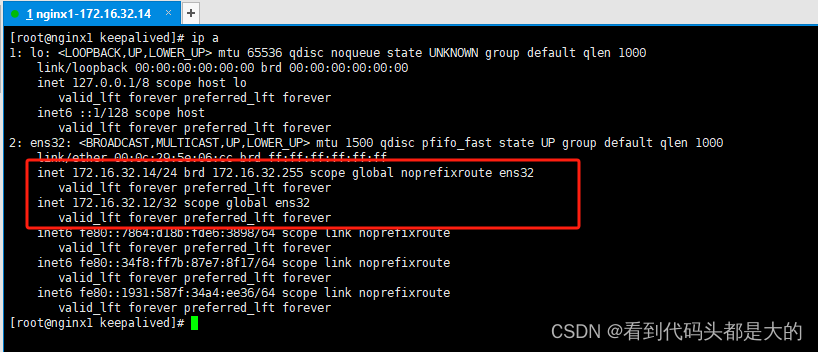

1.nginx1启动keepalived之后，nginx1服务器上显示两个IP：VIP1、nginx1服务器实体IP
在这里插入图片描述

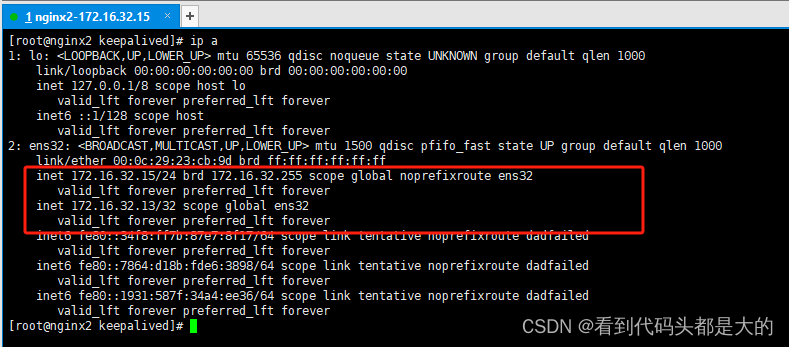

2.nginx2启动keepalived之后，nginx2服务器上显示两个IP：VIP2、nginx2服务器实体IP 在这里插入图片描述

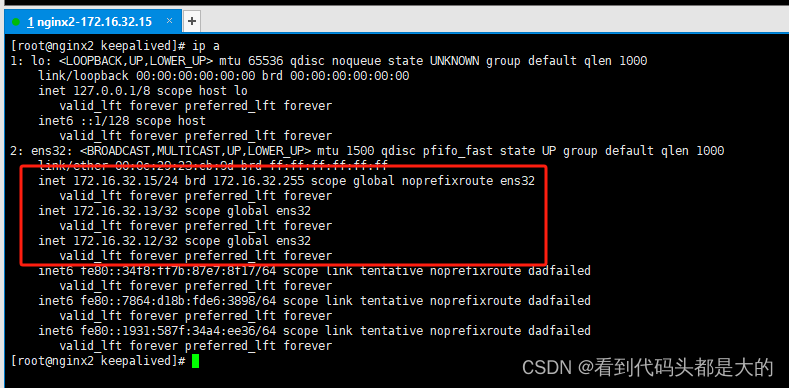

3.nginx1停止keepalived、nginx2正常启动keepalived，nginx2服务器上显示三个IP：VIP1、VIP2、nginx2服务器实体IP

4.nginx2停止keepalived、nginx1正常启动keepalived，nginx1服务器上显示三个IP：VIP1、VIP2、nginx1服务器实体IP
