SpringMVC

为什么出现了SpringMVC?

因为servlet处理请求和数据的时候，存在的问题是一个servlet只能处理一个请求 针对web层进行了优化，采用了MVC设计模式，将其设计为controller、view和Model’

什么是SpringMVC?

SpringMVC是一种基于Java实现MVC模型的轻量级Web框架

优点是使用简单、开发便捷(相比于Servlet) 灵活性强

简单使用

1 依赖引入

    <dependencies>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
//解决冲突的问题
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

2 建立基本目录

目录如下

3 新建SpringMVC配置类

package com.learn.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

@Configuration
@ComponentScan("com.learn.controller")
public class SpringMVCConfig {
}

4 新建web.xml配置类（用于替换web.xml）

package com.learn.config;

import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.support.AnnotationConfigWebApplicationContext;
import org.springframework.web.servlet.support.AbstractDispatcherServletInitializer;

public class ServletContainersInitConfig extends
        AbstractDispatcherServletInitializer {
    //加载springmvc配置类
    protected WebApplicationContext createServletApplicationContext() {
//初始化WebApplicationContext对象
        AnnotationConfigWebApplicationContext ctx = new
                AnnotationConfigWebApplicationContext();
//加载指定配置类
        ctx.register(SpringMVCConfig.class);
        return ctx;
    }

    //设置由springmvc控制器处理的请求映射路径
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }

    //加载spring配置类
    protected WebApplicationContext createRootApplicationContext() {
        return null;
    }
}

5 新建控制器

package com.learn.controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
public class UserController {
    //浏览器请求的路径
    @RequestMapping("/save")
    //标识发送的数据为JSON格式
    @ResponseBody
    public String save(){
        System.out.println("user save ...");
        return "{'info':'springmvc'}";
    }
}

6 最终目录

7 配置web服务器

添加webapp框架

 配置工件

配置服务器

 8 启动调试

 相关知识点

SpringMVC是基于Spring的，在pom.xml只导入了spring-webmvc jar包的原因是它会自动依赖
spring相关坐标
AbstractDispatcherServletInitializer类是SpringMVC提供的快速初始化Web3.0容器
的抽象类
AbstractDispatcherServletInitializer提供了三个接口方法供用户实现
createServletApplicationContext方法，创建Servlet容器时，加载SpringMVC对应
的bean并放入WebApplicationContext对象范围中，而WebApplicationContext的作用
范围为ServletContext范围，即整个web容器范围
getServletMappings方法，设定SpringMVC对应的请求映射路径，即SpringMVC拦截哪些
请求
createRootApplicationContext方法，如果创建Servlet容器时需要加载非SpringMVC
对应的bean,使用当前方法进行，使用方式和createServletApplicationContext相同。
createServletApplicationContext用来加载SpringMVC环境
createRootApplicationContext用来加载Spring环境

@RequestMapping

SpringMVC控制器类或方法定义上方

设置当前控制器方法请求访问路径

@ResponseBody

SpringMVC控制器类或方法定义上方

设置当前控制器方法响应内容为当前返回值，无需解析

SpringMVC工作流程

1. 发送请求http://localhost/save
2. web容器发现该请求满足SpringMVC拦截规则，将请求交给SpringMVC处理
3. 解析请求路径/save
4. 由/save匹配执行对应的方法save(）
上面的第五步已经将请求路径和方法建立了对应关系，通过/save就能找到对应的save方法
5. 执行save()
6. 检测到有@ResponseBody直接将save()方法的返回值作为响应体返回给请求方

设置bean加载控制

1 修改Spring配置类，设定扫描范围为精准范围。

2 修改Spring配置类，设定扫描范围为com.itheima,排除掉controller包中的bean

@Configuration
@ComponentScan(value="com.itheima",
excludeFilters=@ComponentScan.Filter(
type = FilterType.ANNOTATION,
classes = Controller.class
)
)
public class SpringConfig {
}

excludeFilters属性：设置扫描加载bean时，排除的过滤规则
type属性：设置排除规则，当前使用按照bean定义时的注解类型进行排除
ANNOTATION：按照注解排除
ASSIGNABLE_TYPE:按照指定的类型过滤
ASPECTJ:按照Aspectj表达式排除，基本上不会用
REGEX:按照正则表达式排除
CUSTOM:按照自定义规则排除
大家只需要知道第一种ANNOTATION即可
classes属性：设置排除的具体注解类，当前设置排除@Controller定义的bean

在服务器启动时加载SpringConfig

1 更改ServletContainersInitConfig 配置类

public class ServletContainersInitConfig extends
AbstractDispatcherServletInitializer {
protected WebApplicationContext createServletApplicationContext() {
AnnotationConfigWebApplicationContext ctx = new
AnnotationConfigWebApplicationContext();
ctx.register(SpringMvcConfig.class);
return ctx;
}
protected String[] getServletMappings() {
return new String[]{"/"};
}
protected WebApplicationContext createRootApplicationContext() {
AnnotationConfigWebApplicationContext ctx = new
AnnotationConfigWebApplicationContext();
ctx.register(SpringConfig.class);
return ctx;
}
}
1

2 ServletContainersInitConfig 的内容替换成如下

public class ServletContainersInitConfig extends
AbstractAnnotationConfigDispatcherServletInitializer {
protected Class<?>[] getRootConfigClasses() {
return new Class[]{SpringConfig.class};
}
protected Class<?>[] getServletConfigClasses() {
return new Class[]{SpringMvcConfig.class};
}
protected String[] getServletMappings() {
return new String[]{"/"};
}
}

后台接受五种类型参数传递

普通参数

  public String commonParam(@RequestParam("name") String name, int age)
    {
        System.out.println("普通参数传递 name ==> "+name);
        System.out.println("普通参数传递 age ==> "+age);
        return "{'module':"+name+"}";
    }

POJO类型参数

  //POJO类型的参数，直接使用实体类接受，但是注意，实体类中的字段必须和参数名相同
    public String commonParam(User user)
    {
        System.out.println("普通参数传递 name ==> "+user.getName());
        System.out.println("普通参数传递 age ==> "+user.getAge());
        return "{'module':"+user.getName()+"}";
    }

嵌套POJO类型参数

实体

public class Ts {
    User user;
    Address address;
}

    //POJO类型的嵌套参数，直接使用实体类接受，但是注意，实体类中的字段必须和参数名相同
    public String commonParam(Ts ts)
    {
        System.out.println("普通参数传递 name ==> "+ts.getUser().getName());
        System.out.println("普通参数传递 age ==> "+ts.getUser().getAge());
        return "{'module':"+ts.getUser().getName()+"}";
    }

请求写法

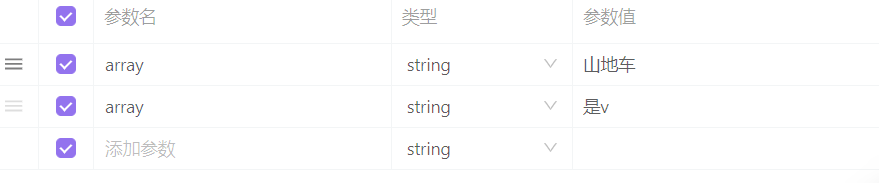

数组类型参数

    //数组参数：同名请求参数可以直接映射到对应名称的形参数组对象中
    public void commonParam(String[] array)
    {
        System.out.println(Arrays.toString(array));
    }

请求参数的名，必须要和后台的数组名相同

集合类型参数

    public String listParam(@RequestParam List<String> likes){
        System.out.println("集合参数传递 likes ==> "+ likes);
        return "{'module':'list param'}";
    }

 请求参数的名，必须要和后台的集合名相同

JSON传输参数

SpringMVC接收JSON数据的实现步骤为:

(1)导入jackson包

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.0</version>
        </dependency>

(2)使用PostMan发送JSON数据

(3)开启SpringMVC注解驱动，在配置类上添加@EnableWebMvc注解

@EnableWebMvc
@RequestMapping("/listPojoParamForJson")
@ResponseBody
public String listPojoParamForJson(@RequestBody List<User> list){
System.out.println("list pojo(json)参数传递 list ==> "+list);
return "{'module':'list pojo for json param'}";
}

(4)Controller方法的参数前添加@RequestBody注解

@RequestParam与@RequestBody的区别：


@RequestParam用于接收url地址传参，表单传参【application/x-www-formurlencoded】 @RequestBody用于接收json数据【application/json】 @RequestMapping("/listPojoParamForJson") @ResponseBody public String listPojoParamForJson(@RequestBody List list){ System.out.println("list pojo(json)参数传递 list ==> "+list); return "{'module':'list pojo for json param'}"; } 应用 后期开发中，发送json格式数据为主，@RequestBody应用较广 如果发送非json格式数据，选用@RequestParam接收请求参数

时间类型参数

如果格式不一致，需要我们使用@DateTimeFormat来进行格式化

@RequestMapping("/dataParam")
@ResponseBody
public String dataParam(Date date,
@DateTimeFormat(pattern="yyyy-MM-dd") Date date1,
@DateTimeFormat(pattern="yyyy/MM/dd HH:mm:ss") Date
date2)
System.out.println("参数传递 date ==> "+date);
System.out.println("参数传递 date1(yyyy-MM-dd) ==> "+date1);
System.out.println("参数传递 date2(yyyy/MM/dd HH:mm:ss) ==> "+date2);
return "{'module':'data param'}";
}

响应

controller在接受请求后可以转发给service，从而获得一些响应内容，我们需要把他们返回给前台

@EnableWebMvc
@Controller
public class UserController {
@RequestMapping("/toJsonList")
@ResponseBody
public List<User> toJsonList(){
System.out.println("返回json集合数据");
User user1 = new User();
user1.setName("传智播客");
user1.setAge(15);
User user2 = new User();
user2.setName("黑马程序员");
user2.setAge(12);
List<User> userList = new ArrayList<User>();
userList.add(user1);
userList.add(user2);
return userList;
}
}

返回值为实体类对象，设置返回值为实体类类型，即可实现返回对应对象的json数据，需要依赖 @ResponseBody注解和@EnableWebMvc注解

返回jsp页面

@Controller
public class UserController {
@RequestMapping("/toJumpPage")
//注意
//1.此处不能添加@ResponseBody,如果加了该注入，会直接将page.jsp当字符串返回前端
//2.方法需要返回String
public String toJumpPage(){
System.out.println("跳转页面");
return "page.jsp";
}
}

返回纯文本

@Controller
public class UserController {
@RequestMapping("/toText")
//注意此处该注解就不能省略，如果省略了,会把response text当前页面名称去查找，如果没有
回报404错误
@ResponseBody
public String toText(){
System.out.println("返回纯文本数据");
return "response text";
}
}

REST风格

描述

rest:表现形式状态转换,它是一种软件架构风格
当我们想表示一个网络资源的时候，可以使用两种方式:
传统风格资源描述形式
http://localhost/user/getById?id=1 查询id为1的用户信息
http://localhost/user/saveUser 保存用户信息
REST风格描述形式
http://localhost/user/1
http://localhost/user
传统方式一般是一个请求url对应一种操作，这样做不仅麻烦，也不安全，因为会程序的人读取了你的
请求url地址，就大概知道该url实现的是一个什么样的操作。
查看REST风格的描述，你会发现请求地址变的简单了，并且光看请求URL并不是很能猜出来该URL的
具体功能
所以REST的优点有:
隐藏资源的访问行为，无法通过地址得知对资源是何种操作
书写简化

根据REST风格对资源进行访问称为RESTful

RESTful入门

新建以下目录

其中配置文件可看（就在文章的下面）--》IDEA SpringMVC配置详情《---

实体类

public class Book {private String name;
    private double price;}


    public class User {
        private String name;
        private int age;
    }

控制器

@RestController
@RequestMapping("/books")
public class BookController {
    @Autowired
    private BookService bookService;
    @PostMapping
    public Result save(@RequestBody Book book) {
        boolean b = bookService.save(book);
        return new Result(b?Code.SAVE_OK:Code.SAVE_ERR);
    }
    @PutMapping
    public Result update(@RequestBody Book book) {
        boolean b = bookService.update(book);
        return new Result(b?Code.UPDATE_OK:Code.UPDATE_ERR);
    }
}

统一异常处理

新建Code类用于记录状态码

package com.learn.entity;

public class Code {
    public static final Integer SAVE_OK = 20011;
    public static final Integer DELETE_OK = 20021;
    public static final Integer UPDATE_OK = 20031;
    public static final Integer GET_OK = 20041;
    public static final Integer SAVE_ERR = 20010;
    public static final Integer DELETE_ERR = 20020;
    public static final Integer UPDATE_ERR = 20030;
    public static final Integer GET_ERR = 20040;

    //异常处理状态码
    public static final Integer SYSTEM_ERR = 50001;
    public static final Integer SYSTEM_TIMEOUT_ERR = 50002;
    public static final Integer SYSTEM_UNKNOW_ERR = 59999;
    public static final Integer BUSINESS_ERR = 60002;
}

新建异常处理类

package com.learn.exception;
//让自定义异常类继承RuntimeException的好处是，后期在抛出这两个异常的时候，就不用在
//try...catch...或throws了
//自定义异常类中添加code属性的原因是为了更好的区分异常是来自哪个业务的

public class BusinessException extends RuntimeException{
    private Integer code;
    public Integer getCode() {
        return code;
    }
    public void setCode(Integer code) {
        this.code = code;
    }
    public BusinessException(Integer code, String message) {
        super(message);
        this.code = code;
    }
    public BusinessException(Integer code, String message, Throwable cause) {
//        这里的super直接传到了Throwable类的身上
        super(message, cause);
        this.code = code;
    }
}

package com.learn.exception;

public class SystemException extends RuntimeException{
    private Integer code;
    public Integer getCode() {
        return code;
    }
    public void setCode(Integer code) {
        this.code = code;
    }
    public SystemException(Integer code, String message) {
        super(message);
        this.code = code;
    }
    public SystemException(Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }
}

新建异常处理器

package com.learn.exception;

import com.learn.entity.Code;
import com.learn.entity.Result;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;


@RestControllerAdvice
public class ProjectExceptionAdvice {
    //@ExceptionHandler用于设置当前处理器类对应的异常类型
    @ExceptionHandler(SystemException.class)
    public Result doSystemException(SystemException ex){
        //记录日志
        //发送消息给运维
        //发送邮件给开发人员,ex对象发送给开发人员
        return new Result(null,ex.getCode(),ex.getMessage());
    }

    @ExceptionHandler(BusinessException.class)
    public Result doBusinessException(BusinessException ex){
        return new Result(null,ex.getCode(),ex.getMessage());
    }

    //除了自定义的异常处理器，保留对Exception类型的异常处理，用于处理非预期的异常
    @ExceptionHandler(Exception.class)
    public Result doOtherException(Exception ex){
    //记录日志
    //发送消息给运维
    //发送邮件给开发人员,ex对象发送给开发人员
        return new Result(null,Code.SYSTEM_UNKNOW_ERR,"系统繁忙，请稍后再试！");
    }
}

模拟异常

    @DeleteMapping("/{id}")
    public Result delete(@PathVariable Integer id)
    {
        if(id==1)
        {
            //抛出异常后下面的delete程序就不会再执行了
            throw new BusinessException(Code.BUSINESS_ERR,"有人想干掉管理员！",new Throwable());
        }
        boolean b = bookService.delete(id);
        return new Result(b?Code.DELETE_OK:Code.DELETE_ERR);
    }

结果

拦截器

(1)浏览器发送一个请求会先到Tomcat的web服务器
(2)Tomcat服务器接收到请求以后，会去判断请求的是静态资源还是动态资源
(3)如果是静态资源，会直接到Tomcat的项目部署目录下去直接访问
(4)如果是动态资源，就需要交给项目的后台代码进行处理
(5)在找到具体的方法之前，我们可以去配置过滤器(可以配置多个)，按照顺序进行执行
(6)然后进入到到中央处理器(SpringMVC中的内容)，SpringMVC会根据配置的规则进行拦截
(7)如果满足规则，则进行处理，找到其对应的controller类中的方法进行执行,完成后返回结果
(8)如果不满足规则，则不进行处理
(9)这个时候，如果我们需要在每个Controller方法执行的前后添加业务，具体该如何来实现?
这个就是拦截器要做的事。
拦截器（Interceptor）是一种动态拦截方法调用的机制，在SpringMVC中动态拦截控制器方法
的执行
作用:
在指定的方法调用前后执行预先设定的代码
阻止原始方法的执行
总结：拦截器就是用来做增强

使用

新建拦截器ProjectInterceptor

package com.learn.interceptor;
import org.springframework.stereotype.Component;
import org.springframework.web.method.HandlerMethod;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

@Component
public class ProjectInterceptor implements HandlerInterceptor {
    @Override
    //原始方法调用前执行的内容
    public boolean preHandle(HttpServletRequest request, HttpServletResponse
            response, Object handler) throws Exception {
        System.out.println("preHandle...");
        //获取请求头
        String header = request.getHeader("Content-Type");
        System.out.println("请求头为："+header);
        HandlerMethod method=(HandlerMethod)handler;
        System.out.println("执行的方法是："+method.getMethod().getName());
        //如果返回为fasle则此拦截器中的方法将不再执行
        return true;
    }
    @Override
    //原始方法调用后执行的内容
    public void postHandle(HttpServletRequest request, HttpServletResponse
            response, Object handler, ModelAndView modelAndView) throws Exception {
        System.out.println("postHandle...");
        HandlerMethod method=(HandlerMethod)handler;
        System.out.println("执行的方法是："+method.getMethod().getName());
    }
    @Override
    //原始方法调用完成后执行的内容
    public void afterCompletion(HttpServletRequest request,
                                HttpServletResponse response, Object handler, Exception ex) throws Exception
    {
        System.out.println("afterCompletion...");
        HandlerMethod method=(HandlerMethod)handler;
        System.out.println("执行的方法是："+method.getMethod().getName());
    }

}

在springmvc中配置拦截器

<!--    拦截器配置-->
    <!-- 配置拦截器 -->
    <mvc:interceptors>
        <!-- 配置一个全局拦截器，拦截所有请求 -->
        <bean class="com.learn.interceptor.ProjectInterceptor" />
        <mvc:interceptor>
            <!-- 配置拦截器作用的路径 -->
            <mvc:mapping path="/**" />
            <!-- 配置不需要拦截作用的路径 -->
            <mvc:exclude-mapping path="/a" />
            <!-- 定义<mvc:interceptor>元素中，表示匹配指定路径的请求才进行拦截 -->
            <bean class="com.learn.interceptor.ProjectInterceptor" />
        </mvc:interceptor>
        <mvc:interceptor>
            <!-- 配置拦截器作用的路径 -->
            <mvc:mapping path="/gotoTest" />
            <!-- 定义在<mvc:interceptor>元素中，表示匹配指定路径的请求才进行拦截 -->
            <bean class="com.learn.interceptor.ProjectInterceptor" />
        </mvc:interceptor>
    </mvc:interceptors>



文件上传

part方式

新建文件上传控制器

package com.learn.controller;

import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.Part;
import java.util.Collection;

@RestController
@CrossOrigin(origins = "*", maxAge = 3600)
public class FileUpdateController {

    //    part方式单文件上传
    @GetMapping("/updateImg")
    private String imgUpdate(HttpServletRequest request) {
        try {
            Part image = request.getPart("image");
            String realPath = request.getServletContext().getRealPath("/WEB-INF/img");
            image.write(realPath + image.getSubmittedFileName());
            return "success";
        } catch (Exception e) {
            System.out.println("图片上传失败");
            return "fail";
        }
    }

    //    part方式多文件上传
    @GetMapping("/updateImgs")
    private String imgsUpdate(HttpServletRequest request) {
        try {
            Collection<Part> requestParts = request.getParts();
            //获取上传路径(web目录中的)
            String realPath = request.getServletContext().getRealPath("/WEB-INF/img");
            requestParts.forEach(part -> {
                try {
                    part.write(realPath + part.getSubmittedFileName());
                } catch (Exception e) {
                    System.out.println(part.getSubmittedFileName() + "上传出错！");
                }
            });
            return "success";
        } catch (Exception e) {
            System.out.println("图片上传失败");
            return "fail";
        }
    }
}

web.xml配置

    <servlet>
<!--        配置文件上传-->
        <multipart-config>
<!--            单位为字节-->
<!--            单个文件大小-->
            <max-file-size>5242880</max-file-size>
<!--            一次请求所有文件大小-->
            <max-request-size>52428800</max-request-size>
        </multipart-config>
    </servlet>

Multipart方式

以下的代码可能会上传失败

依赖引入

<!--        springmvc文件上传-->
        <!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/commons-io/commons-io -->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.11.0</version>
        </dependency>

springmvc.xml

<!--    配置视图解析器-->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver"></bean>

编写控制器

package com.learn.controller;

import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;

import javax.servlet.http.HttpServletRequest;
import java.io.File;

@RestController
@CrossOrigin(origins = "*", maxAge = 3600)
public class FileUpdate2Controller {
    @GetMapping("/fileUpdate")
    protected String fileUpdate(HttpServletRequest request, MultipartFile multipartFile)
    {
        try {
            String realPath = request.getServletContext().getRealPath("/WEB-INF/img/");
            String filename = multipartFile.getOriginalFilename();
            multipartFile.transferTo(new File(realPath,filename));
            return "success";
        }
        catch (Exception e)
        {
            System.out.println(e.getMessage());
            return "fail";
        }
    }
}

IDEA SpringMVC配置详情

XML方式（常用）

依赖引入

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>SSM2</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <!--spring相关的依赖-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <!-- aspectjweaver-->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.9.6</version>
            <scope>runtime</scope>
        </dependency>
        <!--Mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.6</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.28</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.16</version>
        </dependency>

        <!--单元测试-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <!--json-->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.0</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>

<!--        springmvc文件上传-->
        <!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/commons-io/commons-io -->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.11.0</version>
        </dependency>

    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>
</project>

web.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
    <!--需要给ContextLoaderListener指定Spring配置文件-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:Application.xml</param-value>
    </context-param>
    <!--    tomcat整合SpringMVC-->

    <!--SpringMVC容器,核心:DispatcherServlet-->
    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:SpringMVC.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>

<!--        配置文件上传-->
        <multipart-config>
<!--            单位为字节-->
<!--            单个文件大小-->
            <max-file-size>5242880</max-file-size>
<!--            一次请求所有文件大小-->
            <max-request-size>52428800</max-request-size>
        </multipart-config>
    </servlet>

    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--Filter处理乱码-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceRequestEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
        <init-param>
            <param-name>forceResponseEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <!--      Todo  注意这里如果过滤器不生效，请去掉*号-->
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

Application.xml

 Spring配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context-4.2.xsd
     http://www.springframework.org/schema/tx
      http://www.springframework.org/schema/tx/spring-tx.xsd">

    <context:component-scan base-package="com.learn">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>


    <context:property-placeholder location="classpath:db.properties"></context:property-placeholder>
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driveClassName}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>
    <bean id="sqlSessionFactoryBean" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.learn.dao"/>
    </bean>
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <tx:annotation-driven transaction-manager="transactionManager"/>

</beans>

SpringMVC.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/mvc
       https://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">


    <context:component-scan base-package="com.learn.controller"/>

    <mvc:interceptors>
        <mvc:interceptor>
            <mvc:mapping path="/**" />
            <bean class="com.learn.interceptor.ProjectInterceptor" />
        </mvc:interceptor>
    </mvc:interceptors>

    <mvc:annotation-driven>
        <mvc:message-converters>

            <bean class="org.springframework.http.converter.StringHttpMessageConverter">
                <property name="supportedMediaTypes">
                <list>
                    <value>text/html;charset=utf-8</value>
                    <value>application/json;charset=UTF-8</value>
                </list>
             </property>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>

    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="maxUploadSize" value="5242880" />
        <property name="maxInMemorySize" value="4096" />
        <property name="defaultEncoding" value="UTF-8"></property>
    </bean>

    <mvc:default-servlet-handler/>

    <mvc:cors>
        <mvc:mapping path="/**" />
    </mvc:cors>
</beans>

路径一览

 纯注解方式

（返回给前台的中文可能会出现乱码）

依赖引入

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>SSM2</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>
        <!--spring相关的依赖-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <!-- aspectjweaver-->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.9.6</version>
            <scope>runtime</scope>
        </dependency>
        <!--Mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.6</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.28</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.16</version>
        </dependency>

        <!--单元测试-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>

        <!--json-->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.0</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>

<!--        springmvc文件上传-->
        <!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/commons-io/commons-io -->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.11.0</version>
        </dependency>

    </dependencies>

    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>
</project>

ServletContainersInitConfig

package com.learn.config;
import org.springframework.web.filter.CharacterEncodingFilter;
import org.springframework.web.filter.HiddenHttpMethodFilter;
import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;
import javax.servlet.Filter;

public class ServletContainersInitConfig extends AbstractAnnotationConfigDispatcherServletInitializer
    {
        protected Class<?>[] getServletConfigClasses() {
            return new Class[]{SpringMVCConfig.class};
        }
        protected String[] getServletMappings() {
            return new String[]{"/"};
        }
        protected Class<?>[] getRootConfigClasses() {
            return new Class[0];
        }
        //乱码处理(只能处理后台接受到的参数乱码问题,返回给前台的json数据不会乱码)
        @Override
        protected Filter[] getServletFilters() {
            CharacterEncodingFilter encodingFilter = new CharacterEncodingFilter();
            encodingFilter.setEncoding("UTF-8");
            encodingFilter.setForceRequestEncoding(true);
            HiddenHttpMethodFilter hiddenHttpMethodFilter = new HiddenHttpMethodFilter();
            return new Filter[]{encodingFilter, hiddenHttpMethodFilter};
        }

    }

SpringConfig

package com.learn.config;

import com.learn.controller.UserController;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.FilterType;

@Configuration
@ComponentScan(value = "com.learn",excludeFilters = @ComponentScan.Filter(
        type = FilterType.ANNOTATION,
        classes = UserController.class
))
public class SpringConfig {
}

SpringMVCConfig

package com.learn.config;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

@Configuration
@ComponentScan("com.learn.controller")
public class SpringMVCConfig {

}

注解方式返回给前台的数据乱码的解决

就是要在 @RequestMapping上加上produces = "text/html;charset=utf-8"

给个实例

package com.learn.controller;
import com.learn.entity.Ts;
import com.learn.entity.User;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.Arrays;
import java.util.List;

@Controller
public class UserController {
    //浏览器请求的路径
    @RequestMapping(value = "/getdata",produces = "text/html;charset=utf-8")
    //标识发送的数据为JSON格式
    @ResponseBody
    //如果前端传的参数和后端不一样可以使用注解，@RequestParam
    public String commonParam(@RequestParam("name") String name, int age)
    {
        System.out.println("普通参数传递 name ==> "+name);
        System.out.println("普通参数传递 age ==> "+age);
        return "{'module':"+name+"}";
    }
}
