将nginx内存池代码单独编译运行，了解nginx内存池工作原理，附代码

初识nginx——内存池篇

https://www.cnblogs.com/magicsoar/p/6040238.html

 为了自身使用的方便，Nginx封装了很多有用的数据结构，比如ngx_str_t ,ngx_array_t, ngx_pool_t 等等，对于内存池，nginx设计的十分精炼，值得我们学习，本文介绍内存池基本知识，nginx内存池的结构和关键代码，并用一个实际的代码例子作了进一步的讲解

一、内存池概述
内存池是在真正使用内存之前，预先申请分配一定数量的、大小相等(一般情况下)的内存块留作备用。当有新的内存需求时，就从内存池中分出一部分内存块，若内存块不够用时，再继续申请新的内存。

内存池的好处有减少向系统申请和释放内存的时间开销，解决内存频繁分配产生的碎片，提示程序性能，减少程序员在编写代码中对内存的关注等

目前一些常见的内存池实现方案有STL中的内存分配区，boost中的object_pool,nginx中的ngx_pool_t,google的开源项目TCMalloc等

二、nginx内存池综述
nginx为每一个层级都会创建一个内存池，进行内存的管理，比如一个模板，tcp连接，http请求等，在对应的生命周期结束的时候会摧毁整个内存池，把分配的内存一次性归还给操作系统。

 在分配的内存上，nginx有小块内存和大块内存的概念，小块内存 nginx在分配的时候会尝试在当前的内存池节点中分配，而大块内存会调用系统函数malloc向操作系统申请

 在释放内存的时候，nginx没有专门提供针对释放小块内存的函数，小块内存会在ngx_destory_pool 和 ngx_reset_pool的时候一并释放

 区分小块内存和大块内存的原因有2个，

 1、针对大块内存  如果它的生命周期远远短于所属的内存池，那么提供一个单独的释放函数是十分有意义的，但不区分大块内存和小块内存，针对大的内存块 便会无法提前释放了

 2、大块内存与小块内存的界限是一页内存（p->max = (size < NGX_MAX_ALLOC_FROM_POOL) ? size : NGX_MAX_ALLOC_FROM_POOL，NGX_MAX_ALLOC_FROM_POOL的值通过调用getpagesize()获得），大于一页的内存在物理上不一定是连续的，所以如果分配的内存大于一页的话，从内存池中使用，和向操作系统重新申请效率差不多是等价的

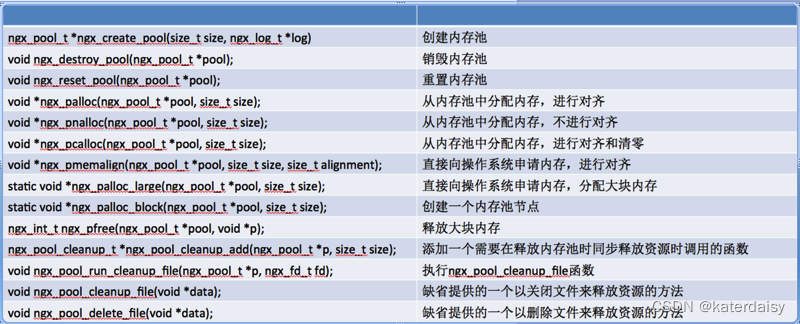

  nginx内存池提供的函数主要有以下几个

在这里插入图片描述

三、nginx内存池详解
nginx使用了ngx_pool_s用于表示整个内存池对象,ngx_pool_data_t表示单个内存池节点的分配信息，ngx_pool_large_s表示大块内存

它们的结构和含义如下

struct ngx_pool_large_s {
ngx_pool_large_t *next;
void *alloc;
};

next: 指向下一个大块内存

alloc：指向分配的大块内存

struct ngx_pool_s {
ngx_pool_data_t d;
size_t max;
ngx_pool_t *current;
ngx_chain_t *chain;
ngx_pool_large_t *large;
ngx_pool_cleanup_t *cleanup;
ngx_log_t *log;
};

d:内存池的节点的数据分配情况

max: 单个内存池节点容量的最大值

current: 指向当前的内存池节点

chain：指向一个ngx_chain_t结构

large：指向大块内存链表

cleanup:释放内存池的callback

log：用于输出日志

typedef struct {
u_char *last;
u_char *end;
ngx_pool_t *next;
ngx_uint_t failed;
} ngx_pool_data_t;

last: 内存池节点已分配的末位地址，下一次分配会尝试从此开始

end：内存池节点的结束位置

next：next指向下一个内存池节点

failed: 当前内存池节点分配失败次数

NewImage

   nginx 内存池示意图1



在分配内存的时候，nginx会判断当前要分配的内存是小块内存还是大块内存，大块内存调用ngx_palloc_large进行分配，小块内存nginx先会尝试从内存池的当前节点(p->current)中分配，如果内存池当前节点的剩余空间不足，nginx会调用ngx_palloc_block新创建一个内存池节点并从中分配，

如果内存池当前节点的分配失败次数已经大于等于6次（p->d.failed++ > 4）,则将当前内存池节点前移一个

(这里有个需要注意的地方，当当前内存节点的剩余空间不够分配时，nginx会重新创建一个ngx_pool_t对象，并且将pool.d->next指向新的ngx_pool_t,新分配的ngx_pool_t对象只用到了ngx_pool_data_t区域，并没有头部信息，头部信息部分已经被当做内存分配区域了)

NewImage

             nginx 内存池示意图2(新建了一个内存池节点和分配了2个大块内存，其中一个已经释放)

完成代码，可在linux运行

//-------------------------------------------------------------------------------------------
//下面是一些头文件和宏定义，从nginx的源码中摘录过来
#include </usr/include/stdint.h>
#include <sys/types.h>
#include <sys/time.h>
#include <unistd.h>
#include <stdarg.h>
#include <stddef.h> /* offsetof() /
#include <stdio.h>
#include <stdlib.h>
#include <ctype.h>
#include <errno.h>
#include <string.h>
#include <signal.h>
#include <pwd.h>
#include <grp.h>
#include <dirent.h>
#include <glob.h>
#include <sys/vfs.h> / statfs() */

#include <sys/uio.h>
#include <sys/stat.h>
#include <fcntl.h>

#include <sys/wait.h>
#include <sys/mman.h>
#include <sys/resource.h>
#include <sched.h>

#include <sys/socket.h>
#include <netinet/in.h>
#include <netinet/tcp.h> /* TCP_NODELAY, TCP_CORK */
#include <arpa/inet.h>
#include <netdb.h>
#include <sys/un.h>

#include <time.h> /* tzset() /
#include <malloc.h> / memalign() /
#include <limits.h> / IOV_MAX /
#include <sys/ioctl.h>
#include <crypt.h>
#include <sys/utsname.h> / uname() */

#include <dlfcn.h>

#ifndef ngx_inline
#define ngx_inline inline
#endif

typedef int ngx_fd_t;
typedef intptr_t ngx_int_t;
typedef uintptr_t ngx_uint_t;
typedef intptr_t ngx_flag_t;
typedef struct ngx_module_s ngx_module_t;
typedef struct ngx_conf_s ngx_conf_t;
typedef struct ngx_cycle_s ngx_cycle_t;
typedef struct ngx_pool_s ngx_pool_t;
typedef struct ngx_chain_s ngx_chain_t;
typedef struct ngx_log_s ngx_log_t;
typedef struct ngx_open_file_s ngx_open_file_t;
typedef struct ngx_command_s ngx_command_t;
typedef struct ngx_file_s ngx_file_t;
typedef struct ngx_event_s ngx_event_t;
typedef struct ngx_event_aio_s ngx_event_aio_t;
typedef struct ngx_connection_s ngx_connection_t;

ngx_uint_t ngx_pagesize;
ngx_uint_t ngx_pagesize_shift;
ngx_uint_t ngx_cacheline_size;

// #define NGX_LOG_STDERR 0
// #define NGX_LOG_EMERG 1
// #define NGX_LOG_ALERT 2
// #define NGX_LOG_CRIT 3
// #define NGX_LOG_ERR 4
// #define NGX_LOG_WARN 5
// #define NGX_LOG_NOTICE 6
// #define NGX_LOG_INFO 7
// #define NGX_LOG_DEBUG 8

// #define NGX_LOG_DEBUG_CORE 0x010
// #define NGX_LOG_DEBUG_ALLOC 0x020
// #define NGX_LOG_DEBUG_MUTEX 0x040
// #define NGX_LOG_DEBUG_EVENT 0x080
// #define NGX_LOG_DEBUG_HTTP 0x100
// #define NGX_LOG_DEBUG_MAIL 0x200
// #define NGX_LOG_DEBUG_STREAM 0x400

do not forget to update debug_levels[] in src/core/ngx_log.c
after the adding a new debug level
*/

#define NGX_LOG_DEBUG_FIRST NGX_LOG_DEBUG_CORE
#define NGX_LOG_DEBUG_LAST NGX_LOG_DEBUG_STREAM
#define NGX_LOG_DEBUG_CONNECTION 0x80000000
#define NGX_LOG_DEBUG_ALL 0x7ffffff0

#ifndef NGX_PALLOC_H_INCLUDED
#define NGX_PALLOC_H_INCLUDED

#ifndef NGX_ALIGNMENT
#define NGX_ALIGNMENT sizeof(unsigned long) /* platform word */
#endif

#define NGX_OK 0
#define NGX_ERROR -1
#define NGX_AGAIN -2
#define NGX_BUSY -3
#define NGX_DONE -4
#define NGX_DECLINED -5
#define NGX_ABORT -6
#define NGX_INVALID_FILE -1
#define NGX_FILE_ERROR -1

#define ngx_errno errno
#define ngx_close_file close
#define ngx_close_file_n “close()”
typedef int ngx_err_t;
#define NGX_ENOENT ENOENT
#define ngx_delete_file_n “unlink()”

NGX_MAX_ALLOC_FROM_POOL should be (ngx_pagesize - 1), i.e. 4095 on x86.
On Windows NT it decreases a number of locked pages in a kernel.
*/
#define NGX_MAX_ALLOC_FROM_POOL (ngx_pagesize - 1)

#define NGX_DEFAULT_POOL_SIZE (16 * 1024)

#define NGX_POOL_ALIGNMENT 16
#define NGX_MIN_POOL_SIZE
ngx_align((sizeof(ngx_pool_t) + 2 * sizeof(ngx_pool_large_t)),
NGX_POOL_ALIGNMENT)

typedef void (*ngx_pool_cleanup_pt)(void *data);

typedef struct ngx_pool_cleanup_s ngx_pool_cleanup_t;

struct ngx_pool_cleanup_s {
ngx_pool_cleanup_pt handler;
void *data;
ngx_pool_cleanup_t *next;
};

typedef struct ngx_pool_large_s ngx_pool_large_t;

struct ngx_pool_large_s {
ngx_pool_large_t *next;
void *alloc;
};

typedef struct {
u_char *last;
u_char *end;
ngx_pool_t *next;
ngx_uint_t failed;
} ngx_pool_data_t;

struct ngx_pool_s {
ngx_pool_data_t d;
size_t max;
ngx_pool_t *current;
ngx_chain_t *chain;
ngx_pool_large_t *large;
ngx_pool_cleanup_t *cleanup;
ngx_log_t *log;
};

typedef struct {
ngx_fd_t fd;
u_char *name;
ngx_log_t *log;
} ngx_pool_cleanup_file_t;

void *ngx_alloc(size_t size, ngx_log_t *log);
void *ngx_calloc(size_t size, ngx_log_t *log);

ngx_pool_t *ngx_create_pool(size_t size, ngx_log_t *log);
void ngx_destroy_pool(ngx_pool_t *pool);
void ngx_reset_pool(ngx_pool_t *pool);

void *ngx_palloc(ngx_pool_t *pool, size_t size);
void *ngx_pnalloc(ngx_pool_t *pool, size_t size);
void *ngx_pcalloc(ngx_pool_t *pool, size_t size);
void *ngx_pmemalign(ngx_pool_t *pool, size_t size, size_t alignment);
ngx_int_t ngx_pfree(ngx_pool_t *pool, void *p);

ngx_pool_cleanup_t *ngx_pool_cleanup_add(ngx_pool_t *p, size_t size);
void ngx_pool_run_cleanup_file(ngx_pool_t *p, ngx_fd_t fd);
void ngx_pool_cleanup_file(void *data);
void ngx_pool_delete_file(void *data);

#endif /* NGX_PALLOC_H_INCLUDED */

ngx_uint_t ngx_pagesize;
ngx_uint_t ngx_pagesize_shift;
ngx_uint_t ngx_cacheline_size;
#define ngx_free free
#define ngx_memzero(buf, n) (void) memset(buf, 0, n)
#define ngx_memset(buf, c, n) (void) memset(buf, c, n)
#define ngx_align_ptr(p, a)
(u_char *) (((uintptr_t) § + ((uintptr_t) a - 1)) & ~((uintptr_t) a - 1))
#define ngx_delete_file(name) unlink((const char *) name)
#define ngx_delete_file_n “unlink()”

void *
ngx_alloc(size_t size, ngx_log_t *log)
{
void *p;

p = malloc(size);
if (p == NULL) {
    printf("malloc(%lu) failed\n", size);
}

printf("malloc: %p:%lu\n", p, size);

return p;

}

void *
ngx_calloc(size_t size, ngx_log_t *log)
{
void *p;

p = ngx_alloc(size, log);

if (p) {
    ngx_memzero(p, size);
}

return p;

}

//#define NGX_HAVE_POSIX_MEMALIGN 1
#define NGX_HAVE_MEMALIGN 1
#if (NGX_HAVE_POSIX_MEMALIGN)

void *
ngx_memalign(size_t alignment, size_t size, ngx_log_t *log)
{
void *p;
int err;

err = posix_memalign(&p, alignment, size);

if (err) {
    printf("posix_memalign(%lu, %lu) failed\n", alignment, size);
    p = NULL;
}

printf("posix_memalign: %p:%lu @%lu\n", p, size, alignment);

return p;

}

#elif (NGX_HAVE_MEMALIGN)

void *
ngx_memalign(size_t alignment, size_t size, ngx_log_t *log)
{
void *p;

p = memalign(alignment, size);
if (p == NULL) {
    printf("memalign(%lu, %lu) failed\n", alignment, size);
}

printf("memalign: %p:%lu @%lu\n", p, size, alignment);

return p;

}

#endif

//-------------------------------------------------------------------------------------------
//下面是从ngx_pcallo.c复制过来的内存池核心代码

static ngx_inline void *ngx_palloc_small(ngx_pool_t *pool, size_t size,
ngx_uint_t align);
static void *ngx_palloc_block(ngx_pool_t *pool, size_t size);
static void *ngx_palloc_large(ngx_pool_t *pool, size_t size);

ngx_pool_t *
ngx_create_pool(size_t size, ngx_log_t *log)
{
ngx_pool_t *p;

p = ngx_memalign(NGX_POOL_ALIGNMENT, size, log);
if (p == NULL) {
    return NULL;
}

p->d.last = (u_char *) p + sizeof(ngx_pool_t);
p->d.end = (u_char *) p + size;
p->d.next = NULL;
p->d.failed = 0;

size = size - sizeof(ngx_pool_t);
p->max = (size < NGX_MAX_ALLOC_FROM_POOL) ? size : NGX_MAX_ALLOC_FROM_POOL;

p->current = p;
p->chain = NULL;
p->large = NULL;
p->cleanup = NULL;
p->log = log;

return p;

}

void
ngx_destroy_pool(ngx_pool_t *pool)
{
ngx_pool_t *p, *n;
ngx_pool_large_t *l;
ngx_pool_cleanup_t *c;

for (c = pool->cleanup; c; c = c->next) {
    if (c->handler) {
        printf("run cleanup: %p\n", c);
        c->handler(c->data);
    }
}

#if (NGX_DEBUG)

/*
 * we could allocate the pool->log from this pool
 * so we cannot use this log while free()ing the pool
 */

for (l = pool->large; l; l = l->next) {
    printf("free: %p\n", l->alloc);
}

for (p = pool, n = pool->d.next; /* void */; p = n, n = n->d.next) {
    printf("free: %p, unused: %lu\n", p, p->d.end - p->d.last);

    if (n == NULL) {
        break;
    }
}

#endif

for (l = pool->large; l; l = l->next) {
    if (l->alloc) {
        ngx_free(l->alloc);
    }
}

for (p = pool, n = pool->d.next; /* void */; p = n, n = n->d.next) {
    ngx_free(p);

    if (n == NULL) {
        break;
    }
}

}

void
ngx_reset_pool(ngx_pool_t *pool)
{
ngx_pool_t *p;
ngx_pool_large_t *l;

for (l = pool->large; l; l = l->next) {
    if (l->alloc) {
        ngx_free(l->alloc);
    }
}

for (p = pool; p; p = p->d.next) {
    p->d.last = (u_char *) p + sizeof(ngx_pool_t);
    p->d.failed = 0;
}

pool->current = pool;
pool->chain = NULL;
pool->large = NULL;

}

void *
ngx_palloc(ngx_pool_t *pool, size_t size)
{
#if !(NGX_DEBUG_PALLOC)
if (size <= pool->max) {
return ngx_palloc_small(pool, size, 1);
}
#endif

return ngx_palloc_large(pool, size);

}

void *
ngx_pnalloc(ngx_pool_t *pool, size_t size)
{
#if !(NGX_DEBUG_PALLOC)
if (size <= pool->max) {
return ngx_palloc_small(pool, size, 0);
}
#endif

return ngx_palloc_large(pool, size);

}

static ngx_inline void *
ngx_palloc_small(ngx_pool_t *pool, size_t size, ngx_uint_t align)
{
u_char *m;
ngx_pool_t *p;

p = pool->current;

do {
    m = p->d.last;

    if (align) {
        m = ngx_align_ptr(m, NGX_ALIGNMENT);
    }

    if ((size_t) (p->d.end - m) >= size) {
        p->d.last = m + size;

        return m;
    }

    p = p->d.next;

} while (p);

return ngx_palloc_block(pool, size);

}

static void *
ngx_palloc_block(ngx_pool_t *pool, size_t size)
{
u_char *m;
size_t psize;
ngx_pool_t *p, *new;

psize = (size_t) (pool->d.end - (u_char *) pool);

m = ngx_memalign(NGX_POOL_ALIGNMENT, psize, pool->log);
if (m == NULL) {
    return NULL;
}

new = (ngx_pool_t *) m;

new->d.end = m + psize;
new->d.next = NULL;
new->d.failed = 0;

m += sizeof(ngx_pool_data_t);
m = ngx_align_ptr(m, NGX_ALIGNMENT);
new->d.last = m + size;

for (p = pool->current; p->d.next; p = p->d.next) {
    if (p->d.failed++ > 4) {
        pool->current = p->d.next;
    }
}

p->d.next = new;

return m;

}

static void *
ngx_palloc_large(ngx_pool_t *pool, size_t size)
{
void *p;
ngx_uint_t n;
ngx_pool_large_t *large;

p = ngx_alloc(size, pool->log);
if (p == NULL) {
    return NULL;
}

n = 0;

for (large = pool->large; large; large = large->next) {
    if (large->alloc == NULL) {
        large->alloc = p;
        return p;
    }

    if (n++ > 3) {
        break;
    }
}

large = ngx_palloc_small(pool, sizeof(ngx_pool_large_t), 1);
if (large == NULL) {
    ngx_free(p);
    return NULL;
}

large->alloc = p;
large->next = pool->large;
pool->large = large;

return p;

}

void *
ngx_pmemalign(ngx_pool_t *pool, size_t size, size_t alignment)
{
void *p;
ngx_pool_large_t *large;

p = ngx_memalign(alignment, size, pool->log);
if (p == NULL) {
    return NULL;
}

large = ngx_palloc_small(pool, sizeof(ngx_pool_large_t), 1);
if (large == NULL) {
    ngx_free(p);
    return NULL;
}

large->alloc = p;
large->next = pool->large;
pool->large = large;

return p;

}

ngx_int_t
ngx_pfree(ngx_pool_t *pool, void *p)
{
ngx_pool_large_t *l;

for (l = pool->large; l; l = l->next) {
    if (p == l->alloc) {
        printf("free: %p\n", l->alloc);
        ngx_free(l->alloc);
        l->alloc = NULL;

        return NGX_OK;
    }
}

return NGX_DECLINED;

}

void *
ngx_pcalloc(ngx_pool_t *pool, size_t size)
{
void *p;

p = ngx_palloc(pool, size);
if (p) {
    ngx_memzero(p, size);
}

return p;

}

ngx_pool_cleanup_t *
ngx_pool_cleanup_add(ngx_pool_t *p, size_t size)
{
ngx_pool_cleanup_t *c;

c = ngx_palloc(p, sizeof(ngx_pool_cleanup_t));
if (c == NULL) {
    return NULL;
}

if (size) {
    c->data = ngx_palloc(p, size);
    if (c->data == NULL) {
        return NULL;
    }

} else {
    c->data = NULL;
}

c->handler = NULL;
c->next = p->cleanup;

p->cleanup = c;

printf("add cleanup: %p\n", c);

return c;

}

void
ngx_pool_run_cleanup_file(ngx_pool_t *p, ngx_fd_t fd)
{
ngx_pool_cleanup_t *c;
ngx_pool_cleanup_file_t *cf;

for (c = p->cleanup; c; c = c->next) {
    if (c->handler == ngx_pool_cleanup_file) {

        cf = c->data;

        if (cf->fd == fd) {
            c->handler(cf);
            c->handler = NULL;
            return;
        }
    }
}

}

void
ngx_pool_cleanup_file(void *data)
{
ngx_pool_cleanup_file_t *c = data;

printf("file cleanup: fd:%d\n",
               c->fd);

if (ngx_close_file(c->fd) == NGX_FILE_ERROR) {
    printf(" \"%s\" failed\n", c->name);
}

}

void
ngx_pool_delete_file(void *data)
{
ngx_pool_cleanup_file_t *c = data;

ngx_err_t  err;

printf("file cleanup: fd:%d %s\n",
               c->fd, c->name);

if (ngx_delete_file(c->name) == NGX_FILE_ERROR) {
    err = ngx_errno;

    if (err != NGX_ENOENT) {
        printf(" \"%s\" failed\n", c->name);
    }
}

if (ngx_close_file(c->fd) == NGX_FILE_ERROR) {
    printf(" \"%s\" failed\n", c->name);
}

}

#if 0

static void *
ngx_get_cached_block(size_t size)
{
void *p;
ngx_cached_block_slot_t *slot;

if (ngx_cycle->cache == NULL) {
    return NULL;
}

slot = &ngx_cycle->cache[(size + ngx_pagesize - 1) / ngx_pagesize];

slot->tries++;

if (slot->number) {
    p = slot->block;
    slot->block = slot->block->next;
    slot->number--;
    return p;
}

return NULL;

}

#endif

//-------------------------------------------------------------------------------------------
//下面是Main函数和内存池打印代码

void print_pool(ngx_pool_t *pool)

{

if (pool->large != NULL)

{

    printf("has large memory\n");

    for(ngx_pool_large_t* i = pool->large; i!=NULL; i = i->next)

    {

        printf("\t\tlarge next=0x%x\n", i->next);

        printf("\t\tlarge alloc=0x%x\n", i->alloc);

    }

    }

    int i=1;

    while(pool)

    {

        printf("pool=0x%x,index:%d\n", pool, i++);

        printf("\t\tlast=0x%x\n", (pool->d).last);

        printf("\t\tend=0x%x\n",(pool->d).end);

        printf("\t\tnext=0x%x\n",(pool->d).next);

        printf("\t\tfailed=%d\n",pool->d.failed);

        printf("\t\tmax=%d\n",pool->max);

        printf("\t\tcurrent=0x%x\n",pool->current);

        printf("\t\tchain=0x%x\n",pool->chain);

        printf("\t\tlarge=0x%x\n",pool->large);

        printf("\t\tcleanup=0x%x\n",pool->cleanup);

        printf("\t\tlog=0x%x\n",pool->log);

        printf("\t\tavailable pool memory=%d\n", pool->d.end-pool->d.last);

        printf("\n");

        pool=pool->d.next;

    }

}

void print_array(int *a,int size)

{

for(int i=0; i<size; i++)

{

    printf("%d,",a[i]);

}

printf("\n");

}

int main()

{

ngx_pool_t *pool;

int array_size = 1;

int array_size_large = 1024;

int page_size = getpagesize();//获得一页的大小

printf("page_size:%d\n", page_size);

printf("----------------------------\n");

printf("create a new pool\n");

pool = ngx_create_pool(1024, NULL);//创建一个大小为1024的内存池

print_pool(pool);

printf("----------------------------\n");

printf("alloc block 1 from the pool:\n");

int *a1 = ngx_palloc(pool, sizeof(int) * array_size);//分配第一块内存 用于创建数组

for (int i=0; i< array_size; i++)

{

    a1[i] = i+1;

}

print_pool(pool);

printf("----------------------------\n");

printf("alloc block 2 from the pool:\n");

int *a2 = ngx_palloc(pool, sizeof(int) * array_size);//分配第二块内存 用于创建数组，这个时候会创建第二个内存池节点

for (int i=0; i< array_size; i++)

{

    a2[i] = 12345678;

}

print_pool(pool);

printf("----------------------------\n");

printf("alloc large memory:\n");

printf("\t\tlarge next before=0x%x\n", pool->current->d.last);

int * a3 = ngx_palloc(pool, sizeof(int) * array_size_large);//由于大小超过了max的值 ngx_palloc中会调用ngx_palloc_large分配大块内存

printf("\t\tlarge next after=0x%x\n", pool->large);

for (int i=0; i< array_size_large; i++)

{

    a3[i] = i+1;

}

print_pool(pool);

print_array(a1,array_size);//分配的第一块内存块首地址

print_array(a2,array_size);//分配的第二块内存块首地址

print_array(a3,array_size_large);//分配的大内存块首地址

ngx_destroy_pool(pool);

return 0;

}

结果：

michael@SD-20220518ZLPG:~/test$ ./a.out
page_size:4096

create a new pool
memalign: 0x7fffd4595470:1024 @16
pool=0xd4595470,index:1
last=0xd45954c0
end=0xd4595870
next=0x0
failed=0
max=944
current=0xd4595470
chain=0x0
large=0x0
cleanup=0x0
log=0x0
available pool memory=944

alloc block 1 from the pool:
pool=0xd4595470,index:1
last=0xd45954c4
end=0xd4595870
next=0x0
failed=0
max=944
current=0xd4595470
chain=0x0
large=0x0
cleanup=0x0
log=0x0
available pool memory=940

alloc block 2 from the pool:
pool=0xd4595470,index:1
last=0xd45954cc
end=0xd4595870
next=0x0
failed=0
max=944
current=0xd4595470
chain=0x0
large=0x0
cleanup=0x0
log=0x0
available pool memory=932

alloc large memory:
large next before=0xd45954cc
malloc: 0x7fffd4595880:4096
large next after=0xd45954d0
has large memory
large next=0x0
large alloc=0xd4595880
pool=0xd4595470,index:1
last=0xd45954e0
end=0xd4595870
next=0x0
failed=0
max=944
current=0xd4595470
chain=0x0
large=0xd45954d0
cleanup=0x0
log=0x0
available pool memory=912

1,
12345678,
1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187,188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208,209,210,211,212,213,214,215,216,217,218,219,220,221,222,223,224,225,226,227,228,229,230,231,232,233,234,235,236,237,238,239,240,241,242,243,244,245,246,247,248,249,250,251,252,253,254,255,256,257,258,259,260,261,262,263,264,265,266,267,268,269,270,271,272,273,274,275,276,277,278,279,280,281,282,283,284,285,286,287,288,289,290,291,292,293,294,295,296,297,298,299,300,301,302,303,304,305,306,307,308,309,310,311,312,313,314,315,316,317,318,319,320,321,322,323,324,325,326,327,328,329,330,331,332,333,334,335,336,337,338,339,340,341,342,343,344,345,346,347,348,349,350,351,352,353,354,355,356,357,358,359,360,361,362,363,364,365,366,367,368,369,370,371,372,373,374,375,376,377,378,379,380,381,382,383,384,385,386,387,388,389,390,391,392,393,394,395,396,397,398,399,400,401,402,403,404,405,406,407,408,409,410,411,412,413,414,415,416,417,418,419,420,421,422,423,424,425,426,427,428,429,430,431,432,433,434,435,436,437,438,439,440,441,442,443,444,445,446,447,448,449,450,451,452,453,454,455,456,457,458,459,460,461,462,463,464,465,466,467,468,469,470,471,472,473,474,475,476,477,478,479,480,481,482,483,484,485,486,487,488,489,490,491,492,493,494,495,496,497,498,499,500,501,502,503,504,505,506,507,508,509,510,511,512,513,514,515,516,517,518,519,520,521,522,523,524,525,526,527,528,529,530,531,532,533,534,535,536,537,538,539,540,541,542,543,544,545,546,547,548,549,550,551,552,553,554,555,556,557,558,559,560,561,562,563,564,565,566,567,568,569,570,571,572,573,574,575,576,577,578,579,580,581,582,583,584,585,586,587,588,589,590,591,592,593,594,595,596,597,598,599,600,601,602,603,604,605,606,607,608,609,610,611,612,613,614,615,616,617,618,619,620,621,622,623,624,625,626,627,628,629,630,631,632,633,634,635,636,637,638,639,640,641,642,643,644,645,646,647,648,649,650,651,652,653,654,655,656,657,658,659,660,661,662,663,664,665,666,667,668,669,670,671,672,673,674,675,676,677,678,679,680,681,682,683,684,685,686,687,688,689,690,691,692,693,694,695,696,697,698,699,700,701,702,703,704,705,706,707,708,709,710,711,712,713,714,715,716,717,718,719,720,721,722,723,724,725,726,727,728,729,730,731,732,733,734,735,736,737,738,739,740,741,742,743,744,745,746,747,748,749,750,751,752,753,754,755,756,757,758,759,760,761,762,763,764,765,766,767,768,769,770,771,772,773,774,775,776,777,778,779,780,781,782,783,784,785,786,787,788,789,790,791,792,793,794,795,796,797,798,799,800,801,802,803,804,805,806,807,808,809,810,811,812,813,814,815,816,817,818,819,820,821,822,823,824,825,826,827,828,829,830,831,832,833,834,835,836,837,838,839,840,841,842,843,844,845,846,847,848,849,850,851,852,853,854,855,856,857,858,859,860,861,862,863,864,865,866,867,868,869,870,871,872,873,874,875,876,877,878,879,880,881,882,883,884,885,886,887,888,889,890,891,892,893,894,895,896,897,898,899,900,901,902,903,904,905,906,907,908,909,910,911,912,913,914,915,916,917,918,919,920,921,922,923,924,925,926,927,928,929,930,931,932,933,934,935,936,937,938,939,940,941,942,943,944,945,946,947,948,949,950,951,952,953,954,955,956,957,958,959,960,961,962,963,964,965,966,967,968,969,970,971,972,973,974,975,976,977,978,979,980,981,982,983,984,985,986,987,988,989,990,991,992,993,994,995,996,997,998,999,1000,1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1011,1012,1013,1014,1015,1016,1017,1018,1019,1020,1021,1022,1023,1024,
michael@SD-20220518ZLPG:~/test$
