Paddle入门实战系列(一):基于PaddleOCR的车牌识别

news2025/7/9 11:43:41

 ✨写在前面:强烈推荐给大家一个优秀的人工智能学习网站,内容包括人工智能基础、机器学习、深度学习神经网络等,详细介绍各部分概念及实战教程,通俗易懂,非常适合人工智能领域初学者及研究者学习。➡️点击跳转到网站


项目背景

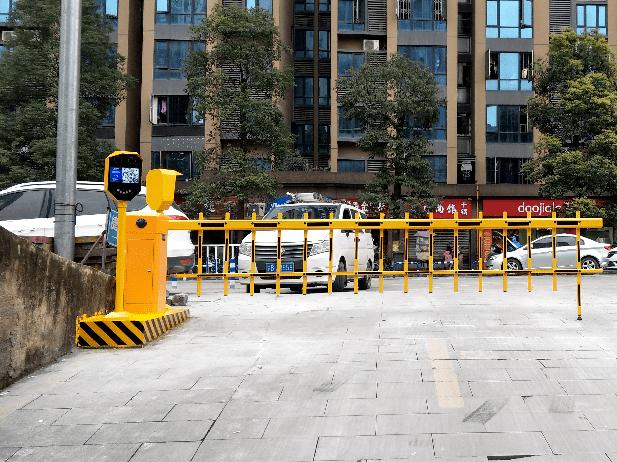

  • 车牌识别技术是智能交通的重要环节,目前已广泛应用于例如停车场、收费站等等交通设施中,提供高效便捷的车辆认证的服务,其中较为典型的应用场景为卡口系统。车牌识别即识别车牌上的文字信息,属于光学字符识别(OCR)的一项子任务。

项目流程

  • 本项目基于Paddleocr完成深度学习车牌识别,项目可分为车牌检测与车牌识别两部分,主要流程为数据预处理、模型训练、导出推理模型、测试。
  1. 检测车牌所在图片位置
  2. 识别车牌图片具体内容

项目链接:基于Paddle的智慧交通预测系统 - 飞桨AI Studio


PaddleOCR介绍

主要由DB文本检测、检测框矫正和CRNN文本识别三部分组成。该系统从骨干网络选择和调整、预测头部的设计、数据增强、学习率变换策略、正则化参数选择、预训练模型使用以及模型自动裁剪量化8个方面,采用19个有效策略,对各个模块的模型进行效果调优和瘦身(如绿框所示),最终得到整体大小为3.5M的超轻量中英文OCR和2.8M的英文数字OCR。

数据集介绍

本项目数据集采用CCPD2019和CCPD02020车牌数据集,以CCPD02020演示车牌识别流程,其训练、验证、测试数据集已划分完毕,测试集包含5006张图片,大小共865.66M。本项目演示的CCPD20数据集的采集方式与CCPD19类似,其中均为新能源车辆的车牌,其命名为ccpd_green路径

  • CCPD2020/ccpd_green/

    --train

    --val

    --test

文件名即图片标注,具体含义可查看源网址,以下为数据集解读参考。

“025-95_113-154&383_386&473-386&473_177&454_154&383_363&402-0_0_22_27_27_33_16-37-15.jpg”.

数据集字段解释参考:

CCPD数据集没有专门的标注文件,每张图像的文件名就是对应的数据标注(label)

例如:025-95_113-154&383_386&473-386&473_177&454_154&383_363&402-0_0_22_27_27_33_16-37-15.jpg 由分隔符'-'分为几个部分:

  1. 025为区域
  2. 95_113 对应两个角度, 水平95°, 竖直113°
  3. 154&383_386&473对应边界框坐标:左上(154, 383), 右下(386, 473)
  4. 386&473_177&454_154&383_363&402对应四个角点坐标
  5. 0_0_22_27_27_33_16为车牌号码 映射关系如下: 第一个为省份0 对应省份字典皖, 后面的为字母和文字, 查看ads字典.如0为A, 22为Y....

安装PaddleOCR环境

#下载PaddleOCR
%cd ~/
!git clone -b release/2.1 https://github.com/PaddlePaddle/PaddleOCR.git
#安装环境
%cd PaddleOCR
!pip install -r requirments.txt
!pip install --upgrade scipy
# !pip install -r requirements.txt -i https://mirror.baidu.com/pypi/simple

数据预处理

字典内容:

车牌省份: provinces = [“皖”, “沪”, “津”, “渝”, “冀”, “晋”, “蒙”, “辽”, “吉”, “黑”, “苏”, “浙”, “京”, “闽”, “赣”, “鲁”, “豫”, “鄂”, “湘”, “粤”, “桂”, “琼”, “川”, “贵”, “云”, “藏”, “陕”, “甘”, “青”, “宁”, “新”, “警”, “学”, “O”]

alphabets = [‘A’, ‘B’, ‘C’, ‘D’, ‘E’, ‘F’, ‘G’, ‘H’, ‘J’, ‘K’, ‘L’, ‘M’, ‘N’, ‘P’, ‘Q’, ‘R’, ‘S’, ‘T’, ‘U’, ‘V’, ‘W’, ‘X’, ‘Y’, ‘Z’, ‘O’]

ads = [‘A’, ‘B’, ‘C’, ‘D’, ‘E’, ‘F’, ‘G’, ‘H’, ‘J’, ‘K’, ‘L’, ‘M’, ‘N’, ‘P’, ‘Q’, ‘R’, ‘S’, ‘T’, ‘U’, ‘V’, ‘W’, ‘X’, ‘Y’, ‘Z’, ‘0’, ‘1’, ‘2’, ‘3’, ‘4’, ‘5’, ‘6’, ‘7’, ‘8’, ‘9’, ‘O’]

!unzip -q data/data168819/CCPD2020.zip -d work/CCPD2020

检测数据:转换成官方提供的icdar格式

格式如下:

transcription为具体内容,points存放检测车牌坐标

03706896551724138-90_263-185&516_545&610-543&607_194&610_185&518_545&516-0_0_3_29_27_33_24_33-59-41.jpg [{"transcription": "皖AD53909", "points": [[185, 518], [545, 516], [543, 607], [194, 610]]}] /034782088122605366-92_244-167&522_517&612-517&612_195&590_167&522_497&539-0_0_3_24_30_30_33_25-102-110.jpg [{"transcription": "皖AD06691", "points": [[167, 522], [497, 539], [517, 612], [195, 590]]}]

In [ ]

#转换检测数据,打开注释执行三次生成训练所需txt文件,分别为train、val、test。
%cd ~
import os, cv2
words_list = [
    "A", "B", "C", "D", "E",
    "F", "G", "H", "J", "K",
    "L", "M", "N", "P", "Q",
    "R", "S", "T", "U", "V",
    "W", "X", "Y", "Z", "0",
    "1", "2", "3", "4", "5",
    "6", "7", "8", "9" ]

con_list = [
    "皖", "沪", "津", "渝", "冀",
    "晋", "蒙", "辽", "吉", "黑",
    "苏", "浙", "京", "闽", "赣",
    "鲁", "豫", "鄂", "湘", "粤",
    "桂", "琼", "川", "贵", "云",
    "西", "陕", "甘", "青", "宁",
    "新"]

count = 0
# data = open('work/train_data_det.txt', 'w', encoding='UTF-8')
# data = open('work/val_data_det.txt', 'w', encoding='UTF-8')
data = open('work/test_data_det.txt', 'w', encoding='UTF-8')

# for item in os.listdir('work/CCPD2020/CCPD2020/ccpd_green/train'):
# for item in os.listdir('work/CCPD2020/CCPD2020/ccpd_green/val'):
for item in os.listdir('work/CCPD2020/CCPD2020/ccpd_green/test'):

    # path = 'work/CCPD2020/CCPD2020/ccpd_green/train/'+item
    # path = 'work/CCPD2020/CCPD2020/ccpd_green/val/'+item
    path = 'work/CCPD2020/CCPD2020/ccpd_green/test/'+item

    _, _, bbox, points, label, _, _ = item.split('-')
    points = points.split('_')
    points = [_.split('&') for _ in points]
    tmp = points[-2:]+points[:2]
    points = []
    for point in tmp:
        points.append([int(_) for _ in point])
    label = label.split('_')
    con = con_list[int(label[0])]
    words = [words_list[int(_)] for _ in label[1:]]
    label = con+''.join(words)
    line = path+'\t'+'[{"transcription": "%s", "points": %s}]' % (label, str(points))
    line = line[:]+'\n'
    data.write(line)

total = []
# with open('work/train_data_det.txt', 'r', encoding='UTF-8') as f:
#     for line in f:
#         total.append(line)

# with open('work/val_data_det.txt', 'r', encoding='UTF-8') as f:
#     for line in f:
#         total.append(line)

with open('work/test_data_det.txt', 'r', encoding='UTF-8') as f:
    for line in f:
        total.append(line)


# with open('work/train_det.txt', 'w', encoding='UTF-8') as f:
#     for line in total[:-500]:
#         f.write(line)

# with open('work/dev_det.txt', 'w', encoding='UTF-8') as f:
#     for line in total[-500:]:
#         f.write(line)
/home/aistudio

In [ ]

#识别数据:转换成PaddleOCR使用的格式(图片名+内容),打开注释执行三次生成训练所需txt文件,分别为train、val、test。
%cd ~
import os, cv2
words_list = [
    "A", "B", "C", "D", "E",
    "F", "G", "H", "J", "K",
    "L", "M", "N", "P", "Q",
    "R", "S", "T", "U", "V",
    "W", "X", "Y", "Z", "0",
    "1", "2", "3", "4", "5",
    "6", "7", "8", "9" ]

con_list = [
    "皖", "沪", "津", "渝", "冀",
    "晋", "蒙", "辽", "吉", "黑",
    "苏", "浙", "京", "闽", "赣",
    "鲁", "豫", "鄂", "湘", "粤",
    "桂", "琼", "川", "贵", "云",
    "西", "陕", "甘", "青", "宁",
    "新"]

# if not os.path.exists('work/img'):   #所有数据集都放入一个文件夹
#     os.mkdir('work/img')

#训练、验证、测试集分开三个文件夹对应解开注释依次执行三次
# if not os.path.exists('work/train_rec_img'):
#     os.mkdir('work/train_rec_img')


if not os.path.exists('work/val_rec_img'):
    os.mkdir('work/val_rec_img')

# if not os.path.exists('work/test_rec_img'):
#     os.mkdir('work/test_rec_img')

count = 0

# data = open('work/train_data_rec.txt', 'w', encoding='UTF-8')
data = open('work/val_data_rec.txt', 'w', encoding='UTF-8')
# data = open('work/test_data_rec.txt', 'w', encoding='UTF-8')

# for item in os.listdir('work/CCPD2020/CCPD2020/ccpd_green/train'):
for item in os.listdir('work/CCPD2020/CCPD2020/ccpd_green/val'):
# for item in os.listdir('work/CCPD2020/CCPD2020/ccpd_green/test'):

    # path = 'work/CCPD2020/CCPD2020/ccpd_green/train/'+item
    path = 'work/CCPD2020/CCPD2020/ccpd_green/val/'+item
    # path = 'work/CCPD2020/CCPD2020/ccpd_green/test/'+item

    #原来的 path = 'work/CCPD2020/ccpd_base/'+item

    _, _, bbox, _, label, _, _ = item.split('-')
    bbox = bbox.split('_')
    x1, y1 = bbox[0].split('&')
    x2, y2 = bbox[1].split('&')
    label = label.split('_')
    con = con_list[int(label[0])]
    words = [words_list[int(_)] for _ in label[1:]]
    label = con+''.join(words)
    bbox = [int(_) for _ in [x1, y1, x2, y2]]
    img = cv2.imread(path)
    crop = img[bbox[1]:bbox[3], bbox[0]:bbox[2], :]

    # cv2.imwrite('work/train_rec_img/%06d.jpg' % count, crop)
    # data.write('work/train_rec_img/%06d.jpg\t%s\n' % (count, label))

    cv2.imwrite('work/val_rec_img/%06d.jpg' % count, crop)
    data.write('work/val_rec_img/%06d.jpg\t%s\n' % (count, label))

    # cv2.imwrite('work/test_rec_img/%06d.jpg' % count, crop)
    # data.write('work/test_rec_img/%06d.jpg\t%s\n' % (count, label))
    count += 1
data.close()

with open('work/word_dict.txt', 'w', encoding='UTF-8') as f:
    for line in words_list+con_list:
        f.write(line+'\n')

# total = []
# with open('work/train_data_rec.txt', 'r', encoding='UTF-8') as f:
#     for line in f:
#         total.append(line)

with open('work/val_data_rec.txt', 'r', encoding='UTF-8') as f:
    for line in f:
        total.append(line)

# with open('work/test_data_rec.txt', 'r', encoding='UTF-8') as f:
#     for line in f:
#         total.append(line)

/home/aistudio

最终文件生成效果:

  • 注:”由于work文件较大,无法生成版本,读者可执行上述代码生成下述对应文件,也可以自行修改代码,放到其他路径。
  • 下图为work目录下,其中CCPD为本项目CCPD2020数据(解压到work目录下),另三个rec_img文件夹为用于识别流程的图片,img为三个汇总,其余为用于检测det与识别rec生成的txt文本。

模型介绍

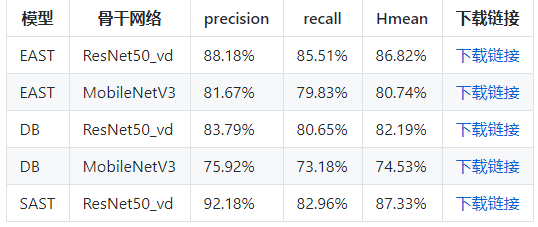

PaddleOCR提供的检测与识别模型如下:

模型选择

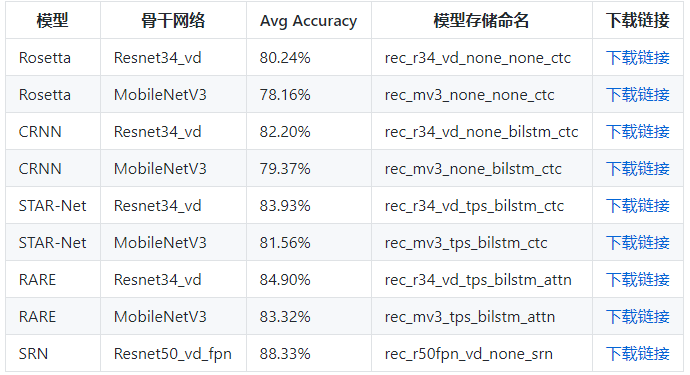

Paddocr提供以下文件检测及识别模型,考虑车牌识别中字符数量较少,而且长度也固定,且为标准的印刷字体,所以无需使用过于复杂的模型。因此,参考其他开源资料,本项目选择经典的DBNet+RARE,两个模型均使用MobileNetV3作为其主干网络(Backbone)。

DBNet与RARE算法介绍可参考我的博客:OCR文字识别经典论文详解

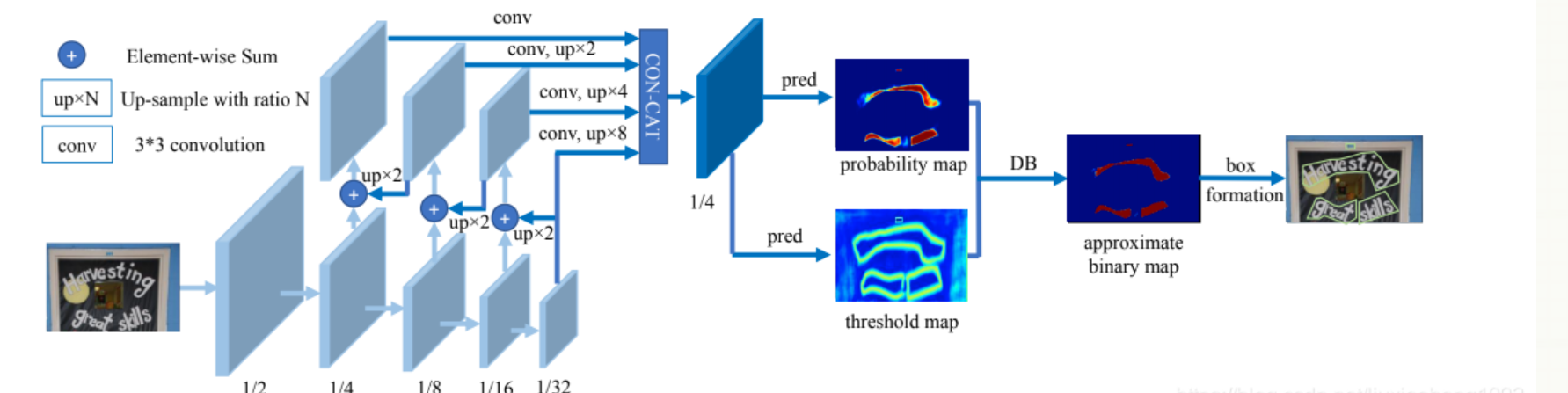

DBNet

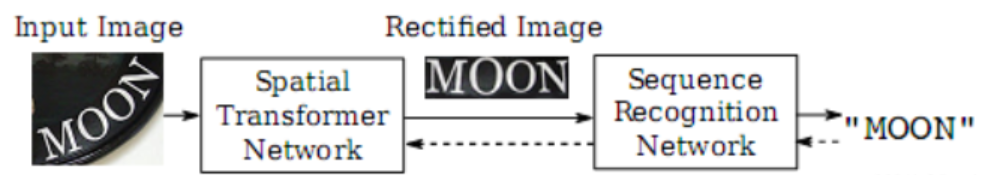

RARE

下载对应预训练模型

In [ ]

%cd ~/work/PaddleOCR
# 下载预训练模型
!wget -P ./pretrain_models/ https://paddleocr.bj.bcebos.com/ch_models/ch_det_mv3_db.tar
!wget -P ./pretrain_models/ https://paddleocr.bj.bcebos.com/rec_mv3_tps_bilstm_attn.tar
# 解压模型参数
%cd pretrain_models
!tar -xf ch_det_mv3_db.tar && rm -rf ch_det_mv3_db.tar
!tar -xf rec_mv3_tps_bilstm_attn.tar && rm -rf rec_mv3_tps_bilstm_attn.tar

模型训练

1.检测模型训练

检测模版文件 configs/det/det_mv3_db.yml

Global:
  algorithm: DB
  use_gpu: true
  epoch_num: 1200
  log_smooth_window: 20
  print_batch_step: 20
  save_model_dir: ./myoutput/det_db/
  save_epoch_step: 10
  # evaluation is run every 5000 iterations after the 4000th iteration
  eval_batch_step: [100, 500]
  train_batch_size_per_card: 4
  test_batch_size_per_card: 4
  image_shape: [3, 640, 640]
  reader_yml: ./configs/det/det_db_icdar15_reader.yml
  pretrain_weights: ./pretrain_models/det_mv3_db/best_accuracy
  checkpoints:
  save_res_path: ./myoutput/det_db/predicts_db.txt
  save_inference_dir:

Architecture:
  function: ppocr.modeling.architectures.det_model,DetModel

Backbone:
  function: ppocr.modeling.backbones.det_mobilenet_v3,MobileNetV3
  scale: 0.5
  model_name: large

Head:
  function: ppocr.modeling.heads.det_db_head,DBHead
  model_name: large
  k: 50
  inner_channels: 96
  out_channels: 2

Loss:
  function: ppocr.modeling.losses.det_db_loss,DBLoss
  balance_loss: true
  main_loss_type: DiceLoss
  alpha: 5
  beta: 10
  ohem_ratio: 3

Optimizer:
  function: ppocr.optimizer,AdamDecay
  base_lr: 0.001
  beta1: 0.9
  beta2: 0.999

PostProcess:
  function: ppocr.postprocess.db_postprocess,DBPostProcess
  thresh: 0.3
  box_thresh: 0.7
  max_candidates: 1000
  unclip_ratio: 2.0

In [ ]

%cd ~/PaddleOCR
# 设置PYTHONPATH路径
%env PYTHONPATH=$PYTHONPATH:.
# GPU单卡训练
%env CUDA_VISIBLE_DEVICES=0
!python3 tools/train.py -c configs/det/det_mv3_db.yml

2.识别

主干网络为轻量级网络MobilenetV3,识别算法包括TPS校正+双向LSTM+Attention

Global:
  algorithm: RARE
  use_gpu: true
  epoch_num: 200
  log_smooth_window: 20
  print_batch_step: 20
  #save_model_dir: output/rec_RARE
  save_model_dir: ./myoutput/rec_RARE_atten_new
  save_epoch_step: 100
  eval_batch_step: 500
  train_batch_size_per_card: 256
  test_batch_size_per_card: 256
  image_shape: [3, 32, 320]
  max_text_length: 8
  character_type: ch
  character_dict_path: ../word_dict.txt
  loss_type: attention
  tps: true
  reader_yml: ./configs/rec/rec_chinese_reader.yml
  pretrain_weights: ./pretrain_models/rec_mv3_tps_bilstm_attn/best_accuracy
  # pretrain_weights:
  checkpoints:
  save_inference_dir: ./inference/newimg_rec_rare
  infer_img:


Architecture:
  function: ppocr.modeling.architectures.rec_model,RecModel

TPS:
  function: ppocr.modeling.stns.tps,TPS
  num_fiducial: 20
  loc_lr: 0.1
  model_name: small

Backbone:
  function: ppocr.modeling.backbones.rec_mobilenet_v3,MobileNetV3
  scale: 0.5
  model_name: large

Head:
  function: ppocr.modeling.heads.rec_attention_head,AttentionPredict
  encoder_type: rnn
  SeqRNN:
    hidden_size: 96
  Attention:
    decoder_size: 96
    word_vector_dim: 96

Loss:
  function: ppocr.modeling.losses.rec_attention_loss,AttentionLoss

Optimizer:
  function: ppocr.optimizer,AdamDecay
  base_lr: 0.001
  beta1: 0.9
  beta2: 0.999

In [77]

%cd ~/PaddleOCR
# GPU单卡训练
%env CUDA_VISIBLE_DEVICES=0
!python3 tools/train.py -c configs/rec/rec_mv3_tps_bilstm_attn.yml
/home/aistudio/work/PaddleOCR
env: CUDA_VISIBLE_DEVICES=0
2022-09-15 16:06:31,610-INFO: {'Global': {'debug': False, 'algorithm': 'RARE', 'use_gpu': True, 'epoch_num': 200, 'log_smooth_window': 20, 'print_batch_step': 20, 'save_model_dir': './myoutput/rec_RARE_atten_new', 'save_epoch_step': 100, 'eval_batch_step': 500, 'train_batch_size_per_card': 256, 'test_batch_size_per_card': 256, 'image_shape': [3, 32, 320], 'max_text_length': 8, 'character_type': 'ch', 'character_dict_path': '../word_dict.txt', 'loss_type': 'attention', 'tps': True, 'reader_yml': './configs/rec/rec_chinese_reader.yml', 'pretrain_weights': './pretrain_models/rec_mv3_tps_bilstm_attn/best_accuracy', 'checkpoints': None, 'save_inference_dir': './inference/newimg_rec_rare', 'infer_img': None}, 'Architecture': {'function': 'ppocr.modeling.architectures.rec_model,RecModel'}, 'TPS': {'function': 'ppocr.modeling.stns.tps,TPS', 'num_fiducial': 20, 'loc_lr': 0.1, 'model_name': 'small'}, 'Backbone': {'function': 'ppocr.modeling.backbones.rec_mobilenet_v3,MobileNetV3', 'scale': 0.5, 'model_name': 'large'}, 'Head': {'function': 'ppocr.modeling.heads.rec_attention_head,AttentionPredict', 'encoder_type': 'rnn', 'SeqRNN': {'hidden_size': 96}, 'Attention': {'decoder_size': 96, 'word_vector_dim': 96}}, 'Loss': {'function': 'ppocr.modeling.losses.rec_attention_loss,AttentionLoss'}, 'Optimizer': {'function': 'ppocr.optimizer,AdamDecay', 'base_lr': 0.001, 'beta1': 0.9, 'beta2': 0.999}, 'TrainReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader', 'num_workers': 8, 'img_set_dir': '../..', 'label_file_path': '../train_data_rec.txt'}, 'EvalReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader', 'num_workers': 8, 'img_set_dir': '../..', 'label_file_path': '../val_data_rec.txt'}, 'TestReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader'}}
2022-09-15 16:06:32,400-INFO: If regularizer of a Parameter has been set by 'fluid.ParamAttr' or 'fluid.WeightNormParamAttr' already. The Regularization[L2Decay, regularization_coeff=0.000000] in Optimizer will not take effect, and it will only be applied to other Parameters!
2022-09-15 16:06:34,241-INFO: places would be ommited when DataLoader is not iterable
W0915 16:06:34.303215 18580 device_context.cc:252] Please NOTE: device: 0, CUDA Capability: 70, Driver API Version: 11.2, Runtime API Version: 9.0
W0915 16:06:34.307891 18580 device_context.cc:260] device: 0, cuDNN Version: 7.6.
2022-09-15 16:06:36,359-INFO: Loading parameters from ./pretrain_models/rec_mv3_tps_bilstm_attn/best_accuracy...
2022-09-15 16:06:36,425-WARNING: variable embedding_0.w_0 not used
2022-09-15 16:06:36,425-WARNING: variable rnn_out_fc.w_0 not used
2022-09-15 16:06:36,425-WARNING: variable rnn_out_fc.b_0 not used
2022-09-15 16:06:36,470-INFO: Finish initing model from ./pretrain_models/rec_mv3_tps_bilstm_attn/best_accuracy
2022-09-15 16:06:47,710-INFO: epoch: 1, iter: 20, lr: 0.001000, 'loss': 4937.542, 'acc': 0.0, time: 0.387
2022-09-15 16:06:56,909-INFO: epoch: 2, iter: 40, lr: 0.001000, 'loss': 3201.4744, 'acc': 0.0, time: 0.373
2022-09-15 16:07:06,105-INFO: epoch: 3, iter: 60, lr: 0.001000, 'loss': 2400.3447, 'acc': 0.007812, time: 0.374
2022-09-15 16:07:16,551-INFO: epoch: 5, iter: 80, lr: 0.001000, 'loss': 1625.6213, 'acc': 0.146484, time: 1.787
2022-09-15 16:07:25,677-INFO: epoch: 6, iter: 100, lr: 0.001000, 'loss': 740.44006, 'acc': 0.769531, time: 0.376
2022-09-15 16:07:34,829-INFO: epoch: 7, iter: 120, lr: 0.001000, 'loss': 370.51062, 'acc': 0.902344, time: 0.374
2022-09-15 16:07:43,827-INFO: epoch: 8, iter: 140, lr: 0.001000, 'loss': 281.9944, 'acc': 0.929688, time: 0.374
2022-09-15 16:07:54,266-INFO: epoch: 10, iter: 160, lr: 0.001000, 'loss': 213.27815, 'acc': 0.933594, time: 1.769
2022-09-15 16:08:03,481-INFO: epoch: 11, iter: 180, lr: 0.001000, 'loss': 149.04875, 'acc': 0.949219, time: 0.403
2022-09-15 16:08:12,440-INFO: epoch: 12, iter: 200, lr: 0.001000, 'loss': 119.06343, 'acc': 0.951172, time: 0.374
2022-09-15 16:08:21,519-INFO: epoch: 13, iter: 220, lr: 0.001000, 'loss': 100.26872, 'acc': 0.949219, time: 0.373
2022-09-15 16:08:32,031-INFO: epoch: 15, iter: 240, lr: 0.001000, 'loss': 84.79035, 'acc': 0.970703, time: 1.806
2022-09-15 16:08:41,146-INFO: epoch: 16, iter: 260, lr: 0.001000, 'loss': 79.10332, 'acc': 0.966797, time: 0.409
2022-09-15 16:08:50,249-INFO: epoch: 17, iter: 280, lr: 0.001000, 'loss': 97.50918, 'acc': 0.955078, time: 0.373
2022-09-15 16:08:59,211-INFO: epoch: 18, iter: 300, lr: 0.001000, 'loss': 81.51908, 'acc': 0.960938, time: 0.373
2022-09-15 16:09:09,670-INFO: epoch: 20, iter: 320, lr: 0.001000, 'loss': 153.25719, 'acc': 0.935547, time: 1.713
2022-09-15 16:09:18,849-INFO: epoch: 21, iter: 340, lr: 0.001000, 'loss': 122.89736, 'acc': 0.949219, time: 0.399
2022-09-15 16:09:28,010-INFO: epoch: 22, iter: 360, lr: 0.001000, 'loss': 78.92976, 'acc': 0.958984, time: 0.373
2022-09-15 16:09:37,014-INFO: epoch: 23, iter: 380, lr: 0.001000, 'loss': 53.346596, 'acc': 0.972656, time: 0.373
2022-09-15 16:09:47,468-INFO: epoch: 25, iter: 400, lr: 0.001000, 'loss': 52.11016, 'acc': 0.972656, time: 1.756
2022-09-15 16:09:56,459-INFO: epoch: 26, iter: 420, lr: 0.001000, 'loss': 43.66102, 'acc': 0.972656, time: 0.374
2022-09-15 16:10:05,548-INFO: epoch: 27, iter: 440, lr: 0.001000, 'loss': 38.42436, 'acc': 0.980469, time: 0.373
2022-09-15 16:10:14,536-INFO: epoch: 28, iter: 460, lr: 0.001000, 'loss': 45.512665, 'acc': 0.978516, time: 0.373
2022-09-15 16:10:25,020-INFO: epoch: 30, iter: 480, lr: 0.001000, 'loss': 40.709595, 'acc': 0.976562, time: 1.789
2022-09-15 16:10:34,337-INFO: epoch: 31, iter: 500, lr: 0.001000, 'loss': 39.14653, 'acc': 0.974609, time: 0.412
2022-09-15 16:10:36,277-INFO: Already save model in ./myoutput/rec_RARE_atten_new/best_accuracy
2022-09-15 16:10:36,277-INFO: Test iter: 500, acc:0.777223, best_acc:0.777223, best_epoch:31, best_batch_id:500, eval_sample_num:1001
2022-09-15 16:10:45,402-INFO: epoch: 32, iter: 520, lr: 0.001000, 'loss': 33.690575, 'acc': 0.984375, time: 0.377
2022-09-15 16:10:54,503-INFO: epoch: 33, iter: 540, lr: 0.001000, 'loss': 29.822884, 'acc': 0.982422, time: 0.374
2022-09-15 16:11:05,027-INFO: epoch: 35, iter: 560, lr: 0.001000, 'loss': 33.394993, 'acc': 0.980469, time: 1.868
2022-09-15 16:11:14,148-INFO: epoch: 36, iter: 580, lr: 0.001000, 'loss': 29.375713, 'acc': 0.980469, time: 0.419
2022-09-15 16:11:23,142-INFO: epoch: 37, iter: 600, lr: 0.001000, 'loss': 44.640976, 'acc': 0.976562, time: 0.374
2022-09-15 16:11:32,155-INFO: epoch: 38, iter: 620, lr: 0.001000, 'loss': 32.55059, 'acc': 0.988281, time: 0.373
2022-09-15 16:11:42,665-INFO: epoch: 40, iter: 640, lr: 0.001000, 'loss': 24.32478, 'acc': 0.988281, time: 1.872
2022-09-15 16:11:51,777-INFO: epoch: 41, iter: 660, lr: 0.001000, 'loss': 23.933027, 'acc': 0.986328, time: 0.375
2022-09-15 16:12:00,873-INFO: epoch: 42, iter: 680, lr: 0.001000, 'loss': 24.20562, 'acc': 0.990234, time: 0.376
2022-09-15 16:12:09,940-INFO: epoch: 43, iter: 700, lr: 0.001000, 'loss': 20.969837, 'acc': 0.988281, time: 0.374
2022-09-15 16:12:20,566-INFO: epoch: 45, iter: 720, lr: 0.001000, 'loss': 21.603209, 'acc': 0.988281, time: 1.798
2022-09-15 16:12:29,785-INFO: epoch: 46, iter: 740, lr: 0.001000, 'loss': 14.918937, 'acc': 0.992188, time: 0.380
2022-09-15 16:12:38,854-INFO: epoch: 47, iter: 760, lr: 0.001000, 'loss': 16.47085, 'acc': 0.992188, time: 0.373
2022-09-15 16:12:47,954-INFO: epoch: 48, iter: 780, lr: 0.001000, 'loss': 13.787853, 'acc': 0.992188, time: 0.373
2022-09-15 16:12:58,526-INFO: epoch: 50, iter: 800, lr: 0.001000, 'loss': 20.16197, 'acc': 0.990234, time: 1.886
2022-09-15 16:13:07,622-INFO: epoch: 51, iter: 820, lr: 0.001000, 'loss': 15.042562, 'acc': 0.992188, time: 0.413
2022-09-15 16:13:16,744-INFO: epoch: 52, iter: 840, lr: 0.001000, 'loss': 30.320072, 'acc': 0.980469, time: 0.374
2022-09-15 16:13:25,803-INFO: epoch: 53, iter: 860, lr: 0.001000, 'loss': 27.366596, 'acc': 0.984375, time: 0.373
2022-09-15 16:13:36,263-INFO: epoch: 55, iter: 880, lr: 0.001000, 'loss': 107.29559, 'acc': 0.964844, time: 1.804
2022-09-15 16:13:45,315-INFO: epoch: 56, iter: 900, lr: 0.001000, 'loss': 112.5357, 'acc': 0.9375, time: 0.377
2022-09-15 16:13:54,380-INFO: epoch: 57, iter: 920, lr: 0.001000, 'loss': 80.11721, 'acc': 0.951172, time: 0.375
2022-09-15 16:14:03,521-INFO: epoch: 58, iter: 940, lr: 0.001000, 'loss': 173.3816, 'acc': 0.896484, time: 0.375
2022-09-15 16:14:14,176-INFO: epoch: 60, iter: 960, lr: 0.001000, 'loss': 111.91419, 'acc': 0.943359, time: 1.820
2022-09-15 16:14:23,354-INFO: epoch: 61, iter: 980, lr: 0.001000, 'loss': 67.807884, 'acc': 0.964844, time: 0.418
2022-09-15 16:14:32,359-INFO: epoch: 62, iter: 1000, lr: 0.001000, 'loss': 49.46469, 'acc': 0.972656, time: 0.382
2022-09-15 16:14:34,236-INFO: Already save model in ./myoutput/rec_RARE_atten_new/best_accuracy
2022-09-15 16:14:34,237-INFO: Test iter: 1000, acc:0.782218, best_acc:0.782218, best_epoch:62, best_batch_id:1000, eval_sample_num:1001
2022-09-15 16:14:43,256-INFO: epoch: 63, iter: 1020, lr: 0.001000, 'loss': 43.5632, 'acc': 0.972656, time: 0.373
2022-09-15 16:14:53,769-INFO: epoch: 65, iter: 1040, lr: 0.001000, 'loss': 31.788738, 'acc': 0.984375, time: 1.797
2022-09-15 16:15:02,909-INFO: epoch: 66, iter: 1060, lr: 0.001000, 'loss': 24.396, 'acc': 0.984375, time: 0.411
2022-09-15 16:15:12,029-INFO: epoch: 67, iter: 1080, lr: 0.001000, 'loss': 21.756264, 'acc': 0.992188, time: 0.374
2022-09-15 16:15:21,012-INFO: epoch: 68, iter: 1100, lr: 0.001000, 'loss': 18.515491, 'acc': 0.988281, time: 0.379
2022-09-15 16:15:31,652-INFO: epoch: 70, iter: 1120, lr: 0.001000, 'loss': 28.279198, 'acc': 0.980469, time: 1.828
2022-09-15 16:15:40,799-INFO: epoch: 71, iter: 1140, lr: 0.001000, 'loss': 23.729788, 'acc': 0.988281, time: 0.374
2022-09-15 16:15:49,867-INFO: epoch: 72, iter: 1160, lr: 0.001000, 'loss': 19.145424, 'acc': 0.988281, time: 0.374
2022-09-15 16:15:58,914-INFO: epoch: 73, iter: 1180, lr: 0.001000, 'loss': 16.507511, 'acc': 0.992188, time: 0.374
2022-09-15 16:16:09,365-INFO: epoch: 75, iter: 1200, lr: 0.001000, 'loss': 19.851065, 'acc': 0.988281, time: 1.786
2022-09-15 16:16:18,561-INFO: epoch: 76, iter: 1220, lr: 0.001000, 'loss': 33.03997, 'acc': 0.980469, time: 0.404
2022-09-15 16:16:27,601-INFO: epoch: 77, iter: 1240, lr: 0.001000, 'loss': 43.73796, 'acc': 0.974609, time: 0.373
2022-09-15 16:16:36,731-INFO: epoch: 78, iter: 1260, lr: 0.001000, 'loss': 25.171104, 'acc': 0.984375, time: 0.374
2022-09-15 16:16:47,318-INFO: epoch: 80, iter: 1280, lr: 0.001000, 'loss': 19.046516, 'acc': 0.988281, time: 1.838
2022-09-15 16:16:56,417-INFO: epoch: 81, iter: 1300, lr: 0.001000, 'loss': 17.294367, 'acc': 0.988281, time: 0.399
2022-09-15 16:17:05,547-INFO: epoch: 82, iter: 1320, lr: 0.001000, 'loss': 17.236929, 'acc': 0.992188, time: 0.373
2022-09-15 16:17:14,582-INFO: epoch: 83, iter: 1340, lr: 0.001000, 'loss': 15.577, 'acc': 0.988281, time: 0.373
2022-09-15 16:17:25,033-INFO: epoch: 85, iter: 1360, lr: 0.001000, 'loss': 15.052889, 'acc': 0.990234, time: 1.760
2022-09-15 16:17:34,349-INFO: epoch: 86, iter: 1380, lr: 0.001000, 'loss': 17.350527, 'acc': 0.988281, time: 0.413
2022-09-15 16:17:43,599-INFO: epoch: 87, iter: 1400, lr: 0.001000, 'loss': 14.587466, 'acc': 0.990234, time: 0.374
2022-09-15 16:17:52,589-INFO: epoch: 88, iter: 1420, lr: 0.001000, 'loss': 14.150236, 'acc': 0.992188, time: 0.373
2022-09-15 16:18:02,967-INFO: epoch: 90, iter: 1440, lr: 0.001000, 'loss': 12.714052, 'acc': 0.988281, time: 1.742
2022-09-15 16:18:12,164-INFO: epoch: 91, iter: 1460, lr: 0.001000, 'loss': 10.972769, 'acc': 0.992188, time: 0.402
2022-09-15 16:18:21,412-INFO: epoch: 92, iter: 1480, lr: 0.001000, 'loss': 14.171873, 'acc': 0.992188, time: 0.374
2022-09-15 16:18:30,446-INFO: epoch: 93, iter: 1500, lr: 0.001000, 'loss': 10.255694, 'acc': 0.992188, time: 0.374
2022-09-15 16:18:32,318-INFO: Already save model in ./myoutput/rec_RARE_atten_new/best_accuracy
2022-09-15 16:18:32,319-INFO: Test iter: 1500, acc:0.823177, best_acc:0.823177, best_epoch:93, best_batch_id:1500, eval_sample_num:1001
2022-09-15 16:18:43,055-INFO: epoch: 95, iter: 1520, lr: 0.001000, 'loss': 9.569214, 'acc': 0.996094, time: 1.995
2022-09-15 16:18:52,264-INFO: epoch: 96, iter: 1540, lr: 0.001000, 'loss': 9.96125, 'acc': 0.992188, time: 0.414
2022-09-15 16:19:01,514-INFO: epoch: 97, iter: 1560, lr: 0.001000, 'loss': 8.359654, 'acc': 0.996094, time: 0.374
2022-09-15 16:19:10,616-INFO: epoch: 98, iter: 1580, lr: 0.001000, 'loss': 6.192225, 'acc': 0.998047, time: 0.373
2022-09-15 16:19:21,189-INFO: epoch: 100, iter: 1600, lr: 0.001000, 'loss': 5.406765, 'acc': 0.996094, time: 1.799
2022-09-15 16:19:27,310-INFO: Already save model in ./myoutput/rec_RARE_atten_new/iter_epoch_100
2022-09-15 16:19:30,699-INFO: epoch: 101, iter: 1620, lr: 0.001000, 'loss': 5.483102, 'acc': 0.996094, time: 0.381
2022-09-15 16:19:39,779-INFO: epoch: 102, iter: 1640, lr: 0.001000, 'loss': 9.586991, 'acc': 0.996094, time: 0.374
2022-09-15 16:19:48,841-INFO: epoch: 103, iter: 1660, lr: 0.001000, 'loss': 5.63769, 'acc': 0.996094, time: 0.374
2022-09-15 16:19:59,323-INFO: epoch: 105, iter: 1680, lr: 0.001000, 'loss': 11.556911, 'acc': 0.996094, time: 1.855
2022-09-15 16:20:08,442-INFO: epoch: 106, iter: 1700, lr: 0.001000, 'loss': 8.392323, 'acc': 0.996094, time: 0.420
2022-09-15 16:20:17,532-INFO: epoch: 107, iter: 1720, lr: 0.001000, 'loss': 4.550391, 'acc': 0.996094, time: 0.374
2022-09-15 16:20:26,593-INFO: epoch: 108, iter: 1740, lr: 0.001000, 'loss': 5.61542, 'acc': 0.996094, time: 0.373
2022-09-15 16:20:37,160-INFO: epoch: 110, iter: 1760, lr: 0.001000, 'loss': 9.220263, 'acc': 0.996094, time: 1.810
2022-09-15 16:20:46,332-INFO: epoch: 111, iter: 1780, lr: 0.001000, 'loss': 4.136215, 'acc': 0.998047, time: 0.422
2022-09-15 16:20:55,467-INFO: epoch: 112, iter: 1800, lr: 0.001000, 'loss': 5.135178, 'acc': 0.996094, time: 0.373
2022-09-15 16:21:04,534-INFO: epoch: 113, iter: 1820, lr: 0.001000, 'loss': 5.234288, 'acc': 0.996094, time: 0.374
2022-09-15 16:21:15,182-INFO: epoch: 115, iter: 1840, lr: 0.001000, 'loss': 4.517134, 'acc': 0.996094, time: 1.924
2022-09-15 16:21:24,325-INFO: epoch: 116, iter: 1860, lr: 0.001000, 'loss': 3.831606, 'acc': 1.0, time: 0.387
2022-09-15 16:21:33,438-INFO: epoch: 117, iter: 1880, lr: 0.001000, 'loss': 3.111336, 'acc': 0.996094, time: 0.373
2022-09-15 16:21:42,490-INFO: epoch: 118, iter: 1900, lr: 0.001000, 'loss': 3.794124, 'acc': 0.996094, time: 0.374
2022-09-15 16:21:53,098-INFO: epoch: 120, iter: 1920, lr: 0.001000, 'loss': 3.929718, 'acc': 0.998047, time: 1.913
2022-09-15 16:22:02,185-INFO: epoch: 121, iter: 1940, lr: 0.001000, 'loss': 4.611428, 'acc': 0.996094, time: 0.375
2022-09-15 16:22:11,267-INFO: epoch: 122, iter: 1960, lr: 0.001000, 'loss': 2.685765, 'acc': 1.0, time: 0.374
2022-09-15 16:22:20,275-INFO: epoch: 123, iter: 1980, lr: 0.001000, 'loss': 2.870256, 'acc': 1.0, time: 0.373
2022-09-15 16:22:30,732-INFO: epoch: 125, iter: 2000, lr: 0.001000, 'loss': 4.04394, 'acc': 0.998047, time: 1.891
2022-09-15 16:22:33,935-INFO: Already save model in ./myoutput/rec_RARE_atten_new/best_accuracy
2022-09-15 16:22:33,935-INFO: Test iter: 2000, acc:0.829171, best_acc:0.829171, best_epoch:125, best_batch_id:2000, eval_sample_num:1001
2022-09-15 16:22:42,925-INFO: epoch: 126, iter: 2020, lr: 0.001000, 'loss': 3.729886, 'acc': 0.996094, time: 0.384
2022-09-15 16:22:51,976-INFO: epoch: 127, iter: 2040, lr: 0.001000, 'loss': 3.797183, 'acc': 0.996094, time: 0.377
2022-09-15 16:23:01,064-INFO: epoch: 128, iter: 2060, lr: 0.001000, 'loss': 3.841343, 'acc': 1.0, time: 0.374
2022-09-15 16:23:11,632-INFO: epoch: 130, iter: 2080, lr: 0.001000, 'loss': 2.5157, 'acc': 1.0, time: 1.818
2022-09-15 16:23:20,885-INFO: epoch: 131, iter: 2100, lr: 0.001000, 'loss': 2.793916, 'acc': 1.0, time: 0.382
2022-09-15 16:23:29,893-INFO: epoch: 132, iter: 2120, lr: 0.001000, 'loss': 2.068662, 'acc': 1.0, time: 0.373
2022-09-15 16:23:38,892-INFO: epoch: 133, iter: 2140, lr: 0.001000, 'loss': 1.963152, 'acc': 1.0, time: 0.374
2022-09-15 16:23:49,438-INFO: epoch: 135, iter: 2160, lr: 0.001000, 'loss': 1.785324, 'acc': 1.0, time: 1.811
2022-09-15 16:23:58,622-INFO: epoch: 136, iter: 2180, lr: 0.001000, 'loss': 1.794544, 'acc': 1.0, time: 0.388
2022-09-15 16:24:07,731-INFO: epoch: 137, iter: 2200, lr: 0.001000, 'loss': 1.725564, 'acc': 1.0, time: 0.381
2022-09-15 16:24:16,818-INFO: epoch: 138, iter: 2220, lr: 0.001000, 'loss': 1.576424, 'acc': 1.0, time: 0.373
2022-09-15 16:24:27,274-INFO: epoch: 140, iter: 2240, lr: 0.001000, 'loss': 1.49527, 'acc': 1.0, time: 1.773
2022-09-15 16:24:36,422-INFO: epoch: 141, iter: 2260, lr: 0.001000, 'loss': 1.492407, 'acc': 1.0, time: 0.374
2022-09-15 16:24:45,728-INFO: epoch: 142, iter: 2280, lr: 0.001000, 'loss': 1.456, 'acc': 1.0, time: 0.374
2022-09-15 16:24:54,789-INFO: epoch: 143, iter: 2300, lr: 0.001000, 'loss': 1.191148, 'acc': 1.0, time: 0.373
2022-09-15 16:25:05,522-INFO: epoch: 145, iter: 2320, lr: 0.001000, 'loss': 1.210015, 'acc': 1.0, time: 1.863
2022-09-15 16:25:14,468-INFO: epoch: 146, iter: 2340, lr: 0.001000, 'loss': 1.281136, 'acc': 1.0, time: 0.375
2022-09-15 16:25:23,566-INFO: epoch: 147, iter: 2360, lr: 0.001000, 'loss': 1.303462, 'acc': 1.0, time: 0.374
2022-09-15 16:25:32,584-INFO: epoch: 148, iter: 2380, lr: 0.001000, 'loss': 1.070822, 'acc': 1.0, time: 0.375
2022-09-15 16:25:42,999-INFO: epoch: 150, iter: 2400, lr: 0.001000, 'loss': 1.107232, 'acc': 1.0, time: 1.789
2022-09-15 16:25:52,155-INFO: epoch: 151, iter: 2420, lr: 0.001000, 'loss': 1.304622, 'acc': 1.0, time: 0.411
2022-09-15 16:26:01,268-INFO: epoch: 152, iter: 2440, lr: 0.001000, 'loss': 1.403758, 'acc': 1.0, time: 0.374
2022-09-15 16:26:10,305-INFO: epoch: 153, iter: 2460, lr: 0.001000, 'loss': 1.210189, 'acc': 1.0, time: 0.373
2022-09-15 16:26:20,865-INFO: epoch: 155, iter: 2480, lr: 0.001000, 'loss': 1.069858, 'acc': 1.0, time: 1.815
2022-09-15 16:26:30,007-INFO: epoch: 156, iter: 2500, lr: 0.001000, 'loss': 1.320687, 'acc': 1.0, time: 0.375
2022-09-15 16:26:32,067-INFO: Already save model in ./myoutput/rec_RARE_atten_new/best_accuracy
2022-09-15 16:26:32,067-INFO: Test iter: 2500, acc:0.831169, best_acc:0.831169, best_epoch:156, best_batch_id:2500, eval_sample_num:1001
2022-09-15 16:26:41,097-INFO: epoch: 157, iter: 2520, lr: 0.001000, 'loss': 1.170897, 'acc': 1.0, time: 0.374
2022-09-15 16:26:50,126-INFO: epoch: 158, iter: 2540, lr: 0.001000, 'loss': 1.209216, 'acc': 1.0, time: 0.373
2022-09-15 16:27:00,639-INFO: epoch: 160, iter: 2560, lr: 0.001000, 'loss': 1.066662, 'acc': 1.0, time: 1.871
2022-09-15 16:27:09,739-INFO: epoch: 161, iter: 2580, lr: 0.001000, 'loss': 0.858585, 'acc': 1.0, time: 0.378
2022-09-15 16:27:18,841-INFO: epoch: 162, iter: 2600, lr: 0.001000, 'loss': 0.789717, 'acc': 1.0, time: 0.373
2022-09-15 16:27:27,905-INFO: epoch: 163, iter: 2620, lr: 0.001000, 'loss': 0.861278, 'acc': 1.0, time: 0.373
2022-09-15 16:27:38,476-INFO: epoch: 165, iter: 2640, lr: 0.001000, 'loss': 0.891585, 'acc': 1.0, time: 1.823
2022-09-15 16:27:47,624-INFO: epoch: 166, iter: 2660, lr: 0.001000, 'loss': 0.919595, 'acc': 1.0, time: 0.383
2022-09-15 16:27:56,740-INFO: epoch: 167, iter: 2680, lr: 0.001000, 'loss': 0.757441, 'acc': 1.0, time: 0.374
2022-09-15 16:28:05,765-INFO: epoch: 168, iter: 2700, lr: 0.001000, 'loss': 0.720211, 'acc': 1.0, time: 0.374
2022-09-15 16:28:16,255-INFO: epoch: 170, iter: 2720, lr: 0.001000, 'loss': 0.76394, 'acc': 1.0, time: 1.810
2022-09-15 16:28:25,394-INFO: epoch: 171, iter: 2740, lr: 0.001000, 'loss': 0.70124, 'acc': 1.0, time: 0.375
2022-09-15 16:28:34,568-INFO: epoch: 172, iter: 2760, lr: 0.001000, 'loss': 0.681117, 'acc': 1.0, time: 0.373
2022-09-15 16:28:43,565-INFO: epoch: 173, iter: 2780, lr: 0.001000, 'loss': 0.71791, 'acc': 1.0, time: 0.375
2022-09-15 16:28:54,132-INFO: epoch: 175, iter: 2800, lr: 0.001000, 'loss': 0.726069, 'acc': 1.0, time: 1.846
2022-09-15 16:29:03,266-INFO: epoch: 176, iter: 2820, lr: 0.001000, 'loss': 0.662951, 'acc': 1.0, time: 0.435
2022-09-15 16:29:12,259-INFO: epoch: 177, iter: 2840, lr: 0.001000, 'loss': 0.770077, 'acc': 1.0, time: 0.374
2022-09-15 16:29:21,314-INFO: epoch: 178, iter: 2860, lr: 0.001000, 'loss': 0.70409, 'acc': 1.0, time: 0.374
2022-09-15 16:29:31,740-INFO: epoch: 180, iter: 2880, lr: 0.001000, 'loss': 0.75167, 'acc': 1.0, time: 1.781
2022-09-15 16:29:40,952-INFO: epoch: 181, iter: 2900, lr: 0.001000, 'loss': 0.595518, 'acc': 1.0, time: 0.384
2022-09-15 16:29:50,018-INFO: epoch: 182, iter: 2920, lr: 0.001000, 'loss': 0.678415, 'acc': 1.0, time: 0.374
2022-09-15 16:29:59,274-INFO: epoch: 183, iter: 2940, lr: 0.001000, 'loss': 0.602751, 'acc': 1.0, time: 0.373
2022-09-15 16:30:09,946-INFO: epoch: 185, iter: 2960, lr: 0.001000, 'loss': 0.568185, 'acc': 1.0, time: 2.010
2022-09-15 16:30:19,154-INFO: epoch: 186, iter: 2980, lr: 0.001000, 'loss': 0.56914, 'acc': 1.0, time: 0.397
2022-09-15 16:30:28,234-INFO: epoch: 187, iter: 3000, lr: 0.001000, 'loss': 0.570147, 'acc': 1.0, time: 0.373
2022-09-15 16:30:29,647-INFO: Test iter: 3000, acc:0.831169, best_acc:0.831169, best_epoch:156, best_batch_id:2500, eval_sample_num:1001
2022-09-15 16:30:38,718-INFO: epoch: 188, iter: 3020, lr: 0.001000, 'loss': 0.556909, 'acc': 1.0, time: 0.373
2022-09-15 16:30:49,241-INFO: epoch: 190, iter: 3040, lr: 0.001000, 'loss': 0.522148, 'acc': 1.0, time: 1.889
2022-09-15 16:30:58,437-INFO: epoch: 191, iter: 3060, lr: 0.001000, 'loss': 0.498712, 'acc': 1.0, time: 0.404
2022-09-15 16:31:07,491-INFO: epoch: 192, iter: 3080, lr: 0.001000, 'loss': 0.428753, 'acc': 1.0, time: 0.373
2022-09-15 16:31:16,654-INFO: epoch: 193, iter: 3100, lr: 0.001000, 'loss': 0.434947, 'acc': 1.0, time: 0.374
2022-09-15 16:31:27,201-INFO: epoch: 195, iter: 3120, lr: 0.001000, 'loss': 0.485586, 'acc': 1.0, time: 1.832
2022-09-15 16:31:36,403-INFO: epoch: 196, iter: 3140, lr: 0.001000, 'loss': 0.46684, 'acc': 1.0, time: 0.392
2022-09-15 16:31:45,477-INFO: epoch: 197, iter: 3160, lr: 0.001000, 'loss': 0.513497, 'acc': 1.0, time: 0.374
2022-09-15 16:31:54,520-INFO: epoch: 198, iter: 3180, lr: 0.001000, 'loss': 0.657723, 'acc': 1.0, time: 0.374

导出推理模型

In [78]

%cd ~/PaddleOCR
# 导出检测模型
!python3 tools/export_model.py \
        -c configs/det/det_mv3_db.yml \
        -o Global.checkpoints=./myoutput/det_db/best_accuracy \
        Global.save_inference_dir=./inference/mydet_db

# 导出识别模型
!python3 tools/export_model.py \
        -c configs/rec/rec_mv3_tps_bilstm_attn.yml \
        -o Global.checkpoints=./myoutput/rec_RARE_atten_new/best_accuracy \
        Global.save_inference_dir=./inference/myrec_rare
/home/aistudio/work/PaddleOCR
2022-09-15 16:37:11,326-INFO: {'Global': {'debug': False, 'algorithm': 'DB', 'use_gpu': True, 'epoch_num': 1200, 'log_smooth_window': 20, 'print_batch_step': 20, 'save_model_dir': './myoutput/det_db/', 'save_epoch_step': 10, 'eval_batch_step': [100, 500], 'train_batch_size_per_card': 4, 'test_batch_size_per_card': 4, 'image_shape': [3, 640, 640], 'reader_yml': './configs/det/det_db_icdar15_reader.yml', 'pretrain_weights': './pretrain_models/det_mv3_db/best_accuracy', 'checkpoints': './myoutput/det_db/best_accuracy', 'save_res_path': './myoutput/det_db/predicts_db.txt', 'save_inference_dir': './inference/mydet_db'}, 'Architecture': {'function': 'ppocr.modeling.architectures.det_model,DetModel'}, 'Backbone': {'function': 'ppocr.modeling.backbones.det_mobilenet_v3,MobileNetV3', 'scale': 0.5, 'model_name': 'large'}, 'Head': {'function': 'ppocr.modeling.heads.det_db_head,DBHead', 'model_name': 'large', 'k': 50, 'inner_channels': 96, 'out_channels': 2}, 'Loss': {'function': 'ppocr.modeling.losses.det_db_loss,DBLoss', 'balance_loss': True, 'main_loss_type': 'DiceLoss', 'alpha': 5, 'beta': 10, 'ohem_ratio': 3}, 'Optimizer': {'function': 'ppocr.optimizer,AdamDecay', 'base_lr': 0.001, 'beta1': 0.9, 'beta2': 0.999}, 'PostProcess': {'function': 'ppocr.postprocess.db_postprocess,DBPostProcess', 'thresh': 0.3, 'box_thresh': 0.7, 'max_candidates': 1000, 'unclip_ratio': 2.0}, 'TrainReader': {'reader_function': 'ppocr.data.det.dataset_traversal,TrainReader', 'process_function': 'ppocr.data.det.db_process,DBProcessTrain', 'num_workers': 1, 'img_set_dir': '../../', 'label_file_path': '../train_data_det.txt'}, 'EvalReader': {'reader_function': 'ppocr.data.det.dataset_traversal,EvalTestReader', 'process_function': 'ppocr.data.det.db_process,DBProcessTest', 'img_set_dir': '../../', 'label_file_path': '../val_data_det.txt', 'test_image_shape': [736, 1280]}, 'TestReader': {'reader_function': 'ppocr.data.det.dataset_traversal,EvalTestReader', 'process_function': 'ppocr.data.det.db_process,DBProcessTest', 'infer_img': None, 'img_set_dir': '../../', 'label_file_path': '../test_data_det.txt', 'test_image_shape': [736, 1280], 'do_eval': True}}
3 640 640
W0915 16:37:11.688948 25074 device_context.cc:252] Please NOTE: device: 0, CUDA Capability: 70, Driver API Version: 11.2, Runtime API Version: 9.0
W0915 16:37:11.693445 25074 device_context.cc:260] device: 0, cuDNN Version: 7.6.
2022-09-15 16:37:13,747-INFO: Finish initing model from ./myoutput/det_db/best_accuracy
inference model saved in ./inference/mydet_db/model and ./inference/mydet_db/params
save success, output_name_list: ['maps']
2022-09-15 16:37:16,325-INFO: {'Global': {'debug': False, 'algorithm': 'RARE', 'use_gpu': True, 'epoch_num': 200, 'log_smooth_window': 20, 'print_batch_step': 20, 'save_model_dir': './myoutput/rec_RARE_atten_new', 'save_epoch_step': 100, 'eval_batch_step': 500, 'train_batch_size_per_card': 256, 'test_batch_size_per_card': 256, 'image_shape': [3, 32, 320], 'max_text_length': 8, 'character_type': 'ch', 'character_dict_path': '../word_dict.txt', 'loss_type': 'attention', 'tps': True, 'reader_yml': './configs/rec/rec_chinese_reader.yml', 'pretrain_weights': './pretrain_models/rec_mv3_tps_bilstm_attn/best_accuracy', 'checkpoints': './myoutput/rec_RARE_atten_new/best_accuracy', 'save_inference_dir': './inference/myrec_rare', 'infer_img': None}, 'Architecture': {'function': 'ppocr.modeling.architectures.rec_model,RecModel'}, 'TPS': {'function': 'ppocr.modeling.stns.tps,TPS', 'num_fiducial': 20, 'loc_lr': 0.1, 'model_name': 'small'}, 'Backbone': {'function': 'ppocr.modeling.backbones.rec_mobilenet_v3,MobileNetV3', 'scale': 0.5, 'model_name': 'large'}, 'Head': {'function': 'ppocr.modeling.heads.rec_attention_head,AttentionPredict', 'encoder_type': 'rnn', 'SeqRNN': {'hidden_size': 96}, 'Attention': {'decoder_size': 96, 'word_vector_dim': 96}}, 'Loss': {'function': 'ppocr.modeling.losses.rec_attention_loss,AttentionLoss'}, 'Optimizer': {'function': 'ppocr.optimizer,AdamDecay', 'base_lr': 0.001, 'beta1': 0.9, 'beta2': 0.999}, 'TrainReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader', 'num_workers': 8, 'img_set_dir': '../..', 'label_file_path': '../train_data_rec.txt'}, 'EvalReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader', 'num_workers': 8, 'img_set_dir': '../..', 'label_file_path': '../val_data_rec.txt'}, 'TestReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader'}}
W0915 16:37:16.958099 25152 device_context.cc:252] Please NOTE: device: 0, CUDA Capability: 70, Driver API Version: 11.2, Runtime API Version: 9.0
W0915 16:37:16.962687 25152 device_context.cc:260] device: 0, cuDNN Version: 7.6.
2022-09-15 16:37:19,039-INFO: Finish initing model from ./myoutput/rec_RARE_atten_new/best_accuracy
inference model saved in ./inference/myrec_rare/model and ./inference/myrec_rare/params
save success, output_name_list: ['decoded_out', 'predicts']

模型测试

In [79]

%cd ~/PaddleOCR
!python3 tools/infer/predict_system.py \
    --image_dir="../../imgtest" \
    --det_model_dir="./inference/mydet_db" \
    --rec_model_dir="./inference/myrec_rare" \
    --rec_image_shape="3, 32, 320" \
    --rec_char_type="ch" \
    --rec_algorithm="RARE" \
    --use_space_char False \
    --max_text_length 8 \
    --rec_char_dict_path="../word_dict.txt" \
    --use_gpu False
/home/aistudio/work/PaddleOCR
dt_boxes num : 1, elapse : 0.9093203544616699
rec_res num  : 1, elapse : 0.051482200622558594
Predict time of ../../imgtest/0425-88_255-205&515_553&627-528&596_205&627_224&532_553&515-0_0_3_25_27_30_33_33-72-8.jpg: 0.981s
皖AD13699, 1.000
The visualized image saved in ./inference_results/0425-88_255-205&515_553&627-528&596_205&627_224&532_553&515-0_0_3_25_27_30_33_33-72-8.jpg
dt_boxes num : 1, elapse : 0.6962370872497559
rec_res num  : 1, elapse : 0.046535491943359375
Predict time of ../../imgtest/04-90_267-207&511_555&616-550&605_211&616_207&515_555&511-0_0_3_1_26_30_31_30-68-81.jpg: 0.754s
皖AD82676, 0.995
The visualized image saved in ./inference_results/04-90_267-207&511_555&616-550&605_211&616_207&515_555&511-0_0_3_1_26_30_31_30-68-81.jpg
dt_boxes num : 1, elapse : 0.6199753284454346
rec_res num  : 1, elapse : 0.08345222473144531
Predict time of ../../imgtest/0375-92_263-192&480_552&575-536&575_198&560_192&480_552&495-0_0_5_24_29_33_24_24-133-69.jpg: 0.746s
皖AF05900, 1.000
The visualized image saved in ./inference_results/0375-92_263-192&480_552&575-536&575_198&560_192&480_552&495-0_0_5_24_29_33_24_24-133-69.jpg
dt_boxes num : 1, elapse : 0.6378555297851562
rec_res num  : 1, elapse : 0.08243370056152344
Predict time of ../../imgtest/0475-68_277-140&493_368&683-368&570_162&683_140&590_350&493-0_0_5_25_29_32_32_30-170-444.jpg: 0.733s
皖AF15886, 0.999
The visualized image saved in ./inference_results/0475-68_277-140&493_368&683-368&570_162&683_140&590_350&493-0_0_5_25_29_32_32_30-170-444.jpg
dt_boxes num : 1, elapse : 0.6511027812957764
rec_res num  : 1, elapse : 0.04664444923400879
Predict time of ../../imgtest/05-90_257-137&507_572&612-567&611_158&612_137&507_572&512-0_0_3_28_32_25_24_32-144-135.jpg: 0.709s
皖AD48108, 0.999
The visualized image saved in ./inference_results/05-90_257-137&507_572&612-567&611_158&612_137&507_572&512-0_0_3_28_32_25_24_32-144-135.jpg
dt_boxes num : 1, elapse : 0.6640639305114746
rec_res num  : 1, elapse : 0.08099365234375
Predict time of ../../imgtest/03-103_253-267&425_483&565-483&565_271&497_267&425_480&483-0_0_3_25_25_33_25_25-110-47.jpg: 0.756s
皖AD11911, 1.000
The visualized image saved in ./inference_results/03-103_253-267&425_483&565-483&565_271&497_267&425_480&483-0_0_3_25_25_33_25_25-110-47.jpg
dt_boxes num : 1, elapse : 0.6204874515533447
rec_res num  : 1, elapse : 0.08555459976196289
Predict time of ../../imgtest/0375-90_256-181&548_541&643-541&643_200&633_181&548_529&553-0_0_3_2_29_33_33_26-176-389.jpg: 0.717s
皖AD05992, 0.919
The visualized image saved in ./inference_results/0375-90_256-181&548_541&643-541&643_200&633_181&548_529&553-0_0_3_2_29_33_33_26-176-389.jpg
dt_boxes num : 1, elapse : 0.613457441329956
rec_res num  : 1, elapse : 0.08662247657775879
Predict time of ../../imgtest/0475-90_238-143&505_599&600-599&600_186&586_143&509_577&505-0_0_3_30_25_27_27_32-60-74.jpg: 0.711s
皖AD61338, 0.999
The visualized image saved in ./inference_results/0475-90_238-143&505_599&600-599&600_186&586_143&509_577&505-0_0_3_30_25_27_27_32-60-74.jpg
dt_boxes num : 1, elapse : 0.6121721267700195
rec_res num  : 1, elapse : 0.08241701126098633
Predict time of ../../imgtest/01-90_265-231&522_405&574-405&571_235&574_231&523_403&522-0_0_3_1_28_29_30_30-134-56.jpg: 0.705s
皖AD84566, 0.996
The visualized image saved in ./inference_results/01-90_265-231&522_405&574-405&571_235&574_231&523_403&522-0_0_3_1_28_29_30_30-134-56.jpg
dt_boxes num : 1, elapse : 0.6165649890899658
rec_res num  : 1, elapse : 0.0794670581817627
Predict time of ../../imgtest/04-91_254-145&472_529&567-529&567_164&552_145&472_529&485-0_0_3_25_24_24_24_29-148-355.jpg: 0.707s
皖AD10005, 1.000
The visualized image saved in ./inference_results/04-91_254-145&472_529&567-529&567_164&552_145&472_529&485-0_0_3_25_24_24_24_29-148-355.jpg

In [80]

!python tools/eval.py -c  configs/rec/rec_mv3_tps_bilstm_attn.yml \
-o Global.checkpoints=./myoutput/rec_RARE_atten_new/best_accuracy
2022-09-15 16:39:43,444-INFO: {'Global': {'debug': False, 'algorithm': 'RARE', 'use_gpu': True, 'epoch_num': 200, 'log_smooth_window': 20, 'print_batch_step': 20, 'save_model_dir': './myoutput/rec_RARE_atten_new', 'save_epoch_step': 100, 'eval_batch_step': 500, 'train_batch_size_per_card': 256, 'test_batch_size_per_card': 256, 'image_shape': [3, 32, 320], 'max_text_length': 8, 'character_type': 'ch', 'character_dict_path': '../word_dict.txt', 'loss_type': 'attention', 'tps': True, 'reader_yml': './configs/rec/rec_chinese_reader.yml', 'pretrain_weights': './pretrain_models/rec_mv3_tps_bilstm_attn/best_accuracy', 'checkpoints': './myoutput/rec_RARE_atten_new/best_accuracy', 'save_inference_dir': './inference/newimg_rec_rare', 'infer_img': None}, 'Architecture': {'function': 'ppocr.modeling.architectures.rec_model,RecModel'}, 'TPS': {'function': 'ppocr.modeling.stns.tps,TPS', 'num_fiducial': 20, 'loc_lr': 0.1, 'model_name': 'small'}, 'Backbone': {'function': 'ppocr.modeling.backbones.rec_mobilenet_v3,MobileNetV3', 'scale': 0.5, 'model_name': 'large'}, 'Head': {'function': 'ppocr.modeling.heads.rec_attention_head,AttentionPredict', 'encoder_type': 'rnn', 'SeqRNN': {'hidden_size': 96}, 'Attention': {'decoder_size': 96, 'word_vector_dim': 96}}, 'Loss': {'function': 'ppocr.modeling.losses.rec_attention_loss,AttentionLoss'}, 'Optimizer': {'function': 'ppocr.optimizer,AdamDecay', 'base_lr': 0.001, 'beta1': 0.9, 'beta2': 0.999}, 'TrainReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader', 'num_workers': 8, 'img_set_dir': '../..', 'label_file_path': '../train_data_rec.txt'}, 'EvalReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader', 'num_workers': 8, 'img_set_dir': '../..', 'label_file_path': '../val_data_rec.txt'}, 'TestReader': {'reader_function': 'ppocr.data.rec.dataset_traversal,SimpleReader'}}
W0915 16:39:44.065701 25553 device_context.cc:252] Please NOTE: device: 0, CUDA Capability: 70, Driver API Version: 11.2, Runtime API Version: 9.0
W0915 16:39:44.070394 25553 device_context.cc:260] device: 0, cuDNN Version: 7.6.
2022-09-15 16:39:46,158-INFO: Finish initing model from ./myoutput/rec_RARE_atten_new/best_accuracy
2022-09-15 16:39:47,598-INFO: Eval result: {'avg_acc': 0.8311688311688312, 'total_acc_num': 832, 'total_sample_num': 1001}

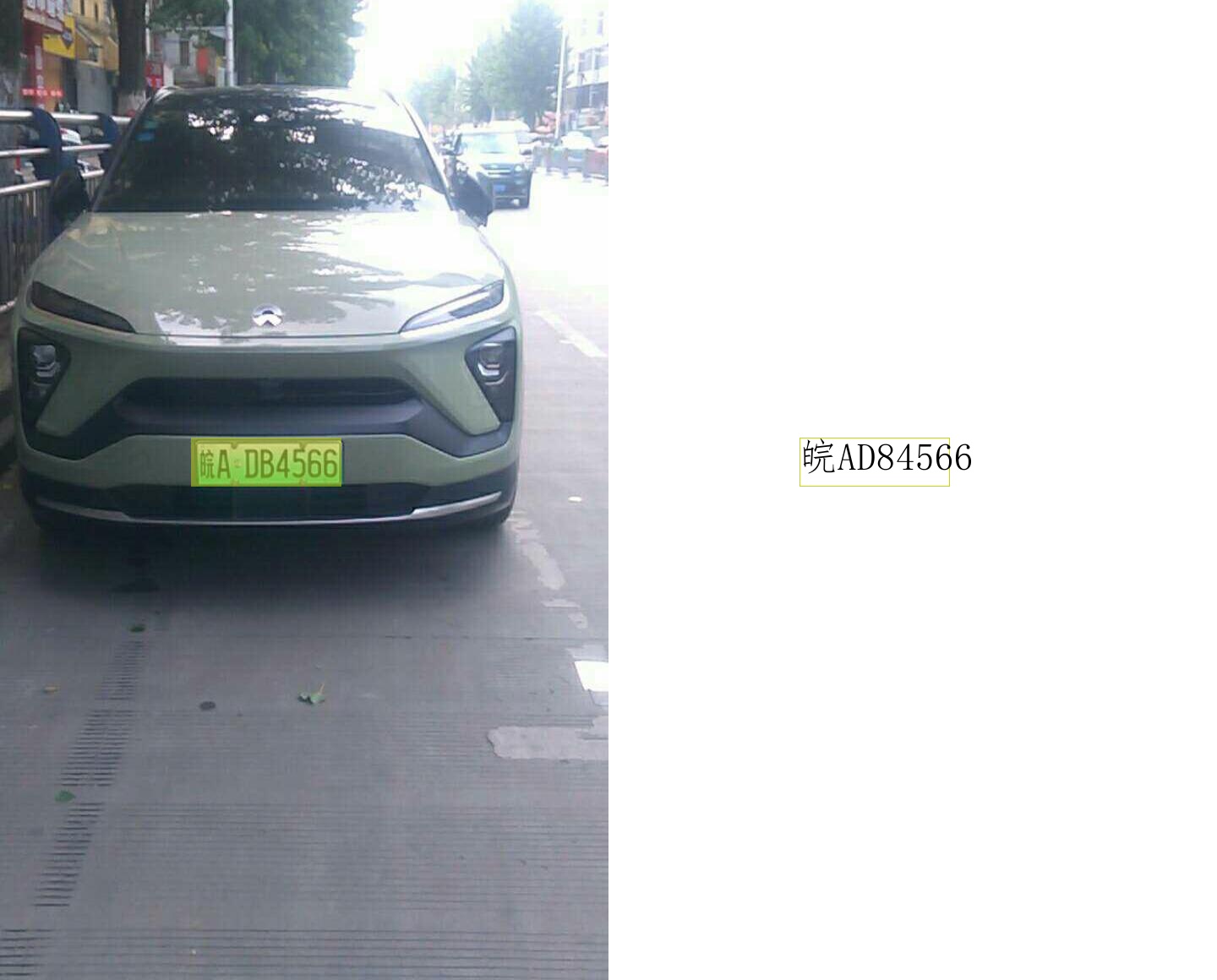

测试集部分识别结果展示



总结:

本项目基于Paddleocr完成深度学习车牌识别,项目分为车牌检测与车牌识别两部分,最终完整实现车牌识别目的,可以识别大部分车牌结果。针对本项目的识别准确度,后续优化可以增加数据增强方面内容、更换其他主干网络及对应参数调优,大家可以在此项目基础上进行扩充,欢迎评论区一起讨论!

作者博客:CSDN主页 (专注大数据与人工智能知识分享,欢迎关注!)

本文来自互联网用户投稿,该文观点仅代表作者本人,不代表本站立场。本站仅提供信息存储空间服务,不拥有所有权,不承担相关法律责任。如若转载,请注明出处:http://www.coloradmin.cn/o/6743.html

如若内容造成侵权/违法违规/事实不符,请联系多彩编程网进行投诉反馈,一经查实,立即删除!

相关文章

MySQL十秒插入百万条数据

mysql数据库准备 private String Driver "com.mysql.cj.jdbc.Driver";private String url "jdbc:mysql://localhost:3306/mp?serverTimezoneAsia/Shanghai&rewriteBatchedStatementstrue";private String user "root";private String pa…

Pycharm 翻译插件失效(transaction) 问题解决【包括安装视频教程】

嗨害大家好鸭!我是小熊猫❤ 最近有很多朋友反应 翻译插件用不了了(不想看文章的朋友 可以直接点击文章最下方QQ群 领取视频版教程) 那么今天!!! 教大家如何快速解决这个问题 点击文件(file) —> 设置(setting) 点击工具(t…

【附源码】计算机毕业设计JAVA家庭园艺服务平台

项目运行 环境配置: Jdk1.8 Tomcat8.5 Mysql HBuilderX(Webstorm也行) Eclispe(IntelliJ IDEA,Eclispe,MyEclispe,Sts都支持)。 项目技术: Springboot mybatis Maven Vue 等等组成,B/…

【Node.js】 第四章 模块化

目录 1. 模块化的概念 1.1 模块化的概念 1.2 模块化规范 2. Node.js中的模块化 2.1 模块分类 2.2 模块加载 2.3 模块作用域 2.4 向外共享模块成员 2.5 exports对象 2.6 Node.js中的模块化规范 1. 模块化的概念 1.1 模块化的概念 按照模块指定规则,把一…

什么是智能合约?新手入门指南

智能合约,也称为数字合约,在计算机网络中使用区块链技术来履行预编程的合约当合同的条件得到满足时,智能合同就会执行,例如向合同的一方发送付款。 智能合约之所以具有吸引力有多种原因: 不信任。由于智能合约及其条…

【c++ 】 对象与类中方法的调用关系。类中常方法,普通方法,静态方法之间互相的调用关系

对象与类中方法的调用关系。类中常方法,普通方法,静态方法之间互相的调用关系1.对象与方法之间的调用1.常对象只能调用常成员方法2.普通对象既可以调用普通成员方法,也可以调用常成员方法,当两个同名的常成员方法和普通成员方法重…

你安全吗?丨秦淮到底是哪种黑客?你猜对了吗?

作者:黑蛋 大家都知道黑客,但是黑客也分很多种类,那么秦淮属于哪种黑客呢,我们先来看一看黑客的种类: 1、白帽黑客:白帽黑客是指通过实施渗透测试,识别网络安全漏洞,为政府及组织工…

蓝桥杯入门即劝退(九)罗马数字

“为什么你没有变强,因为你最近一直过得太舒服” ----------持续更新蓝桥杯入门系列算法实例------------- 如果你也喜欢Java和算法,欢迎订阅专栏共同学习交流! 你的点赞、关注、评论、是我创作的动力! -------希望我的文章对你有…

数字孪生3d智慧核电可视化场景应用展示,包括:智能计算,智能运维

最近几年来,数字孪生技术已被应用于核电领域,并且国内已有一些公司在具体实践过程中,通过数字孪生赋能核电更加经济、灵活、高效运维。 北京智汇云舟科技有限公司成立于2012年,专注于创新性的“视频孪生(实时实景数字孪…

c++ 正则表达式

文章目录正则表达式基本语句regex_matchregex_searchregex_token_iteratorregex_replace示例匹配电话号码匹配QQ号码匹配IP地址正则表达式 什么是正则表达式? 正则表达式(regular expression)描述了一种字符串匹配的模式(pattern)&#xff0…

GENERALIZATION THROUGH MEMORIZATION: NEAREST NEIGHBOR LANGUAGE MODELS

Abatract 我们引入了kNN-LMs,它扩展了一个预先训练的神经语言模型(LM),通过与k个最近邻(kNN)模型线性插值。最近邻是根据预先训练好的LM嵌入空间中的距离进行计算的,并可以从任何文本集合中提取…

45-命令行基础操作

45-命令行基础操作LInux命令行基础LInux命令基础知识Linux的Gul与CLI为什么使用Linux命令行Linux命令语法格式Linux命令分类LInux基础命令登录命令电源管理命令电源命令1: shutdown电源命令2: halt电源命令3: reboot文件管理命令Linux文件目录结构(1)Linux文件路径帮助命令目录…

Vue+Vite+TS

目录#、基础配置1、安装Node.js2、修改npm镜像源3、配置vscode一、创建项目二、Ref全家桶三、computed计算属性js中数组使用的高阶函数四、watch监听器#、基础配置 1、安装Node.js 下载地址:https://nodejs.org/zh-cn/download/ 安装成功,查看版本node …

vue create 创建项目的时候遇到使用nvm切换node后 提示‘vue‘ 不是内部或外部命令,也不是可运行的程序 或批处理文件

前景:我是用的是nvm切换的node版本,不是直接安装高级版本node,有nvm同样困惑的可以用以下方式解决问题,加油!!! 报错: ‘vue’ 不是内部或外部命令,也不是可运行的程序 或批处理文件 解决方法: 1.检查node和npm nod…

libvirt 使用UEFI 设置 edk2-ovmf

一、ovmf 与 edk2 关系: 英特尔EFI开发工具包II (edk2)的子项目,所以在edk2 源码中也能找到 ovmf 部分,ovmf 使UEFI支持Ia32和X64虚拟机 二、OVMF_VARS.fd 与 OVMF_CODE.fd: 1、变量存储和固件的可执行文件; 2、OVMF_…

【数据结构与算法】单链表的增删查改(代码+图解)

目录 顺序表和链表的特点: 时间复杂度: 分析: 单链表结构体和数据类型: 开辟一个节点和存储数据: 打印 尾插 尾删 头插 头删: 查找单链表中的元素 在pos后插入x 在pos前插入x 删除pos后的一个…

【详细学习SpringBoot源码之自定义监听器实战演练-6(自定义监听器、自定义监听事件、指定监听事件)】

一.知识回顾 【0.SpringBoot专栏的相关文章都在这里哟,后续更多的文章内容可以点击查看】 【1.SpringBoot初识之Spring注解发展流程以及常用的Spring和SpringBoot注解】 【2.SpringBoot自动装配之SPI机制&SPI案例实操学习&SPI机制核心源码学习】 【3.详细学…

RabbitMQ - 交换机

文章目录1. Exchanges2. 临时队列3. 绑定 bindings4. Fanout exchange4.1 Fanout 介绍4.2 Fanout 实战5. Direct exchange5.1 Direct 介绍5.2 多重绑定5.3 Direct 实战6. Topics exchange6.1 Topic 的介绍6.2 Topic 匹配案例6.3 Topic 实战1. Exchanges RabbitMQ 消息传递模型…

Techsmith Camtasia Studio2023专业电脑屏幕录制工具

Techsmith Camtasia Studio2023电脑版版下载! 从今天开始,我们开始讲解短视频制作。一提到短视频制作,很多人可能首先想到的,是PR、绘声给影。的确,PR和绘声绘影功能非常强大,毕竟它们是影视制作的专业软件&#xff0…

【Spring Boot】Day01

文章目录一、Spring Boot的引入创建总结演示运行可能出现的错误二、使用idea创建Spring Boot创建运行http://localhost:8080/hello三、介绍配置文件介绍application.yml一、Spring Boot的引入 创建 总结 # 项目中集成spring和springmvc 1. 新建项目 2. 拷贝jar包(maven) &…
