目录

目标和方法

评价方法

导包

Global Settings

Data

transform

Dataset

代理网络

评估模型在非攻击性图像上的表现

Attack Algorithm

FGSM

I-FGSM

MI-FGSM

Diverse Input (DIM)

攻击函数

Attack

Ensemble Attack

集成模型函数

构建集成模型

进行攻击

FGSM方法

I-FGSM方法 + Ensembel Attack

MIFGSM + Ensemble Attack(pick right models)

DIM-MIFGSM + Ensemble Attack(pick right models)

可视化攻击结果

被动防御—JPEG压缩

拓展：文件读取

---

目标和方法

利用目标网络的训练数据，训练一个proxy网络，将proxy网络当作被攻击对象，来生成带有攻击性的输入，再把这个训练出来的图片输入到不知道参数的 Network中，就实现了攻击。

○ Attack objective: Non-targeted attack

○ Attack algorithm: FGSM/I-FGSM

○ Attack schema: Black box attack (perform attack on proxy network)

○ Increase attack transferability by Diverse input (DIM)

○ Attack more than one proxy model - Ensemble attack

这个作业如果你不是台大的学生的话，你是看不到你的提交结果跟实际的分数的

评价方法

图像像素值为0-255，本次作业把改变的最大像素大小ε限制为8，这样的话图像的改变还不太明显。如果ε等于16，那么图像的改变就比较明显了

○ ε固定为8
○ 距离测量: L-inf. norm
○ 模型准确率（的下降）是唯一的评价准则

导包

import torch
import torch.nn as nn
import torchvision
import os
import glob
import shutil
import numpy as np
from PIL import Image
from torchvision.transforms import transforms
from torch.utils.data import Dataset, DataLoader

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
batch_size = 8

Global Settings

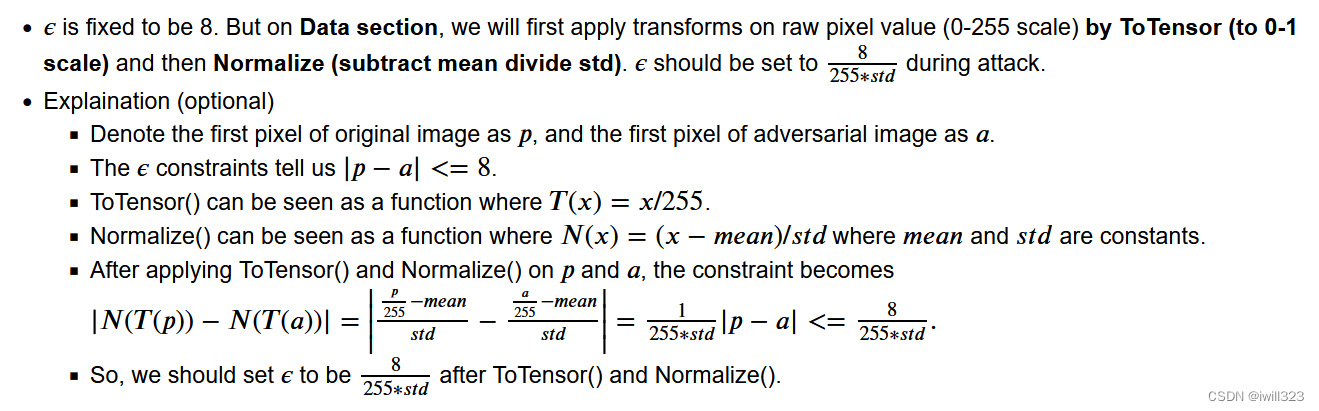

 主要是图像标准化所用的平均值mean和标准差std，还有ε。ε要除以288和std，解释如下

benign images: images which do not contain adversarial perturbations
adversarial images: images which include adversarial perturbations

# the mean and std are the calculated statistics from cifar_10 dataset
cifar_10_mean = (0.491, 0.482, 0.447) # mean for the three channels of cifar_10 images
cifar_10_std = (0.202, 0.199, 0.201) # std for the three channels of cifar_10 images

# convert mean and std to 3-dimensional tensors for future operations
mean = torch.tensor(cifar_10_mean).to(device).view(3, 1, 1)
std = torch.tensor(cifar_10_std).to(device).view(3, 1, 1)

epsilon = 8/255/std

root = './data' # directory for storing benign images

Data

transform

transform = transforms.Compose([
    transforms.ToTensor(),
    transforms.Normalize(cifar_10_mean, cifar_10_std)
])

Dataset

 可以从李宏毅2022机器学习HW10解析_机器学习手艺人的博客-CSDN博客下载，总共200张图片，分为10个文件夹，每一类20个图片。

        data_dir
        ├── class_dir
        │   ├── class1.png
        │   ├── ...
        │   ├── class20.png

看到这个目录结构，可以发现用ImageFolder函数就可以了。

adv_set = torchvision.datasets.ImageFolder(os.path.join(root), transform=transform)
adv_loader = DataLoader(adv_set, batch_size=batch_size, shuffle=False)

有意思的是，原代码自定义了一个Dataset函数，短小精悍，值得学习

class AdvDataset(Dataset):
    def __init__(self, data_dir, transform):
        self.images = []
        self.labels = []
        self.names = []
        '''
        data_dir
        ├── class_dir
        │   ├── class1.png
        │   ├── ...
        │   ├── class20.png
        '''
        for i, class_dir in enumerate(sorted(glob.glob(f'{data_dir}/*'))):
            images = sorted(glob.glob(f'{class_dir}/*'))
            self.images += images
            self.labels += ([i] * len(images))  # 第i个读到的类文件夹，类别就是i
            self.names += [os.path.relpath(imgs, data_dir) for imgs in images]  # 返回imgs相对于data_dir的相对路径
        self.transform = transform
    def __getitem__(self, idx):
        image = self.transform(Image.open(self.images[idx]))
        label = self.labels[idx]
        return image, label
    def __getname__(self):
        return self.names
    def __len__(self):
        return len(self.images)

adv_set = AdvDataset(root, transform=transform)
adv_names = adv_set.__getname__()
adv_loader = DataLoader(adv_set, batch_size=batch_size, shuffle=False)

print(f'number of images = {adv_set.__len__()}')

代理网络

本次作业将已经训练好的模型作为proxy网络，这些网络在CIFAR-10上进行了预训练，可以从Pytorchcv 中引入。Model list is available here. Please select models which has _cifar10 suffix.

from pytorchcv.model_provider import get_model as ptcv_get_model

model = ptcv_get_model('resnet110_cifar10', pretrained=True).to(device)
loss_fn = nn.CrossEntropyLoss()

评估模型在非攻击性图像上的表现

def epoch_benign(model, loader, loss_fn):
    model.eval()
    train_acc, train_loss = 0.0, 0.0
    with torch.no_grad():
        for x, y in loader:
            x, y = x.to(device), y.to(device)
            yp = model(x)
            loss = loss_fn(yp, y)
            train_acc += (yp.argmax(dim=1) == y).sum().item()
            train_loss += loss.item() * x.shape[0]
    return train_acc / len(loader.dataset), train_loss / len(loader.dataset)

代理模型（proxy models）是resnet110_cifar10，在被攻击图片中的精度benign_acc=0.95, benign_loss=0.22678。

benign_acc, benign_loss = epoch_benign(model, adv_loader, loss_fn)
print(f'benign_acc = {benign_acc:.5f}, benign_loss = {benign_loss:.5f}')

Attack Algorithm

FGSM

Fast Gradient Sign Method (FGSM)。FGSM只对图片进行一次攻击。

def fgsm(model, x, y, loss_fn, epsilon=epsilon):
    x_adv = x.detach().clone() # 克隆x是因为x的值会随着x_adv的改变而改变
    x_adv.requires_grad = True # need to obtain gradient of x_adv, thus set required grad
    loss = loss_fn(model(x_adv), y)
    loss.backward()
    # fgsm: use gradient ascent on x_adv to maximize loss
    grad = x_adv.grad.detach()
    x_adv = x_adv + epsilon * grad.sign()  # 不会越界，所以不用clip
    return x_adv

I-FGSM

Iterative Fast Gradient Sign Method (I-FGSM)。ifgsm方法相比与fgsm相比，使用了多次的fgsm循环攻击，为此多了一个参数α

# set alpha as the step size in Global Settings section
# alpha and num_iter can be decided by yourself
alpha = 0.8/255/std
def ifgsm(model, x, y, loss_fn, epsilon=epsilon, alpha=alpha, num_iter=20):
    x_adv = x
    for i in range(num_iter):
        # x_adv = fgsm(model, x_adv, y, loss_fn, alpha) # call fgsm with (epsilon = alpha) to obtain new x_adv
        x_adv = x_adv.detach().clone()
        x_adv.requires_grad = True # need to obtain gradient of x_adv, thus set required grad
        loss = loss_fn(model(x_adv), y)
        loss.backward()
        # fgsm: use gradient ascent on x_adv to maximize loss
        grad = x_adv.grad.detach()
        x_adv = x_adv + alpha * grad.sign()

        x_adv = torch.max(torch.min(x_adv, x+epsilon), x-epsilon) # clip new x_adv back to [x-epsilon, x+epsilon]
    return x_adv

MI-FGSM

https://arxiv.org/pdf/1710.06081.pdf

mifgsm相比于ifgsm，加入了momentum，避免攻击陷入local maxima（这个与optimizer里面momentum的原理类似）

def mifgsm(model, x, y, loss_fn, epsilon=epsilon, alpha=alpha, num_iter=20, decay=0.9):
    x_adv = x
    # initialze momentum tensor
    momentum = torch.zeros_like(x).detach().to(device)
    # write a loop of num_iter to represent the iterative times
    for i in range(num_iter):
        x_adv = x_adv.detach().clone()
        x_adv.requires_grad = True # need to obtain gradient of x_adv, thus set required grad
        loss = loss_fn(model(x_adv), y) # calculate loss
        loss.backward() # calculate gradient
        # Momentum calculation
        grad = x_adv.grad.detach()
        grad = decay * momentum +  grad / (grad.abs().sum() + 1e-8)
        momentum = grad
        x_adv = x_adv + alpha * grad.sign()
        x_adv = torch.max(torch.min(x_adv, x+epsilon), x-epsilon) # clip new x_adv back to [x-epsilon, x+epsilon]
    return x_adv

Diverse Input (DIM)

如果生成的图像在代理模型上过拟合，那么这些图像在目标模型上的攻击力可能会下降。

dim-mifgsm在mifgsm的基础上，对被攻击图片加入了transform来避免overfitting。该技巧来自于文章Improving Transferability of Adversarial Examples with Input Diversity（https://arxiv.org/pdf/1803.06978.pdf）。文章中的transform是先随机的resize图片，然后随机padding图片到原size

def dmi_mifgsm(model, x, y, loss_fn, epsilon=epsilon, alpha=alpha, num_iter=50, decay=0.9, p=0.5):
    x_adv = x
    # initialze momentum tensor
    momentum = torch.zeros_like(x).detach().to(device)
    # write a loop of num_iter to represent the iterative times
    for i in range(num_iter):
        x_adv = x_adv.detach().clone()
        x_adv_raw = x_adv.clone()
        if torch.rand(1).item() >= p:  # 以一定几率进行数据增广
            #resize img to rnd X rnd
            rnd = torch.randint(29, 33, (1,)).item()
            x_adv = transforms.Resize((rnd, rnd))(x_adv)
            #padding img to 32 X 32 with 0
            left = torch.randint(0, 32 - rnd + 1, (1,)).item()
            top = torch.randint(0, 32 - rnd + 1, (1,)).item()
            right = 32 - rnd - left
            bottom = 32 - rnd - top
            x_adv = transforms.Pad([left, top, right, bottom])(x_adv)
        x_adv.requires_grad = True # need to obtain gradient of x_adv, thus set required grad
        loss = loss_fn(model(x_adv), y)
        loss.backward()
        # Momentum calculation
        grad = x_adv.grad.detach()
        grad = decay * momentum + grad/(grad.abs().sum() + 1e-8)
        momentum = grad
        x_adv = x_adv_raw + alpha * grad.sign()
        x_adv = torch.max(torch.min(x_adv, x+epsilon), x-epsilon) # clip new x_adv back to [x-epsilon, x+epsilon]
    return x_adv

攻击函数

Attack

用一个函数gen_adv_examples调用攻击算法，生成攻击图像，计算攻击效果（代理模型的精度）。

经过transform处理的图像像素位于[0-1]，通道也变了，为了生成攻击图像，要进行逆操作。这里的代码是教科书级别的

# perform adversarial attack and generate adversarial examples
def gen_adv_examples(model, loader, attack, loss_fn):
    model.eval()
    adv_names = []
    train_acc, train_loss = 0.0, 0.0
    for i, (x, y) in enumerate(loader):
        x, y = x.to(device), y.to(device)
        x_adv = attack(model, x, y, loss_fn) # obtain adversarial examples
        yp = model(x_adv)
        loss = loss_fn(yp, y)
        _, pred = torch.max(yp, 1)
        train_acc += (pred == y.detach()).sum().item()
        train_loss += loss.item() * x.shape[0]
        # store adversarial examples
        adv_ex = ((x_adv) * std + mean).clamp(0, 1) # to 0-1 scale
        adv_ex = (adv_ex * 255).clamp(0, 255) # 0-255 scale
        adv_ex = adv_ex.detach().cpu().data.numpy().round() # round to remove decimal part
        adv_ex = adv_ex.transpose((0, 2, 3, 1)) # transpose (bs, C, H, W) back to (bs, H, W, C)
        adv_examples = adv_ex if i == 0 else np.r_[adv_examples, adv_ex]
    return adv_examples, train_acc / len(loader.dataset), train_loss / len(loader.dataset)

# create directory which stores adversarial examples
def create_dir(data_dir, adv_dir, adv_examples, adv_names):
    if os.path.exists(adv_dir) is not True:
        _ = shutil.copytree(data_dir, adv_dir)
    for example, name in zip(adv_examples, adv_names):
        im = Image.fromarray(example.astype(np.uint8)) # image pixel value should be unsigned int
        im.save(os.path.join(adv_dir, name))

Ensemble Attack

使用一种攻击算法，对多个代理模型进行同时攻击。参考Delving into Transferable Adversarial Examples and Black-box Attacks

ModuleList 接收一个子模块（或层，需属于nn.Module类）的列表作为输入，可以类似List那样进行append和extend操作。同时，子模块或层的权重也会自动添加到网络中来。要特别注意的是，nn.ModuleList 并没有定义一个网络，它只是将不同的模块储存在一起。ModuleList中元素的先后顺序并不代表其在网络中的真实位置顺序，需要经过forward函数指定各个层的先后顺序后才算完成了模型的定义

集成模型函数

class ensembleNet(nn.Module):
    def __init__(self, model_names):
        super().__init__()
        # ModuleList 接收一个子模块（或层，需属于nn.Module类）的列表作为输入，可以类似List那样进行append和extend操作
        self.models = nn.ModuleList([ptcv_get_model(name, pretrained=True) for name in model_names])
        # self.models.append(undertrain_resnet18) 可以append自己训练的代理网络

    def forward(self, x):
        emsemble_logits = None
        # sum up logits from multiple models
        for i, m in enumerate(self.models):
            emsemble_logits = m(x) if i == 0 else emsemble_logits + m(x)
        return emsemble_logits/len(self.models)

构建集成模型

model_names = [
    'nin_cifar10',
    'resnet20_cifar10',
    'preresnet20_cifar10'
]
ensemble_model = ensembleNet(model_names).to(device)
ensemble_model.eval()

进行攻击

FGSM方法

adv_examples, fgsm_acc, fgsm_loss = gen_adv_examples(model, adv_loader, fgsm, loss_fn)
print(f'fgsm_acc = {fgsm_acc:.5f}, fgsm_loss = {fgsm_loss:.5f}')

create_dir(root, 'fgsm', adv_examples, adv_names)

fgsm_acc = 0.59000, fgsm_loss = 2.49304

而代理网络benign_acc = 0.95000, benign_loss = 0.22678，过了Simple  Baseline

看一下攻击效果（使用后面的可视化代码）

I-FGSM方法 + Ensembel Attack

先观察集成模型在benign图像的准确度

from pytorchcv.model_provider import get_model as ptcv_get_model

benign_acc, benign_loss = epoch_benign(ensemble_model, adv_loader, loss_fn)
print(f'benign_acc = {benign_acc:.5f}, benign_loss = {benign_loss:.5f}')

benign_acc = 0.95000, benign_loss = 0.15440

进行攻击

adv_examples, ifgsm_acc, ifgsm_loss = gen_adv_examples(ensemble_model, adv_loader, ifgsm, loss_fn)
print(f'ensemble_ifgsm_acc = {ifgsm_acc:.5f}, ensemble_ifgsm_loss = {ifgsm_loss:.5f}')

create_dir(root, 'ensemble_ifgsm', adv_examples, adv_names)

ensemble_ifgsm_acc = 0.00000, ensemble_ifgsm_loss = 13.41135

过了Medium Baseline(acc <= 0.50)

MIFGSM + Ensemble Attack(pick right models)

根据李宏毅2022机器学习HW10解析_机器学习手艺人的博客-CSDN博客，在medium baseline中，随机挑选了一些代理模型，这样很盲目，根据文章Query-Free Adversarial Transfer via Undertrained Surrogates（https://arxiv.org/abs/2007.00806）描述，可以选择一些训练不充分的模型，训练不充分的意思包括两方面：一是模型的训练epoch少，二是模型在验证集（val set）未达到最小loss。我们依据论文中的一个例子，使用https://github.com/kuangliu/pytorch-cifar中的训练方法，选择resnet18模型，训练30个epoch（正常训练到达最好结果大约需要200个epoch），将其加入ensmbleNet中。

adv_examples, ifgsm_acc, ifgsm_loss = gen_adv_examples(ensemble_model, adv_loader, mifgsm, loss_fn)
print(f'ensemble_mifgsm_acc = {ifgsm_acc:.5f}, ensemble_mifgsm_loss = {ifgsm_loss:.5f}')

create_dir(root, 'ensemble_mifgsm', adv_examples, adv_names)

ensemble_mifgsm_acc = 0.00500, ensemble_mifgsm_loss = 13.23710

DIM-MIFGSM + Ensemble Attack(pick right models)

adv_examples, ifgsm_acc, ifgsm_loss = gen_adv_examples(ensemble_model, adv_loader, dmi_mifgsm, loss_fn)
print(f'ensemble_dmi_mifgsm_acc = {ifgsm_acc:.5f}, ensemble_dim_mifgsm_loss = {ifgsm_loss:.5f}')

create_dir(root, 'ensemble_dmi_mifgsm', adv_examples, adv_names)

ensemble_dmi_mifgsm_acc = 0.00000, ensemble_dim_mifgsm_loss = 15.16159

可视化攻击结果

每次攻击都生成并保持了攻击图像，改变攻击图像文件夹，即可可视化攻击效果

import matplotlib.pyplot as plt

classes = ['airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']

plt.figure(figsize=(10, 20))
cnt = 0
for i, cls_name in enumerate(classes):
    path = f'{cls_name}/{cls_name}1.png'
    # benign image
    cnt += 1
    plt.subplot(len(classes), 4, cnt)
    im = Image.open(f'./data/{path}')
    logit = model(transform(im).unsqueeze(0).to(device))[0] # unsqueeze(0)是在第一维增加一个维度，[0]是减少一个维度
    predict = logit.argmax(-1).item()
    prob = logit.softmax(-1)[predict].item()
    plt.title(f'benign: {cls_name}1.png\n{classes[predict]}: {prob:.2%}')
    plt.axis('off')
    plt.imshow(np.array(im))
    # adversarial image
    cnt += 1
    plt.subplot(len(classes), 4, cnt)
    im = Image.open(f'./ensemble_ifgsm/{path}')
    logit = model(transform(im).unsqueeze(0).to(device))[0]
    predict = logit.argmax(-1).item()
    prob = logit.softmax(-1)[predict].item()
    plt.title(f'adversarial: {cls_name}1.png\n{classes[predict]}: {prob:.2%}')
    plt.axis('off')
    plt.imshow(np.array(im))
plt.tight_layout()
plt.show()

被动防御—JPEG压缩

JPEG compression by imgaug package, compression rate set to 70

Reference: imgaug.augmenters.arithmetic — imgaug 0.4.0 documentation

先对一个图像进行攻击

# original image
path = f'dog/dog2.png'
im = Image.open(f'./data/{path}')
logit = model(transform(im).unsqueeze(0).to(device))[0]
predict = logit.argmax(-1).item()
prob = logit.softmax(-1)[predict].item()
plt.title(f'benign: dog2.png\n{classes[predict]}: {prob:.2%}')
plt.axis('off')
plt.imshow(np.array(im))
plt.tight_layout()
plt.show()

# adversarial image
adv_im = Image.open(f'./ensemble_dmi_mifgsm/{path}')
logit = model(transform(adv_im).unsqueeze(0).to(device))[0]
predict = logit.argmax(-1).item()
prob = logit.softmax(-1)[predict].item()
plt.title(f'adversarial: dog2.png\n{classes[predict]}: {prob:.2%}')
plt.axis('off')
plt.imshow(np.array(adv_im))
plt.tight_layout()
plt.show()



防御

import imgaug.augmenters as iaa

# pre-process image
x = transforms.ToTensor()(adv_im)*255
x = x.permute(1, 2, 0).numpy()
x = x.astype(np.uint8)

# TODO: use "imgaug" package to perform JPEG compression (compression rate = 70)
compressed_x =  iaa.arithmetic.compress_jpeg(x, compression=70)

logit = model(transform(compressed_x).unsqueeze(0).to(device))[0]
predict = logit.argmax(-1).item()
prob = logit.softmax(-1)[predict].item()
plt.title(f'JPEG adversarial: dog2.png\n{classes[predict]}: {prob:.2%}')
plt.axis('off')


plt.imshow(compressed_x)
plt.tight_layout()
plt.show()

不能说毫无用处，只能说一点儿用没有

拓展：文件读取

原代码手写的dataset函数值得研究。首先读取了root文件夹下的所有文件，并排序，返回一个list变量

>>dir_list = sorted(glob.glob(f'{root}/*'))
>>print(dir_list)

['./data\\airplane', './data\\automobile', './data\\bird', './data\\cat', './data\\deer', './data\\dog', './data\\frog', './data\\horse', './data\\ship', './data\\truck']

读取list变量里的第一个文件夹，取出第一个文件名。这些文件名可以用于Image.open函数

>>images = sorted(glob.glob(f'{dir_list[0]}/*'))
>>print(images[0])

./data\airplane\airplane1.png

取出相对路径

>>print(os.path.relpath(images[0], root))
