OpenShift AI - 启用过时版本的 Notebook 镜像

《OpenShift / RHEL / DevSecOps 汇总目录》
说明：本文已经在 OpenShift 4.18 + OpenShift AI 2.19 的环境中验证

文章目录

查看可用 Notebook 镜像
- 控制台查看
- 命令行查看
Notebook 镜像、Image Stream 和 Image Registry Repository 对应关系
启用老版本的 Notebook 镜像
参考

查看可用 Notebook 镜像

控制台查看

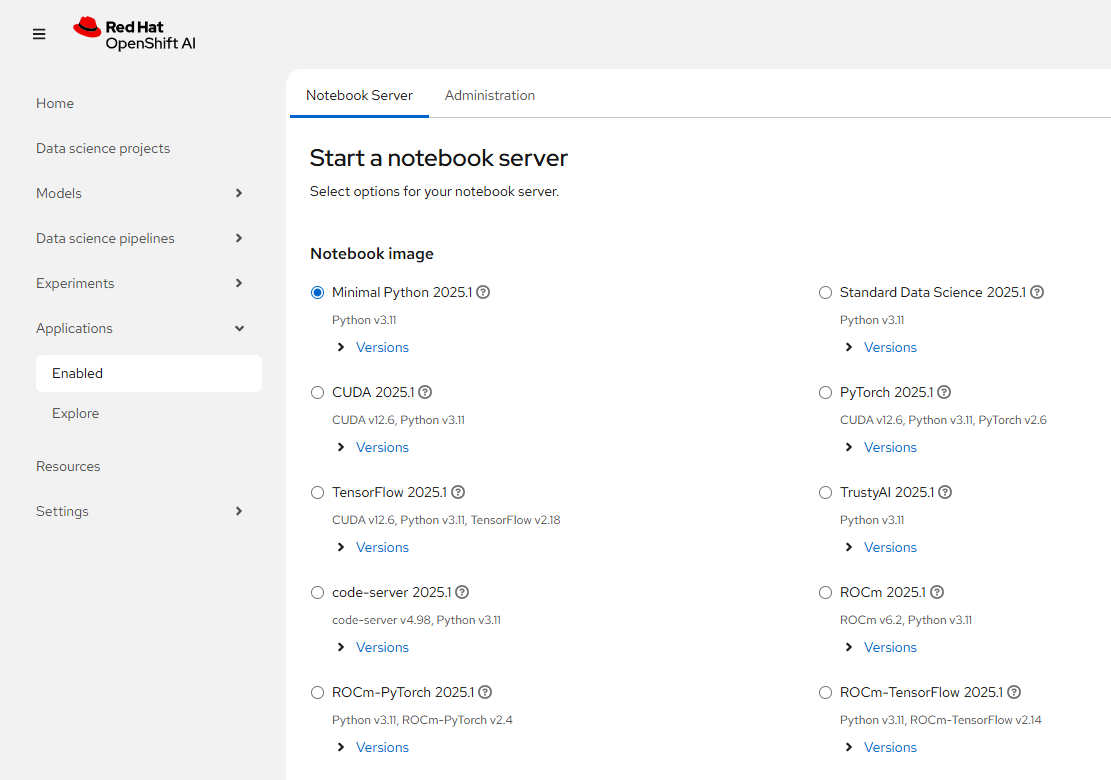

在 OpenShift AI 中可以在一个项目的 Workbench 中或者在 Applications -> Enabled 中通过选择特定的 Notebook Image 来运行 Notebook Server。下图中 OpenShift AI 内置的 Notebook Image 包含的软件配置可参见官方《Red Hat OpenShift AI: Supported Configurations》中 “Supported workbench images” 小节的说明。
在这里插入图片描述

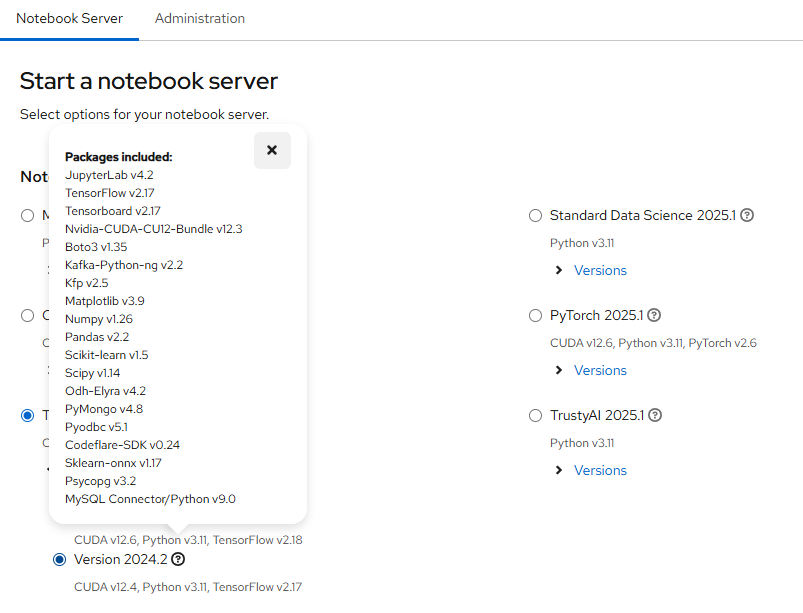

可看到当前 OpenShift AI 有 2 个可用的 TensFlow版本：2025.1 和 2024.2。点击版本右侧的图标，将显示该版本镜像中所含软件包的情况。RedHat 会每 6 个月对 Notebook 镜像升级一次，同时会淘汰过时的老版本镜像（后面将介绍如何启用老版本 Notebook 镜像）。
在这里插入图片描述

命令行查看

通过以下命令可以查看在 OpenShift AI 中可用的 Notebook 镜像。

$ oc get is -n redhat-ods-applications
NAME                                IMAGE REPOSITORY                                                                                             TAGS                                     UPDATED
code-server-notebook                image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/code-server-notebook                2023.2,2024.1,2024.2,2025.1              5 days ago
cuda-rhel9                          image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/cuda-rhel9
cuda-rstudio-rhel9                  image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/cuda-rstudio-rhel9
jupyter-rocm-minimal                image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/jupyter-rocm-minimal                2024.2,2025.1                            5 days ago
jupyter-rocm-pytorch                image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/jupyter-rocm-pytorch                2024.2,2025.1                            5 days ago
jupyter-rocm-tensorflow             image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/jupyter-rocm-tensorflow             2024.2,2025.1                            5 days ago
minimal-gpu                         image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/minimal-gpu                         1.2,2023.1,2023.2,2024.1,2024.2,2025.1   5 days ago
odh-trustyai-notebook               image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/odh-trustyai-notebook               2023.1,2023.2,2024.1,2024.2,2025.1       5 days ago
pytorch                             image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/pytorch                             1.2,2023.1,2023.2,2024.1,2024.2,2025.1   5 days ago
rstudio-rhel9                       image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/rstudio-rhel9
s2i-generic-data-science-notebook   image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/s2i-generic-data-science-notebook   1.2,2023.1,2023.2,2024.1,2024.2,2025.1   5 days ago
s2i-minimal-notebook                image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/s2i-minimal-notebook                1.2,2023.1,2023.2,2024.1,2024.2,2025.1   5 days ago
tensorflow                          image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/tensorflow                          1.2,2023.1,2023.2,2024.1,2024.2,2025.1   5 days ago

执行以下命令可查看上一步显示的名为 tensorflow 的 ImageStream 包含的信息，包括 Tag 和对应的镜像地址。在返回结果的 status 中可以看到 tensorflow 有哪些可用的 tag，可以看到除了在控制台中看到的 2025.1 和 2024.2 以外还有 2024.1、2023.2、2023.1、1.2。

$ oc get is -n redhat-ods-applications tensorflow -oyaml
。。。
status:
  dockerImageRepository: image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/tensorflow
  tags:
  - items:
    - created: "2025-05-27T01:53:53Z"
      dockerImageReference: quay.io/modh/cuda-notebooks@sha256:6fadedc5a10f5a914bb7b27cd41bc644392e5757ceaf07d930db884112054265
      generation: 2
      image: sha256:6fadedc5a10f5a914bb7b27cd41bc644392e5757ceaf07d930db884112054265
    tag: "1.2"
  - items:
    - created: "2025-05-27T01:53:53Z"
      dockerImageReference: quay.io/modh/cuda-notebooks@sha256:88d80821ff8c5d53526794261d519125d0763b621d824f8c3222127dab7b6cc8
      generation: 2
      image: sha256:88d80821ff8c5d53526794261d519125d0763b621d824f8c3222127dab7b6cc8
    tag: "2023.1"
  - items:
    - created: "2025-05-27T01:53:53Z"
      dockerImageReference: quay.io/modh/cuda-notebooks@sha256:3da74d732d158b92eaada0a27fb7067fa18c8bde5033c672e23caed0f21d6481
      generation: 2
      image: sha256:3da74d732d158b92eaada0a27fb7067fa18c8bde5033c672e23caed0f21d6481
    tag: "2023.2"
  - items:
    - created: "2025-05-27T01:53:53Z"
      dockerImageReference: quay.io/modh/cuda-notebooks@sha256:0e57a0b756872636489ccd713dc9f00ad69d0c481a66ee0de97860f13b4fedcd
      generation: 2
      image: sha256:0e57a0b756872636489ccd713dc9f00ad69d0c481a66ee0de97860f13b4fedcd
    tag: "2024.1"
  - items:
    - created: "2025-05-27T01:53:53Z"
      dockerImageReference: quay.io/modh/cuda-notebooks@sha256:99d3fb964e635873214de4676c259a96c2ea25f3f79cc4bead5bc9f39aba34c0
      generation: 2
      image: sha256:99d3fb964e635873214de4676c259a96c2ea25f3f79cc4bead5bc9f39aba34c0
    tag: "2024.2"
  - items:
    - created: "2025-05-27T01:53:53Z"
      dockerImageReference: quay.io/modh/cuda-notebooks@sha256:3c7d3cb69cb311925afd67d05e54b0d34a2acd6990ff12a16bb3ee5cb8dbd265
      generation: 2
      image: sha256:3c7d3cb69cb311925afd67d05e54b0d34a2acd6990ff12a16bb3ee5cb8dbd265
    tag: "2025.1"
。。。

查看名为 tensorflow:2023.1 的 imagestreamtag 。其中可以从以下部分了解该 imagestreamtag 对应的镜像情况，例如 notebook-software，notebook-python-dependencies，依赖镜像 quay.io/modh/cuda-notebooks，其中 opendatahub.io/image-tag-outdated 为 true。

$ oc get imagestreamtag tensorflow:2023.1 -n redhat-ods-applications -oyaml
。。。
image:
  metadata:
    name: 'sha256:88d80821ff8c5d53526794261d519125d0763b621d824f8c3222127dab7b6cc8'
    uid: f90e20f0-84bb-4f1f-9841-896680f67436
    resourceVersion: '65395'
    creationTimestamp: '2025-05-27T01:53:53Z'
    annotations:
      image.openshift.io/dockerLayersOrder: ascending
      opendatahub.io/image-tag-outdated: 'true'
      opendatahub.io/notebook-build-commit: 07015ec
      opendatahub.io/notebook-python-dependencies: |
        [
          {"name":"TensorFlow","version":"2.11"},
          {"name":"Tensorboard","version":"2.11"},
          {"name":"Boto3","version":"1.26"},
          {"name":"Kafka-Python","version":"2.0"},
          {"name":"Kfp-tekton","version":"1.5"},
          {"name":"Matplotlib","version":"3.6"},
          {"name":"Numpy","version":"1.24"},
          {"name":"Pandas","version":"1.5"},
          {"name":"Scikit-learn","version":"1.2"},
          {"name":"Scipy","version":"1.10"},
          {"name":"Elyra","version":"3.15"}
        ]
      opendatahub.io/notebook-software: |
        [
          {"name":"CUDA","version":"11.8"},
          {"name":"Python","version":"v3.9"},
          {"name":"TensorFlow","version":"2.11"}
        ]
      openshift.io/imported-from: quay.io/modh/cuda-notebooks
。。。

Notebook 镜像、Image Stream 和 Image Registry Repository 对应关系

Notebook 镜像名称	Image Stream 名称	Image Registry Repository	说明
Minimal Python	s2i-minimal-notebook	quay.io/modh/odh-pytorch-notebook	只提供基础 Python 运行环境，不提供任何附加包
Standard Data Science	s2i-generic-data-science-notebook	quay.io/modh/odh-generic-data-science-notebook	提供常用的科学计算包，但不提供 TensorFlow 或 PyTorch
CUDA	minimal-gpu	quay.io/modh/cuda-notebooks	使用 GPU 加速库和优化工具来优化工作
PyTorch	pytorch	quay.io/modh/odh-pytorch-notebook	利用 PyTorch 构建、训练和部署机器学习模型
TensorFlow	tensorflow	quay.io/modh/cuda-notebooks	利用 TensorFlow 构建、训练和部署机器学习模型
TrustyAI	odh-trustyai-notebook	quay.io/modh/odh-trustyai-notebook	利用 TrustyAI 构建、训练和部署机器学习模型
ROCm	jupyter-rocm-minimal	quay.io/modh/rocm-notebooks	使用 AMD GPU 运行通用的 ML 工作负载
ROCm-PyTorch	jupyter-rocm-pytorch	quay.io/modh/rocm-notebooks	使用 AMD GPU 运行基于 PyTorch 的 ML 工作负载
ROCm-TensorFlow	jupyter-rocm-tensorflow	quay.io/modh/rocm-notebook	使用 AMD GPU 运行通基于 TensorFlow 的工作负载
code-server	code-server-notebook	quay.io/modh/codeserver	使用基于 VScode 的IDE

启用老版本的 Notebook 镜像

编辑名为 tensorflow:2023.1 的 imagestreamtag 对象，删除包含 opendatahub.io/image-tag-outdated: "true"的 3 行，然后保存。
然后在 OpenShift AI 控制中可看到原来未显示的过时老版本 2023.1 被显示出来了。

注意：

被恢复启用的老版本 Notebook 镜像因为已经超过 RedHat 支持的生命周期，因此即便有 Bug，也得不到官方支持。
当 OpenShift 集群被重启后，被恢复启用的老版本 Notebook 镜像会再次被重置为隐藏状态。
