【Bluedroid】蓝牙 HID 设备信息加载与注册机制及配置缓存系统源码解析

本篇解析Android蓝牙子系统加载配对HID设备的核心流程，通过btif_storage_load_bonded_hid_info实现从NVRAM读取设备属性、验证绑定状态、构造描述符并注册到BTA_HH模块。重点剖析基于ConfigCache的三层存储架构（全局配置/持久设备/临时设备），其通过动态持久化判定策略和LRU淘汰机制，在保证数据可靠性的同时实现高效内存管理。系统采用递归锁保障线程安全，支持多层级密钥解密校验，为蓝牙HID设备管理提供标准化解决方案。

作用：从NVRAM加载已配对蓝牙HID设备的信息，并将其注册到蓝牙HID主机模块(BTA_HH)
触发场景：系统启动时或需要重新加载HID设备信息时调用

btif_storage_load_bonded_hid_info

packages/modules/Bluetooth/system/btif/src/btif_profile_storage.cc
/*******************************************************************************
 *
 * Function         btif_storage_load_bonded_hid_info
 *
 * Description      BTIF storage API - Loads hid info for all the bonded devices
 *                  from NVRAM and adds those devices  to the BTA_HH.
 *
 * Returns          BT_STATUS_SUCCESS if successful, BT_STATUS_FAIL otherwise
 *
 ******************************************************************************/
bt_status_t btif_storage_load_bonded_hid_info(void) {
  // 1. 遍历所有已配对设备
  for (const auto& bd_addr : btif_config_get_paired_devices()) {
    auto name = bd_addr.ToString();
    tAclLinkSpec link_spec; // 用于存储设备的连接信息

    log::verbose("Remote device:{}", ADDRESS_TO_LOGGABLE_CSTR(bd_addr));

    int value;
    // 2. 获取 HID 属性掩码
    if (!btif_config_get_int(name, BTIF_STORAGE_KEY_HID_ATTR_MASK, &value))
      continue;
    uint16_t attr_mask = (uint16_t)value;

    // 3. 检查设备是否已绑定
    if (btif_in_fetch_bonded_device(name) != BT_STATUS_SUCCESS) {
      btif_storage_remove_hid_info(bd_addr); // 移除该设备的 HID 信息
      continue;
    }

    // 4. 初始化设备描述信息结构体
    tBTA_HH_DEV_DSCP_INFO dscp_info;
    memset(&dscp_info, 0, sizeof(dscp_info));

    // 5. 获取设备描述信息
    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_SUB_CLASS, &value);
    uint8_t sub_class = (uint8_t)value;

    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_APP_ID, &value);
    uint8_t app_id = (uint8_t)value;

    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_VENDOR_ID, &value);
    dscp_info.vendor_id = (uint16_t)value;

    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_PRODUCT_ID, &value);
    dscp_info.product_id = (uint16_t)value;

    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_VERSION, &value);
    dscp_info.version = (uint16_t)value;

    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_COUNTRY_CODE, &value);
    dscp_info.ctry_code = (uint8_t)value;

    value = 0;
    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_SSR_MAX_LATENCY, &value);
    dscp_info.ssr_max_latency = (uint16_t)value;

    value = 0;
    btif_config_get_int(name, BTIF_STORAGE_KEY_HID_SSR_MIN_TIMEOUT, &value);
    dscp_info.ssr_min_tout = (uint16_t)value;

    // 6. 获取设备描述符
    size_t len =
        btif_config_get_bin_length(name, BTIF_STORAGE_KEY_HID_DESCRIPTOR);
    if (len > 0) {
      dscp_info.descriptor.dl_len = (uint16_t)len;
      dscp_info.descriptor.dsc_list = (uint8_t*)alloca(len);
      btif_config_get_bin(name, BTIF_STORAGE_KEY_HID_DESCRIPTOR,
                          (uint8_t*)dscp_info.descriptor.dsc_list, &len);
    }

    // 7. 添加设备到 BTA_HH 模块
    // add extracted information to BTA HH
    link_spec.addrt.bda = bd_addr;
    link_spec.addrt.type = BLE_ADDR_PUBLIC;
    link_spec.transport = BT_TRANSPORT_AUTO;
    if (btif_hh_add_added_dev(link_spec, attr_mask)) {
      BTA_HhAddDev(link_spec, attr_mask, sub_class, app_id, dscp_info);
    }
  }

  return BT_STATUS_SUCCESS;
}

从非易失性随机访问存储器（NVRAM）里加载所有已配对蓝牙 HID（Human Interface Device，人机接口设备）设备的信息，并且将这些设备添加到 BTA_HH（Bluetooth Application - Human Interface Device Host）模块中。

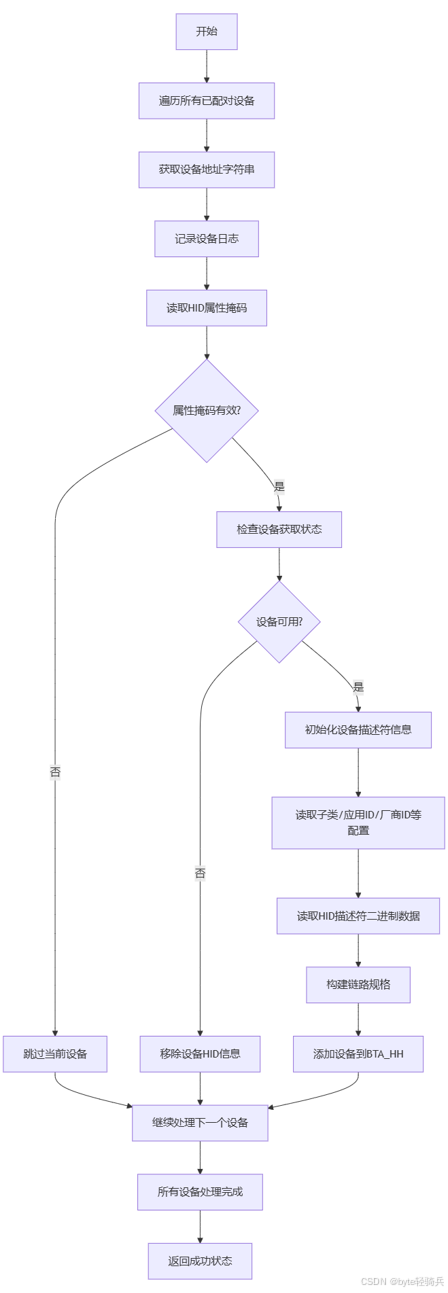

核心流程:

btif_config_get_paired_devices

/packages/modules/Bluetooth/system/btif/src/btif_config.cc
std::vector<RawAddress> btif_config_get_paired_devices() {
  std::vector<std::string> names;
  CHECK(bluetooth::shim::is_gd_stack_started_up());
  // 获取持久化存储的设备名称
  names = bluetooth::shim::BtifConfigInterface::GetPersistentDevices();

  std::vector<RawAddress> result;
  result.reserve(names.size());
  // 遍历设备名称并转换为地址
  for (const auto& name : names) {
    RawAddress addr = {};
    // Gather up known devices from configuration section names
    if (RawAddress::FromString(name, addr)) {
      result.emplace_back(addr);
    }
  }
  return result;
}

获取所有已配对蓝牙设备的地址，返回一个包含 RawAddress 对象的向量。借助 bluetooth::shim::BtifConfigInterface 来获取持久化存储的设备名称，然后将这些名称转换为 RawAddress 对象。

GetPersistentDevices

/packages/modules/Bluetooth/system/main/shim/config.cc
std::vector<std::string> BtifConfigInterface::GetPersistentDevices() {
  return GetStorage()->GetPersistentSections();
}

GetPersistentSections

packages/modules/Bluetooth/system/gd/storage/storage_module.cc
std::vector<std::string> StorageModule::GetPersistentSections() const {
  std::lock_guard<std::recursive_mutex> lock(mutex_);
  return pimpl_->cache_.GetPersistentSections();
}

ConfigCache::GetPersistentSections

/packages/modules/Bluetooth/system/gd/storage/config_cache.cc
std::vector<std::string> ConfigCache::GetPersistentSections() const {
  std::lock_guard<std::recursive_mutex> lock(mutex_);
  std::vector<std::string> paired_devices;
  paired_devices.reserve(persistent_devices_.size());
  // 遍历持久化设备并添加名称到容器中
  for (const auto& elem : persistent_devices_) {
    paired_devices.emplace_back(elem.first);
  }
  return paired_devices;
}

获取所有持久化设备的名称（可能代表设备的 MAC 地址等标识），并将这些名称存储在一个 std::vector<std::string> 类型的容器中返回。

btif_config_get_int

packages/modules/Bluetooth/system/btif/src/btif_config.cc
bool btif_config_get_int(const std::string& section, const std::string& key,
                         int* value) {
  CHECK(bluetooth::shim::is_gd_stack_started_up());
  return bluetooth::shim::BtifConfigInterface::GetInt(section, key, value);
}

BtifConfigInterface::GetInt

packages/modules/Bluetooth/system/main/shim/config.cc
bool BtifConfigInterface::GetInt(const std::string& section,
                                 const std::string& property, int* value) {
  ASSERT(value != nullptr);
  auto ret = GetStorage()->GetInt(section, property);
  if (ret) {
    *value = *ret;
  }
  return ret.has_value();
}

从配置存储中获取指定部分（section）下指定属性（property）的整数值，并将该值存储到传入的指针 value 所指向的内存位置。若成功获取到值，则返回 true；若未获取到值，则返回 false。

packages/modules/Bluetooth/system/gd/storage/storage_module.cc
std::optional<int> StorageModule::GetInt(
    const std::string& section, const std::string& property) const {
  std::lock_guard<std::recursive_mutex> lock(mutex_);
  return ConfigCacheHelper::FromConfigCache(pimpl_->cache_).GetInt(section, property);
}

ConfigCacheHelper::GetInt

/packages/modules/Bluetooth/system/gd/storage/config_cache_helper.cc
std::optional<int> ConfigCacheHelper::GetInt(const std::string& section, const std::string& property) const {
  // 1. 获取属性的字符串值
  auto value_str = config_cache_.GetProperty(section, property);
  if (!value_str) {
    return std::nullopt;
  }

  // 2. 获取属性的 int64_t 类型值
  auto large_value = GetInt64(section, property);
  if (!large_value) {
    return std::nullopt;
  }

  // 3. 检查值是否在 int 类型的数值范围内
  if (!common::IsNumberInNumericLimits<int>(*large_value)) {
    return std::nullopt;
  }
  return static_cast<uint32_t>(*large_value);
}

从配置缓存中获取指定部分（section）和属性（property）对应的整数值。如果获取成功且该值在 int 类型的数值范围内，函数将返回该整数值；否则，返回 std::nullopt 表示未获取到有效的 int 类型值。

ConfigCache::GetProperty

/packages/modules/Bluetooth/system/gd/storage/config_cache.cc
std::optional<std::string> ConfigCache::GetProperty(const std::string& section, const std::string& property) const {
  // 加锁以保证线程安全
  std::lock_guard<std::recursive_mutex> lock(mutex_);

  // 1. 在 information_sections_ 中查找属性
  auto section_iter = information_sections_.find(section);
  if (section_iter != information_sections_.end()) {
    auto property_iter = section_iter->second.find(property);
    if (property_iter != section_iter->second.end()) {
      return property_iter->second;
    }
  }

   // 2. 在 persistent_devices_ 中查找属性
  section_iter = persistent_devices_.find(section);
  if (section_iter != persistent_devices_.end()) {
    auto property_iter = section_iter->second.find(property);
    if (property_iter != section_iter->second.end()) {
      std::string value = property_iter->second;
      if (os::ParameterProvider::GetBtKeystoreInterface() != nullptr && value == kEncryptedStr) {
        return os::ParameterProvider::GetBtKeystoreInterface()->get_key(section + "-" + property);
      }
      return value;
    }
  }

   // 3. 在 temporary_devices_ 中查找属性
  section_iter = temporary_devices_.find(section);
  if (section_iter != temporary_devices_.end()) {
    auto property_iter = section_iter->second.find(property);
    if (property_iter != section_iter->second.end()) {
      return property_iter->second;
    }
  }
  return std::nullopt;
}

从配置缓存里获取指定部分（section）和属性（property）的值。若能找到对应的值，就返回该值；若找不到，则返回 std::nullopt。

get_key

packages/modules/Bluetooth/system/btif/src/btif_keystore.cc
std::string get_key(std::string prefix) override {
    log::verbose("prefix: {}", prefix);

    // 检查回调函数指针是否为空
    if (!callbacks) {
        log::warn("callback isn't ready. prefix: {}", prefix);
        return "";
    }

    // 用于存储解密后的密钥字符串
    std::string decryptedString;

    // 尝试在 key_map 中查找以 prefix 为键的元素
    std::map<std::string, std::string>::iterator iter = key_map.find(prefix);
    if (iter == key_map.end()) {
        // 如果在 key_map 中未找到对应的元素
        // 调用回调函数从外部获取密钥
        decryptedString = callbacks->get_key(prefix);
        // 将获取到的密钥存储到 key_map 中，以便后续使用
        key_map[prefix] = decryptedString;
        log::verbose("get key from bluetoothkeystore.");
    } else {
        // 如果在 key_map 中找到了对应的元素
        // 直接从 key_map 中获取解密后的密钥
        decryptedString = iter->second;
    }

    // 返回解密后的密钥字符串
    return decryptedString;
}

根据给定的前缀 prefix 来获取对应的密钥。先尝试从本地的 key_map 中查找该密钥，如果找不到，会通过回调函数 callbacks->get_key 从外部（如蓝牙密钥存储库）获取密钥，并将其保存到 key_map 中，以便后续使用。

IsNumberInNumericLimits

packages/modules/Bluetooth/system/gd/common/numbers.h
// Check if input is within numeric limits of RawType
template <typename RawType, typename InputType>
bool IsNumberInNumericLimits(InputType input) {
    // Only arithmetic types are supported
    static_assert(std::is_arithmetic_v<RawType> && std::is_arithmetic_v<InputType>);
    // Either both are signed or both are unsigned
    static_assert(
        (std::is_signed_v<RawType> && std::is_signed_v<InputType>) ||
        (std::is_unsigned_v<RawType> && std::is_unsigned_v<InputType>));

    // 检查输入类型的最大值是否超过目标类型的最大值
    if (std::numeric_limits<InputType>::max() > std::numeric_limits<RawType>::max()) {
        if (input > std::numeric_limits<RawType>::max()) {
            return false;
        }
    }

    // 检查输入类型的最小值是否低于目标类型的最小值
    if (std::numeric_limits<InputType>::lowest() < std::numeric_limits<RawType>::lowest()) {
        if (input < std::numeric_limits<RawType>::lowest()) {
            return false;
        }
    }

    // 如果输入值在目标类型的数值范围内，返回 true
    return true;
}

IsNumberInNumericLimits 是一个模板函数，其作用是检查输入值 input 是否处于 RawType 类型所规定的数值范围之内。借助 C++ 的类型特性和数值极限工具，保证仅对算术类型（如整数、浮点数）进行操作，并且会对输入类型和目标类型的有符号性进行检查。

btif_config_get_bin_length

packages/modules/Bluetooth/system/btif/src/btif_config.cc
size_t btif_config_get_bin_length(const std::string& section,
                                  const std::string& key) {
  CHECK(bluetooth::shim::is_gd_stack_started_up());
  return bluetooth::shim::BtifConfigInterface::GetBinLength(section, key);
}

/packages/modules/Bluetooth/system/main/shim/config.cc
size_t BtifConfigInterface::GetBinLength(const std::string& section,
                                         const std::string& property) {
  auto value_vec = GetStorage()->GetBin(section, property);
  if (!value_vec) {
    return 0;
  }
  return value_vec->size();
}

packages/modules/Bluetooth/system/gd/storage/storage_module.cc
std::optional<int> StorageModule::GetInt(
    const std::string& section, const std::string& property) const {
  std::lock_guard<std::recursive_mutex> lock(mutex_);
  return ConfigCacheHelper::FromConfigCache(pimpl_->cache_).GetInt(section, property);
}

btif_hh_add_added_dev

packages/modules/Bluetooth/system/btif/src/btif_hh.cc
/*******************************************************************************
 *  Static variables
 ******************************************************************************/
btif_hh_cb_t btif_hh_cb;

/*******************************************************************************
 *
 * Function         btif_hh_add_added_dev
 *
 * Description      Add a new device to the added device list.
 *
 * Returns          true if add successfully, otherwise false.
 ******************************************************************************/
bool btif_hh_add_added_dev(const tAclLinkSpec& link_spec,
                           tBTA_HH_ATTR_MASK attr_mask) {
  int i;
  // 第一次遍历：检查设备是否已经存在于已添加设备列表中
  for (i = 0; i < BTIF_HH_MAX_ADDED_DEV; i++) {
    if (btif_hh_cb.added_devices[i].link_spec.addrt.bda ==
        link_spec.addrt.bda) {
      // 如果设备已经存在，返回 false
      log::warn("Device {} already added", ADDRESS_TO_LOGGABLE_STR(link_spec));
      return false;
    }
  }

  // 第二次遍历：寻找列表中的空位来添加新设备
  for (i = 0; i < BTIF_HH_MAX_ADDED_DEV; i++) {
    if (btif_hh_cb.added_devices[i].link_spec.addrt.bda.IsEmpty()) {
      // 找到空位后，记录添加设备的日志
      log::warn("Added device {}", ADDRESS_TO_LOGGABLE_STR(link_spec));
      // 将新设备的链接规格信息赋值给该空位
      btif_hh_cb.added_devices[i].link_spec = link_spec;
      // 初始化设备句柄为无效句柄
      btif_hh_cb.added_devices[i].dev_handle = BTA_HH_INVALID_HANDLE;
      // 赋值设备属性掩码
      btif_hh_cb.added_devices[i].attr_mask = attr_mask;
      // 添加成功，返回 true
      return true;
    }
  }
  // 如果列表已满，没有空位，记录错误日志并返回 false
  log::warn("Error, out of space to add device");
  return false;
}

将一个新的设备添加到已添加设备列表中。先检查设备是否已经存在于列表中，如果存在则不添加并返回 false；若不存在，会尝试在列表中找到一个空位来添加该设备，若成功添加则返回 true；如果列表已满，无法添加新设备，也会返回 false。

BTA_HhAddDev

packages/modules/Bluetooth/system/bta/hh/bta_hh_api.cc
/*******************************************************************************
 *
 * Function         BTA_HhAddDev
 *
 * Description      Add a virtually cabled device into HID-Host device list
 *                  to manage and assign a device handle for future API call,
 *                  host applciation call this API at start-up to initialize its
 *                  virtually cabled devices.
 *
 * Returns          void
 *
 ******************************************************************************/
void BTA_HhAddDev(const tAclLinkSpec& link_spec, tBTA_HH_ATTR_MASK attr_mask,
                  uint8_t sub_class, uint8_t app_id,
                  tBTA_HH_DEV_DSCP_INFO dscp_info) {
    // 1. 计算所需内存大小
    size_t len = sizeof(tBTA_HH_MAINT_DEV) + dscp_info.descriptor.dl_len;
    // 2. 分配内存
    tBTA_HH_MAINT_DEV* p_buf = (tBTA_HH_MAINT_DEV*)osi_calloc(len);

    // 3. 设置消息头信息
    p_buf->hdr.event = BTA_HH_API_MAINT_DEV_EVT;
    p_buf->sub_event = BTA_HH_ADD_DEV_EVT;
    p_buf->hdr.layer_specific = BTA_HH_INVALID_HANDLE;

    // 4. 设置设备属性
    p_buf->attr_mask = (uint16_t)attr_mask;
    p_buf->sub_class = sub_class;
    p_buf->app_id = app_id;
    p_buf->link_spec = link_spec;

    // 5. 复制描述符信息
    memcpy(&p_buf->dscp_info, &dscp_info, sizeof(tBTA_HH_DEV_DSCP_INFO));
    if (dscp_info.descriptor.dl_len != 0 && dscp_info.descriptor.dsc_list) {
        p_buf->dscp_info.descriptor.dl_len = dscp_info.descriptor.dl_len;
        p_buf->dscp_info.descriptor.dsc_list = (uint8_t*)(p_buf + 1);
        memcpy(p_buf->dscp_info.descriptor.dsc_list, dscp_info.descriptor.dsc_list,
               dscp_info.descriptor.dl_len);
    } else {
        p_buf->dscp_info.descriptor.dsc_list = NULL;
        p_buf->dscp_info.descriptor.dl_len = 0;
    }

    // 6. 发送消息
    bta_sys_sendmsg(p_buf);
}

将一个虚拟有线设备添加到 HID - Host（人机接口设备主机）设备列表中进行管理，并为未来的 API 调用分配一个设备句柄。主机应用程序在启动时会调用此 API 来初始化其虚拟有线设备。

class ConfigCache

namespace bluetooth {
namespace storage {

class Mutation;

// A memory operated section-key-value structured config
//
// A section can be either persistent or temporary. When a section becomes persistent, all its properties are
// written to disk.
//
// A section becomes persistent when a property that is part of persistent_property_names_ is written to config cache;
// A section becomes temporary when all properties that are part of persistent_property_names_ is removed
//
// The definition of persistent sections is up to the user and is defined through the |persistent_property_names|
// argument. When these properties are link key properties, then persistent sections is equal to bonded devices
//
// This class is thread safe
class ConfigCache {
 public:
  ConfigCache(size_t temp_device_capacity, std::unordered_set<std::string_view> persistent_property_names);

  ConfigCache(const ConfigCache&) = delete;
  ConfigCache& operator=(const ConfigCache&) = delete;

  virtual ~ConfigCache() = default;

  // no copy

  // can move
  ConfigCache(ConfigCache&& other) noexcept;
  ConfigCache& operator=(ConfigCache&& other) noexcept;

  // comparison operators, callback doesn't count
  bool operator==(const ConfigCache& rhs) const;
  bool operator!=(const ConfigCache& rhs) const;

  // observers
  virtual bool HasSection(const std::string& section) const;
  virtual bool HasProperty(const std::string& section, const std::string& property) const;
  // Get property, return std::nullopt if section or property does not exist
  virtual std::optional<std::string> GetProperty(const std::string& section, const std::string& property) const;
  // Returns a copy of persistent device MAC addresses
  virtual std::vector<std::string> GetPersistentSections() const;
  // Return true if a section is persistent
  virtual bool IsPersistentSection(const std::string& section) const;
  // Return true if a section has one of the properties in |property_names|
  virtual bool HasAtLeastOneMatchingPropertiesInSection(
      const std::string& section, const std::unordered_set<std::string_view>& property_names) const;
  // Return true if a property is part of persistent_property_names_
  virtual bool IsPersistentProperty(const std::string& property) const;
  // Serialize to legacy config format
  virtual std::string SerializeToLegacyFormat() const;
  // Return a copy of pair<section_name, property_value> with property
  struct SectionAndPropertyValue {
    std::string section;
    std::string property;
    bool operator==(const SectionAndPropertyValue& rhs) const {
      return section == rhs.section && property == rhs.property;
    }
    bool operator!=(const SectionAndPropertyValue& rhs) const {
      return !(*this == rhs);
    }
  };
  virtual std::vector<SectionAndPropertyValue> GetSectionNamesWithProperty(const std::string& property) const;

  // modifiers
  // Commit all mutation entries in sequence while holding the config mutex
  virtual void Commit(std::queue<MutationEntry>& mutation);
  virtual void SetProperty(std::string section, std::string property, std::string value);
  virtual bool RemoveSection(const std::string& section);
  virtual bool RemoveProperty(const std::string& section, const std::string& property);
  virtual void ConvertEncryptOrDecryptKeyIfNeeded();
  // TODO: have a systematic way of doing this instead of specialized methods
  // Remove sections with |property| set
  virtual void RemoveSectionWithProperty(const std::string& property);
  // remove all content in this config cache, restore it to the state after the explicit constructor
  virtual void Clear();
  // Set a callback to notify interested party that a persistent config change has just happened
  virtual void SetPersistentConfigChangedCallback(std::function<void()> persistent_config_changed_callback);

  // Device config specific methods
  // TODO: methods here should be moved to a device specific config cache if this config cache is supposed to be generic
  // Legacy stack has device type inconsistencies, this method is trying to fix it
  virtual bool FixDeviceTypeInconsistencies();

  // static methods
  // Check if section is formatted as a MAC address
  static bool IsDeviceSection(const std::string& section);

  // constants
  static const std::string kDefaultSectionName;

 private:
  mutable std::recursive_mutex mutex_;
  // A callback to notify interested party that a persistent config change has just happened, empty by default
  std::function<void()> persistent_config_changed_callback_;
  // A set of property names that if set would make a section persistent and if non of these properties are set, a
  // section would become temporary again
  std::unordered_set<std::string_view> persistent_property_names_;
  // Common section that does not relate to remote device, will be written to disk
  common::ListMap<std::string, common::ListMap<std::string, std::string>> information_sections_;
  // Information about persistent devices, normally paired, will be written to disk
  common::ListMap<std::string, common::ListMap<std::string, std::string>> persistent_devices_;
  // Information about temporary devices, normally unpaired, will not be written to disk, will be evicted automatically
  // if capacity exceeds given value during initialization
  common::LruCache<std::string, common::ListMap<std::string, std::string>> temporary_devices_;

  // Convenience method to check if the callback is valid before calling it
  inline void PersistentConfigChangedCallback() const {
    if (persistent_config_changed_callback_) {
      persistent_config_changed_callback_();
    }
  }
};

}  // namespace storage
}  // namespace bluetooth

ConfigCache 类用于管理配置信息，这些信息以部分（section）和键值对的形式存储。部分可以是持久的（persistent）或临时的（temporary）。当写入属于 persistent_property_names_ 集合的属性时，部分会变为持久的；当移除所有属于 persistent_property_names_ 的属性时，部分会变为临时的。

采用分层存储策略的蓝牙配置缓存系统，通过持久化/临时化的二元分类和LRU淘汰机制，在内存效率与数据持久性之间取得平衡。

关键架构设计

①三元存储结构

通用配置段 (information_sections_)
- 存储与具体设备无关的全局配置
- 使用ListMap保证有序存储
- 始终持久化到磁盘
持久化设备段 (persistent_devices_)
- 存储已配对设备的配置信息
- 当包含persistent_property_names_定义的属性时自动持久化
- 使用ListMap维护插入顺序
临时设备段 (temporary_devices_)
- 存储未配对设备的临时配置
- 采用LruCache实现，当容量超过初始化阈值时自动淘汰最久未使用的条目
- 不写入磁盘

②持久化判定机制

通过构造函数传入的persistent_property_names集合定义持久化属性
当设备配置段包含任意持久化属性时：
- 该段升级为持久化状态
- 所有属性（包括非持久化属性）将被写入磁盘
当所有持久化属性被移除时：
- 该段降级为临时状态
- 可能被LRU机制淘汰

③线程安全实现

使用std::recursive_mutex保护所有访问操作
支持递归加锁，避免死锁风险
所有public方法均通过mutex保护，保证多线程环境下的数据一致性

时序图

总结

①核心流程：系统启动时，通过遍历NVRAM中存储的已配对设备信息，提取HID属性（如子类、应用ID、描述符等），校验设备绑定状态后，将有效信息注册到蓝牙HID主机模块（BTA_HH）。采用7步链式处理（设备遍历→属性校验→描述符构建→主机注册），通过btif_config系列接口实现跨模块数据透传，确保HID设备信息的完整性加载

②架构创新：
