一、PS图层样式投影效果

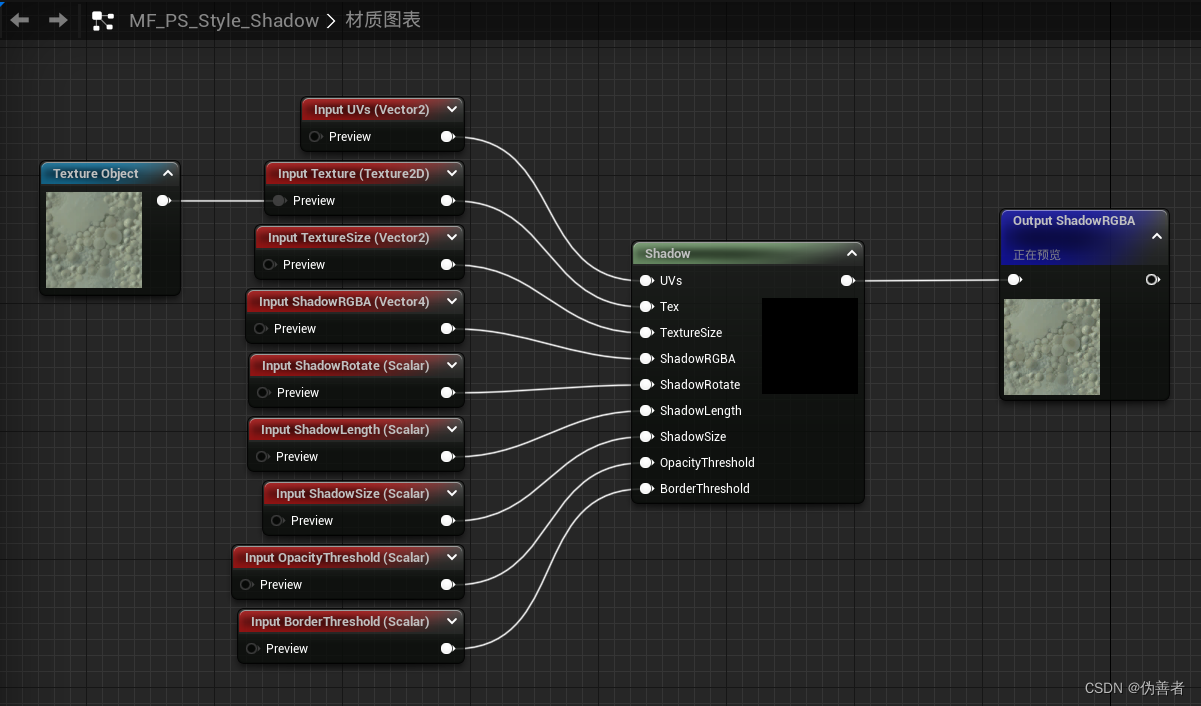

1、创建材质函数

MF_PS_Style_Shadow

公开到库（可选）

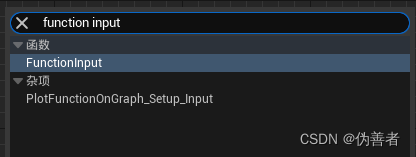

定义 function input。

Shadow代码：

/**
PS图层样式投影效果
	@param {UVs}				texture coordinate
	@param {TextureObject}		texture object
	@param {TextureSize}		纹理大小
	@param {ShadowRGBA}			投影颜色与不透明度
	@param {ShadowRotate}		投影角度
	@param {ShadowLength}		投影距离
	@param {ShadowSize}			投影大小
	@param {OpacityThreshold}	纹理透明度阈值
	@param {BorderThreshold}	边界透明度阈值
*/
float4 Shadow(float2 UVs, Texture2D TextureObject, float2 TextureSize, float4 ShadowRGBA, float ShadowRotate, half ShadowLength, half ShadowSize, float OpacityThreshold = 0, float BorderThreshold = 0.0001) {
	const float PI = acos(-1);
	// 单位像素
	float2 TexturePixel = 1 / TextureSize;
	// 角度
	float Angle = 360 * ShadowRotate;
	// 弧度
	float Degrees = Angle / 180 * PI;
	// 阴影反向方位（单位向量）
	float2 Direction = TexturePixel * float2(cos(Degrees), sin(Degrees));

	class Function {
		Texture2D TextureObject;
		SamplerState TextureObjectSampler;
		float4 ShadowRGBA;
		float2 Position;
		float OpacityThreshold;
		float BorderThresholdLeftAndTop;
		float BorderThresholdRightAndBottom;

		float PI;
		float2 TexturePixel;

		float4 GetShadowRGBA(float2 UVs, out half ShadowStep) {
			ShadowStep = 0;
			float4 TextureRGBA = Texture2DSampleLevel(this.TextureObject, this.TextureObjectSampler, UVs, 0).xyzw;
			if (TextureRGBA.w > this.OpacityThreshold) {
				return TextureRGBA;
			}
			ShadowStep = 1;
			// 阴影反向方位 UVs
			float2 PositionUVs = UVs + this.Position;
			// 阴影反向方位 UVs 超出了 0 - 1 的范围则不计算
			if (PositionUVs.x < this.BorderThresholdLeftAndTop || PositionUVs.x > this.BorderThresholdRightAndBottom || PositionUVs.y < this.BorderThresholdLeftAndTop || PositionUVs.y > this.BorderThresholdRightAndBottom) {
				return TextureRGBA;
			}
			ShadowStep = 2;
			// 阴影反向方位像素点不透明度
			float PositionOpacity = Texture2DSampleLevel(this.TextureObject, this.TextureObjectSampler, PositionUVs, 0).w;
			if (PositionOpacity < this.OpacityThreshold) {
				return TextureRGBA;
			}
			ShadowStep = 3;
			// 返回阴影RGBA
			return this.ShadowRGBA;
		}

		float4 CalculateGetShadowSizeRGBA(float2 UVs) {
			float4 ShadowSizeRGBA = Texture2DSampleLevel(this.TextureObject, this.TextureObjectSampler, UVs, 0).xyzw;
			return ShadowSizeRGBA.w < this.OpacityThreshold ? ShadowSizeRGBA : this.ShadowRGBA;
		}

		float Calculate1DGaussian(float x) {
			return exp(-0.5 * pow(this.PI * x, 2));
		}

		float4 GetShadowSizeRGBA(float2 UVs, half ShadowSize) {
			// 投影大小范围内像素颜色累加
			float4 RGBASum = float4(0, 0, 0, 0);
			// 投影大小范围内像素的权重
			float WeightSum = 0;
			for (half x = -ShadowSize; x <= ShadowSize; x++) {
				for (half y = -ShadowSize; y <= ShadowSize; y++) {
					float Weight = this.Calculate1DGaussian(x / ShadowSize) * this.Calculate1DGaussian(y / ShadowSize);
					WeightSum += Weight;
					float2 OffsetUVs = UVs + float2(x, y) * this.TexturePixel + this.Position;
					if (OffsetUVs.x < this.BorderThresholdLeftAndTop || OffsetUVs.x > this.BorderThresholdRightAndBottom || OffsetUVs.y < this.BorderThresholdLeftAndTop || OffsetUVs.y > this.BorderThresholdRightAndBottom) {
						continue;
					}
					float4 RGBA = this.CalculateGetShadowSizeRGBA(OffsetUVs);
					RGBASum += RGBA * Weight;
				}
			}
			return RGBASum / WeightSum;
		}
	};		// 注意要加分号

	// func.TextureObject = TextureObject;
	// func.TextureObjectSampler = TextureObjectSampler;
	// func.ShadowRGBA = ShadowRGBA;
	// func.Position = ShadowLength * Direction;
	// func.OpacityThreshold = OpacityThreshold;
	// func.BorderThresholdLeftAndTop = BorderThreshold;
	// func.BorderThresholdRightAndBottom = 1 - BorderThreshold;
	// func.PI = PI;
	// func.TexturePixel = TexturePixel;
	Function func = { TextureObject, TextureObjectSampler, ShadowRGBA, ShadowLength * Direction, OpacityThreshold, BorderThreshold, 1 - BorderThreshold, PI, TexturePixel };

	half ShadowStep;
	// 结果色
	float4 RGBA = func.GetShadowRGBA(UVs, ShadowStep);
	// 如果不是投影区域，则返回当前结果色
	if (ShadowStep <= 1 || ShadowSize < 1) {
		return RGBA;
	}

	// 返回计算阴影大小后的结果色
	return func.GetShadowSizeRGBA(UVs, ShadowSize);
}

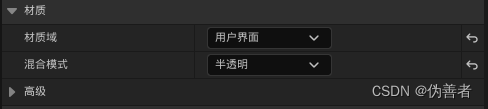

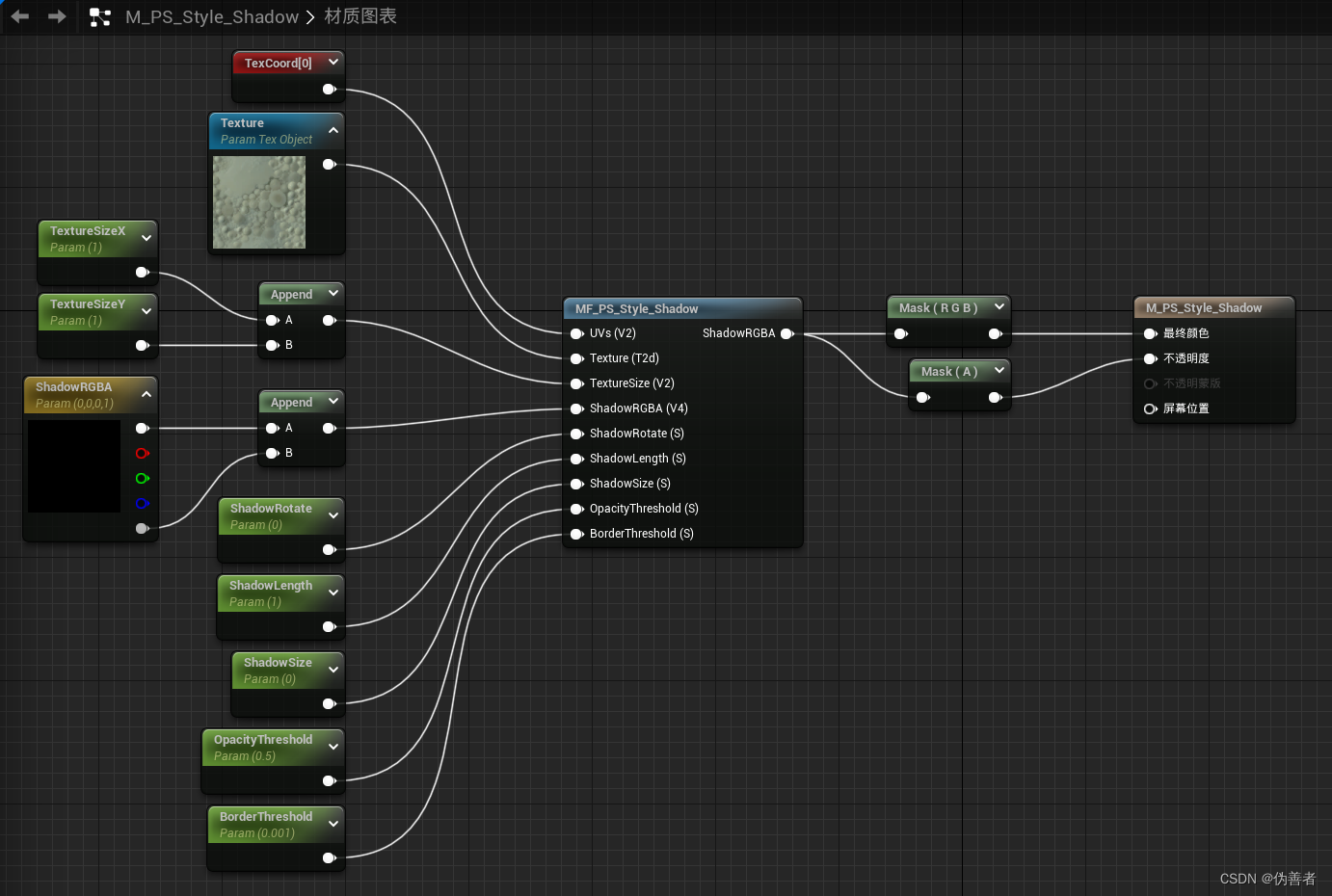

2、创建材质

M_PS_Style_Shadow

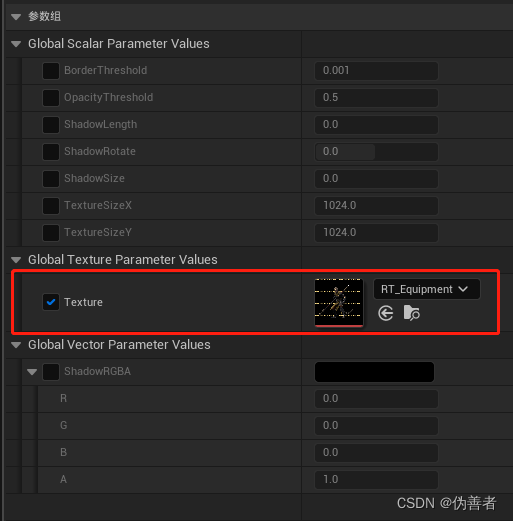

修改参数。

如果之前没有公开到库，则使用 material function call 调用

3、效果预览

一、渲染人物角色

1、创建渲染目标

命名为 RT_Equipment。

用于 UI 贴图，修改参数，这里大小使用1024。

2、创建 Actor

命名 BP_Equipment。

添加场景捕获组件2D。

根据需要设置参数。

添加骨骼网络体组件。

指定模型与动画。

调整好位置。

3、放入场景。

将 BP_Equipment 放入 Level，也可以在运行时动态生成。

4、修改材质

由于 A 通道需要反向，所以之前的 Shadow 代码做如下改动：

改动一：

			float4 TextureRGBA = Texture2DSampleLevel(this.TextureObject, this.TextureObjectSampler, UVs, 0).xyzw;
			TextureRGBA = float4(TextureRGBA.rgb, 1 - TextureRGBA.a);
			if (TextureRGBA.w > this.OpacityThreshold) {
				return TextureRGBA;
			}

改动二：

			float PositionOpacity = Texture2DSampleLevel(this.TextureObject, this.TextureObjectSampler, PositionUVs, 0).w;
			if (1 - PositionOpacity < this.OpacityThreshold) {
				return TextureRGBA;
			}

改动三：

			float4 ShadowSizeRGBA = Texture2DSampleLevel(this.TextureObject, this.TextureObjectSampler, UVs, 0).xyzw;
			ShadowSizeRGBA = float4(ShadowSizeRGBA.rgb, 1 - ShadowSizeRGBA.a);
			return ShadowSizeRGBA.w < this.OpacityThreshold ? ShadowSizeRGBA : this.ShadowRGBA;
