Qt基础 QPieSeries饼状图

news2025/7/10 6:28:11



目录

1.简单例子

2. 稍微复杂点

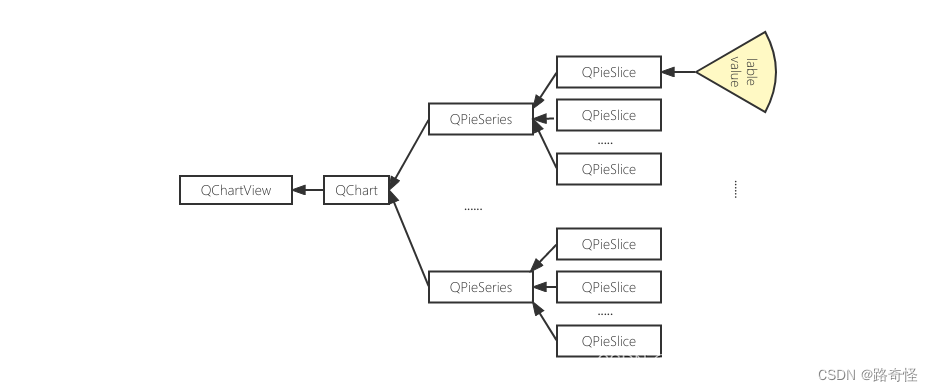

QPieSeries Class：饼状图数据

QChart

管理图表系列、图例和轴的图形表示

QChartView

可以显示图表的独立小部件

QPieSeries

在饼图中显示数据

QPieSlice

表示饼图系列中的单个切片（其实就是标签）

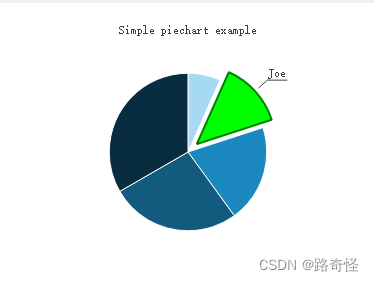

1.简单例子

//![1]
    QPieSeries *series = new QPieSeries();
    series->append("Jane", 1);
    series->append("Joe", 2);
    series->append("Andy", 3);
    series->append("Barbara", 4);
    series->append("Axel", 5);
//![1]

//![2]
    QPieSlice *slice = series->slices().at(1);
    slice->setExploded();
    slice->setLabelVisible();
    slice->setPen(QPen(Qt::darkGreen, 2));
    slice->setBrush(Qt::green);
//![2]

//![3]
    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple piechart example");
    chart->legend()->hide();
//![3]

//![4]
    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);
//![4]

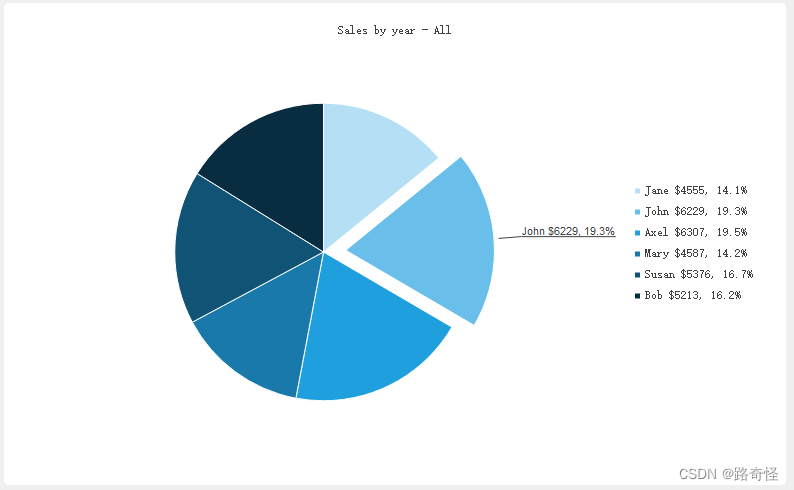

2. 稍微复杂点

tip：这里面有两个地方没看懂（我标红），有看懂的的留言解释一下

drilldownchart.h/.cpp

//.h
/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/
#ifndef DRILLDOWNCHART_H
#define DRILLDOWNCHART_H

#include <QtCharts/QChart>

QT_CHARTS_BEGIN_NAMESPACE
class QAbstractSeries;
class QPieSlice;
QT_CHARTS_END_NAMESPACE

QT_CHARTS_USE_NAMESPACE

class DrilldownChart : public QChart
{
    Q_OBJECT
public:
    explicit DrilldownChart(QGraphicsItem *parent = 0, Qt::WindowFlags wFlags = 0);
    ~DrilldownChart();
    void changeSeries(QAbstractSeries *series);

public Q_SLOTS:
    void handleSliceClicked(QPieSlice *slice);

private:
    QAbstractSeries *m_currentSeries;
};

#endif // DRILLDOWNCHART_H

// .cpp
/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/
#include "drilldownchart.h"
#include "drilldownslice.h"

QT_CHARTS_USE_NAMESPACE

DrilldownChart::DrilldownChart(QGraphicsItem *parent, Qt::WindowFlags wFlags)
    : QChart(QChart::ChartTypeCartesian, parent, wFlags),
      m_currentSeries(0)
{

}

DrilldownChart::~DrilldownChart()
{

}

void DrilldownChart::changeSeries(QAbstractSeries *series)
{
    // NOTE: if the series is owned by the chart it will be deleted
    // here the "window" owns the series...
    if (m_currentSeries)
        removeSeries(m_currentSeries);
    m_currentSeries = series;
    addSeries(series);
    setTitle(series->name());
}

void DrilldownChart::handleSliceClicked(QPieSlice *slice)
{
    DrilldownSlice *drilldownSlice = static_cast<DrilldownSlice *>(slice);
    changeSeries(drilldownSlice->drilldownSeries());
}

#include "moc_drilldownchart.cpp"

drilldownslice.h/cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/
#ifndef DRILLDOWNSLICE_H
#define DRILLDOWNSLICE_H

#include <QtCharts/QPieSlice>

QT_CHARTS_BEGIN_NAMESPACE
class QAbstractSeries;
QT_CHARTS_END_NAMESPACE

QT_CHARTS_USE_NAMESPACE

class DrilldownSlice : public QPieSlice
{
    Q_OBJECT

public:
    DrilldownSlice(qreal value, QString prefix, QAbstractSeries *drilldownSeries);
    virtual ~DrilldownSlice();
    QAbstractSeries *drilldownSeries() const;

public Q_SLOTS:
    void updateLabel();
    void showHighlight(bool show);

private:
    QAbstractSeries *m_drilldownSeries;
    QString m_prefix;
};

#endif // DRILLDOWNSLICE_H

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "drilldownslice.h"

QT_CHARTS_USE_NAMESPACE

DrilldownSlice::DrilldownSlice(qreal value, QString prefix, QAbstractSeries *drilldownSeries)
    : m_drilldownSeries(drilldownSeries),
      m_prefix(prefix)
{
    setValue(value);
    updateLabel();
    setLabelFont(QFont("Arial", 8));
    connect(this, &DrilldownSlice::percentageChanged, this, &DrilldownSlice::updateLabel);
    connect(this, &DrilldownSlice::hovered, this, &DrilldownSlice::showHighlight);
}

DrilldownSlice::~DrilldownSlice()
{

}

QAbstractSeries *DrilldownSlice::drilldownSeries() const
{
    return m_drilldownSeries;
}

void DrilldownSlice::updateLabel()
{
    QString label = m_prefix;
    label += " $";
    label += QString::number(this->value());
    label += ", ";
    label += QString::number(this->percentage() * 100, 'f', 1);
    label += "%";
    setLabel(label);
}

void DrilldownSlice::showHighlight(bool show)
{
    setLabelVisible(show);
    setExploded(show);
}

#include "moc_drilldownslice.cpp"

main.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "drilldownchart.h"
#include "drilldownslice.h"
#include <QtWidgets/QApplication>
#include <QtWidgets/QMainWindow>
#include <QtCore/QRandomGenerator>
#include <QtCharts/QChartView>
#include <QtCharts/QLegend>
#include <QtCharts/QPieSeries>

QT_CHARTS_USE_NAMESPACE

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);

    QMainWindow window;

    DrilldownChart *chart = new DrilldownChart();
    chart->setTheme(QChart::ChartThemeLight);
    chart->setAnimationOptions(QChart::AllAnimations);
    chart->legend()->setVisible(true);
    chart->legend()->setAlignment(Qt::AlignRight);

    QPieSeries *yearSeries = new QPieSeries(&window);
    yearSeries->setName("Sales by year - All");

    const QStringList months = {
        "Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"
    };
    const QStringList names = {
        "Jane", "John", "Axel", "Mary", "Susan", "Bob"
    };

    for (const QString &name : names) {
        QPieSeries *series = new QPieSeries(&window);
        series->setName("Sales by month - " + name);

        //QRandomGenerator::global()->bounded(2)
        for (const QString &month : months)
            *series << new DrilldownSlice(QRandomGenerator::global()->bounded(1000), month, yearSeries);

        QObject::connect(series, &QPieSeries::clicked, chart, &DrilldownChart::handleSliceClicked);

        *yearSeries << new DrilldownSlice(series->sum(), name, series);
    }

    QObject::connect(yearSeries, &QPieSeries::clicked, chart, &DrilldownChart::handleSliceClicked);

    chart->changeSeries(yearSeries);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);
    window.setCentralWidget(chartView);
    window.resize(800, 500);
    window.show();

    return a.exec();
}

tip：上面代码QObject::connect按道理不应该这样写，是按照下面这样去弄，没看懂上面这样写是什么意思

    for (const QString &name : names) {
        QPieSeries *series = new QPieSeries(&window);
        series->setName("Sales by month - " + name);

        //QRandomGenerator::global()->bounded(2)
        for (const QString &month : months)
        {
            *series << new DrilldownSlice(QRandomGenerator::global()->bounded(1000), month, yearSeries);
            QObject::connect(series, &QPieSeries::clicked, chart, &DrilldownChart::handleSliceClicked);
        }

        *yearSeries << new DrilldownSlice(series->sum(), name, series);
        QObject::connect(yearSeries, &QPieSeries::clicked, chart, &DrilldownChart::handleSliceClicked);
    }



本文来自互联网用户投稿，该文观点仅代表作者本人，不代表本站立场。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如若转载，请注明出处：http://www.coloradmin.cn/o/1103869.html

如若内容造成侵权/违法违规/事实不符，请联系多彩编程网进行投诉反馈，一经查实，立即删除！

相关文章

鸿蒙应用开发之HTTP数据请求

鸿蒙应用开发之HTTP数据请求

一、概述 日常生活中我们使用应用程序看新闻、发送消息等&#xff0c;都需要连接到互联网&#xff0c;从服务端获取数据。例如&#xff0c;新闻应用可以从新闻服务器中获取最新的热点新闻&#xff0c;从而给用户打造更加丰富、更加实用的体验。 那么要实现这样一种能实时从服务…
阅读更多...
Python突破浏览器TLS/JA3 指纹

Python突破浏览器TLS/JA3 指纹

JA3 是一种创建 SSL/TLS 客户端指纹的方法&#xff0c;一般一个网站的证书是不变的&#xff0c;所以浏览器指纹也是稳定的&#xff0c;能区分不同的客户端。 requests库 Python requests库请求一个带JA3指纹网站的结果&#xff1a; import requestsheaders {authority: tls…
阅读更多...
P2251 质量检测

P2251 质量检测

题目&#xff1a; P2251 质量检测 - 洛谷 | 计算机科学教育新生态 (luogu.com.cn) 代码&#xff1a; #include<iostream> #include<cstdio> #include<deque> #include<vector> typedef long long ll; const ll N 1e7; using namespace std;int main…
阅读更多...
nocos配置中心使用教程(NACOS 1.X版本)

nocos配置中心使用教程(NACOS 1.X版本)

1.下载和安装 进入到官网下载就好了 解压 启动 2.新建cloudalibaba-config-nacos-client3377 2.1 pom.xml <?xml version"1.0" encoding"UTF-8"?> <project xmlns"http://maven.apache.org/POM/4.0.0"xmlns:xsi"http://w…
阅读更多...
【LeetCode刷题（数据结构与算法）】：链表中的两数相加

【LeetCode刷题（数据结构与算法）】：链表中的两数相加

给你两个非空的链表&#xff0c;表示两个非负的整数 它们每位数字都是按照 逆序 的方式存储的&#xff0c;并且每个节点只能存储一位数字 请你将两个数相加&#xff0c;并以相同形式返回一个表示和的链表 你可以假设除了数字 0 之外&#xff0c;这两个数都不会以 0 开头 示例1&…
阅读更多...
数据库如何储存和管理数据的？

数据库如何储存和管理数据的？

文章目录 磁盘IO数据的存储特别的 前言:众所周知,数据库就是一个将各类数据,以表格的形式存储的,但是看似如此简单的功能它是真的简单吗?我们和直接使用简单的Excel建立的表格有区别吗?如果有在哪里? PS&#xff1a;本文以常用的MySQL为例 磁盘IO 在不考虑缓存等机制&#…
阅读更多...
【Tent-SSA-BP】基于Tent混沌映射改进的麻雀算法优化BP神经网络回归预测研究（Matlab代码实现）

【Tent-SSA-BP】基于Tent混沌映射改进的麻雀算法优化BP神经网络回归预测研究（Matlab代码实现）

&#x1f4a5;&#x1f4a5;&#x1f49e;&#x1f49e;欢迎来到本博客❤️❤️&#x1f4a5;&#x1f4a5; &#x1f3c6;博主优势&#xff1a;&#x1f31e;&#x1f31e;&#x1f31e;博客内容尽量做到思维缜密&#xff0c;逻辑清晰&#xff0c;为了方便读者。 ⛳️座右铭&a…
阅读更多...
站内全文搜索，怎样能更好找到自己想要的信息？

站内全文搜索，怎样能更好找到自己想要的信息？

对于博客或者文档&#xff0c;站内全文搜索是非常重要的功能。现在有许多网站生成器工具可供选择&#xff0c;无论是静态的、带有完整后台的&#xff0c;还是基于低代码或无代码的。但是如今网站往往拥有大量的内容和信息。为了能够快速有效找到所需的信息&#xff0c;无论是通…
阅读更多...
黑马JVM总结（三十七）

黑马JVM总结（三十七）

&#xff08;1&#xff09;synchronized-轻量级锁-无竞争 &#xff08;2&#xff09;synchronized-轻量级锁-锁膨胀 重量级锁就是我们前面介绍过的Monitor enter &#xff08;3&#xff09;synchronized-重量级锁-自旋 &#xff08;4&#xff09;synchronized-偏向锁 轻量级锁…
阅读更多...
基于ssm+vue的线上点餐系统

基于ssm+vue的线上点餐系统

末尾获取源码 开发语言&#xff1a;Java Java开发工具&#xff1a;JDK1.8 后端框架&#xff1a;SSM 前端&#xff1a;Vue 数据库&#xff1a;MySQL5.7和Navicat管理工具结合 服务器&#xff1a;Tomcat8.5 开发软件&#xff1a;IDEA / Eclipse 是否Maven项目&#xff1a;是 目录…
阅读更多...
ACU-01B 3HNA024871-001/03 机器人将如何改变世界

ACU-01B 3HNA024871-001/03 机器人将如何改变世界

ACU-01B 3HNA024871-001/03 机器人将如何改变世界 由于改进的传感器技术以及机器学习和人工智能方面更显著的进步&#xff0c;机器人将继续从单纯的机械机器转变为具有认知功能的合作者。这些进步&#xff0c;以及其他相关领域&#xff0c;正在享受一个上升的轨迹&#xff0c;…
阅读更多...
分类选择，最多五级

分类选择，最多五级

效果图&#xff0c;这种竖向的分类选择&#xff0c;每一列可以用不同的背景颜色 组件代码 <template><view class"toolTypeBox" :style"max-height:${maxHeight}"><block v-for"(item,index) in datalist"><block v-if&…
阅读更多...
hanniman 1v1 咨询

hanniman 1v1 咨询

‍ 一共4种可选方案&#xff0c;3个To C&#xff08;面向AI产品经理的职业规划诊断、求职内推套餐、模拟面试&#xff09;&#xff0c;1个To B&#xff08;面向AI企业/投资机构/券商等&#xff09;。 方案A&#xff1a;职业规划诊断 适合人群&#xff1a;AI产品经理 or 想转型A…
阅读更多...
深入理解强化学习——学习（Learning）、规划（Planning）、探索（Exploration）和利用（Exploitation）

深入理解强化学习——学习（Learning）、规划（Planning）、探索（Exploration）和利用（Exploitation）

分类目录&#xff1a;《深入理解强化学习》总目录 学习 学习&#xff08;Learning&#xff09;和规划&#xff08;Planning&#xff09;是序列决策的两个基本问题。 如下图所示&#xff0c;在强化学习中&#xff0c;环境初始时是未知的&#xff0c;智能体不知道环境如何工作&a…
阅读更多...
钢铁异常分类 few-shot 问题 小陈读paper 钢铁2

钢铁异常分类 few-shot 问题 小陈读paper 钢铁2

很清爽的 abstract 给出链接 前面的背景意义 其实 是通用的 这里替大家 整理一吓吓 1 缺陷分类在钢铁表面缺陷检测中 有 意义。 2 大多数缺陷分类模型都是基于完全监督的学习&#xff0c; 这需要大量带有图像标签的训练数据。 在工业场景中收集有缺陷的图像是非常困难…
阅读更多...
C语言笔记之指针

C语言笔记之指针

一.指针含义 1.a、*a与&a的区别 a存储指向变量的地址,*a为指针的值,&a为指针的地址 #include <stdio.h>int main(){/** 测试代码部分一 **/int a12;int *b1;b1&a1;printf(" a1 %d, &a1 %d, b1 %d, *b1 %d, &b1 %d\n\n",a1,&a1…
阅读更多...
番外8.0 ---Linux服务器用户与组Task

番外8.0 ---Linux服务器用户与组Task

Task0: 熟悉Linux用户的访问权限&#xff1b; 管理用户账户&#xff1b; 管理组&#xff1b; 使用用户管理器管理组和用户&#xff1b; 使用常用的账户管理命令&#xff1b; 批量新建账户&#xff1b; 项目情况&#xff1a;公司员工&#xff1a;60&#xff0c;部门&#xff1…
阅读更多...
Python网络编程之Socket(套接字)

Python网络编程之Socket(套接字)

文章目录 一、Socket概念二、套接字的发展史及分类三、Socket的使用语法格式(基于TCP协议)1.基于TCP协议的套接字(socket)编程半连接池 2.基于UDP协议的套接字(socket)编程也可以使用服务端只接收客户端消息 黏包现象 一、Socket概念 Socket套接字&#xff0c;一种独立于协议的…
阅读更多...
机器学习，神经网络中，自注意力跟卷积神经网络之间有什么样的差异或者关联?

机器学习，神经网络中，自注意力跟卷积神经网络之间有什么样的差异或者关联?

如图 6.38a 所示&#xff0c;如果用自注意力来处理一张图像&#xff0c;假设红色框内的“1”是要考虑的像素&#xff0c;它会产生查询&#xff0c;其他像素产生 图 6.37 使用自注意力处理图像 键。在做内积的时候&#xff0c;考虑的不是一个小的范围&#xff0c;而是整张图像的…
阅读更多...
力扣每日一题45：跳跃游戏

力扣每日一题45：跳跃游戏

题目描述&#xff1a; 给定一个长度为 n 的 0 索引整数数组 nums。初始位置为 nums[0]。 每个元素 nums[i] 表示从索引 i 向前跳转的最大长度。换句话说&#xff0c;如果你在 nums[i] 处&#xff0c;你可以跳转到任意 nums[i j] 处: 0 < j < nums[i] i j < n 返…
阅读更多...
推荐文章
最新文章

Copyright @ 2022~2023
