CountDownLatch意思理解

单词1: countdown

常见释义: 英[ˈkaʊntdaʊn] 美[ˈkaʊntdaʊn]
n.	倒数读秒，倒计时(如发射宇宙飞船时); 大事临近的时期;
[例句]The countdown to Christmas starts here.
现在开始圣诞节倒计时。
[其他]	复数：countdowns

单词2: latch

常见释义 英[lætʃ] 美[lætʃ]
n.	插销; 门闩; 弹簧锁; 碰锁;
vt.	用插销插上; 用碰锁锁上;
[例句]He lifted the latch and opened the door.
他拉起门闩开了门。
[其他]	第三人称单数：latches 复数：latches 现在分词：latching 过去式：latched 过去分词：latched

场景：完成某件事情时，前面的一些事情都要完成，然后自己才能继续。

远离：使用一个计数器进行实现，计数器初始值就是其它线程的数量。当每个被计数的线程完成任务后，计数器值减一，当计数器的值为0时，表示所有线程都已经完成了任务，然后在CountDownLatch上等待的线程就可以恢复执行。

普通多线程运行

 public static void main(String[] args) throws InterruptedException {

        Runnable runnable = new Runnable() {
            @Override
            public void run () {
                try {
                    // 业务处理
                    TimeUnit.SECONDS.sleep(3);
                    System.out.println(Thread.currentThread().getName() + ":" + " finished");
                } catch (Exception e) {
                    e.printStackTrace();
                } finally {

                }
            }
        };
        List<Thread> threads = new ArrayList<>(4);
        for(int i= 0;i<4;i++) {
            Thread thread = new Thread(runnable);
            threads.add(thread);
        }
        for(Thread thread: threads){
            thread.start();
        }

        System.out.println("main end");

    }

Thread.join()实现

如下，main线程和其它线程运行时序不定，达不到其它线程都结束后main县城再结束的效果。

  public static void main(String[] args) throws InterruptedException {

        Runnable runnable = new Runnable() {
            @Override
            public void run () {
                try {
                    // 业务处理
                    TimeUnit.SECONDS.sleep(3);
                    System.out.println(Thread.currentThread().getName() + ":" + " finished");
                } catch (Exception e) {
                    e.printStackTrace();
                } finally {

                }
            }
        };
        List<Thread> threads = new ArrayList<>(4);
        for(int i= 0;i<4;i++) {
            Thread thread = new Thread(runnable);
            threads.add(thread);
        }
        for(Thread thread: threads){
            thread.start();
        }
        for(Thread thread: threads){
            thread.join();
        }

        System.out.println("main end");

    }

join原理：

• A线程中执行 B.join()，则A线程阻塞住，直到线程B完成，A线程才能再继续。

• join方法的本质调用的是Object中的wait方法实现线程的阻塞，即有monitor锁的概念。所以B线程执行一半要通知A线程继续则无法实现。

CountDownLatch实现

public class Test {

    final static int CNT = 3;

    static CountDownLatch countDownLatch = new CountDownLatch(CNT);


    public static void main(String[] args) throws InterruptedException {

        Runnable runnable = new Runnable() {
            @Override
            public void run () {
                try {
                    // 业务处理
                    TimeUnit.SECONDS.sleep(2);
                    System.out.println(Thread.currentThread().getName() + ":" + "business finished");
                    countDownLatch.countDown();
                    // 其它处理
                    TimeUnit.SECONDS.sleep(1);
                    System.out.println(Thread.currentThread().getName() + ":" + " finished");
                } catch (Exception e) {
                    e.printStackTrace();
                } finally {
                }
            }
        };
        List<Thread> threads = new ArrayList<>(4);
        for (int i = 0; i < CNT; i++) {
            Thread thread = new Thread(runnable);
            threads.add(thread);
        }
        for (Thread thread : threads) {
            thread.start();
        }
        countDownLatch.await();
        System.out.println("main end");
    }

}

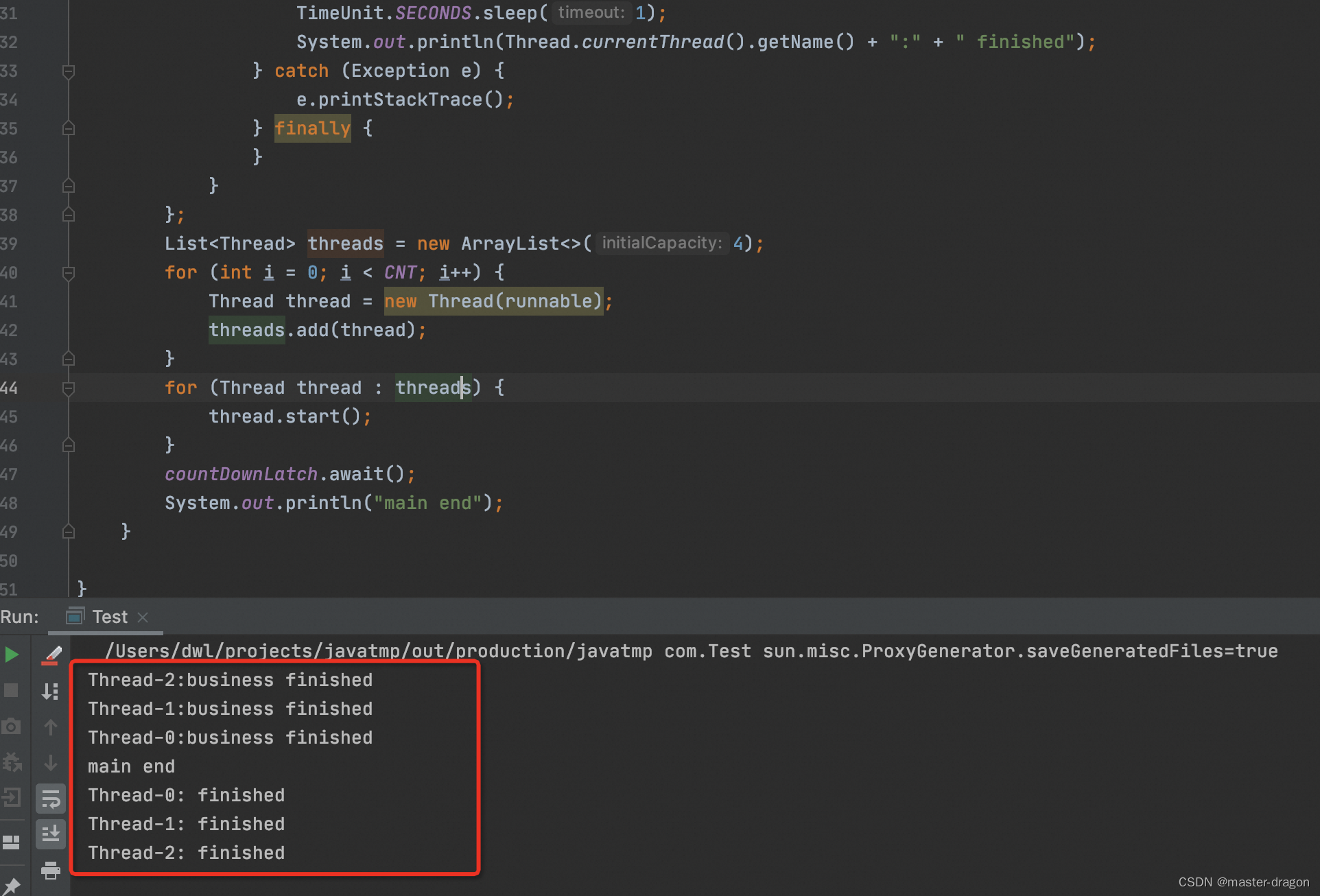

输出如下： main线程只等待业务线程的业务逻辑结束就行。（当然应该写两个try finally, 避免结束不了）

改进如下：

public class Test {

    final static int CNT = 3;

    static CountDownLatch countDownLatch = new CountDownLatch(CNT);


    public static void main(String[] args) throws InterruptedException {

        Runnable runnable = new Runnable() {
            @Override
            public void run () {
                // 业务处理
                try {
                    TimeUnit.SECONDS.sleep(2);
                    System.out.println(Thread.currentThread().getName() + ":" + "business finished");
                } catch (Exception e) {
                    e.printStackTrace();
                } finally {
                    countDownLatch.countDown();
                }
                // 其它处理
                try {
                    TimeUnit.SECONDS.sleep(1);
                    System.out.println(Thread.currentThread().getName() + ":" + " finished");
                } catch (Exception e) {
                    e.printStackTrace();
                } finally {
                }

            }
        };
        List<Thread> threads = new ArrayList<>(4);
        for (int i = 0; i < CNT; i++) {
            Thread thread = new Thread(runnable);
            threads.add(thread);
        }
        for (Thread thread : threads) {
            thread.start();
        }
        countDownLatch.await();
        System.out.println("main end");
    }

}

CountDownLatch流程

new CountDownLatch(3)

public CountDownLatch(int count) {
   if (count < 0) throw new IllegalArgumentException("count < 0");
   this.sync = new Sync(count);
}

CountDownLatch内部自己实现了继承AbstractQueuedSynchronizer的同步器，如下

 private static final class Sync extends AbstractQueuedSynchronizer {
        private static final long serialVersionUID = 4982264981922014374L;

        Sync(int count) {
            setState(count);
        }

        int getCount() {
            return getState();
        }

        protected int tryAcquireShared(int acquires) {
            return (getState() == 0) ? 1 : -1;
        }

        protected boolean tryReleaseShared(int releases) {
            // Decrement count; signal when transition to zero
            for (;;) {
                int c = getState();
                if (c == 0)
                    return false;
                int nextc = c - 1;
                if (compareAndSetState(c, nextc))
                    return nextc == 0;
            }
        }
    }

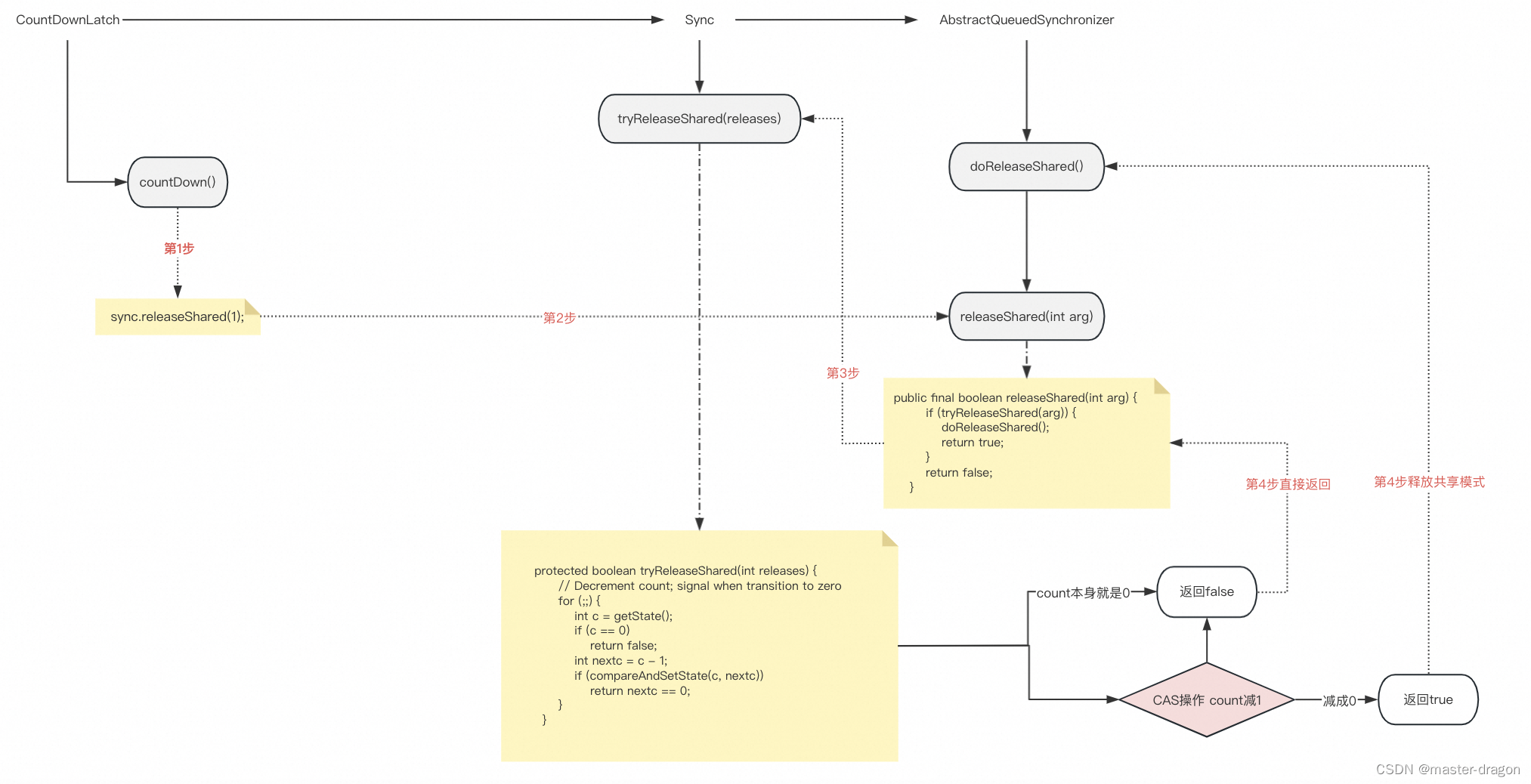

countDown 方法

await方法

CountDownLatch 并没有往aqs队列加入节点，而是使用aqs的共享模式

aqs的java.util.concurrent.locks.AbstractQueuedSynchronizer#doAcquireSharedInterruptibly方法

private void doAcquireSharedInterruptibly(int arg)
    throws InterruptedException {
    final Node node = addWaiter(Node.SHARED);
    try {
        for (;;) {
            final Node p = node.predecessor();
            if (p == head) {
                int r = tryAcquireShared(arg);
                if (r >= 0) {
                    setHeadAndPropagate(node, r);
                    p.next = null; // help GC
                    return;
                }
            }
            if (shouldParkAfterFailedAcquire(p, node) &&
                parkAndCheckInterrupt())
                throw new InterruptedException();
        }
    } catch (Throwable t) {
        cancelAcquire(node);
        throw t;
    }
}

只要countDown没有减到0,那么Node.SHARED就是head， 则一直for(;😉 死循环的执行判断countDown为0，只要为0,就返回退出了

  if (p == head) {
   int r = tryAcquireShared(arg);
      if (r >= 0) {
          setHeadAndPropagate(node, r);
          p.next = null; // help GC
          return;
      }
  }

其中tryAcquireShared(arg);则是CountDownLatch中d的判断逻辑 java.util.concurrent.CountDownLatch.Sync#tryAcquireShared

protected int tryAcquireShared(int acquires) {
    return (getState() == 0) ? 1 : -1;
}
